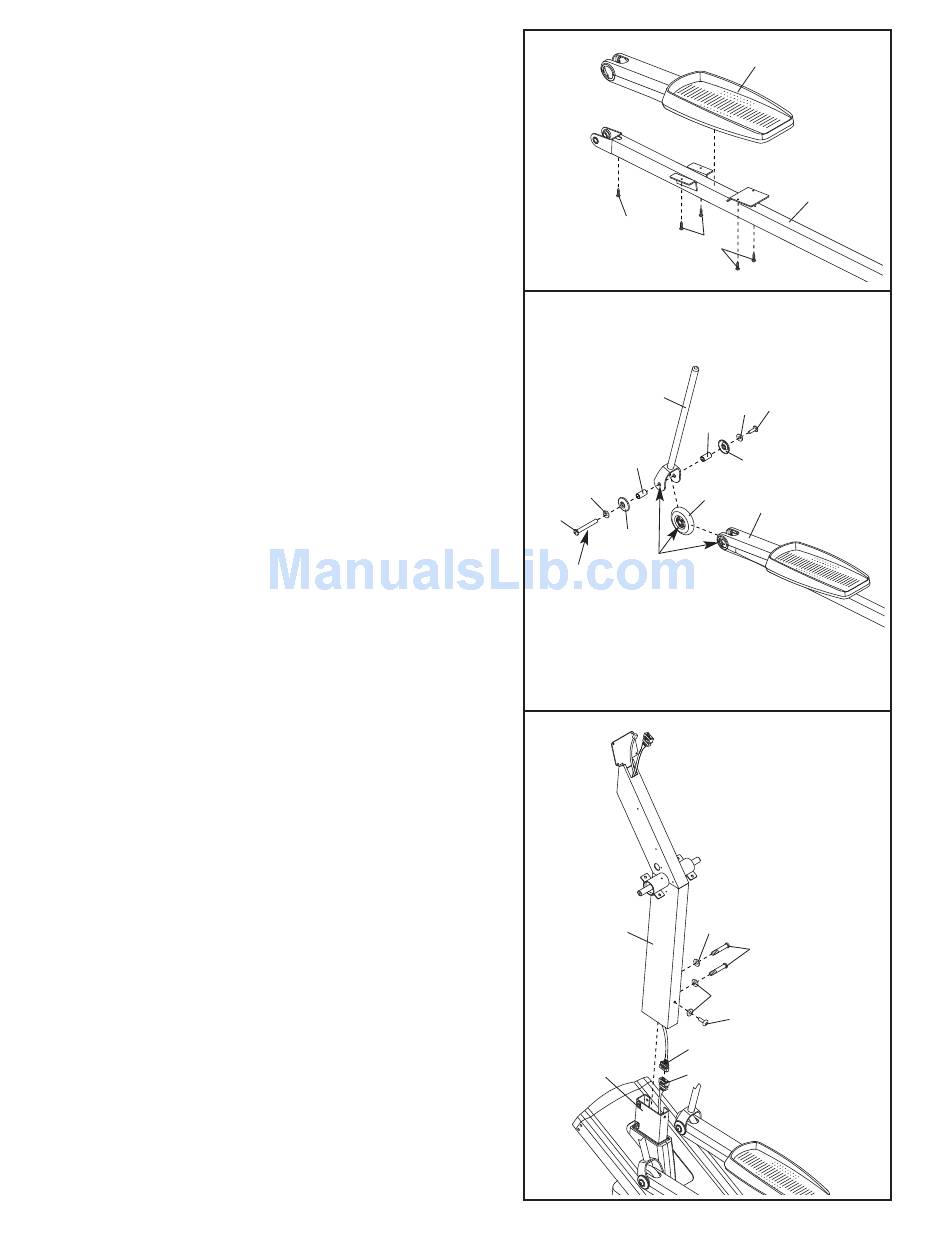

5. Attach a Pedal Assembly (39) to the Left Pedal Arm (9)
with five M4 x 16mm Screws (89).
Attach the other Pedal Assembly (not shown) to the
Right Pedal Arm (not shown) in the same way.
6. Remove the two Pivot Shafts (10) from the two Pivot
Arms (not shown). Next, identify a Union Set (86), and
remove the screw from the barrel. Apply a small
amount of grease to the outside of the barrel.
Slide an M8 x 18mm Washer (93), a Wheel Cap (53),
and a 30mm Spacer (87) onto the barrel of the Union
Set (86). While another person aligns the indicated
holes in the Left Pedal Assembly (39), a Pedal Arm
Wheel (52), and a Pivot Shaft (10), insert the barrel
through all of the holes. Then, slide another 30mm
Spacer (87) onto the barrel.
Next, slide an M8 x 18mm Washer (93) and a Wheel
Cap (53) onto the screw of the Union Set (86), and
tighten the screw into the barrel.
Attach the other Pivot Shaft (not shown) and the other
Pedal Arm Wheel (not shown) to the Right Pedal
Assembly (not shown) in the same way.
7. While another person holds the Upright (4) near the
Frame (1), connect the Upper Wire Harness (58) to the
Extension Wire Harness (59). Slide the Upright onto
the top of the Frame, being careful not to pinch the
Wire Harnesses.
Attach the Upright (4) to the Frame (1) with two M8 x
47mm Button Screws (110), an M8 x 25mm Button
Screw (100), and three M8 Split Washers (85).
5
89
6
10
87
93
86
53
Align
Grease
these
holes
7
4
1
6
39
9
89
86
93
87
53
52
39
Do not pinch the
wire harnesses
during this step.
85
110
85
100
58
59
