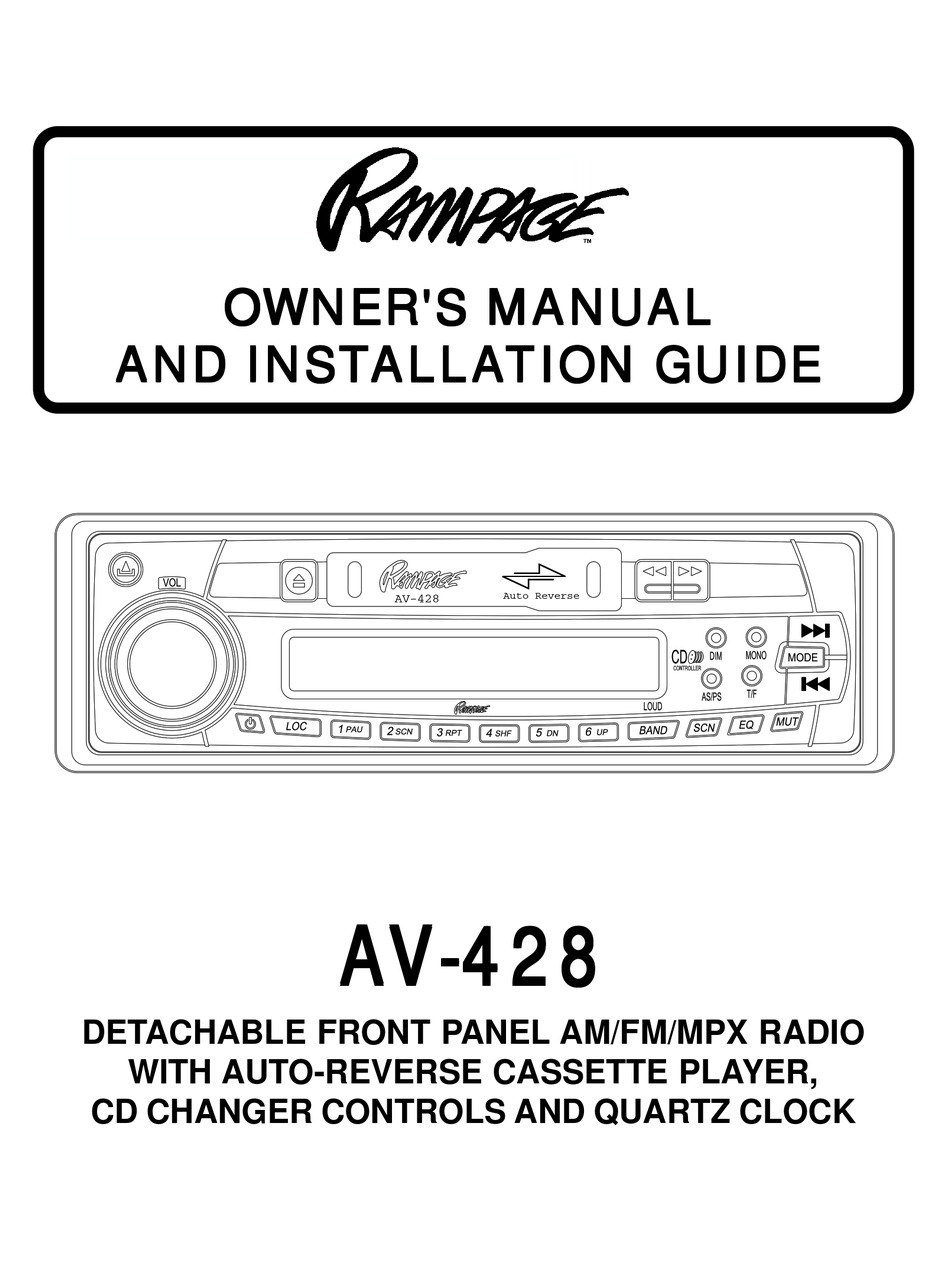

- Page 1 DETACHABLE FRONT PANEL AM/FM/MPX RADIO WITH AUTO-REVERSE CASSETTE PLAYER, CD CHANGER CONTROLS AND QUARTZ CLOCK ALLA ALLA TION GUIDE TION GUIDE ALLA TION GUIDE TION GUIDE ALLA TION GUIDE Auto Reverse AV-428 A A A A A V-428 V-428 V-428 V-428 V-428...
-
Page 2: Installation Instructions
This unit is designed for installation in cars, trucks, and vans with an existing radio opening. In many cases, a special installation kit will be required to mount the radio to the dashboard. These kits are available at electronics supply stores and car stereo specialist shops. Always check the kit application before purchasing to make sure the kit works with your vehicle. -
Page 3: Iso Installation
T T T T T oll-Fr oll-Fr oll-Fr oll-Fr oll-Fre e e e e e Ins The installation and wiring connections for this unit are so simple, we doubt you'll need our help, but, if you do, we're here to help you. Just call our toll-free telephone assistance line at 1-800-645-4994 during the days and hours shown (U.S.A. - Page 4 R R R R R A A A A A DIO WIRING DIO WIRING DIO WIRING DIO WIRING DIO WIRING REFER TO PAGE 5 FOR SPEAKER WIRING AUTOMATIC ANTENNA ANTENNA EXISTING ANTENNA CABLE ANTENNA PLUG 4 4 4 4 4 BLUE IMPORTANT THE BLUE WIRE CAN BE USED TO...
- Page 5 NEVER COMBINE (BRIDGE) OUTPUTS FOR USE WITH 2 SPEAKERS. FOR RADIO WIRING NEVER GROUND NEGATIVE SPEAKER LEADS TO CHASSIS GROUND. FAILURE TO WIRE EXACTLY AS SHOWN BELOW MAY CAUSE ELECTRICAL DAMAGE TO THE RADIO. RCA JACKS LINE OUT FOR USE WITH OPTIONAL...
- Page 6 IONS IONS IONS IONS 27, 28 BEHIND PANEL Auto Reverse AV-428 36 37 automatically return to the normal indication 5 seconds after the last adjustment or when another function is activated. 4 4 4 4 4 BASS CONTROL To adjust the bass level, first select the Bass mode by pressing the PUSH SELECT button indication appears on the display panel.
- Page 7 6 6 6 6 6 LEFT/RIGHT BALANCE CONTROL To adjust the left-right speaker balance, first select the Balance mode by pressing the PUSH SELECT button so the BAL indication appears on the display panel. Within 5 seconds of choosing the Balance mode, rotate the Volume Level control CCW to adjust the stereo balance to the left channel speakers, or CW to adjust it...
- Page 8 pre-set memories on the band in use. After entering the stations into memory, the unit will automatically stop at each station for 5 seconds so each can be heard. If you have already set the pre-set memories to your favorite stations, activating the Auto-Store Tuning feature will erase those stations and enter the new ones.
-
Page 9: Setting The Clock
If the button is pressed when no CD changer is connected to the unit, no CDC indications will appear on the display panel. The unit will then return to radio operation. To return to the tape operation (if a tape is loaded in the unit), press the button again. -
Page 10: Care And Maintenance
CARE AND MAINTENANCE CARE AND MAINTENANCE CARE AND MAINTENANCE CARE AND MAINTENANCE CARE AND MAINTENANCE The radio section of your new sound system does not require any maintenance. We recommend that you keep this manual for reference on the many features found in this unit as well as how to set the clock. - Page 11 160 watts maximum (40 watts x 4 channels) Floating-ground type designed for 4 speaker use. The amplifiers in this unit are NOT designed for use with 2 speakers. RCA pre-amp level outputs. Compatible with 4 - 8 ohm speakers 500 mv.
- Page 12 THIS PAGE LEFT BLANK INTENTIONALLY 12 12 12 12 12...
- Page 13 CD CHA A A A A NGER CONTR CD CH CD CH NGER CONTROL OL OL OL OLS S S S S NGER CONTR NGER CONTR CD CH CD CH NGER CONTR Built into this radio are controls to operate an optional CD changer.
- Page 14 If a problem should develop while operating the CD changer, the error code “Err” may appear on the display panel. This can indicate a number of problems with the unit, including a mechanical error or an error in the microprocessor control of the changer. If the error code should appear, try ejecting and re-loading the magazine into the changer.
-
Page 15: 12 Month Limited Warranty
