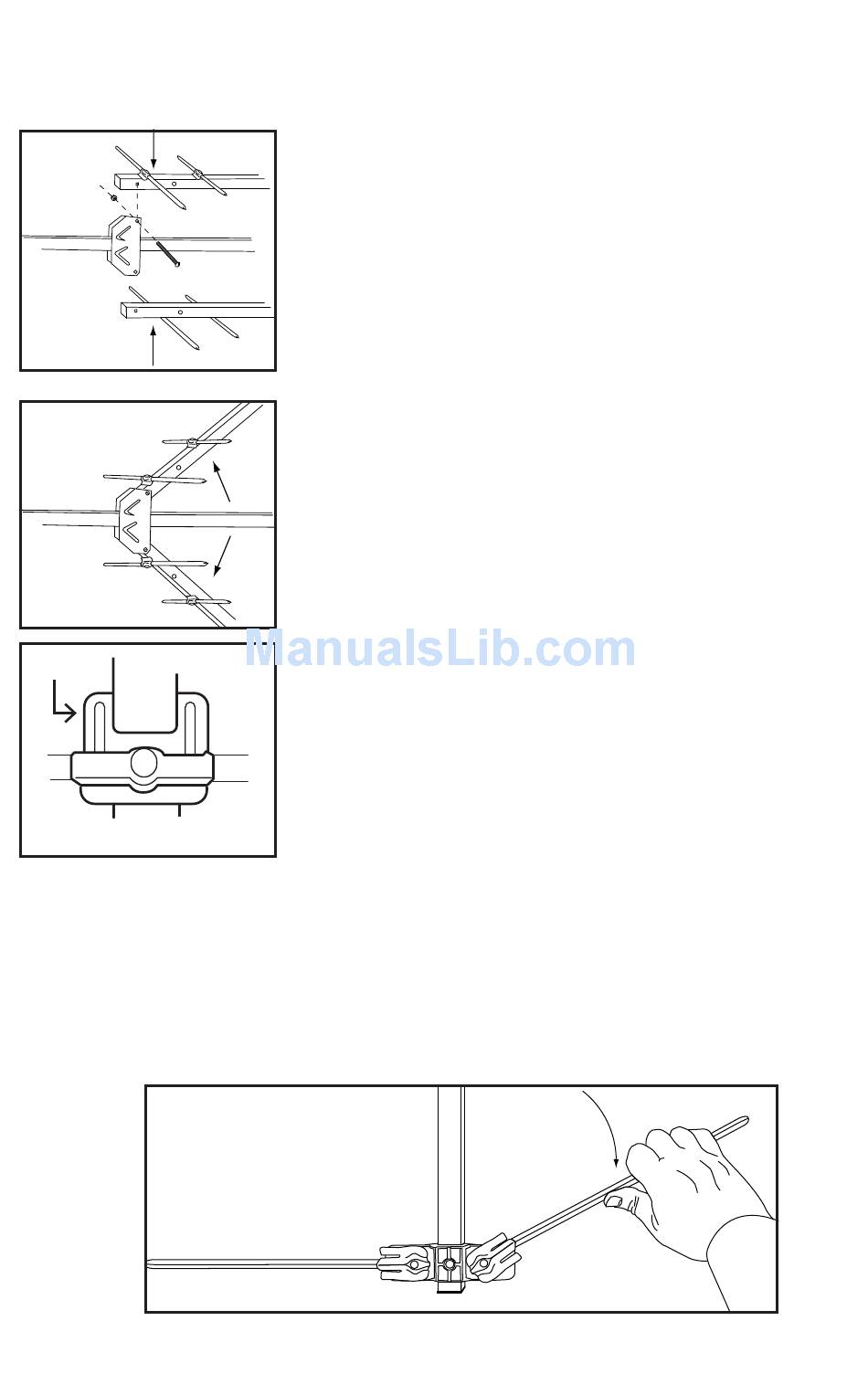

Step 2: Connect the refl ector booms to the front
(small) boom
Fig. 1
Fig. 2
Locking Tab
FRONT
Main Boom
Fig. 2A
Step 3: Unfold the rest of the antenna
Unfold all the other elements on the antenna until they lock into place ensuring
that they are fl at and parallel to each other. (See Fig. 3.)
Fig. 3
2
Find the two refl ector booms and the front (or small)
boom. The two smaller elements on the refl ector
booms face away from the small main boom.
IMPORTANT: Unfold the elements on each end of
the refl ector boom so that the front of their locking
tabs face towards each other. The remaining
locking tabs can be unfolded in either direction.
Make sure that all of the elements are perpendicular
to the refl ector boom.
Connect the two refl ector booms to the front boom
using two of the provided #10 nuts and screws.
The refl ector booms should be parallel to the
smaller boom at this point. (See Fig. 1.)
