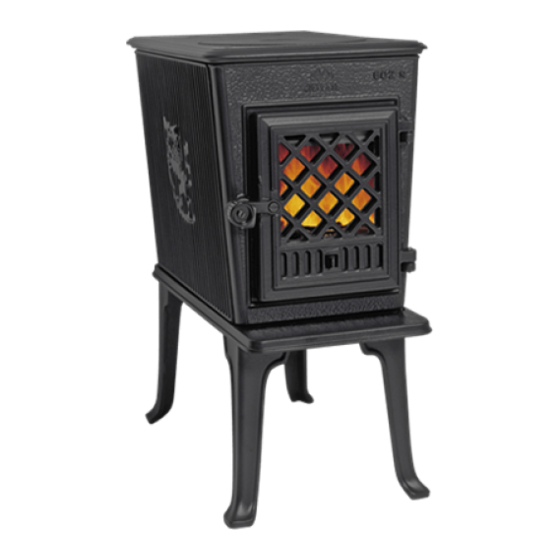

Jøtul F 602 Installation Manual

For more information on Jøtul visit www.barbourproductsearch.info
Table of contents
Installation manual with technical data
1.0 Relationship to the authorities ................... 13
2.0

Technical data ............................................... 13

3.0 Installation .................................................. 14
4.0 Service ........................................................... 15
5.0 Optional Equipment .................................... 15
Figures ................................................................... 28
Table of contents
General use and maintenance manual
6.0 Safety precautions
7.0 Choice of fuel
8.0 Use
9.0 Maintenance
10.0 Operational problems - troubleshooting
On all our products there is a label
Product:
Jøtul
indicating the serial number and year.
Room heater fired by solid fuel
Write this number in the place indicated
Standard :
Minimum distance to adjacent combustible materials:
Minimum distance to adjacent combustible materials: in the installation instructions.
Emission of CO in combustion products :
Flue gas temperature :
Nominal heat output
:
Efficiency :
Operation range :
Fuel type : Always quote this serial number when
Operational type
:
The appliance can be used in a shared flue.
contacting your retailer or Jøtul.
Country Classification Certificate/ Approved by
standard
Norway Klasse II
SP Sveriges Provnings- och
SP
Sweden OGC
Forskningsinstitut AB
SP Swedish National
Testing and Research
EUR Intermittent EN
Institute
Follow user`s instructions. Use only recommended fuels.
Montage- und Bedienungsanleitung beachten.
Verwenden Sie nur empfohlenen Brennstoffen.
Respectez les consignes d'utilisation. Utilisez uniquement
les combustibles recommandés.
Serial no.
Serial no: Y-xxxx, Year: 200x
Manufacturer: 221546
Jøtul AS
POB 1441
N-1602 Fredrikstad
Norway
1.0 Relationship to the
authorities
Installation of a fireplace must be according to local codes and
regulations in each country. All local regulations, including those
that refer to national and European standards, shall be complied
with when installing the product.
Instructions for mounting, installation and use are enclosed with
the product. Prior to using the product the installation must be
approved by a qualified person.
A product data plate in heat resistant material is located on the
heat shield under the product. This contains information about
identification and documentation for the product.
2.0 Technical data
Material:
Finish:
Fuel:
Log length, max:
Flue outlet:
Flue pipe dimension:
Weight:
Product measures:
Technical data according to EN 13240
Nominal heat output:
Flue gas mass flow:
Recommended chimney draught:
Efficiency:
CO emission (13% O ):
2
Flue gas temperature:
Operational type:
Intermittent combustion is here taken to mean normal use of a
fireplace. I.e. that a new flame chamber is lit as soon as the fuel
has burnt down to the appropriate quantity of embers.
Wood consumption
Jøtul F 602 has a nominal heat output of 6,0 kW. Use of
wood, with nominal heat emission: Approx. 2,0 kg/h. Another
important factor for proper fuel consumption is that the
logs are the correct size. The size of the logs should be:
Kindling:
Length: 30 - 40 cm
Diameter: 2 - 5 cm
Amount per fire: 8 - 10 pieces
Firewood (split logs):
Length: 40 cm
Diameter: Approx. 8 - 12 cm
Intervals for adding wood: Approx. every 45 minutes
Size of the fire: 1,5 kg
Amount per load: 2 pieces.
Nominal heat emission is achieved when the air vent is open
approximately 50%.
eNgliSh
Cast iron
Black paint, blue black enamel
Wood
40 cm
Top, rear
Ø125 mm/123 cm cross section
2
78 kg
See fig. 1
6,0 kW
6,9 g/sec
12 Pa
71% @ 6,1 kW%
0,28%
318 C
o
Intermittent
13
