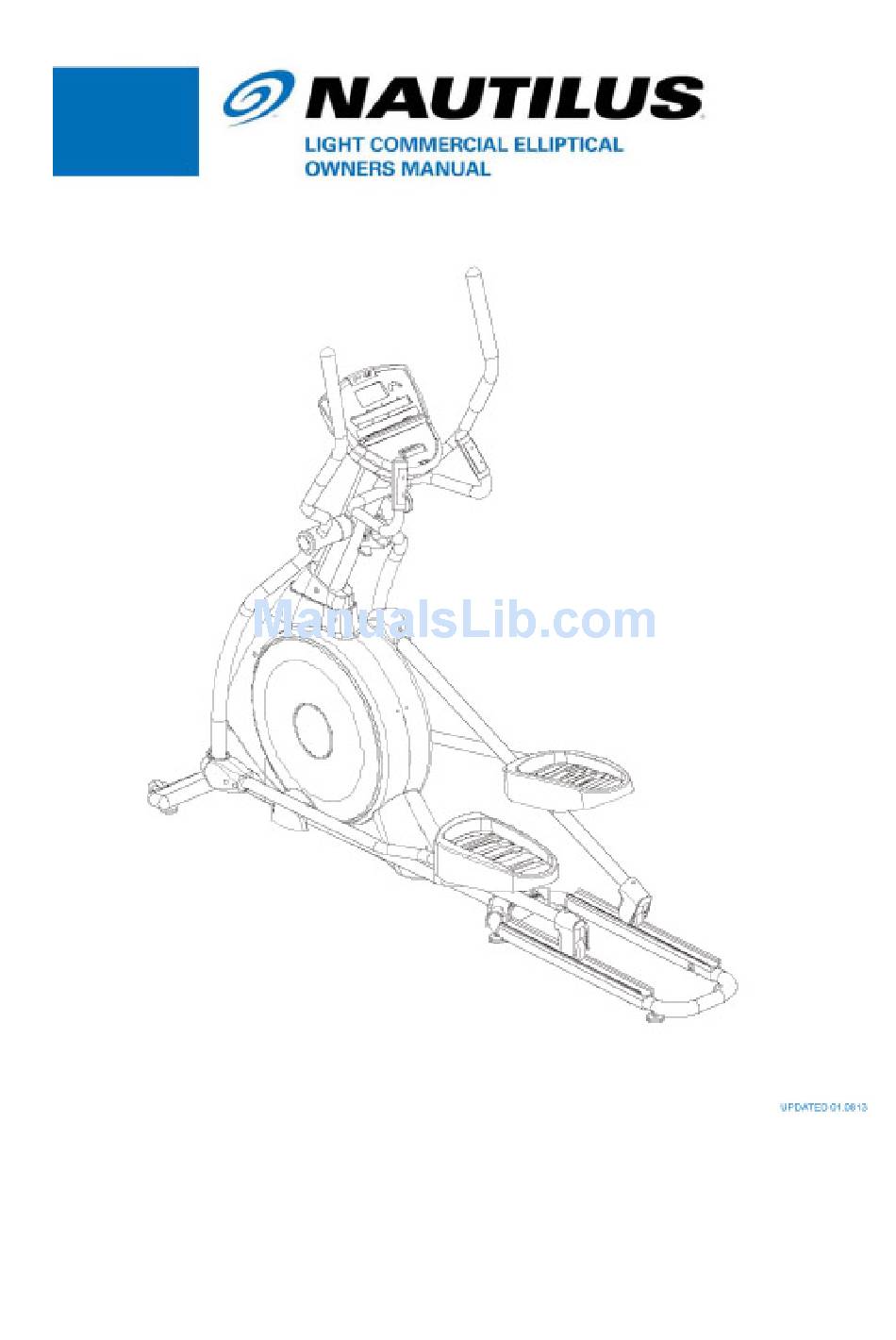

Nautilus 6 Series Owner's Manual

Light commercial elliptical
Hide thumbs Also See for 6 Series:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Nautilus 6 Series

Summary of Contents for Nautilus 6 Series

  • Page 3: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS TABLE OF CONTENTS TABLE OF CONTENTS ---------------------------------------------------------------- 1 ---------------------------------------------------------------- 1 SAFETY PRECAUTIONS SAFETY PRECAUTIONS ------------------------------------------------------------- 2 ------------------------------------------------------------- 2 TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS ---------------------------------------------------- 3 ---------------------------------------------------- 3 UNPACKING & ASSEMBLY UNPACKING & ASSEMBLY --------------------------------------------------------- 4-8 --------------------------------------------------------- 4-8 WARM UP &...

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS WARNING: Read all instructions in this manual before use and keep this user’s manual for entire life of this product for further reference. WARNING: It is owner’s responsibility to ensure that all users of this elliptical trainer are adequately informed about all safety precautions before use.

  • Page 5: Technical Specifications

    TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS SPECIFICATIONS: SPECIFICATIONS: SPECIFICATIONS: Dimensions：L: 2107 mmx W: 632 mmx H:1780 mm Weight of product：90.5kg (199.5 lbs) Program：6 preset programs , Fitness Test ,HRC*4 Standard features: 8*16dot matrix HR receive Resistance System：PMS(Perment Magnet System) Power source：Built-in generator & rechargeable battery 12V-1.2AH...

  • Page 6: Unpacking & Assembly

    UNPACKING & ASSEMBLY PARTS #5-20 #5-17 #5-18 Handle bar set Housing Console set Console frame cover #5-1 #5-12 #5-10 #3-5 #3-4 #5-13 #5-11 Left cover, right arm Left cover, left arm Bottle Holder Right cover, right arm Right cover, left arm #3-13 HARDWARE KIT #3-6...
  • Page 7 UNPACKING & ASSEMBLY UNPACKING & ASSEMBLY TO avoid components damage, please unpacking carton carefully, we suggest you to TO avoid components damage, please unpacking carton carefully, we suggest you to put a pad on the floor before you put the elliptical down. put a pad on the floor before you put the elliptical down.
  • Page 8 UNPACKING & ASSEMBLY UNPACKING & ASSEMBLY Step2.Assemble Bottle Holder on the handle bar set. Step2.Assemble Bottle Holder on the handle bar set. 1).Using 2pcs of M5*10mm screw，fixing the bottle holder on the handle bar post . #5-1 #5-19...
  • Page 9 UNPACKING & ASSEMBLY UNPACKING & ASSEMBLY Step3.Assembly Handle arm on the Pedal linkage. Step3.Assembly Handle arm on the Pedal linkage. 1).Use2x 2*24mm screws, M8*23 washer and M8*16mm screws to fasten Handle arm and Pedal linkage. #5-16 #5-15 #5-14 Step 4. Assembly Left / right cover on the Pedal Linkage. 1).Assemble right/left arm cover with pedal arm.
  • Page 10 UNPACKING & ASSEMBLY UNPACKING & ASSEMBLY Step5: Assembly console with handle bar post Step5: Assembly console with handle bar post 1).Put the console into handle bar post，connected upper console wire with lower console wire. 1).Put the console into handle bar post，connected upper console wire with lower console wire. 2).Using 4pcs of M5*12mm screw，tighten all screws.

  • Page 11: Warm Up & Cool Down

    WARM UP & COOL DOWN A successful exercise program consists of a warm up, aerobic exercise and a cool down. Warming up is an important part of your workout, and should begin every session. It prepares your body for more strenuous exercise by heating up and stretching out your muscles. At the end of your workout, repeat these exercises to reduce sore muscle problems.

  • Page 12: Panel Control

    PANEL CONTROL Display & Keys Dot-matrix, display program profiles & message Message window...
  • Page 13 PANEL CONTROL Display function Defination Dispaly Displays time remaining or total time. Time Displays calories burned. Calories Displays hand grip and wireless Heart Rate reading. Heart Rate Displays total distance KM/Mi. Distance Displays pedaling RPM. Displays consuming watt. Watts Displays the multiple of rest. Mets Displays current resistance level L1~L16 Level...

  • Page 14: Program

    PROGRAM PROGRAMS DESCRIPTION 1. QUICK START 1.1 To pedal over 30 rpm to wake up and initial the system to idle mode, press 『START』 to quick start. 1.2 Press shift UP or DOWN to exercise level by 1 level or press quick Level Key to change level.
  • Page 15 LEVEL 1 LEVEL 2 LEVEL 3 LEVEL4 LEVEL5 LEVEL 1 LEVEL 2 LEVEL 3 LEVEL4 LEVEL5 LEVEL 1 LEVEL 2 LEVEL 3 LEVEL4 LEVEL5 LEVEL 1 LEVEL 2 LEVEL 3 LEVEL4 LEVEL5...
  • Page 16 PROGRAM 4. HRC(Heart Rate Control) 4.1. Press『H.R.C』key to enter the program. 4.2. Set time：use shift up or down device to set time then press『ENTER』to next settings. 4.3. Set weight: use shift up or down device to set weight then press『ENTER』to next settings. 4.4.

  • Page 17: Fitness Test

    PROGRAM Fitness Test ： 5.1. Press『Fitness Test』key to enter the program. 5.2. Set weight: use shift up or down device to set weight then press『ENTER』to next settings. 5.3. Set age: use shift up or down device to set age then press『START』to begin workout. 5.4.

  • Page 18: How To Use The Trainer

    HOW TO USE THE TRAINER ow to Mount and Dismount the Trainer Hold swing bars & step forward and backward. Hold handlebars on post & step forward and backward.

  • Page 19: Preventative Maintenance

    PREVENTATIVE MAINTENANCE PREVENTATIVE MAINTENANCE F833705-010-00 EP-6000A1 10208 F833705-010-00 EP-6000A1 10208 HOW TO CAREFOR YOUR ELLIPTICAL HOW TO CAREFOR YOUR ELLIPTICAL The Safety of the equipment can be maintained only if the equipment is examined regularly for The Safety of the equipment can be maintained only if the equipment is examined regularly for damage or wear.
  • Page 20 Inc. (Med-Fit) product. By using the product, you are consenting to be bound by the following warranty terms and conditions. LIMITED WARRANTY. Med-Fit warrants all new Nautilus Commercial products to be free from defects in materials ® and manufacture for the warranty periods set forth below. The warranty periods commence on the invoice date of the original purchase.
  • Page 21 3. The warranty does not cover damage or equipment failure caused by electrical wiring not in compliance with electrical codes or Med-Fit owner’s manual specifications, or failure to provide reasonable and necessary maintenance as outlined in the owner’s manual. Nautilus ®...
  • Page 22 Damage due to normal wear and tear as defined by items subject to normal use and/or exposure, consumables and cosmetic items, including, but not limited to, grips, seats, paint, scratches, and decals, b. Repairs performed on Nautilus Commercial products missing a serial number or with a ®...
  • Page 23 LIMITED WARRANTY INFORMATION continued EXCLUSIVE REMEDIES. For any product described above that fails to conform to its warranty, Med-Fit will provide, at their option, replacement of failed parts/whole goods or refund the current cost of the product. Med-Fit Limited Warranty parts may be obtained by contacting the authorized dealer from whom you purchased the item.
  • Page 24 MED-FIT SYSTEMS CONTACT INFORMATION If you need assistance, please have both the serial number of your machine and the date of purchase available when you call Med-Fit Systems Customer Excellence. TECHNICAL & CUSTOMER SERVICE phone: 276-773-2881 toll free: 800-235-2233 fax: 276-773-2298 e-mail: info@medfitsys.com web: www.nautiluscommercial.com SALES &...
  • Page 25 NOTES...
