Summary of Contents for Pentax 76670

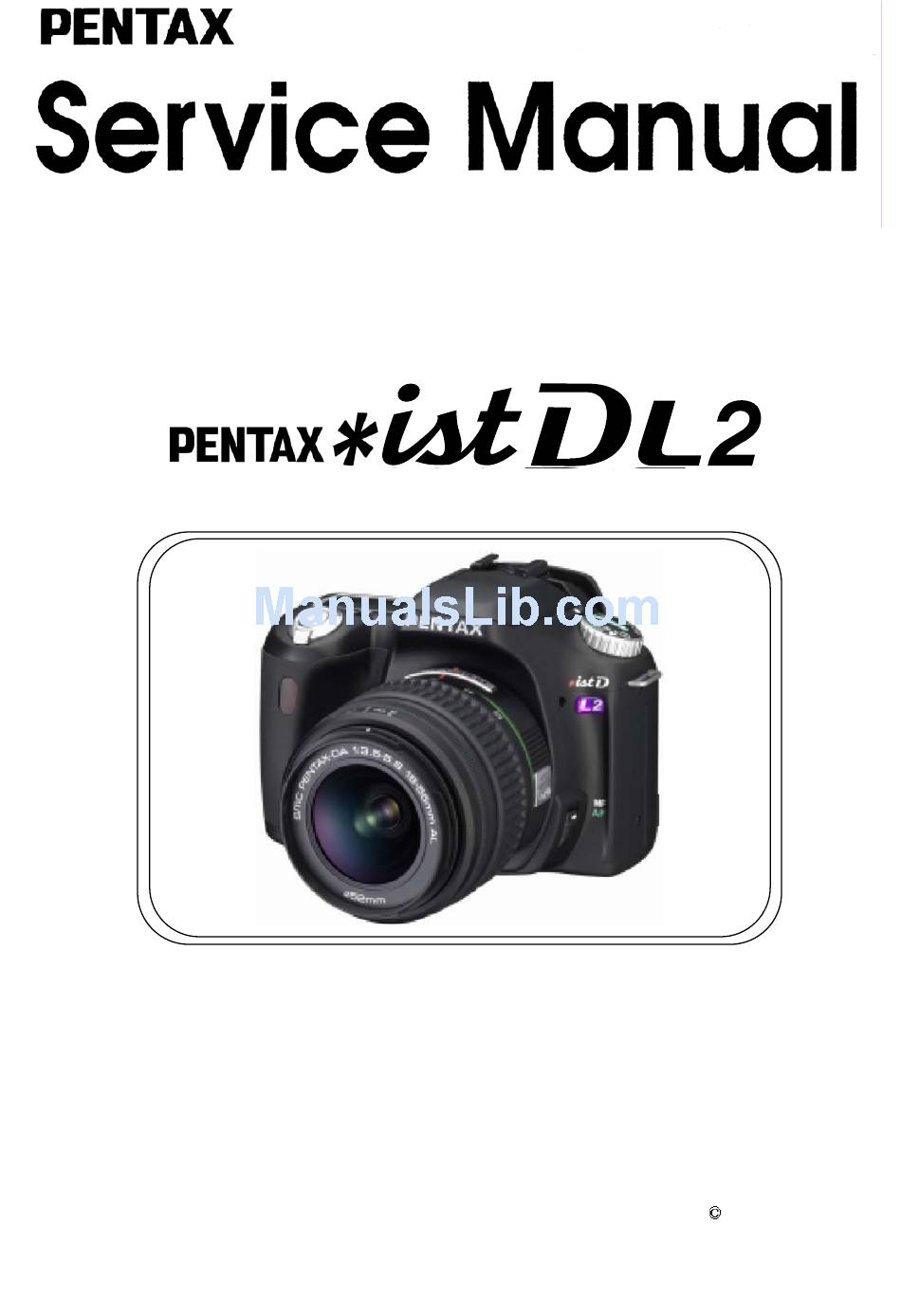

- Page 1 ENGLISH PRODUCT No. 76670 PENTAX Service Co.,Ltd Technical Service Dep. 04,06 KN...
-
Page 2: Table Of Contents
4-4 Items for Adjustment and checking 4-5 Procedure for adjustment 4-6 Procedure for ending the program soft 5.ADJUSTMENT THE PROGRAM SOFT (Digital function) 5-1 Procedure for adjustment 6. Firmware 7. INFORMATION OF JIGS, TOOLS AND TESTERS FOR *ISTDS....... 76670 -1/12-... -
Page 3: Preparation
(1) Copy the [76670 SLR] folder from the Programmed software contained in the CD-ROM to [C: drive] as shown in the picture below. (For SLR adjustment) (2) Copy the [76670] folder from the Programmed software contained in the CD-ROM to [C: drive] as shown in the picture below. (For Digital adjustment) - Page 4 If your computer is not installed “VisualBasic” software, set up the VB run time is required as follow. [Procedure] ① Set the 76670 adjustment program soft into the computer ② Execute the setup.exe in the folder of [vb6run_csx.x.x] Installer will be started...
- Page 5 ③ Click OK ④ * Do not click Directory, Click installation button 76670 -4/12-...
- Page 6 ⑤ Set up will be started ⑥ Click OK to end the installation 76670 -5/12-...
-
Page 7: Disassemby And Assenbly
② FW for service Adjustment 2-2. Chart for Assemble, Adjustment and Confirmation. Procedure of Adjustment and confirmation is same as ＊ist DL（76570） Refer to the ＊ist DL（76570）Service manual 3, Procedure for Disassemble/Assembly Procedure of Disassemble/Assembly is same as ＊ist DL（76570） 76670 -6/12-... -
Page 8: Adjustment The Program Soft (Slr Function)
Caution: When replaced T100, the following procedure should be completed Preparation： Programmed software for 76670 (for SLR operation), USB cable (I-USB17) Computer (Windows 2000 / XP), AC-adaptor (D-AC10), Light source (Shutter tester) Temporary bottom cover (Hand made/exclusive item), Power supply (8V,3A) Shutter tester (1/4000 can be measured), Diaphragm set ring F8 (KA-0-1A), FA (F) 35-80mm F4-5.6,... -
Page 9: Items For Adjustment And Checking
3：[AF and related adjust] --- Adjustment of AF [CCD position adjust] --- Adjustment of CCD position [AGC level adjust] --- Adjustment of AGC level [Uniformity adjust] --- Adjustment of uniformity [Focus offset adjust] --- Adjustment of AF focus 76670 -8/12-... -
Page 10: Procedure For Adjustment
↓Tools: AF positioning jig (Square) for 27830, AF positioning jig (Cross) for 27250, Light source LV12 ↓Driver1.5mm (HD-M1.5), AF master lens for 2m, FA (F) 35-80mm F4-5.6, ↓AF chart for 2m x2 (Exclusive item), FA Macro 50mmF2.8, ↓ 76670 -9/12-... - Page 11 ② Press RELESE button and release the shutter several times, also measure the data ③ Input Measurements data and press Input Data ④ After finished the adjustment, press Close button Finish the [5：EEPROM CHECKING] and execute [End procedure] 76670 -10/12-...
-
Page 12: Procedure For Ending The Program Soft
③ Double-click hot plug icon of the taskbar at the lower right of a desktop, and then follow "safe removal of hardware." -> "PENTAX USB DISK Device" ④ Turn the power of the camera OFF and remove AC adaptor, USB cable （Battery cover and temporally bottom cover can be stayed for next adjustment）... -
Page 13: Firmware
7. List of service equipments, tools for istDL2 Ordering No Exclusive use for 76670（＊istDL2） Program soft for 76670 ( SLR / Digital) ---- Supply with CD-ROM No.95901-P407 For other equipments and tools are common use with istDL (76570), please refer to the service manual for...
