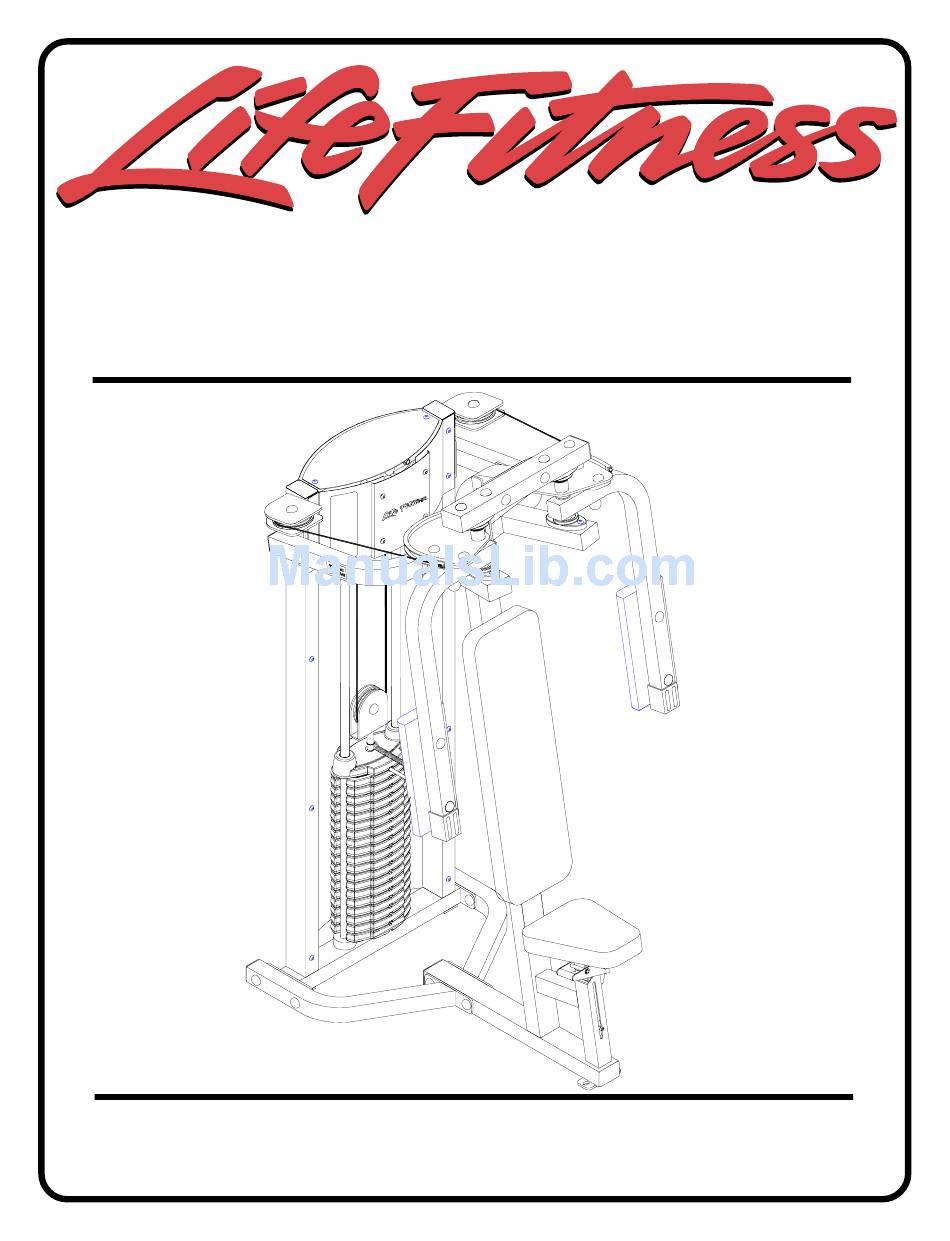

CLUB SERIES FLY

ASSEMBLY INSTRUCTIONS

Part # 7146301
1
Revision:6/19/01
Rev A.

Advertisement

loading

Related Manuals for Life Fitness CLUB SERIES FLY

Summary of Contents for Life Fitness CLUB SERIES FLY

  • Page 1: Assembly Instructions

    CLUB SERIES FLY ASSEMBLY INSTRUCTIONS Part # 7146301 Revision:6/19/01 Rev A.

  • Page 2: Table Of Contents

    PARTS LIST PART # DESCRIPTION PART # DESCRIPTION 71464xx TOWER 70581xx ASSY BOTTOM FRAME 7146701 CABLE 70611xx ASSY 3” X 2” TUBE 70857xx GUIDE ROD SPPT 7068702 HEAD PLATE 6714901 GUID ROD BUSHING 3102901 3/8 X 1-1/4” BOLT 3222801 4.5" PULLEY 3102903 3/8 X 2-1/2”...
  • Page 4 11/16" (4X) 59 1/2" (2X)

  • Page 5: X 2-3/4" Bolt

    FIGURE 1 3/8 X 2-3/4” 13 16 3/8 X 4” STEP 1: • LOOSELY assemble the two BOTTOM FRAMES (8) to the TOWER (1) using eight RH CAPS (39), four 3/8 X 2-3/4” BOLTS (13), eight 3/8” SAE WASHERS (19), eight 3/8” RH WASHERS (20) and four 3/8” LOW HEIGHT LOCK NUTS (18) as shown in FIGURE 1.
  • Page 6 FIGURE 2 13 3/8 X 2-3/4” 3/8 X 4” 16 STEP 2: • LOOSELY assemble the RIGHT TOP FRAME (5) and LEFT TOP FRAME (6) to the TOWER (1) using eight RH CAPS (39), four 3/8 X 2-3/4” BOLTS (13), eight 3/8” SAE WASHERS (19), eight 3/8” RH WASHERS (20) and four 3/8” LOW HEIGHT LOCK NUTS (18) as shown in FIGURE 2.

  • Page 7: X 3-3/4" Bolt

    18 19 3/8 X 3-3/4” 15 FIGURE 3 STEP 3: • LOOSELY assemble the 3” X 2” TUBE (9) to the SEAT FRAME (2) using two 3/8 X 3-3/4” BOLTS (15), four 3/8” SAE WASHERS (19), four RH WASHERS (20), two 3/8” LOW HEIGHT LOCK NUTS (18) and four RH CAPS (39) as shown in FIGURE 3.
  • Page 8 17 3/8 X 3” BUTTON HEAD FIGURE 4 STEP 4: • Slide the RIGHT and LEFT CAM (3 & 4) and four PILLOW BLOCKS (21) over the shafts of the two PIVOT ARMS (7) as shown in FIGURE 4. • Assemble two 1-1/4” SQ. RUBBER BUMPERS (22) to the RIGHT and LEFT CAM (3 & 4) as shown in FIGURE 4. •...

  • Page 9: Low Height Lock Nut

    17 3/8 X 3” FIGURE 5 STEP 5: • LOOSELY assemble the PILLOW BLOCKS (21) to the RIGHT TOP FRAME (5) and 3” X 2” TUBE (9) using four previously inserted 3/8 X 3” BUTTON HEAD CAP SCREWS (17), four 3/8” SAE WASHERS (19), four RH WASHERS (20), four 3/8” LOW HEIGHT LOCK NUTS (18) and four RH CAPS (39) as shown in FIGURE 5 •...
  • Page 10 CABLE FIGURE 6 STEP 6: • Slide the end of the CABLES into the bushing on the RIGHT and LEFT CAM (3 & 4) as shown in FIGURE 6.

  • Page 11: Weight Stack Cushion

    FIGURE 7 HEAVY WEIGHT OPTION STEP 7: • Insert the two GUIDE RODS (36) (found in the SHROUD KIT box) into the base of the TOWER (1) as shown in FIGURE 7. Lubricate the GUIDE RODS (36) with a slicon or teflon spray that is available at most hardware stores. •...
  • Page 12 FIGURE 8 TIGHTEN! 12 3/8 X 2-1/2” STEP 8: • SECURELY assemble the GUIDE ROD SUPPORT (8) to the TOWER (1) using four RH CAPS (39), two 3/8 X 2-1/2” BOLTS (12), four 3/8” RH WASHERS (20) and two 3/8” LOW HEIGHT LOCK NUTS (18) as shown in FIGURE 8. •...
  • Page 13 FIGURE 9 TIGHTEN! 3/8 X 1-3/4” S T ` ` ` ` ` • Run the CABLE under and around the 4-1/2” PULLEY (29) as shown in FIGURE 9. • SECURELY assemble the 4-1/2” PULLEY (29) to the bracket on the HEAD PLATE (10) using one 3/8 X 1-3/4” BOLT (37), two BLACK RH CAPS (25), two 3/8”...
  • Page 14 FIGURE 10 TIGHTEN! STEP 10: • SECURELY TIGHTEN ALL CONNECTIONS IN THE FOLLOWING SEQUENCE: 1. Position the RIGHT and LEFT TOP FRAMES (5 & 6) so that the plates are square to the TOWER (1) then SECURELY tighten the corresponding NUTS and BOLTS. 2.

  • Page 15: Seat Pad

    FIGURE 11 14 3/8 X 3” STEP 11: • Assemble two 2” SQ. VINYL CAPS (38) to the PIVOT ARMS (7) as shown in FIGURE 11. • SECURELY assemble two ARM PADS (27) to the PIVOT ARMS (7) using four RH CAPS (39), four 3/8 X 3” BOLTS (14) and four 3/8”...
  • Page 16 14 3/8 X 3” FIGURE 13 STEP 13: • SECURELY assemble the BACK PAD (26) to the SEAT FRAME (2) using two RH CAPS (39), two 3/8 X 3” BOLTS (14) and two 3/8” RH WASHERS (20) as shown in FIGURE 13. •...

  • Page 17: Language Placard Label

    FIGURE 14 STEP 14: • Assemble the PLACARD LABEL (32) or the FOREIGN LANGUAGE PLACARD LABEL (33) to the FRONT SHROUD as shown in FIGURE 13.

  • Page 18: Guide Rod

    • Lube the Guide Rods. Apply the lubricant to a cotton cloth, then run the cotton cloth up and down the guide rods as needed. Do not spray lubricant directly on the Guide Rods. Thank you for purchasing the LifeFitness CLUB SERIES FLY. If unsure of proper use of equipment, call your local LifeFitness distributor or call the LifeFitness customer service department at (800) 351-3737.
