Lennox T7300 Installation Instructions Manual

Commercial touchscreen thermostat
Hide thumbs
Table of Contents

Advertisement

Quick Links

505,103M
1/2007
Supersedes 12/2005
Commercial Touchscreen
Thermostat
APPLICATION
The Lennox Commercial Touchscreen Thermostat provides electronic control of 24 Vac heating and cooling
systems. See Table 1 for a description .
Feature
Powering Methods
System Types
Changeover
System Settings
Fan Settings
MERCURY NOTICE
If this control is replacing a control that contains
mercury in a sealed tube, do not place your old control
in the trash. Dispose of properly.
Contact your local waste management authority for
instructions regarding recycling and the proper
disposal of an old control.
INSTALLATION
When Installing this Product...
1.
Read these instructions carefully. Failure to follow
them could damage the product or cause a
hazardous condition.
2.
Check ratings given in instructions and on the
product to ensure the product is suitable for your
application.
3.
Installer must be a trained, experienced service
technician.
4.
After installation is complete, check out product
operation as provided in these instructions.
CAUTION
Electrical Shock or Equipment Damage
hazard.
Can shock individuals or short equipment
circuitry.
Disconnect power supply before installation.
Table 1 − Thermostat Description
Description
S Battery only
S Direction connection to a 24 Vac transformer only.
S Direct connection to a 24 Vac transformer with battery backup.
S Conventional (up to 2 heat, 2 cool stages)
S Heat Pump (up to 3 heat, 2 cool stages)
Manual or automatic changeover (selectable)
Heat−Off−Cool−Auto
Auto−on

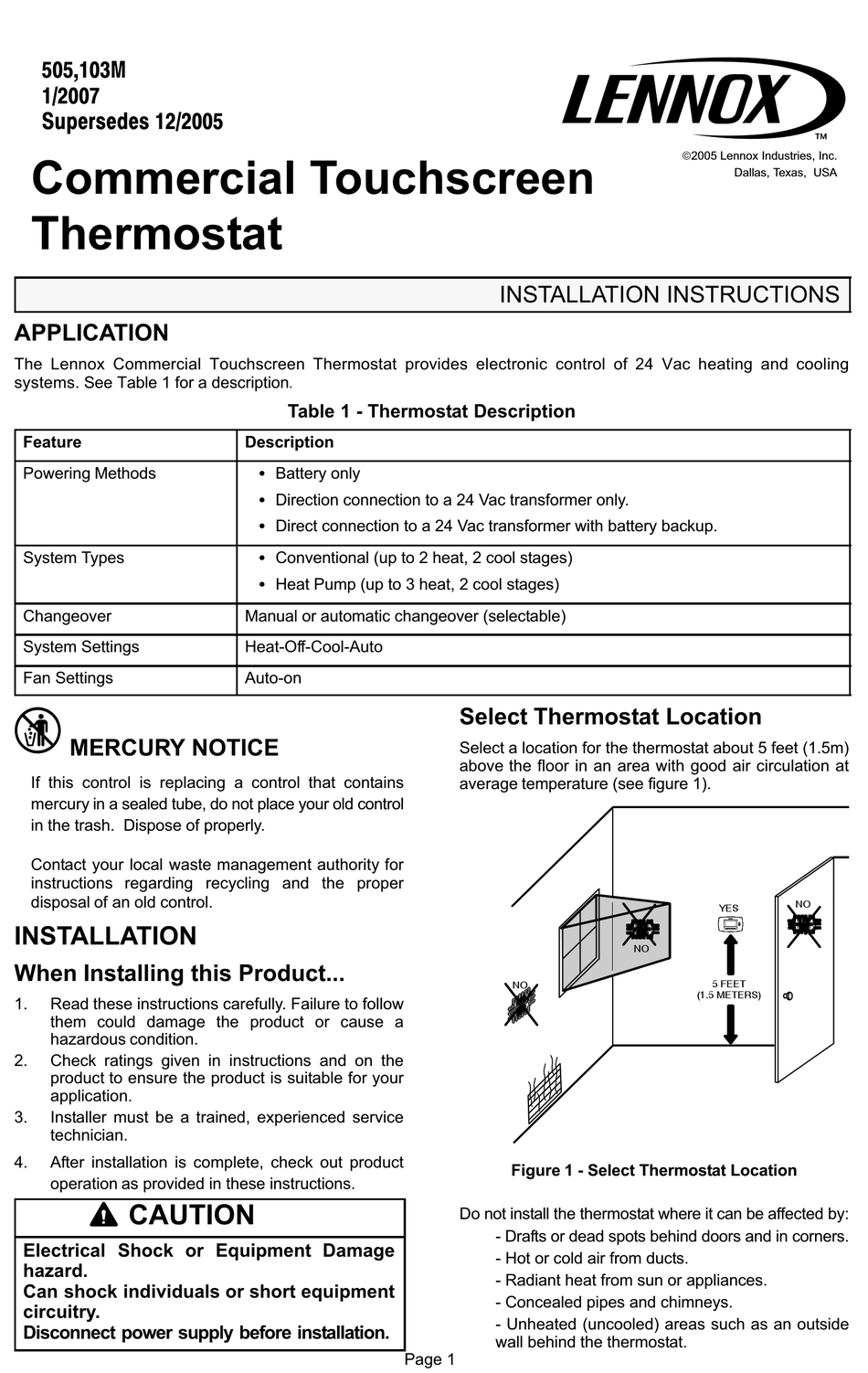

Page 1

INSTALLATION INSTRUCTIONS

Select Thermostat Location
Select a location for the thermostat about 5 feet (1.5m)
above the floor in an area with good air circulation at
average temperature (see figure 1).
NO
Figure 1 − Select Thermostat Location
Do not install the thermostat where it can be affected by:
− Drafts or dead spots behind doors and in corners.
− Hot or cold air from ducts.
− Radiant heat from sun or appliances.
− Concealed pipes and chimneys.
− Unheated (uncooled) areas such as an outside
wall behind the thermostat.
©2005 Lennox Industries, Inc.
Dallas, Texas, USA
NO
YES
NO
5 FEET
(1.5 METERS)
