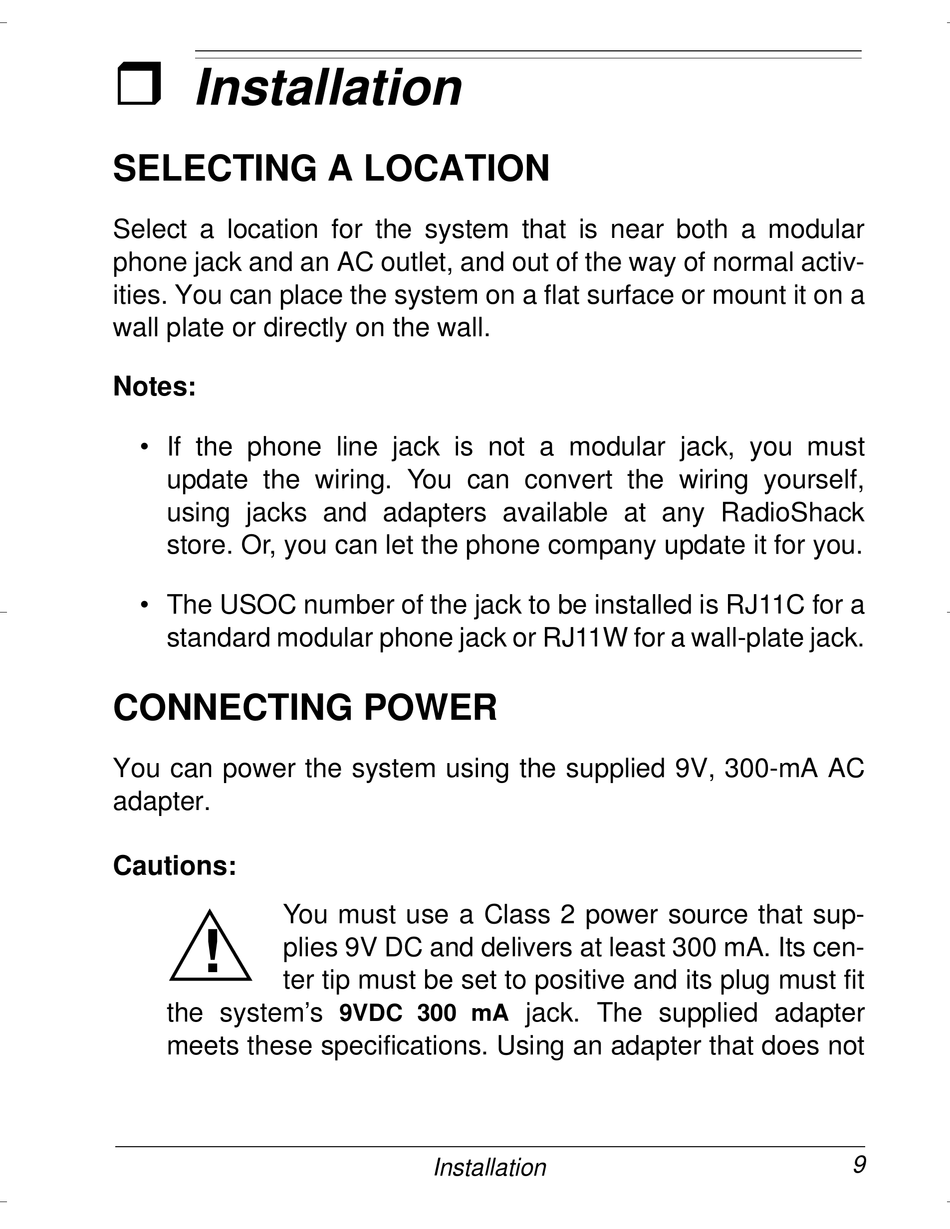

Installation

SELECTING A LOCATION

Select a location for the system that is near both a modular
phone jack and an AC outlet, and out of the way of normal activ-
ities. You can place the system on a flat surface or mount it on a
wall plate or directly on the wall.
Notes:
• If the phone line jack is not a modular jack, you must
update the wiring. You can convert the wiring yourself,
using jacks and adapters available at any RadioShack
store. Or, you can let the phone company update it for you.
• The USOC number of the jack to be installed is RJ11C for a
standard modular phone jack or RJ11W for a wall-plate jack.

CONNECTING POWER

You can power the system using the supplied 9V, 300-mA AC
adapter.
Cautions:
!
the system's
meets these specifications. Using an adapter that does not
You must use a Class 2 power source that sup-
plies 9V DC and delivers at least 300 mA. Its cen-
ter tip must be set to positive and its plug must fit
9VDC 300 mA
Installation
jack. The supplied adapter
9
