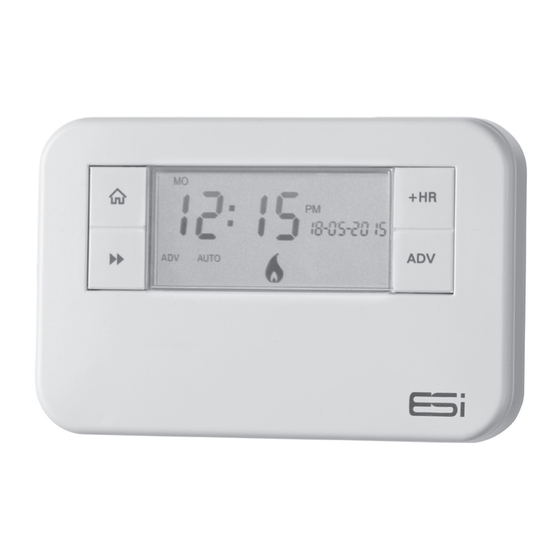

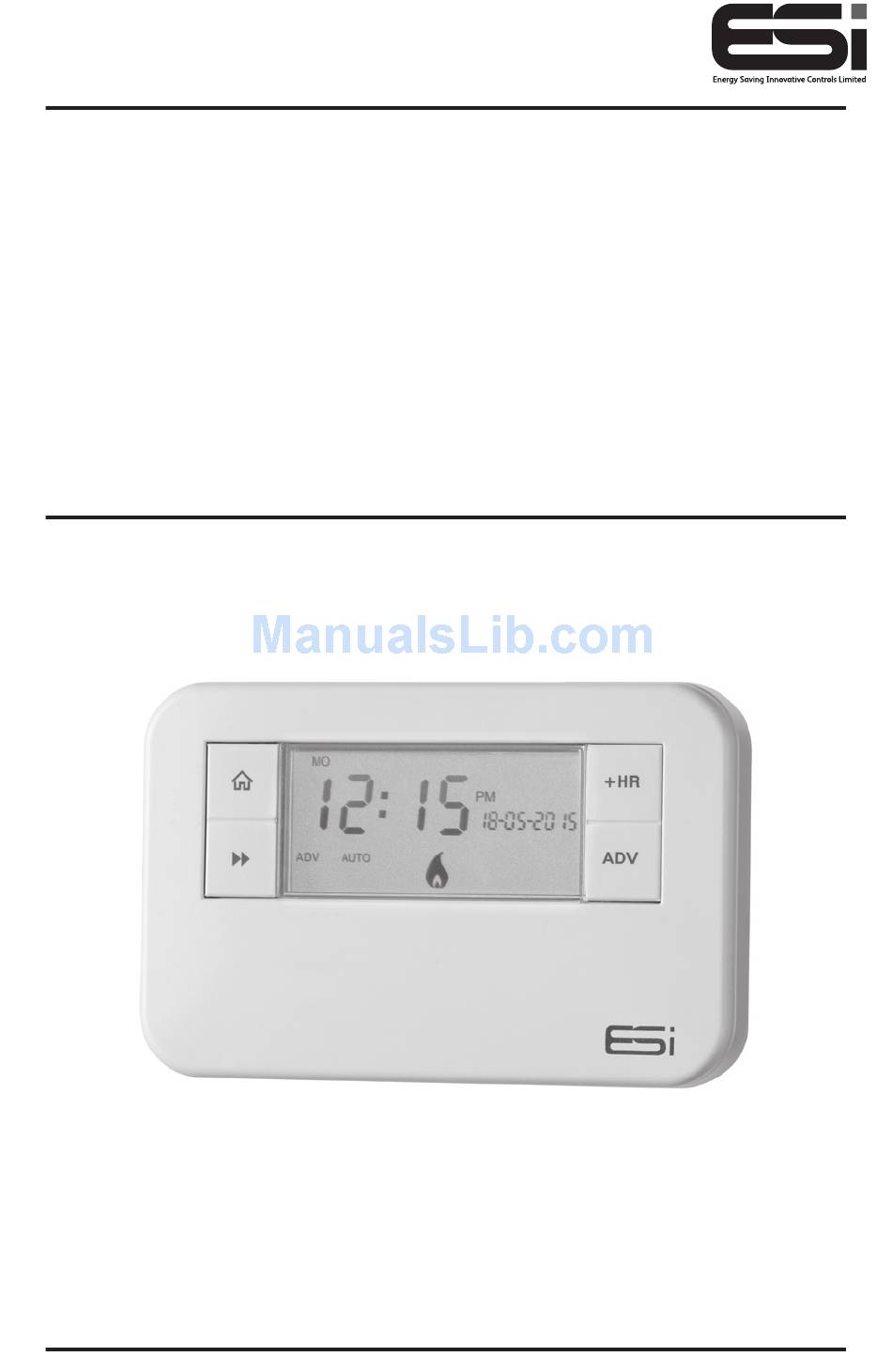

- Page 1 ES1247B16A 16 Amp 1 Channel Multi Purpose Programmer Installation Instructions...
- Page 2 Thank you for choosing ESi Controls. All our products are tested in the UK so we are confident this product will reach you in perfect condition and give you many years of service. However, for additional peace of mind, we recommend you register your product online at www.esicontrols.co.uk/warranty for your...
-
Page 3: Technical Data
Technical Data Contact Rating 16(4) Amp 230VAC Supply 230V 50/60 Hz a.c. Switch Rating 230V AC, (4) A SPDT Industry Standard - Surface and Flush Fixing Mounting Resolution of Programs 10 Minutes Power Consumption: 10VA Maximum Insulation Class Double Enclosure Protection IP30 Case Material Thermoplastic, Flame retardant... -
Page 4: Installation Safety Instructions
Installation safety instructions The unit must be installed by a suitably qualified person in accordance with the latest IEE Wiring Regulations. Isolate mains supply before commencing installation. Please read all instructions before proceeding. Ensure that the fixed wiring connections to the mains supply is via a fuse rated at not more than 20 amps and class ‘A’... -
Page 5: Technical Settings
Technical settings Setting the Installer Settings 1. Move the slider to RUN. Hold down the Home button, the Copy Button and + (plus) button (under the facia) together for 3 seconds to enter the Installer Setting Mode. 2. The LCD display will show C0dE. Press the +/– buttons to enter the first digit of the code. - Page 6 Prog 3. Program 3 allows the installer to set the On and Off times and all other functions including the boost, will be disabled. Home button or wait for 15 seconds to 4. Press the automatically confirm and return to Run Mode. Programme / Functions Prog 0 Prog 1...
- Page 7 Home button or wait for 15 seconds to 6. Press the automatically confirm and return to Run Mode. Setting the Landlord Service Interval 1. Switch the slider to RUN. Home, Copy and the + buttons together to 2. Press enter the landlord settings. A numeric password will be required to enter these settings.
- Page 8 7. The LCD display will show duE. Press the +/– buttons to set the due date (from 1 - 450 days). 8. Press the Next button and the LCD display will show ALAr. Press the +/– buttons to set the reminder (from 1 - 31 days).
- Page 9 Home button or wait for 15 seconds to 11. Press the automatically confirm and return to Run Mode. Fitting the Back Plate 1. Position the wall-plate (terminals along top edge) with 60mm (min) clearance to its right, 25mm (min) above, 90mm (min) below.
- Page 10 4. The LCD display will show ProG. Continue to press the Next button until the LCD will show NE 0000. Press the Day button and the first digit will flash, then use the +/– buttons to choose a new code using the Day button to move between digits.
- Page 11 We are continuously developing our products to bring you the very latest in energy saving technology and simplicity. However, should you have any questions setting up your controls please email us at sales@esicontrols.co.uk or for technical queries call us on our dedicated technical helpline 07539 117468. WARNING: Interference with sealed parts renders the guarantee void.
