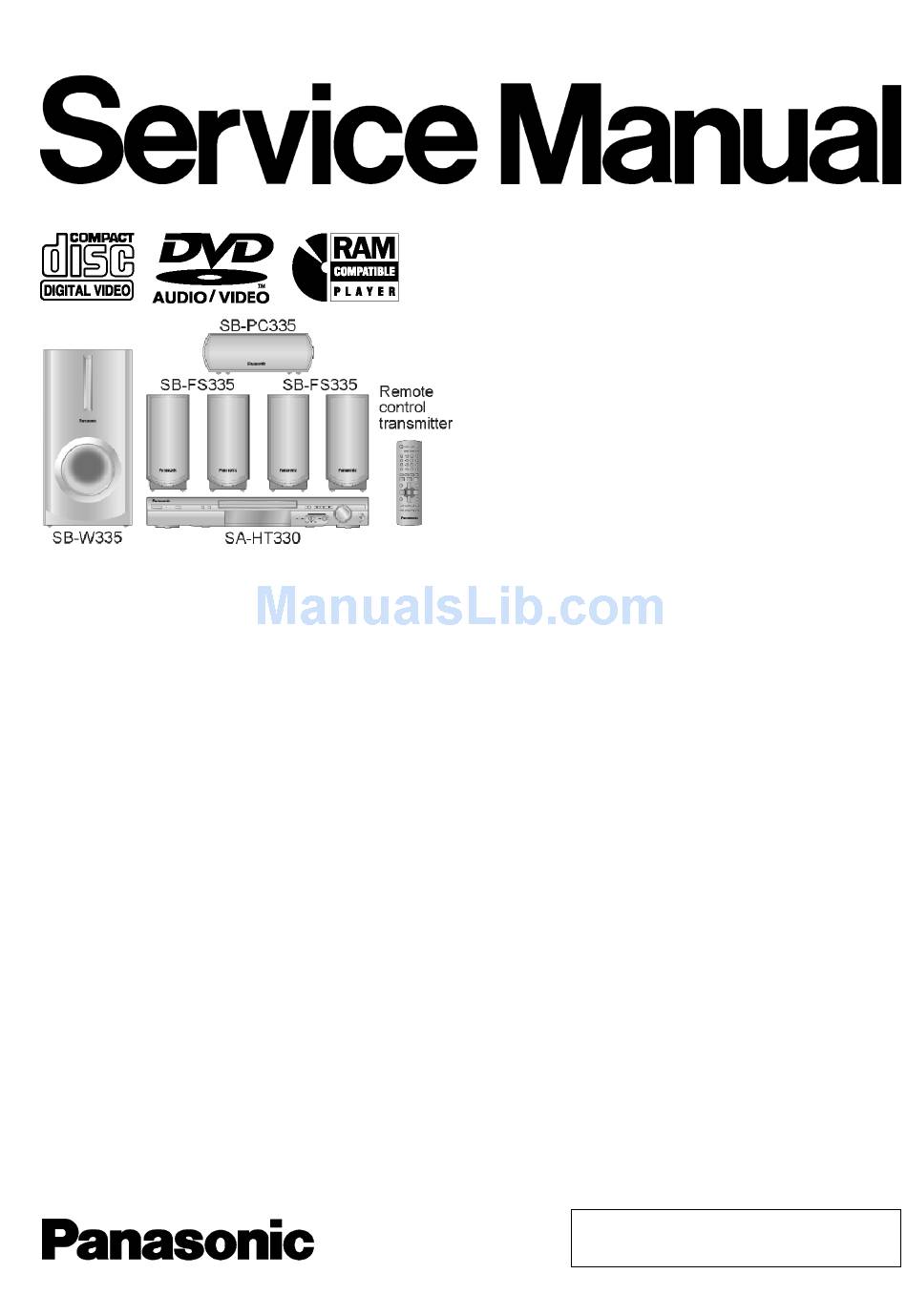

Panasonic SA-HT330GCT Service Manual

Dvd home theater sound system
Hide thumbs Also See for SA-HT330GCT:
Table of Contents

Advertisement

Quick Links

Download this manual
Specification
n Amplifier Section
RMS Output power : Dolby Digital Mode
Front Ch
Surround Ch
Center Ch
Subwoofer Ch
Total RMS Dolby Digital mode
power
PMPO output power
DIN Output Power : Dolby Digital Mode
Front Ch
Surround Ch
Center Ch
Subwoofer Ch
Total DIN Dolby Digital mode
power
n FM/AM Tuner, Terminals Section
Preset station
65 W per channel (6 Ω), 1 kHz,
10% THD
65 W per channel (6 Ω), 1 kHz,
10% THD
65 W per channel (6 Ω), 1 kHz,
10% THD
75 W per channel (4 Ω), 100 Hz,
10% THD
400 W
3500 W
55 W per channel (6 Ω), 1 kHz,
1% THD
55 W per channel (6 Ω), 1 kHz,
1% THD
55 W per channel (6 Ω), 1 kHz,
1% THD
65 W per channel (4 Ω), 100 Hz,
1% THD
340 W
FM 15 stations
AM/MW 15 stations
DVD Home Theater Sound System
SA-HT330GCT
SA-HT330GCP
Colour
(S)... Silver Type
Frequency Modulation (FM)
Frequency range
Sensitivity
S/N 26 dB
Antenna terminals
Amplitude Modulation (AM/MW)
Frequency range
AM Sensitivity S/N 20 dB at 999
kHz
Phone jack
Terminal
Mic jack
Sensitivity
Terminal
n Disc Section
Discs played ( 8 cm or 12 cm)
(1) DVD-RAM (DVD-VR compatible, JPEG formatted discs)
(2) DVD-Audio
(3) DVD-Video
(4) DVD-R, DVD-RW (DVD-Video compatible)
+R, +RW (video compatible)
(5) CD-Audio (CD-DA)
(6) Video CD
(7) SVCD (Conforming to IEC62107)
© 2005 Matsushita Electric Industrial Co. Ltd.. All
rights
reserved.
distribution is a violation of law.
ORDER NO. MD0507281C3
87.50 - 108.00 MHz (50-kHz step)
2.5 µV (IHF)
2.2 µV
75 Ω (unbalance)
522 - 1629 kHz (9 - kHz step)
520 - 1630 kHz (10 - kHz step)
560 µV/m
Stereo, 3.5 mm jack
0.7mV, 1.2k Ω
Mono, 6.3mm (1 system)
Unauthorized
copying
and
