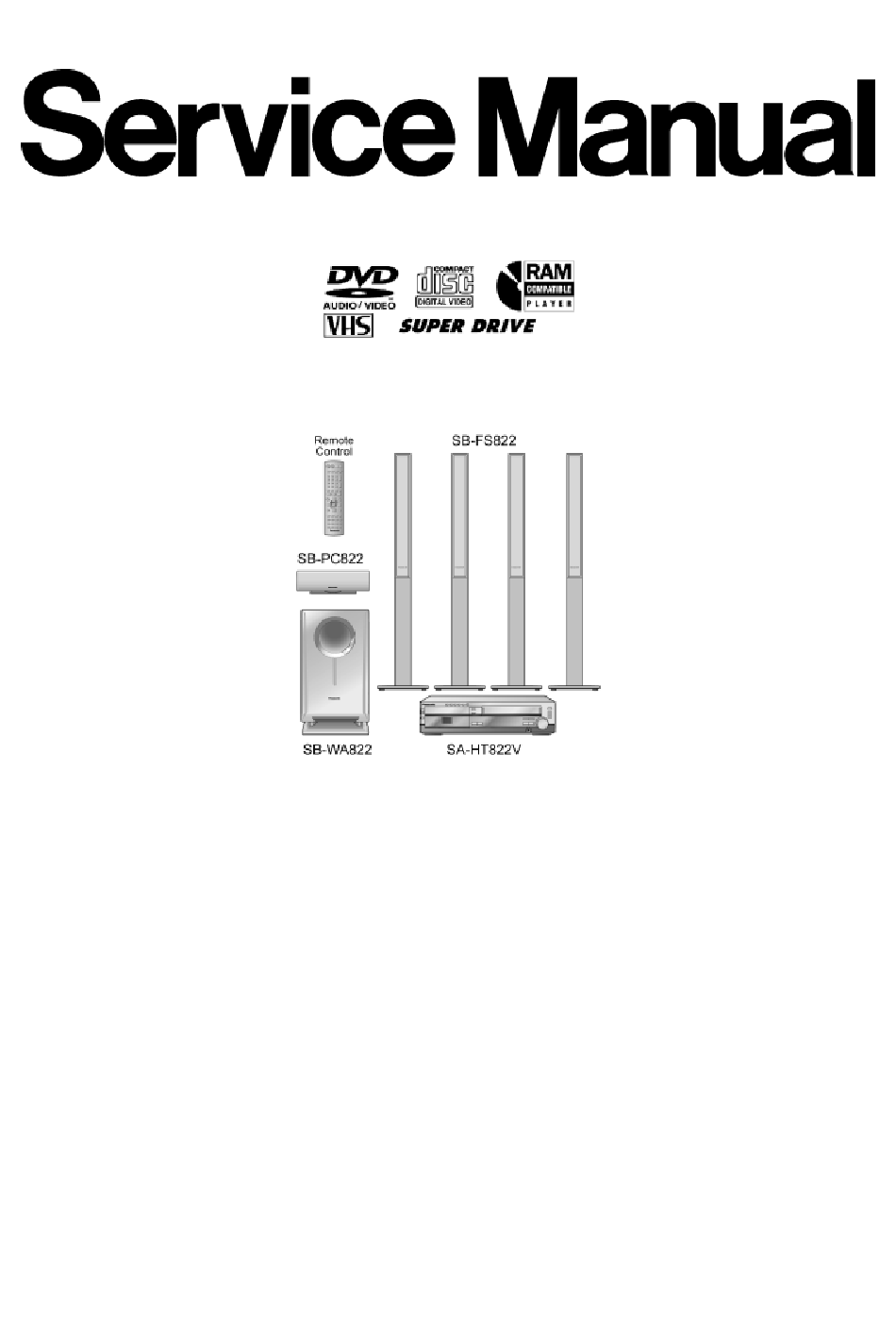

Page 1 ORDER NO. MD0403140C1 DVD/VHS Home Theater Sound System SA-HT822VP Colour (S)... Silver Type Specifications █ AMPLIFIER SECTION RMS output power, 10 % total harmonic distortion 50 W per channel 6 Ω 1 kHz FL/FR 150 W per channel 6 Ω...
Page 2 CD-R/CD-RW (CD-DA, Video-CD, SVCD, MP3, WMA, JPEG formatted discs) MP3/WMA Maximum number of tracks and groups recognizable: 999 tracks and 99 groups Compatible compression rate: MP3: between 32 kbps and 320 kbps WMA: between 48 kbps and 320 kbps JPEG Exif Ver 2.1 JPEG Baseline files Maximum number of pictures and groups recognizable: 4000 pictures and 400 groups...
Page 3 Specifications are subject to change without notice. Mass and dimensions are aproximate. Total harmonic distortion is measured by the digital spectrum analyzer. © 2004 Panasonic AVC Networks Singapore Pte. Ltd. All rights reserved. Unauthorized copying and distribution is a violation of law.
Page 4: Powering Up Of The Main Unit
1 Powering Up of the Main Unit 1.1 Checking Player with Active Subwoofer This unit uses the active subwoofer to supply the power of the component, and the active subwoofer should be connected to the component to check operational conditions of the component. Connect both AC power supply cords to enjoy all the features of this system.
Page 5: Before Repair And Adjustment (Using Active Subwoofer Unit)
2 Before Repair and Adjustment (Using Active Subwoofer Unit) Disconnect AC power, discharge Power Supply Capacitors C546 , C547, C548 & C549 (from active subwoofer unit) through a 10 Ω, 1W resistor to ground. DO NOT SHORT-CIRCUIT DIRECTLY (with a screwdriver blade, for instance), as this may destroy solid state devices. After repairs are completed, restore power gradually using a variac, to avoid overcurrent.
Page 6: Protection Circuitry
3 Protection Circuitry The protection circuitry may have operated if either of the following conditions is noticed: No sound is heard when the power is switched ON. Sound stops during a performance. The function of this circuitry is to prevent circuitry damage if, for example, the positive and negative speaker connection wires are shorted, or if speaker systems with an impedance less than the indicated rated impedance of this unit are used.
Page 7: Safety Precautions
4 Safety Precautions 4.1 General Guidelines When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.
Page 9: Handling The Lead-Free Solder
5 Handling the Lead-free Solder 5.1 About lead free solder (PbF) Distinction of PbF P.C.B.: P.C.B.s (manufactured) using lead free solder will have a PbF stamp on the P.C.B. Caution: Pb free solder has a higher melting point than standard solder; Typically the melting point is 50 - 70°F (30 - 40°C) higher.
Page 10: Prevention Of Electrostatic Discharge (Esd) To Electrostatically Sensitive (Es) Devices
6 Prevention of Electro Static Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor “chip”...
Page 11 7 Accessories Remote control AC power supply cord AM loop antenna FM indoor antenna Video cable System cable Antenna plug Coaxial cable Speaker cable stickers...
Page 12: Precaution Of Laser Diode
8 Precaution of Laser Diode CAUTION : This unit utilizes a class 1 laser. Invisible laser radiation is emitted from the optical pickup lens. Wavelength: 658nm(DVD)/780nm(VCD/CD). Maximum output radiation power from pickup: 100µW/VDE When the unit is turned on : Do not look directly into the pick up lens.
Page 13: Optical Pickup Self-Diagnosis And Replacement Procedure (Dvd Section)
9 Optical Pickup Self-Diagnosis and Replacement Procedure (DVD Section) 9.1 Self-diagnosis This unit is equipped with the optical pickup self-diagnosis function and the tilt adjustment check function. Follow the procedure described below during repair in order to perform self-diagnosis and tilt adjustment effectively. Especially when "NO DISC"...
Page 14: Cautions To Be Taken During Replacement Of Optical Pickup And Spindle Motor Assembly
9.2 Cautions to Be Taken During Replacement of Optical Pickup and Spindle Motor Assembly Before replacing the optical pickup and spindle motor assembly, check a usage time respectively. Follow the checking method described below. Status and Key Function Display XX YYYY With the unit stopped, press the "PLAY"...
Page 15 VTR and the number "6" button on the remote displayed with a four- Checking SP motor usage time controller unit at the same time. digit number by the ten hours. Resetting each usage time of DVD and CD While the unit stopped, press the "STOP" button lasers (simultaneous resetting) (Apply this on the DVD player, the "FORWARD"...
Page 16: Self-Diagnosis Function And Service Mode
10 Self-Diagnosis Function and Service Mode 10.1 Self-Diagnosis Function (VTR Section) 10.1.1 Sef-Diagnosis Display (Overview) The details of failures detected in circuit or mechanism by the microcomputer will be automatically displayed on the FL display as the result of self diagnosis. (Setting) The details of a failure applicable to an error code are displayed on the minute, ten seconds, one second position of the FIP.
Page 17 Meaning at Minute Position Meaning of Second Position Number Details Note (Service Data 1) (Service Data 2) VCR mode (real time) Processing number (real time) Service Treatment during mechanism data Deck mode transition Control number Starting/End terminal detect Reception key information information 00 : Detection of neither starting or Service...
Page 18 this operation after repair.) (Display of Self-Diagnosis History) The self-diagnosis history and additional data will be displayed on the FL, using numbers 3 to 5 of the service mode. FL display example: By selecting 3, 4 or 5 of the service mode, error code and additional data of history 1, history 2, and history 3 are displayed respectively.
Page 19: Self-Diagnosis Function (Dvd Section)
T-90 or above (Thin Hub) Between starting terminal: L and end terminal: 1 with fourteen levels of change T-60 or below (Thick Hub) Between starting terminal: U and end terminal: 5 with sic levels of change (Data 2 display) Thin Hub L n -- A u 9 8 7 6 5 4 3 2 1 Thick Hub U 9 8 7 6 5 *1 (Additional data, (Data 2)) (EJECT reason)
Page 20 10.2.1 Self-Diagnosis Display (Overview) The details of failures detected in circuit or mechanism by the microcomputer will be automatically displayed on the FL display as the result of self diagnosis. (Setting) Power-up the unit. Set to “CD/DVD” mode using [INPUT SELECTOR] button on main or [DVD] button on the remote control (Ensure no disc is placed in the tray.) Press &...
Page 21 Note: No error code will show if there is no problem with unit. Refer below for error code display. (Error Code Display) Section Code Meaning Note Disc code F103 Illegal Highlight Position Possibility of illegal disc when highlight is displayed Brightness signal level adjustment cannot be properly F220 Y level adjustment failure operated...
Page 22: Mode Table
Unable to transmit a message F891 When a message starts transmission to AV task (error stops) to AV task F893 FLASH ROM altered Content of FLASH ROM change F894 EEPROM failure EEPROM Promlem F895 PERR JMP MI SMUCH Firm device incompatible (non-conformant destination value) F896 PERR JMP NON Firm device incompatible (non existing jumper) F897 PERR NO INIT...
Page 23: Servo Process Flowchart
10.5 Servo Process Flowchart...
Page 24: Servo Process Display Mode
10.6 Servo Process Display Mode Each step can be monitored by a number assigned to each servo process during player initialization.Following table shows each process applicable to displayed numbers. Number Assigned to Servo Process Processing Processing Processing Item Details Type number Operated after tray is loaded.
Page 25: Lock Function
Displays servo learning values of ADSC internal RAM as servo processor.Used for judging the quality of servo operation, disc, and OPU. Followings are commonly displayed addresses: 10.8 Lock Function This function prohibits removal of disc and some disc operations to prevent loss of disc at a shop during sales promotion or equivalent occasions.
Page 26 10.10.1 Steps While the power is turned on: Close the tray using the OPEN/CLOSE button. Turn off the power using the POWER button. Unplug the power outlet. 10.10.2 Precaution Note (Important) Do not unplug the power outlet while the tray is open, and do not close the tray manually. 10.11 CR16 Mechanism Ageing Mode (Addition) To enter into ageing mode : Enter self-diagnostic mode.
Page 27: Points To Check When Replacing
11 CHECKING POINTS FOR SYS COM TIMER MY-COM (IC6001) (VIDEO) 11.1 Points to check when replacing When the replacing the Sys Com Timer My-Com (IC6001), surely check the contents of data of a microcomputer before replacing. When the Program Navi is "ON", take backup before replacing and set the initial value. *It also carries out at the time of replacing the P.C.B (The procedure) Before replacing IC6001, please record and keep the channel of already set-up TV broadcast.
Page 28 Caution: When using the service mode, please be sure to plug in and plugout once (for resetting) after clearing the service mode and setting the normal mode.
Page 29: Adjustment Procedure (Dvd Section)
12 Adjustment Procedure (DVD Section) 12.1 Required Tools and Equipment Purpose of Use Tools/Equipment Model/Product Number DVD test disc DVDT-S15 or DVDT-S01 Tilt adjustment TORX screw driver (T6) Available on sales route. (T6) or RFKZ0185 Hanarl VFK1784 Others Grease RFKXPG641 Drysurf RFKXGUD24 CD test disc...
Page 30 T30 (central periphery) play Tilt adjustment screw DVDT-S15 or DVDT-S01 T43 (outer track) play Measuring equipment Adjustment value None (LCD display of the player is used.) Adjust that jitter value becomes minimum. 12.4.1 Optical Adjustment (Optical Pickup Tilt Adjustment) While the player is stopped and no disc is inserted, select the DVD function. Press and hold down the button on the player and the number button, “5”...
Page 31 12.4.3 Check After Adjustment Replay test discs or other commercial discs in order to confirm that no picture deterioration or sound skipping is detected in the inner, middle, and outer tracks. After this, fasten each adjustment screw securely using a screw lock. 12.4.4 Procedure for Screw Lock After adjustment, remove the top cover, clamper base, disc tray and then traverse unit.
Page 32: Operation Procedure
13 Operation Procedure...
Page 33: Disc Information
14 Disc information...
Page 34: About Highmat
15 About HighMAT 15.1 What is HighMAT? This word combines the abbreviations of Matsushita Electric Industrial Co., Ltd. and High Performance Media Access Technology, and is a trademark of Microsoft Corporation. The products with the HighMAT logo shown below are made according to the HighMAT standard.
Page 35: Outline Of The Highmat Standard
Regardless of the types of consumer products, such as DVD players, portable CD players, car stereos and minicomputers, a consistent way to play for digital content will be created, and it will make it easier to retrieve data. You can also play digital content on the disc, which was created in accordance with the HighMAT format with a conventional CD-ROM player.
Page 36 2. Support data format Level 1 player: WMA, MP3 (MPEG-1 Audio Layer 3) Level 2 player: WMA, MP3 (MPEG-1 Audio Layer 3), JPEG Level 3 player: WMA, MP3 (MPEG-1 Audio Layer 3), JPEG, WMV, MPEG4 (optional) 3. Limitation of data format WMA, MP3 (MPEG-1 Audio Layer 3) 64 kbps - 160.999 kbps, 44.1 kHz, stereo, fixed bit rate/variable bit rate.
Page 37: Assembling And Disassembling
16 Assembling and Disassembling 16.1 Disassembly flow chart The following chart is the procedure for disassembling the casing and inside parts for internal inspection when carrying out the servicing. To assemble the unit, reverse the steps shown in the chart below. 16.2 P.C.B.
Page 38 Step 2: Remove the Top Cabinet as arrow shown below. 16.4 Disassembly of Front Panel Follow the (Step 1) to (Step 2) of item 16.3 Step 1: Release all the catches. Step 2: Detach the P7202 and FFC board (P36001).
Page 39: Disassembly Of Vtr Mecha Unit
Caution of disassembly for Front Panel Press upward the cassette rack to place the Front Panel. 16.5 Disassembly of VTR Mecha Unit Follow the (Step 1) to (Step 2) of item 16.3 Follow the (Step 1) to (Step 2) of item 16.4 Step 1 to 4: Remove all the screws.
Page 40: Disassembly Of Dvd Mecha Unit
Caution of assembly the VTR Mecha Unit Join the marking ( )of the position switch tothe position of “EJECT” (the center part of the terminal). (Figure 2) Assembly the boss at the position switch to the rectangular hole at the main gear. (Figure 1) Slowly join back the VTR Mecha Unit to fit the position setting boss (3 locations) on the Main unit.
Page 41 Step 2: Remove 2 screws. Step 3: Detach all the FFC board (P36004, P36005). 16.7 Disassembly of DSP, Power, AC Inlet and Main P.C.B. Follow the (Step 1) to (Step 2) of item 16.3 Follow the (Step 1) to (Step 8) of item 16.5 Follow the (Step 3) of item 16.6 Step 1: Remove 1 screw.
Page 42 Step 4: Press the PCB Spacer as arrow shown and lift up the DSP P.C.B. Step 5: Detach all the FFC board (CN101, CN401). Step 6: Remove 2 screws. Step 7: Detach the POWER P.C.B. and AC INLET P.C.B. while removing tab on board holder. Step 8: Detach the connector (P1102).
Page 43 16.8 Disassembly of Panel A P.C.B., Panel B P.C.B. and 5DVD Led P.C.B. Follow the (Step 1) to (Step 2) of item 16.3 Follow the (Step 1) to (Step 2) of item 16.4 Step 1: Release the catches and remove Volume Knob. Step 2: Remove 8 screws.
Page 44 This unit has a gear which used for chacking items (open/close of disc tray, up/down operation of traverse unit by manually) when servicing. (For gear information, that is described on the items for disassembly procedures.) For preparation of gear (for servicing), perform the procedures as follows. In case of re-servicing the same set, the “...
Page 46 16.10.4 Disassembly of Traverse Motor (Unit) and Spindle Motor (Unit) Follow the (Step 1) - (Step 2) of Item 16.3. Follow the (Step 1) - (Step 2) of Item 16.4. Follow the (Step 1) - (Step 5) of Item 16.6. Follow the (Step 1) - (Step 2) of Item 16.10.2.
Page 47 16.10.5 Replacement for the disc tray Follow the (Step 1) - (Step 2) of Item 16.3. Follow the (Step 1) - (Step 2) of Item 16.4. Follow the (Step 1) - (Step 5) of Item 16.6.
Page 49 16.10.6 Replacement for the traverse deck Follow the (Step 1) - (Step 2) of Item 16.3. Follow the (Step 1) - (Step 2) of Item 16.4. Follow the (Step 1) - (Step 5) of Item 16.6. Follow the (Step 1) - (Step 10) of Item 16.10.5.
Page 50 16.10.7 Disassembly for loading unit Follow the (Step 1) - (Step 2) of Item 16.3. Follow the (Step 1) - (Step 2) of Item 16.4. Follow the (Step 1) - (Step 5) of Item 16.6. Follow the (Step 1) - (Step 10) of Item 16.10.5. Follow the (Step 1) - (Step 4) of Item 16.10.6.
Page 52 16.11 CR16 MECHANISM ASSEMBLY PROCEDURE The following specified greases and/or oil must be applied when some specific parts are changed. Floil grease (VFK1298) : The floil grease must be applied to tray, tray (L) and tray (R). Hanarl oil (VFK1700) : The hanarl oil must be applied to any parts with grease other than the said parts. Follow the (Step 1) - (Step 2) of Item 16.3.
Page 62: Disassembly Of Traverse Mechanism
16.12 Disassembly of traverse mechanism...
Page 63 Follow the (Step 1) - (Step 2) of Item 16.3. Follow the (Step 1) - (Step 2) of Item 16.4. Follow the (Step 1) - (Step 5) of Item 16.6. 16.13 Removing the Cassette Tape Manually When electrical system failure occurs and a loaded cassette tape is stuck in the unit, follow the instruction below to remove it.
Page 64 16.13.1 Removal by Compulsory Loading (Available when service mode is on even when the power cannot be turned off.) Press and hold down the "FF" and "EJECT" buttons at least three seconds then adjust the service number until appears as "7". Press the "STOP"...
Page 65 Restart the unloading operation to remove the cassette tape. 16.13.3 Removal of Mecha Unit then take out Cassette Tape Unplug the power outlet and remove the top panel and the front panel. Remove the VTR mechanism unit. Remove the loading motor (remove a screw). Rotate the main cam gear counterclockwise, and suspend the unloading operation right before completion.
Page 66 Reassemble the loading motor and the mechanical unit to the Main P.C.B. and securely fasten with the screws. (Refer to "Precaution to Be Taken During Installation of Traverse Deck Unit".)
Page 67: Procedure For Checking Of The Major P.c.b
17 Procedure for checking of the major P.C.B. 17.1 Checking the DVD Module P.C.B., DSP P.C.B., Power P.C.B., CD Loading P.C.B., Panel A P.C.B., Panel B P.C.B. and 5DVD Led P.C.B. Preparation Follow items 16.1 to 16.7 of Disassembly Procedure (Refer to below diagram for service position 1). 17.2 Checking Main P.C.B.
Page 68: Waveform Chart
18 Waveform Chart 18.1 Preparation Items Test disc DVDT-S20 Video Analyzer Digital Oscilloscope RGB Encoder 18.1.1 Procedures Enable test mode ‘AC 01 EA’ Select ‘TUNER’ using R/C & press ‘FF search’ to change from VCR to DVD mode. Play DVDT S20 test disc (T9) Note : There should not be any abnormality on picture such as color dim or color too bright.
Page 70: Illustration Of Ic's, Transistors And Diodes
19 Illustration of IC’s, Transistors and Diodes...
Page 71: Block Diagram
20 Block Diagram 20.1 DVD Module Block 20.2 Main Block...
Page 72: Notes Of Schematic Diagram
21 Notes of Schematic Diagram (All schematic diagrams may be modified at any time with the development of the new technology) Note: : Stock switch : Play switch : Botton switch : Open switch : Change switch S1531 : Safety Tab switch S1532 : Mode switch S7001...
Page 73 S7024 : Eject switch The voltage value and waveforms are the reference voltage of this unit measured by DC electronic voltmeter (high impedance) and oscilloscope on the basis of chassis. Accordingly, there may arise some error in voltage values and waveforms depending upon the internal impedance of the tester or the measuring unit. Importance safety notice : Components identified by mark have special characteristics important for safety.
Page 74: Schematic Diagram
22 Schematic Diagram 22.1 DVD Module Circuit 22.2 Main Circuit 22.3 Main Circuit 22.4 Main Circuit 22.5 Main Circuit 22.6 DSP Circuit 22.7 Power Circuit and AC Inlet 22.8 Panel B Circuit 22.9 5DVD LED Circuit and Panel A Circuit...
Page 75 22.10 CD Loading Circuit 22.11 VCR Deck Circuit...
Page 76: Printed Circuit Board
23 Printed Circuit Board 23.1 DVD Module P.C.B. (Side A and Side B) 23.2 Main P.C.B. 23.3 DSP P.C.B. 23.4 Power P.C.B. and AC Inlet P.C.B. 23.5 Panel B P.C.B. 23.6 5 DVD Led P.C.B. and Panel A P.C.B. 23.7 CD Loading P.C.B. and VCR Deck P.C.B.
Page 77: Wiring Connection Diagram
24 Wiring Connection Diagram...
Page 78: Parts Location And Replacement Parts List
25 Parts Location and Replacement Parts List Notes: Important safety notice: Components identified by mark have special characteristics important for safety. Furthermore, special parts which have purposes of fire-retardent (resistors), high-quality sound (capacitors), low noise (resistors), etc are used. When replacing any of these components, be sure to use only manufacturer’s specified parts shown in the parts list.
Page 79 RDG0529 HOR SPEED DOWN GEAR [M] RDG0530 HOR DRIVE GEAR RDG0531 LOAD RELAY GEAR RDG0532 LOAD GEAR RDG0535 UD SPEED DOWN GEAR RDG0534 UD SPEED DOWN GEAR RDG0536 S/SPEED DOWN GEAR RDG0537 SELECT DRIVE GEAR RDG0538 CHANGE GEAR RDG0539 UD DRIVE GEAR RDG0540 TIMING GEAR RDG0542...
Page 80 JSM0048 MAGNET RMC0387 SUPPORT SPRING XTBS26+8J SCREW RAE2008W-S DT68 TRV SUB UNIT RMG0598A-K FLOATING RUBBER RMG0617-H CUSHION RUBBER A RMG0618-H CUSHION RUBBER B RMR1596-K MIDDLE CHASSIS RMS0789 FIXED PIN 25.2 Cassette Mechanism 25.2.1 Cassette Mechanism Parts Location 25.2.2 Cassette Mechanism Parts List Ref.
Page 81 VXL3160 MAIN SHAFT UNIT VXA7311 SECTOR GEAR UNIT VMD4983 FPC HOLDER VML3706 OPENER LEVER VMD4622 S DETECT ACTUATOR VMX3196 CUT WASHER (C) VMX2699 CUT WASHER VMX2208 CUT WASHER XTN26+7J SCREW (CAPSTAN X3) XYN3+C4 MOTOR FIXING SCREW XTV26+5F SCREW XTV26+8FR-NC SCREW 9SIDE) VHD1117 DD SCREW VHD1044...
Page 82: Electrical Parts List
XTW3+6TR SCREW MAIN VWJ1652 AC HEAD FFC WIRE VHD0690 SCREW VHD1452-1 SCREW VHD1453-1 SCREW VMB2521 BLINDER SPRING VMX3115 MECHA SPACER (F) VMX3229 MECHA SPACER (R) XTBS26+8J SCREW XTV26+5FR SCREW XTW3+10PR SCREW (MECHA) RMN0203 PCB SUPPORT RMN0735 CONNECTOR HOLDER [M] RWJV0002 8P LED TO FRONT RWJV0003 19 MSIN TO FRONT A...
Page 83 IC402 M62456FPE1 IC SUPER BASS IC403 C0ABCB000040 IC QUAD OP AMP IC501 KIA4558FEL IC DUAL OP AMP IC701 KIA4558FEL IC DUAL OP-AMP IC1200 C0DAEJC00003 IC SHUNT REGULATOR IC1511 B3NAA0000049 IC REEL SENSOR IC1512 B3NAA0000049 IC REEL SENSOR IC2501 C1AB00001479 IC CYL DRIVE IC2502 C0DBZJG00005 IC REGULATOR IC2601...
Page 84 Q1151 2SC3311ASA TRANSISTOR Q1152 2SC3311ASA TRANSISTOR Q1153 B1DEDQ000014 TRANSISTOR Q1200 B3PBA0000078 TRANSISTOR Q1351 B1AAGD000006 TRANSISTOR Q1352 B1AAGD000006 TRANSISTOR Q1354 B1AAGD000006 TRANSISTOR Q1501 PNA2604M01VT TRANSISTOR Q1502 PNA2604M01VT TRANSISTOR Q3001 2SD0601A0L TRANSISTOR Q3003 2SD0601A0L TRANSISTOR Q3701 2SB1218A0L TRANSISTOR Q4081 B1AAGD000006 TRANSISTOR Q4082 2SD114900L TRANSISTOR Q4083...
Page 85 QR8420 UNR521100L CHIP TRANSISTOR QR8571 UNR511V00L CHIP TRANSISTOR QR33002 UNR211200L CHIP TRANSISTOR QR33003 UNR211200L CHIP TRANSISTOR QR33005 UNR211200L CHIP TRANSISTOR QR33012 UNR221300L CHIP TRANSISTOR QR33013 UNR221300L CHIP TRANSISTOR DIODES D201 B0JCME000012 DIODE D202 B0JCME000012 DIODE D203 B0JCME000012 DIODE D301 B0BC5R000009 DIODE D302 B0BC5R000009 DIODE D401...
Page 86 D7201 MAZ4240NMF DIODE D7202 B0AAED000003 DIODE D7501 B0BA9R000007 DIODE D7601 MAZ4300NMF DIODE D7701 B3AKB0000016 DIODE D7702 B3AKB0000016 DIODE D7703 B3AKB0000016 DIODE D7704 B3AKB0000016 DIODE D7705 B3AKB0000016 DIODE D7751 B0JACE000001 DIODE D7752 MA2C700A0F DIODE D7753 B0AAED000003 DIODE D7754 B0JACE000001 DIODE D8550 MA2S11100L DIODE D8571...
Page 87 LB8401 ERJ3GEYJ151V 150 1/16W LB8420 J0JCC0000091 FILTER LB8421 J0JCC0000119 FERRITE BEAD LB8422 J0JCC0000119 FERRITE BEAD LB8423 ERJ3GEY0R00V 0 1/16W LB8424 J0JCC0000091 FILTER LB8451 J0JCC0000119 FERRITE BEAD LB8452 J0JCC0000119 FERRITE BEAD LB8453 J0JCC0000119 FERRITE BEAD LB8454 J0JCC0000119 FERRITE BEAD LB8455 J0JCC0000119 FERRITE BEAD LB8456 J0JCC0000119...
Page 88 S7008 EVQ21405RJ SW STOP S7009 EVQ21405RJ SW DISC 1 S7010 EVQ21405RJ SW DISC CHECK S7011 EVQ21405RJ SW SELECTOR S7012 EVQ21405RJ SW OPEN/CLOSE S7013 EVQ21405RJ SW POWER S7016 EVQ21405RJ SW PLAY S7017 EVQ21405RJ SW FF S7018 EVQ21405RJ SW STOP S7019 EVQ21405RJ SW REW S7020 EVQ21405RJ...
Page 89 L3705 G0C680JA0019 COIL L4081 G0C471KA0004 COIL L4501 G0C1R2J00004 COIL L4502 G0C391JA0019 COIL L5001 G0C680JA0019 COIL L6001 G0C5R6JA0019 COIL L7001 J0JBC0000019 CHIP INDUCTOR L7003 J0JBC0000019 CHIP INDUCTOR L7004 J0JBC0000019 CHIP INDUCTOR L7005 J0JBC0000019 CHIP INDUCTOR L7006 J0JBC0000019 CHIP INDUCTOR L7200 G0C3R3JA0027 COIL L7601 G0C100JA0030 INDUCTOR...
Page 90 JK7001 RJJ37TK07-X JK HEADPHONE P1101 K2AB2B000002 JK AC INLET CHIP RESISTORS W105 ERJ3GEY0R00V 0 1/16W W106 ERJ3GEY0R00V 0 1/16W W108 ERJ3GEY0R00V 0 1/16W W118 ERJ3GEY0R00V 0 1/16W W201 ERJ3GEY0R00V 0 1/16W W301 ERJ3GEY0R00V 0 1/16W W302 ERJ3GEY0R00V 0 1/16W W401 ERJ3GEY0R00V 0 1/16W W402 ERJ3GEY0R00V 0 1/16W...
Page 91 W549 ERJ3GEY0R00V 0 1/16W W551 ERJ6GEY0R00V 0 1/10W W7701 ERJ6GEY0R00V 0 1/10W W7702 ERJ6GEY0R00V 0 1/10W W7703 ERJ6GEY0R00V 0 1/10W W7704 ERJ6GEY0R00V 0 1/10W W7705 ERJ6GEY0R00V 0 1/10W W7706 ERJ6GEY0R00V 0 1/10W W7707 ERJ6GEY0R00V 0 1/10W W7708 ERJ6GEY0R00V 0 1/10W RESISTORS R106 ERJ3GEYJ562V 5.6K 1/16W...
Page 92 R223 ERJ3GEYJ223V 22K 1/16W R224 ERJ3GEYJ223V 22K 1/16W R225 ERJ3GEYJ472V 4.7K 1/16W R226 ERJ3GEYJ472V 4.7K 1/16W R227 ERJ3GEYJ223V 22K 1/16W R228 ERJ3GEYJ223V 22K 1/16W R301 ERJ3GEYJ182V 1.8K 1/16W R302 ERJ3GEYJ332V 3.3K 1/16W R303 ERJ3GEYJ392V 3.9K 1/16W R304 ERJ3GEYJ392V 3.9K 1/16W R305 ERJ3GEYJ333V 33K 1/16W R306...
Page 93 R402 ERJ3GEYJ222V 2.2K 1/16W R403 ERJ3GEYJ332V 3.3K 1/16W R404 ERJ3GEYJ222V 2.2K 1/16W R405 ERJ3GEYJ563V 56K 1/16W R406 ERJ3GEYJ472V 4.7K 1/16W R407 ERJ3GEYJ822V 8.2K 1/16W R408 ERJ3GEYJ563V 56K 1/16W R409 ERJ3GEYJ822V 8.2K 1/16W R410 ERJ3GEYJ563V 56K 1/16W R411 ERJ3GEYJ222V 2.2K 1/16W R412 ERJ3GEYJ822V 8.2K 1/16W R413...
Page 94 R462 ERJ3GEYJ273V 27K 1/16W R463 ERJ3GEYJ273V 27K 1/16W R464 ERJ3GEYJ273V 27K 1/16W R465 ERJ3GEYJ273V 27K 1/16W R466 ERJ3GEYJ273V 27K 1/16W R467 ERJ3GEYJ104V 100K 1/16W R468 D0GB563JA002 56K 1/16W R469 D0GB563JA002 56K 1/16W R470 D0GB563JA002 56K 1/16W R471 D0GB563JA002 56K 1/16W R472 D0GB563JA002 56K 1/16W R473...
Page 95 R624 ERJ3GEYJ561V 560 1/16W R625 ERJ3GEYJ272V 2.7K 1/16W R626 ERJ3GEYJ272V 2.7K 1/16W R627 ERJ3GEYJ561V 560 1/16W R701 ERJ3GEYJ103V 10K 1/16W R702 ERJ3GEYJ103V 10K 1/16W R703 ERJ3GEYJ103V 10K 1/16W R704 ERJ3GEYJ103V 10K 1/16W R705 ERJ3GEYJ103V 10K 1/16W R706 ERJ3GEYJ103V 10K 1/16W R707 ERJ3GEYJ473V 47K 1/16W R708...
Page 96 R2561 ERJ3GEYJ102V 1K 1/16W R2562 ERJ3GEYJ473V 47K 1/16W R2563 ERJ3GEYJ102V 1K 1/16W R2601 ERJ3GEYJ821V 820 1/16W R2602 ERJ3GEYJ472V 4.7K 1/16W R2603 ERJ3GEYJ182V 1.8K 1/16W R2604 ERJ3GEYJ821V 820 1/16W R2605 ERJ3GEYJ103V 10K 1/16W R2606 ERJ3GEYJ473V 47K 1/16W R3001 ERJ3GEYJ622V 6.2K 1/16W R3002 ERJ3GEYJ392V 3.9K 1/16W R3003...
Page 97 R4509 ERJ3GEYJ473V 47K 1/16W R4510 ERJ3GEYJ682V 6.8K 1/16W R4513 ERJ3GEYJ222V 2.2K 1/16W R4525 ERJ3GEYJ102V 1K 1/16W R4527 ERJ3GEY0R00V 0 1/16W R4528 ERJ3GEY0R00V 0 1/16W R4529 ERJ3GEYJ681V 680 1/16W R4534 D0GB124JA002 120K 1/16W R4538 D0GB333JA002 33K 1/16W R4539 ERJ3GEYJ331V 330 1/16W R4540 ERJ3GEYJ331V 330 1/16W R4554...
Page 98 R7011 ERJ3GEYJ102V 1K 1/16W R7013 ERDS2TJ681T 680 1/4W R7023 ERJ3GEY0R00V 0 1/16W R7024 ERJ3GEYJ102V 1K 1/16W R7025 ERJ3GEYJ472V 4.7K 1/16W R7026 ERJ3GEYJ182V 1.8K 1/16W R7027 ERJ3GEYJ332V 3.3K 1/16W R7028 ERJ3GEYJ472V 4.7K 1/16W R7030 ERJ3GEYJ182V 1.8K 1/16W R7031 ERJ3GEYJ102V 1K 1/16W R7201 ERDS2TJ180T 18 1/4W...
Page 99 R8041 ERJ2GEJ330X 33 2W R8232 ERJ2GEJ103X 10K 2W R8233 ERJ3GEYJ153V 15K 1/16W R8235 ERJ3GEYJ822V 8.2K 1/16W R8236 ERJ3GEYJ822V 8.2K 1/16W R8241 ERJ3GEYJ223V 22K 1/16W R8242 ERJ3GEYJ752V 7.5K 1/16W R8251 ERJ6GEYJ6R8V 6.8 1/10W R8271 ERJ14YKR39U 0.39 1/4W R8281 ERJ3GEYJ101V 100 1/16W R8282 ERJ3GEYJ101V 100 1/16W R8311...
Page 100 R33004 ERJ6GEYG151V 150 1/10W R33005 ERJ6GEYG222V 2.2K 1/10W R33007 ERJ6GEYG222V 2.2K 1/10W R33008 ERJ6GEYG222V 2.2K 1/10W R33009 ERJ6GEYG223V 22K 1/10W R33010 ERDS2TJ103T 10K 1/4W R33012 ERDS2TJ272T 2.7K 1/4W R33013 ERJ3GEYJ104V 100K 1/16W R33014 ERDS2TJ220T 22 1/4W R33015 ERDS2TJ220T 22 1/4W R33016 ERDS2TJ220T 22 1/4W...
Page 101 R36040 ERJ3GEYJ101V 100 1/16W R36041 ERJ3GEYJ331V 330 1/16W R36042 ERJ3GEYJ331V 330 1/16W R36043 ERJ3GEYJ681V 680 1/16W R36044 ERJ3GEYJ681V 680 1/16W R36045 ERJ3GEYJ681V 680 1/16W R36046 ERJ3GEYJ101V 100 1/16W R36047 ERJ3GEYJ101V 100 1/16W R36048 ERJ3GEYJ221V 220 1/16W R36049 ERJ3GEYJ101V 100 1/16W R36050 ERJ3GEYJ821V 820 1/16W R36051...
Page 102 K8335 ERJ2GE0R00X 0 1/4W K8341 ERJ2GE0R00X 0 1/4W K8421 ERJ3GEY0R00V 0 1/16W K8651 ERJ2GE0R00X 0 1/4W K36002 ERJ3GEY0R00V 0 1/16W RA8011 D1H88204A024 CHIP RESISTOR RA8012 D1H88204A024 CHIP RESISTOR RA8013 D1H88204A024 CHIP RESISTOR RA8014 D1H88204A024 CHIP RESISTOR RA8015 D1H422020001 CHIP RESISTOR RA8016 D1H88204A024 CHIP RESISTOR RA8017 D1H88204A024...
Page 103 C206 ECJ2VB1H102K 1000P 50V C207 ECA1HAK010XB 1 50V C207 ECJ2VB1H153K 0.015 50V C208 ECA1HAK010XB 1 50V C209 ECA1HAK4R7XB 4.7 50V C210 ECA1HAK4R7XB 4.7 50V C211 ECA1AM221B 220 10V C212 ECJ2VB1H223K 0.022 50V C213 ECJ2VF1H104Z 0.1 50V C214 ECJ1VC1H050C 5P 50V C215 ECJ1VC1H120J 12P 50V C216...
Page 104 C317 ECJ1VC1H101J 100P 50V C318 ECA1CAK100XB 10 16V C319 ECJ1VC1H101J 100P 50V C320 ECJ1VC1H101J 100P 50V C321 F1H1A105A025 1 10V C322 ECJ1VC1H330J 33P 50V C323 ECA1CAK100XB 10 16V C324 ECJ1VC1H330J 33P 50V C325 F1H1A105A025 1 10V C326 F1H1A105A025 1 10V C327 F1H1A105A025 1 10V...
Page 105 C424 ECJ1VB1H222K 2200P 50V C425 ECJ1VB1H222K 2200P 50V C426 ECA1HAK4R7XB 4.7 50V C427 ECJ1VB1C393K 0.039 16V C428 ECJ1VB1H103K 0.01 50V C429 ECJ1VB1H821K 820P 50V C430 ECA1CAK100XB 10 16V C431 ECJ1VB1H103K 0.01 50V C432 ECA1HAK4R7XB 4.7 50V C433 ECJ1VC1H101J 100P 50V C434 ECJ1VC1H330J 33P 50V C435...
Page 106 C615 ECA1CM101B 100 16V C616 ECA1CM100B 10 16V C701 F1H1A105A025 1 10V C702 F1H1A105A025 1 10V C703 ECJ1VC1H101J 100P 50V C704 ECJ1VC1H101J 100P 50V C705 ECJ1VC1H330J 33P 50V C706 ECJ1VB1H471K 470P 50V C707 ECJ1VB1H471K 470P 50V C708 ECEA1CKA100B 10 16V C709 ECEA1CKA100B 10 16V C711...
Page 107 C2509 ECEA1CKA220B 22 16V C2510 F1H1C104A065 0.1 16V C2511 F1H1C104A065 0.1 16V C2512 F1H1C104A065 0.1 16V C2513 ECJ1VF1A105Z 1 10V C2515 F1H1H103A730 0.01 50V C2518 F1H1H103A730 0.01 50V C2519 F1H1H103A730 0.01 50V C2520 F1H1C104A065 0.1 16V C2551 ECJ1VB1C563K 0.056 16V C2552 ECJ1VB1C563K 0.056 16V C2561...
Page 108 C3701 F1H1C104A065 0.1 16V C3702 F1H1H103A730 0.01 50V C3703 F1H1H103A730 0.01 50V C3704 F2A0J471A247 470P 6.3V C3705 F1H1C104A065 0.1 16V C4010 ECEA1CKA100B 10 16V C4018 ECEA0JKA220B 22 6.3V C4041 ECEA1EKA4R7B 4.7 25V C4042 ECEA1EKA4R7B 4.7 25V C4061 ECJ1VB1H103K 0.01 50V C4062 ECEA0JKA330B 33 6.3V C4063...
Page 109 C4575 F1H1C104A041 0.1 16V C4576 ECJ1VB1C223K 0.022 16V C4577 ECEA1CKA100B 10 16V C4578 F1H1A105A025 1 10V C4601 ECEA1CKA100B 10 16V C5001 F1H1H103A748 0.01 50V C5002 F1H1H103A748 0.01 50V C5003 F1H1H103A748 0.01 50V C5004 F1H1H103A748 0.01 50V C5005 ECEA0JKA101B 100 6.3V C5006 F1H1C104A065 0.1 16V C6001...
Page 110 C7505 ECEA0JKA101B 100 6.3V C7506 ECJ1VF1C104Z 0.1 16V C7602 ECEA1HKA010B 1 50V C7603 ECEA0JKA470B 47 6.3V C7604 F1H1H103A730 0.01 50V C7605 ECJ1VC1H330J 33P 50V C7709 ECJ1VB1H182K 1800P 50V C7752 ECEA0JKA331Q 330 6.3V C8001 EEEFC0J101P 100P 6.3V C8002 EEE0GA331WP 330P 4V C8003 ECJ1VB1H222K 2200P 50V C8004...
Page 111 C8215 ECJ1VB1H562K 5600P 50V C8216 ECJ1VB1C183K 0.018 16V C8217 F1H0J1050013 1 6.3V C8218 F1H0J1050013 1 6.3V C8221 F1H1C104A042 0.1 16V C8222 F1H1C104A042 0.1 16V C8223 F1H1C104A042 0.1 16V C8224 F1H1C104A042 0.1 16V C8225 ECJ1ZF1C104Z 0.1 16V C8226 ECJ1ZF1C104Z 0.1 16V C8227 ECJ1ZF1C104Z 0.1 16V C8228...
Page 112 C8504 ECJ1ZF1C104Z 0.1 16V C8505 ECJ1VC1H221J 220P 50V C8506 ECJ1VC1H101J 100P 50V C8550 EEE0JA330WR 33P 6.3V C8551 ECJ1ZF1C104Z 0.1 16V C8552 EEEFC1C100R 10P 16V C8553 EEE0JA470WR 47P 6.3V C8554 F1H0J1050013 1 6.3V C8561 ECJ1ZF1C104Z 0.1 16V C8562 EEEFC1C100R 10P 16V C8563 EEE0JA470WR 47P 6.3V...
Page 113: Packing Materials & Accessories Parts List
C34015 ECEA1HKA4R7B 4.7 50V C34405 ECJ1VB1H102K 1000P 50V C34414 ECEA1CKA470B 47 16V C34415 ECEA1CKA470B 47 16V C34427 ECJ1VB1H102K 1000P 50V C36001 ECA0JM101B 100 6.3V C36002 F1H1C104A065 0.1 16V C36003 F1H1C104A065 0.1 16V C36004 ECJ1VC1H331J 330P 50V C36005 ECJ1VC1H331J 330P 50V C36006 ECJ1VB1E223K 0.022 25V C36007...
Page 114: Additional Contents
26 Additional Contents 26.1 Schematic Diagram Note: With reference to pg 107 to pg 112 of original Service manual (SA-HT822VP). 26.2 Voltage Measurement FLE0403D/E/J/N/S/A...
Page 115 SCHEMATIC DIAGRAM-15 : +B SIGNAL LINE MAIN (SYSTEM CONTROL:S) CIRCUIT : FM/AM SIGNAL LINE C7505 6.3V100 D6302 Q6306 B0JACE000001 2SD0601A0L +B REGULATOR UNREG 6V P7502 K7401 FM_DET C6301 R7502 D7753 0.01 D7751 B0AAED000003 B0JACE000001 TUNER STEREO D7754 PACK R7501 B0JACE000001 TW1004 R6307 TU7502...
Page 116 SCHEMATIC DIAGRAM-16 : +B SIGNAL LINE MAIN (SYSTEM CONTROL:S) CIRCUIT R6006 TRK_ENV C6005 50V3.3 TW6008 T-PHOTO MODE Q7501 S-PHOTO ART_V_H_N KTC2026 9V REGULATOR TW2001 C7506 C6020 R7506 TL6010 1000P 6.8K UNREG_38V VIDEO_H_SW A_H_SW D_REC_H D7501 C7504 R6016 5VAD B0BA9R000007 16V47 5VAD R6021 ABS_NORM_L...
Page 117 SCHEMATIC DIAGRAM-17 : +B SIGNAL LINE MAIN (SYSTEM CONTROL:S) CIRCUIT +5VA TU7601 ENG36502G SREEL R1511 R1512 IC1511 TUN_V_IN TL6013 TL6012 TU V IN T.S.CURVE R7604 SIF_OUT SIF OUT R1513 A COMPO R1503 TREEL C7602 50V1 IF IN 5VAD R7601 IC1512 IF OUT UNREG_38V REG 30V...
Page 118 SCHEMATIC DIAGRAM-18 : +B SIGNAL LINE : MAIN SIGNAL LINE MAIN (VIDEO:V) CIRCUIT AUDIO P5001 HEAD(R) AUDIO A COM A_COM HEAD(L) SP L SP(L) SP L C5001 0.01 SP COM SP COM SP(R) SP R C5002 0.01 SP R EP L C5003 0.01 EP L...
Page 119 SCHEMATIC DIAGRAM-19 MAIN (VIDEO:V) CIRCUIT : +B SIGNAL LINE TRK_ENV TRAKING_ENV C3047 L3303 R4061 G0C270JA0019 Q3003 330K 2SD0601A0L SWITCH C4061 R4062 0.01 C4062 R4063 6.3V33 C3052 X3001 H0D357400067 R3024 VIDEO_H_SW TW3001 C3099 6.3V100 C3028 C3027 0.01 6.3V47 C5006 C5005 6.3V100 R3038 2.2K VIDEO5V...
Page 120 SCHEMATIC DIAGRAM-20 : VIDEO SIGNAL LINE : +B SIGNAL LINE : DVD VIDEO SIGNAL LINE : AUXILLARY SIGNAL LINE MAIN (VIDEO:V) CIRCUIT C3703 0.01 DVD_OUT DVD_OUT [H] C3702 0.01 OSD_VIDEO_OUT QR4702 QR4701 UNR521600L TL4504 MUTING SWITCH TV_VCR_AUX_MIX_R QR4703 QR4702 MUTE_LINE UNR521600L IC3703 MUTING SWITCH...
Page 121 SCHEMATIC DIAGRAM-21 : MAIN SIGNAL LINE : +B SIGNAL LINE DSP CIRCUIT : -B SIGNAL LINE CN101 DVDGND DVDFDR C716 C124 DVDGND C701 C703 W105 R701 R705 50V4.7 16V22 100P DVDFL DVD_FL +VE7.5V MAIN (DVD R704 R706 R140 C130 DVDSR INTERFACE:IF) 100P C708...
Page 122 SCHEMATIC DIAGRAM-22 : +B SIGNAL LINE DSP CIRCUIT : MAIN SIGNAL LINE : -B SIGNAL LINE R218 100K C216 C218 16V100 R212 C223 0.022 R205 R202 R201 R206 0.91 4.7K 4.7K 4.7K C212 0.022 C201 R207 C205 3.3K 100P L601 R203 G0C100JA0030 0.91...
Page 123 SCHEMATIC DIAGRAM-23 : MAIN SIGNAL LINE : +B SIGNAL LINE DSP CIRCUIT : -B SIGNAL LINE -7.5V C309 0.01 R325 R328 C316 R313 R321 C318 16V10 1.8K 1.8K 16V10 C331 R312 C312 C319 R322 R340 100P 100P C313 C324 IC302 C0ABCB000040 QUAD OP AMP C353...
Page 124 SCHEMATIC DIAGRAM-24 : MAIN SIGNAL LINE : +B SIGNAL LINE DSP CIRCUIT : -B SIGNAL LINE SUBW_A C421 R433 R455 C432 0.033 8.2K 50V4.7 FR_A C441 D401 R477 +7.5V D403,D404 16V10 B0ACCK000005 B0ACCK000005 Q412 R440 R444 C436 R457 R459 C422 3.3K R478 C413...
Page 125 SCHEMATIC DIAGRAM-25 : MAIN SIGNAL LINE : +B SIGNAL LINE DSP CIRCUIT : -B SIGNAL LINE C458 R487 16V10 SR_A +7.5V C416 C437 R428 50V0.47 3.3K C415 C459 R427 R474 R488 Q402 50V0.47 16V10 3.3K SL_A B1GFGCAA0001 MUTING SWITCH C433 C450 R454 100P...
Page 126 SCHEMATIC DIAGRAM-26 : MAIN SIGNAL LINE : +B SIGNAL LINE DSP CIRCUIT : -B SIGNAL LINE MUTE_S1 Q406 KRA110STA MUTING SWITCH R461 R481 1.8K -7.5V MUTE_S C444 50V4.7 R468 CN401 DSP_IN_R TV_VCR_AUX_MIX_R Q405 C491 KTD1304TA SUBW DSP_IN_L TV_VCR_AUX_MIX_L MUTING SWITCH R452 3.3K Q410...
Page 127 SCHEMATIC DIAGRAM-21 : MAIN SIGNAL LINE : +B SIGNAL LINE DSP CIRCUIT : -B SIGNAL LINE CN101 DVDGND DVDFDR C716 C124 DVDGND C701 C703 W105 R701 R705 50V4.7 16V22 100P DVDFL DVD_FL +VE7.5V MAIN (DVD R704 R706 R140 C130 DVDSR INTERFACE:IF) 100P C708...
Page 128 SCHEMATIC DIAGRAM-22 : +B SIGNAL LINE DSP CIRCUIT : MAIN SIGNAL LINE : -B SIGNAL LINE R218 100K C216 C218 16V100 R212 C223 0.022 R205 R202 R201 R206 0.91 4.7K 4.7K 4.7K C212 0.022 C201 R207 C205 3.3K 100P L601 R203 G0C100JA0030 0.91...
Page 129 SCHEMATIC DIAGRAM-23 : MAIN SIGNAL LINE : +B SIGNAL LINE DSP CIRCUIT : -B SIGNAL LINE -7.5V C309 0.01 R325 R328 C316 R313 R321 C318 16V10 1.8K 1.8K 16V10 C331 R312 C312 C319 R322 R340 100P 100P C313 C324 IC302 C0ABCB000040 QUAD OP AMP C353...
Page 130 SCHEMATIC DIAGRAM-24 : MAIN SIGNAL LINE : +B SIGNAL LINE DSP CIRCUIT : -B SIGNAL LINE SUBW_A C421 R433 R455 C432 0.033 50V4.7 FR_A C441 D401 R477 +7.5V D403,D404 16V10 B0ACCK000005 B0ACCK000005 Q412 R440 R444 C436 R457 R459 C422 3.3K R478 C413 KTC3875GRTA...
Page 131 SCHEMATIC DIAGRAM-25 : MAIN SIGNAL LINE : +B SIGNAL LINE DSP CIRCUIT : -B SIGNAL LINE C458 R487 16V10 SR_A +7.5V C416 C437 R428 50V0.47 3.3K C415 C459 R427 R474 R488 Q402 50V0.47 16V10 3.3K SL_A B1GFGCAA0001 MUTING SWITCH C433 C450 R454 100P...
Page 132 SCHEMATIC DIAGRAM-26 : MAIN SIGNAL LINE : +B SIGNAL LINE DSP CIRCUIT : -B SIGNAL LINE MUTE_S1 Q406 KRA110STA MUTING SWITCH R461 R481 1.8K -7.5V MUTE_S C444 50V4.7 R468 CN401 DSP_IN_R TV_VCR_AUX_MIX_R Q405 C491 KTD1304TA SUBW DSP_IN_L TV_VCR_AUX_MIX_L MUTING SWITCH R452 3.3K Q410...
Page 133 SCHEMATIC DIAGRAM-27 : -B SIGNAL LINE POWER CIRCUIT : +B SIGNAL LINE D1230 MA2C18500E R1230 D1180 C1230 TL1038 T1150 MAZ751000C 50V22 G4D2A0000159 TL1009 D1290 L1290 B0JAMK000015 G0A220G00018 C1291 C1290 D1291 16V100 16V680 B0JAMK000015 D1250 B0JAMK000015 TL1016 L1250 D1251 G0A220G00018 B0JAMK000015 C1251 C1250 25V100...
Page 134 SCHEMATIC DIAGRAM-28 : +B SIGNAL LINE PANEL B CIRCUIT : -B SIGNAL LINE DP7201 A2BD00000083 FL DISPLAY 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 C7201 35V10 R7226...
Page 135 SCHEMATIC DIAGRAM-29 : +B SIGNAL LINE PANEL B CIRCUIT : -B SIGNAL LINE K7201 C7202 Q7001 VR7201 EVEKE2F3024B 2SD602A0L VOLUME JOG FL DRIVE R7024 R7026 R7028 R7030 1.8K 4.7K 1.8K S7016 S7018 S7020 S7024 R7201 T.PLAY T.STOP CH UP EJECT D7202 R7202 B0AAED000003...
Page 136 SCHEMATIC DIAGRAM-30 5DVD LED CIRCUIT : +B SIGNAL LINE Q7705 Q7710 Q7706 Q7708 UNR221500L UNR211700L UNR211700L UNR211700L LED DRIVE LED DRIVE LED DRIVE LED DRIVE Q7707 Q7709 UNR221500L UNR221500L R7707 R7710 R7713 LED DRIVE LED DRIVE Q7710 Q7706 Q7708 R7708 R7711 R7714 Q7705...
Page 137 SCHEMATIC DIAGRAM-31 CD LOADING CIRCUIT : +B SIGNAL LINE IC11 C0GAG0000007 UP/DOWN MOTOR DRIVE 16V100 0.01 RM11 UP/DOWN MOTOR CHANGE BOTTOM OPEN STOCK PLAY MAIN (DVD INTERFACE :IF) CIRCUIT (P36005) ON SCHEMATIC DIAGRAM-11 B3NAA0000068 SENSOR IC21 C0GAG0000007 LOADING MOTOR DRIVE 16V100 0.01 RM12...
Page 138 SCHEMATIC DIAGRAM - 32 VCR DECK CIRCUIT : +B SIGNAL LINE R209 EZMPX300F13 FG SENSOR TL0204 P201 CAP_VM GND(FG) MAIN (SYSTEM CONTROL:S) CIRCUIT (P2571) ON CAP_R/F SCHEMATIC MGND DIAGRAM-15 C201 IC201 C1AB00001472 CAPSTAN DRIVE C204 C205 R207 R207 HW-108A-FT SGND (H3 HOLL SENSOR) C206 1000P...
Page 139 VCR DECK P.C.B. 2 ....30 1 ....29 CN101 CN401 P201 4..1 DSP P.C.B.
Page 140 P7201 VR7201 PANEL B P.C.B. 3 2 1 JK7001 SOLDER SIDE VOLUME HEADPHONES 18 ..2 TU7601 TO TUNER PACK (ENG36502G) 19 ...1 P36001 RF IN/OUT 25 .
Page 141 OPTICAL PICKUP LD(DVD) SPINDLE MOTOR UNIT LD(CD) Q8552 Q8562 SWITCH SWITCH BIAS IC8251 IC8271 OPIN+ C0GBG0000044 C0GBF0000004 LDIN MOTOR DRIVE MOTOR DRIVE BIAS2 TRIN Q8551 Q8561 SWITCH SWITCH QR8571 SUPPLY CONTROL SWITCH 130 134 129 133 127 110 111 132 131 136 115 135 114 137 116 138 117 DV2.1 MN2DS0003APH IC8001...
Page 142 Q8550 SWITCH Q8560 SWITCH IC8601 C0EBE0000384 D8550 RESET IC IC8051 IC8651 C3ABPG000067 XRESET RFKFMH81T160 64 SDRAM 16M FLASH ROM Q8606 SWITCH 2,4,5,7,8,10,11, 22-26, 9,10,16,17,48 1-8,18-25 29-36, 13,42,44,45,47, 29-35 38-45 Q8605 48,50,51,53 SWITCH IC8605 C0EBA0000031 RESET IC IC8611 C3EBGC000044 16M EEPROM (NOT SUPPLIED) 1,2,4,5,7,8,10, 217,220,221,223,...
Page 143 TO MAIN BLOCK TO MAIN BLOCK 16(20) 14(13) 12(11) IC8111 C0CBCBD00018 3.3V REGULATOR IC8451 C0FBBK000036 RSTB AUDIO DAC 45-47 IC8695 IC8691 C0JBCA000066 C0JBCA000066 AND GATE AND GATE QR8420 AUDIO MUTING SWITCH 174-176 149 151 152 156 158 DV2.1 MN2DS0003APH IC8001...
Page 144 IC2601 C0JBAS000008 FROM IC36001 ANALOG SWITCH TU7601 FM/AM 11(2) 10(1) TUNER TUNER 12(13) MIXL(R) 9(4) 8(3) IC701 KIA4558FEL 6(5) DUAL OP-AMP FL(R) 5(3) 7(1) 1(2) W1(Z1) SL(R) 14(13) W(Z) 10(12) 8(14) 9(13) SL(R) 15(11) W0(Z0) CONT IC302 C0ABCB000040 QUAD OP-AMP IC301 COJBAR000326 LOGIC IC...
Page 145 IC303 C1BB00000782 4CH VOLUME IC PORT2 17(16) BYPASSL(R) PORT3 IC501 KIA4558FEL DUAL OP AMP LOUT(R) 15(13) LIN(R) LOUT(R) 31(32) SWIN SWOUT COUT SL(R) SLIN(R) 34(35) 9(8) SLOUT(R) 13(9) 14(8) SL(R) 12(10) PORT1 IC403 C0ABCB000040 QUAD OP AMP FROM DP7201 Q7001 POWER FL DISPLAY TRANSFORMER...
Page 146 IC4501 IC201 IC202 AN3663FBP-AV C2HBZC000013 HI-FI IC KIA4558FEL DUAL OP AMP 3(1) 57(53) 68(72) 11(14) 5(3) IN1(R) AOT1 BS IN[L](R) L(R) 7(1) 6(2) 66(70) IN3(R) AOT3 24(22) HA1(2) A_COM AOT4 X201 FL4561 QR4506 SIF IN (QR4505) MUTING SWITCH JK3701 AUX L(R) 14(9) QR4504 MUTING...
Page 147 IC402 M62456FPE1 SUPER BASS IC401 KIA4558FEL OP AMP D402 2(6) (D401) 1(7) 1(24) 2(23) 3(5) Q412 SWITCH Q401 MUTING SWITCH Q410 MUTING SWITCH JK3701 [L]([R]) QR4701 (QR4702) MUTING SWITCH QR4703 MUTING SWITCH HEADPHONE JK7001 Q404 MUTING SWITCH Q411 MUTING RM11 RM21 SWITCH UP/DOWN...
Page 148 ACTIVE SUB WOOFER 7(11) FL(R) SUBAC2 SUBAC1 12(14) SL(R) DCDET HIC_MUTE PCONT SYNC D603, Q601,Q602 Q605 D605 SWITCH SWITCH D614 FP601 Q606 Q610 SWITCH REGULATOR Q603,Q604 D608~D611 SWITCH D607 Q607,Q608 DC DETECT Q33006 Q33007 SWITCH REGULATOR REGULATOR Q609 D613 REGULATOR QR33005 FP602 D611...
Page 149 R207 R210 R208 H3 HOLL H3 HOLL H3 HOLL SENSOR SENSOR SENSOR IC201 C1AB00001472 CAPSTAN DRIVE IC33501 C9ZB00000431 L201 8 BIT MICRO CAPSTAN MOTOR MAIN COIL CONTROLLER JK3702 VIDEO YOUT YSAG COUT JK3703 PR/CR/R CRIN CR OUT CRSAG PB/CB/B CBIN CB OUT CBSAG PY/Y/G...
Page 150 AUDIO HEAD 85,87 CLOCK DATA 89,91 JK3702 IC3001 C1AB00001838 AV 1 IC AUDIO HEAD X3001 AUDIO ERASE HEAD FULL ERASE HEAD Q4082, Q3003 Q4083 BIAS T4081 SWITCH Q3001 Q4081 BIAS SWITCH L4081 QR4081 Q4084 D.REC POWER (H:OFF) SUPPLY CONTROL HEAD QR4082 BIAS IC6001...
Page 151 IC2501 C1AB00001479 PG OUT CYLINDER DRIVE/ LOADING DRIVE OUT1 IC1511 B3NAA0000049 MECHA T-REEL SENSOR Q7501 OUT2 REGULATOR D1501 Q1501 T PHOTO IC1512 B3NAA0000049 S-REEL SENSOR Q1502 S PHOTO IC2502 CODBZJG00005 REGULATOR IC6201 COEBH0000172 POWER DETECT IC IR7201 (REMOTE SENSOR) S1532 MODE SW 30~33 IC6001...
Page 152 T1150 Q33004 D1230 REGULATOR Q1352,Q1354 Q1351 L1121 L1120 F1101 5V REG, REGULATOR D1180 P1101 QR33002, TUNER 5V QR33013 D1110 SWITCH, ‘POWER ON’ D1351 D1250, SWITCH D1251 L1250 Q34003 IC33001 C0DBZHG00013 REGULATOR DC-DC CONVERTER D1290, D1140 D33005~D33007 D1291 D33002 L1290 Q33010 Q1153 REGULATOR SWITCHING...
Page 153 DSP P.C.B (VEPV0002A) (SIDE A) IC201 Ref No. MODE CD PLAY VIDEO RCD IC201 Ref No. MODE CD PLAY VIDEO RCD IC201 Ref No. MODE CD PLAY VIDEO RCD Ref No. IC201 MODE CD PLAY VIDEO RCD IC202 Ref No. MODE CD PLAY -7.6...
Page 154 MAIN P.C.B (VEPV0001A) IC1511 Ref No. MODE CD PLAY VIDEO RCD IC1512 Ref No. MODE CD PLAY VIDEO RCD IC2501 Ref No. MODE CD PLAY 12.4 16.4 VIDEO RCD 12.4 16.4 Ref No. IC2501 MODE CD PLAY 12.4 VIDEO RCD 12.4 IC2502 Ref No.
Page 155 MAIN P.C.B (VEPV0001A) IC6201 Ref No. MODE CD PLAY VIDEO RCD IC6301 Ref No. MODE CD PLAY VIDEO RCD VIDEO RCD IC33001 Ref No. MODE CD PLAY 11.3 VIDEO RCD 11.4 IC33002 Ref No. MODE CD PLAY VIDEO RCD IC33501 Ref No.
Page 156 DSP P.C.B (VEPV0002A) (SIDE A) Ref No. Q401 Q402 Q403 MODE CD PLAY -5.1 -5.1 -5.1 VIDEO RCD Ref No. Q404 Q405 Q406 MODE CD PLAY -5.1 -5.1 -5.1 -5.1 VIDEO RCD Ref No. Q407 Q408 Q409 Q410 Q411 MODE CD PLAY -5.1 -5.1...
Page 157 C1AB00001192 (8p) C0JBAR000326 (16p) C0ABCB000040 (14p) C2HBZC000013 (80p) C0DBCHD00002 (6p) C0HBB0000039 (64p) C0GBF0000004 (16p) C1AB00001472 (28p) C0CBCBD00018 (8p) C0FBBK000036 (48p) C9ZB00000431 (34p) MN2DS0003APH (256p) KIA4558FEL (8 p) C2CBJG000414 (100p) C3ABPG000067 (54p) C2CBHF000342 (100p) C1BB00000782 (42p) C1AB00001838 (100p) M62456FPE1 (24p) AN3663FBP-AV (64p) C0JBAS000008 (14p) C0DBZHG00013 C0DBZJG00005...
Page 163 5 DVD LED P.C.B (VEPV0007A) D7705 Q7702 Q7701 P7701 D7704 W7701 D7703 Q7704 Q7710 Q7709 Q7707 Q7708 Q7703 D7702 Q7705 W7705 D7701 R7704 W7704 Q7706 W7708 PANEL A P.C.B (VEPV0005A) S7005 S7002 S7001 S7003 S7007 S7009 DISC DISC5 DISC4 DISC3 DISC2 DISC1 CHANGE...
Page 164 CD LOADING P.C.B (REP3569A) CHANGESW RM21 LOADING_MOTOR PLAYSW STOCKSW RM11 UPDOWN IC21 IC11 OPENSW BOTTOMSW VCR DECK P.C.B (VEP02578A) TL201 TL205 TL203 TL202 C201 TL204 P201 R203 R205 R202 CAPSTON UNIT R207 C207 IC201 R208 C205 R210 R201...
Page 165 DSP P.C.B (VEPV0002A) CN401 R441 R489 C460 C432 C412 C413 Q601 R442 R479 D601 C428 C422 C421 R425 W402 R477 R451 C440 D404 W401 R601 Q412 D403 Q602 R478 C436 C605 C508 C442 R457 C439 C431 IC402 R452 C426 C452 Q603 Q405 R488...
Page 166 R402 R404 C446 Q402 Q403 Q408 Q410 Q406 R432 R416 Q401 R408 R414 R483 CN101 Q411 R447 W403 Q407 R449 Q409 R446 C508 C430 R335 R343 R473 R452 C352 R331 R439 R484 R338 C329 R334 C452 Q405 D302 Q404 C333 C330 R344 R339...
Page 167 DVD MODULE P.C.B (REPV0021A) C8503 LB8502 TP8517 TP8500 R8501 TC8501 TC8502 TP8520 TP8511 LB8501 TP8515 TP8516 TP8521 C8505 RA8502 TP8510 TP8502 TP8519 TP8501 IC8251 TP8524 C8502 TP8525 TC8504 TP8518 RA8504 R8570 RA8503 RA8501 R8569 TC8503 TP8251 D8550 CP8501 LB8514 C8253 Q8560 C8261 QR8571...
Page 168 DVD MODULE P.C.B (REPV0021A) CP8251 CP8252 C8254 C8255 FP8501 C8251 TO OPTICAL PICKUP UNIT C8252 R8251 Q8552 C8561 Q8562 R8554 C8550 R8566 C8554 R8567 IC8605 R8564 Q8606 R8553 R8558 R8563 R8565 Q8605 R8559 C8605 C8564 C8606 C8551 C8695 TC8006 R8605 R8606 IC8691 IC8695...
Page 169 MAIN P.C.B (VEPV0001A) Q1501 W471 Q4084 C2512 W142 P36001 W507 IC6301 W529 R4086 W224 C2510 R2514 IC2502 R2515 W470 R2520 C2511 IC2501 R2523 C2508 C6308 TW6008 C6307 W229 TL6010 C2520 R6016 W230 R6006 W153 C2506 W154 P2501 C2504 W474 C2051 TO VCR TW20 W156...
Page 170 W424 W471 W373 TU7601 TO TUNER PACK (ENG36502G) W426 C7603 W427 P36001 W344 R7604 C7604 W529 W224 C7602 IC2502 RF IN/OUT W470 W347 D7601 R7601 TW6008 W229 W227 D34001 W348 Q7501 W230 R2606 D36001 C2601 P2501 C34015 R2602 TO VCR TW2001 IC2601 VIDEO HEAD...
Page 171 PANEL B P.C.B (VEPV0006A) S7024 EJECT S7020 CH UP S7021 CH DN S7023 S7019 S7017 T.REW T.FF C7201 R7031 R7205 D7201 R7013 R7206 P7201 R7225 R7207 VR7201 S7016 S7018 R7208 T.PLAY T.STOP R7226 QR7201 R7024 R7202 W501 L7200 R7203 R7201 QR7202 C7210 Q7001...
Page 172 R7205 R7206 C7212 C7208 R7207 C7207 R7208 R7226 IC7201 7001 32 33 DP7201...
Page 173 POWER P.C.B (VEPV0004A) IC1200 C1270 R1203 Q1200 Q1151 R1156 Q1152 C1126 LB1211 D1280 Q1150 R1153 R1161 D1241 C1154 D1240 R1160 D1152 D1210 C1210 Q1153 C1261 C1155 R1155 C1260 L1121 R1163 D1140 R1162 R1154 D1291 L1120 D1290 R1150 D1250 D1251 C1140 T1150 D1230 TRANSFORMER...
Page 174 C1270 D1241 D1240 TL1007 TL1004 C1261 L1240 C1260 C1290 L1250 L1290 L1260 D1291 D1290 D1250 D1251 TL1038 TL1006 9 10 P1102 C SHOCK PLEASE DO NOT...
Page 175 SCHEMATIC DIAGRAM - 1 OPTICAL PICKUP UNIT CIRCUIT : +B SIGNAL LINE : CD-DA SIGNAL LINE J0JBC0000105 J0JBC0000105 TO ACT GND (IM) MODULE VREF2(RF-) (IN/OUT) PIN (DVD) CIRCUIT LD (CD) (FP8501) ON LD GND SCHEMATIC LD (DVD) DIAGRAM-2 GND (OEIC) VREF VREF1 SUB2...
Page 176 SCHEMATIC DIAGRAM - 2 SIDE A SIDE B DVD MODULE (IN/OUT) CIRCUIT : +B SIGNAL LINE : CD-DA SIGNAL LINE LB8271 ERJ3GEY0R00V LB8272 ERJ3GEY0R00V IC8271 C0GBF0000004 MOTOR DRIVE IC LB8273 ERJ3GEY0R00V IC8271 C8275 FP8271 TC8271 COIL_W CP8273 TC8272 COIL_V C8284 0.01 TC8273 COIL_U...
Page 177 SCHEMATIC DIAGRAM - 3 : DVD AUDIO SIGNAL LINE DVD MODULE (IN/OUT) CIRCUIT : +B SIGNAL LINE : CD-DA SIGNAL LINE CP8423 DMIXOUT R8271 0.39 SBI3 SBO3 SBT3 RA8271 STBDAC (10K x 2) MUTE3 SPDRV PNRST ADAC-CLK R8451 CP8421 VHALF SRCK CP8422 LRCK...
Page 178 SCHEMATIC DIAGRAM - 4 : MAIN SIGNAL LINE : DVD AUDIO SIGNAL LINE DVD MODULE (IN/OUT) CIRCUIT : +B SIGNAL LINE : DVD VIDEO SIGNAL LINE C8423 C8424 C8451 C8452 C8420 10V10 10V10 6.3V330 FP8101 VGND Y/PY/G LB8303 J0JCC0000119 TC8303 Y/PY/G VGND CB/PB/B...
Page 179 SCHEMATIC DIAGRAM - 5 DVD MODULE (DV2) CIRCUIT : +B SIGNAL LINE IC8651 RFKFMH81T160 16M FLASH ROM IC EXADT15 EXADR16 EXADT14 XBYTE EXADT13 EXADT12 FDT15 DQ15/A-1 EXADT11 FDT7 EXADT10 FDT14 DQ14 EXADT9 FDT6 EXADT8 FDT13 DQ13 EXADR19 FDT5 EXADR20 FDT12 DQ12 NEXWE FDT4...
Page 180 SCHEMATIC DIAGRAM - 6 DVD MODULE (DV2) CIRCUIT : +B SIGNAL LINE C8028 C8027 C8026 C8024 C8023 C8051 2200P MDQ0 MDQ15 DQ15 C8052 VDDQ VSSQ MDQ1 MDQ14 DQ14 C8025 C8022 MDQ2 MDQ13 DQ13 C8057 2200P RA8013 (82 x 4) VSSQ VDDQ MDQ5 MDQ3...
Page 181 SCHEMATIC DIAGRAM - 7 DVD MODULE (DV2) CIRCUIT : +B SIGNAL LINE RA8018 (82 x 4) RA8017 RA8014 (82 x 4) C8021 (82 x 4) RA8015 (22 x 2) MDQ9 MDQ24 MDQ5 VDD33 MDQ10 TRCST MDQ4 TRCDATA3 VDD33 TRCDATA2 MDQ11 TRCDATA1 MDQ3 TRCDATA0...
Page 182 SCHEMATIC DIAGRAM - 8 : CD-DA SIGNAL LINE : DVD VIDEO SIGNAL LINE DVD MODULE (DV2) CIRCUIT : +B SIGNAL LINE : DVD AUDIO SIGNAL LINE LB8001 J0JHC0000045 D+3.3V D+1.2V C8002 C8001 LB8002 4V330 6.3V100 J0JHC0000045 RA8031 C8017 (4.7K x 2) CP8047 RA8032 CP8046...
Page 183 SCHEMATIC DIAGRAM-9 : +B SIGNAL LINE : MAIN SIGNAL LINE : AM/FM SIGNAL LINE MAIN (AUDIO:A) CIRCUIT : -B SIGNAL LINE TUN_L TUN_CTR R2606 R2602 C2601 4.7K 0.01 IC2601 IC2601 C0JBAS000008 ANALOG SWITCH R2601 +7.5V R2605 TUN_R C2602 R2604 0.01 DVD_CTR R2603 1.8K...
Page 184 SCHEMATIC DIAGRAM-10 : +B SIGNAL LINE : MAIN SIGNAL LINE : AUX SIGNAL LINE MAIN (AUDIO:A) CIRCUIT MUTE TC FM_MUTE_H IIC_CLK IIC_DATA TL4502 TL4501 OSD_SC_IN FL4561 EFCT4R5MS5W R4508 C4568 R4540 R4525 0.01 C4523 SIF_OUT 0.01 R4563 L4501 G0C1R2J00004 AUDIO_5V D_REC[H] D4501 MA2C165001VT ENVE...
Page 185 SCHEMATIC DIAGRAM-11 : +B SIGNAL LINE MAIN (DVD INTERFACE:IF) CIRCUIT : -B SIGNAL LINE : MAIN SIGNAL LINE CD LOADING CIRCUIT (CN1) ON SCHEMATIC DIAGRAM-31 P36005 14 13 12 C36016 D36002,D36004,D36006, D36010,D36012 B0JACE000001 D36006 D36004 VCC_L Q33010 R36089 R36086 D36010 D36012 2SC3940AHA RESET...
Page 186 SCHEMATIC DIAGRAM-12 MAIN (DVD INTERFACE:IF) CIRCUIT : +B SIGNAL LINE R36102 R36100 R36023 R36020 R36104 VREF JOG_A R36022 R36092 JOG_A DEMO_SEL JOG_B R36021 MUTE_SW JOG_B MUTE_SW R36029 DSP_RST DSP_RST TUN_CTR R36041 R36028 CH_SW TUNER_CTR CH_SW DVD_CTR R36090 VREF R36042 DVD_CTR VREF DSP_CS R36057...
Page 187 SCHEMATIC DIAGRAM-13 : DVD VIDEO SIGNAL LINE MAIN (DVD INTERFACE:IF) CIRCUIT : +B SIGNAL LINE : VIDEO SIGNAL LINE C33505 C33506 C33507 C33508 K33504 K33501 C33501 10V220 IC33501 C9ZB00000431 IC33501 8 BIT MICROCONTROLLER C33502 C33503 0.01 0.01 L33501 G0C220JA0019 C33014 10V220 Q33001 B1AAGD000006...
Page 188 SCHEMATIC DIAGRAM-14 : +B SIGNAL LINE : DVD VIDEO SIGNAL LINE MAIN (DVD INTERFACE:IF) CIRCUIT : -B SIGNAL LINE : MAIN SIGNAL LINE DSP CIRCUIT (CN101) ON SCHEMATIC DIAGRAM-21 P36007 P36004 1 2 3 4 5 6 VGND Y/PY/G LB33013 J0JCC0000188 Y/PY/G VGND...

Panasonic SA-HT822VP Service Manual

Quick Links

Related Manuals for Panasonic SA-HT822VP

Summary of Contents for Panasonic SA-HT822VP

Table of Contents
