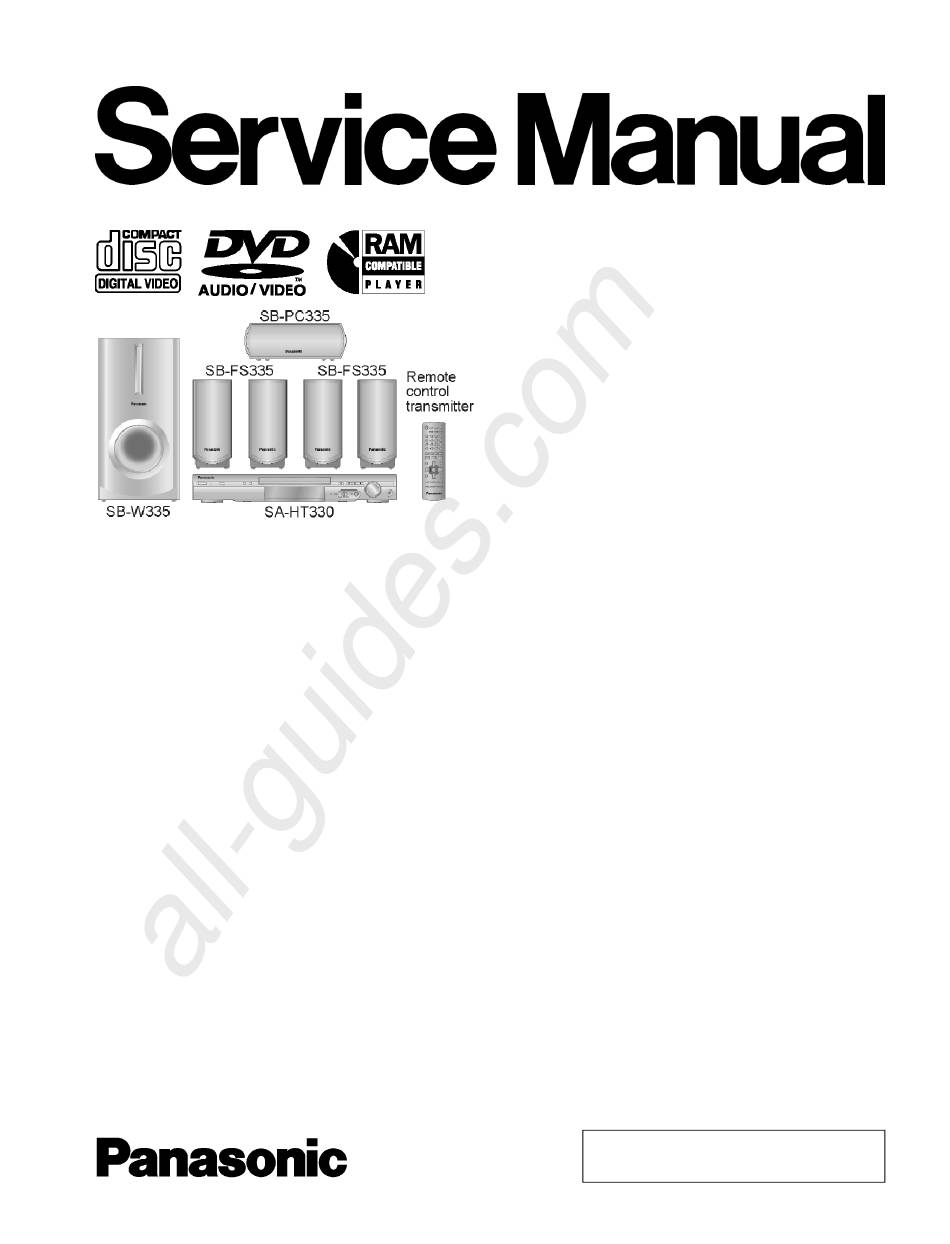

Panasonic SA-HT330GCT Service Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. Home Theater System
  5. SA-HT330GCT
  6. Service manual
Panasonic SA-HT330GCT Service Manual

Panasonic SA-HT330GCT Service Manual

Dvd home theater sound system
Hide thumbs Also See for SA-HT330GCT:
Table of Contents

Advertisement

Quick Links

Download this manual
Specification
n Amplifier Section
RMS Output power : Dolby Digital Mode
Front Ch
Surround Ch
Center Ch
Subwoofer Ch
Total RMS Dolby Digital mode
power
PMPO output power
DIN Output Power : Dolby Digital Mode
Front Ch
Surround Ch
Center Ch
Subwoofer Ch
Total DIN Dolby Digital mode
power
n FM/AM Tuner, Terminals Section
Preset station
All manuals and user guides at all-guides.com
65 W per channel (6 Ω), 1 kHz,
10% THD
65 W per channel (6 Ω), 1 kHz,
10% THD
65 W per channel (6 Ω), 1 kHz,
10% THD
75 W per channel (4 Ω), 100 Hz,
10% THD
400 W
3500 W
55 W per channel (6 Ω), 1 kHz,
1% THD
55 W per channel (6 Ω), 1 kHz,
1% THD
55 W per channel (6 Ω), 1 kHz,
1% THD
65 W per channel (4 Ω), 100 Hz,
1% THD
340 W
FM 15 stations
AM/MW 15 stations
DVD Home Theater Sound System
SA-HT330GCT
SA-HT330GCP
Colour
(S)... Silver Type
Frequency Modulation (FM)
Frequency range
Sensitivity
S/N 26 dB
Antenna terminals
Amplitude Modulation (AM/MW)
Frequency range
AM Sensitivity S/N 20 dB at 999
kHz
Phone jack
Terminal
Mic jack
Sensitivity
Terminal
n Disc Section
Discs played ( 8 cm or 12 cm)
(1) DVD-RAM (DVD-VR compatible, JPEG formatted discs)
(2) DVD-Audio
(3) DVD-Video
(4) DVD-R, DVD-RW (DVD-Video compatible)
+R, +RW (video compatible)
(5) CD-Audio (CD-DA)
(6) Video CD
(7) SVCD (Conforming to IEC62107)
© 2005 Matsushita Electric Industrial Co. Ltd.. All
rights
reserved.
distribution is a violation of law.
ORDER NO. MD0507281C3
87.50 - 108.00 MHz (50-kHz step)
2.5 µV (IHF)
2.2 µV
75 Ω (unbalance)
522 - 1629 kHz (9 - kHz step)
520 - 1630 kHz (10 - kHz step)
560 µV/m
Stereo, 3.5 mm jack
0.7mV, 1.2k Ω
Mono, 6.3mm (1 system)
Unauthorized
copying
and

Advertisement

Table of Contents
loading

Related Manuals for Panasonic SA-HT330GCT

Summary of Contents for Panasonic SA-HT330GCT

  • Page 1 All manuals and user guides at all-guides.com ORDER NO. MD0507281C3 DVD Home Theater Sound System SA-HT330GCT SA-HT330GCP Colour (S)... Silver Type Specification n Amplifier Section Frequency Modulation (FM) RMS Output power : Dolby Digital Mode Frequency range 87.50 - 108.00 MHz (50-kHz step) 65 W per channel (6 Ω), 1 kHz,...

  • Page 2: Table Of Contents

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com (8) CD-R/RW (CD-DA, Video-CD, SVCD, MP3, WMA, JPEG Terminal S terminal (1 system) formatted disc) Component video output (For GCT) (9) MP3/WMA [NTSC: 525 (480) p/525 (480) i, PAL: 625 (576) p/625 (576) i]...
  • Page 3 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 12.5. Disassembly of Rear Panel 19 Voltage Measurement and Waveform Chart 12.6. Disassembly of AC Inlet P.C.B. 19.1. Voltage Measurement 12.7. Disassembly of Digital Amplifier P.C.B. 19.2. Waveform Chart 12.8. Disassembly of DVD Lid (when taking out disc manually) 20 Block Diagram 20.1.

  • Page 4: Safety Precautions

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 1 Safety Precautions 1.1. GENERAL GUIDELINES 1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit.

  • Page 5: Before Repair And Adjustment

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 2 Before Repair and Adjustment Disconnect AC power, discharge Power Supply Capacitors C506, C507 & C508 through a 10Ω, 1W resistor to ground. DO NOT SHORT-CIRCUIT DIRECTLY (with a screwdriver blade, for instance), as this may destroy solid state devices.

  • Page 6: Prevention Of Electro Static Discharge (Esd) To Electrostatically Sensitive (Es) Devices

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 4 Prevention of Electro Static Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor “chip”...

  • Page 7: Precaution Of Laser Diode

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 6 Precaution of Laser Diode CAUTION: This unit utilizes a class 1 laser. Invisible laser radiation is emitted from the optical pickup lens. When the unit is turned on: 1. Do not look directly into the pick up lens.

  • Page 8: Handling Precautions For Optical Pickup Unit

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 7 Handling Precautions for Optical Pickup Unit The laser diode in the optical pickup unit may break down due to static electricity of clothes or human body. Special care must be taken avoid to electrostatic breakdown when servicing and handling the laser diode.
  • Page 9 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 7.3.2. Human body grounding 1. Use the anti-static wrist strap to discharge the static electricity from your body.

  • Page 10: Accessories

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 8 Accessories Note : Refer to Packing Materials & Accessories Parts List (Section 27.4) for the part number. Remote Control AC cord FM indoor antenna AM loop antenna Video cable...

  • Page 11: Operation Procedures

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 9 Operation Procedures...

  • Page 12: Disc Information

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 10 Disc information...
  • Page 13 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com...

  • Page 14: About Highmat

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 11 About HighMAT 11.1. What's HighMAT? Consumers worldwide are using PCs to create their own collections of music, photos and even video by burning them onto CDs. But how these collections can be experienced across different devices can be confusing to navigate, time consuming to access for a DVD player, and be incomplete in terms of music information available to the customer.

  • Page 15: Benefits Of Highmat

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com A Solution Created: HighMAT delivers a better digital media access experience by creating a standard approach for PCs to structure digital media on various physical formats and for playback devices to read the data.
  • Page 16 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com...
  • Page 17 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com HighMAT is now available for CD Burning and in Leading DVD Players. HighMAT is a new technology that is now available in leading software and consumer electronic devices to dramatically improve the digital media experience when you create homemade CDs.

  • Page 18: Assembling And Disassembling

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 12 Assembling and Disassembling “ATTENTION SERVICER” Some chassis components may be have sharp edges. Be careful when disassembling and servicing. 1. This section describes procedures for checking the operation of the major printed circuit boards and replacing the main components.

  • Page 19: Locations

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 12.2. P.C.B. Locations...

  • Page 20: Disassembly Of Top Cabinet

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 12.3. Disassembly of Top Cabinet Step 1 : Remove 4 screws. Step 3 : Remove Top Cabinet as arrows shown. 12.4. Disassembly of SMPS Module P.C.B. · Follow the (Step 1) - (Step 3) of item 12.3.

  • Page 21: Disassembly Of Ac Inlet P.c.b

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com Step 1 : Detach connector CN1. Step 2 : Remove AC inlet P.C.B. as arrow shown. Step 1 : Remove 9 screws. 12.7. Disassembly of Digital Step 2 : Remove the rear panel as arrows shown.

  • Page 22: Disassembly Of Dvd Lid (When Taking Out Disc Manually)

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com Step 1 : Separates the gear for drawing out tray from the 12.8. Disassembly of DVD Lid (when mechanism unit. Insert a screw driver in the gear (The gear jig).

  • Page 23: Disassembly Of Headphone, Panel And Tact Switch P.c.b

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com Step 1 : Remove the DVD Lid from the tray section. Step 1 : Remove Volume Knob. Step 2 : Detach connector (CN2005) and FFC (CN2006). Step 2 : Remove 2 screws and panel angle.

  • Page 24: Disassembly Of Dvd Mechanism Unit

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com Tact Switch P.C.B. 12.11. Disassembly of DVD Mechanism unit · Follow the (Step 1) - (Step 3) of item 12.3. · Follow the (Step 1) - (Step 3) of item 12.8.

  • Page 25: Disassembly And Assembly Mechanism Unit

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 12.13. Disassembly and Assembly Mechanism Unit 12.13.1. Replacement of Traverse Unit Step 1: Slide the lever backward to the furthest. Step 2: While bending the catch at right of the lever to the right direction, slide the lever further until it stops.
  • Page 26 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com · Fixing the Tray Step 1: Insert Tray slightly into groove of chassis. Step 2: Insert Tray into the area to avoid catching the mechanism chassis claw. Step 2: Stand the Loading Unit.
  • Page 27 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 12.13.3. Disassembly of loading section. · Follow the (Step 1) - (Step 4) of item 12.13.1 - Replacement of Traverse Unit · Follow the (Step 1) - (Step 5) of item 12.13.2 - Replacement of Tray...
  • Page 28 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 12.13.4. Replacement of Optical Pickup Unit · Follow the (Step 1) - (Step 5) of item 12.13.1 - Replacement of Traverse Unit · Follow the (Step 1) - (Step 5) of item 12.13.2 - Replacement of Tray...
  • Page 29 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com Note: Insert a short pin into FFC of the optical pickup. Step 2: Remove 4 pins. Step 3: Remove Traverse Unit.
  • Page 30 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com...
  • Page 31 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 12.13.5. Disassembly of traverse motor (Unit) and spindle motor (Unit). · Follow the (Step 1) - (Step 5) of item 12.13.1 - Replacement of Traverse Unit · Follow the (Step 1) - (Step 5) of item 12.13.2 - Replacement of Tray...
  • Page 32 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com...

  • Page 33: Service Positions

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 13 Service Positions 13.1. Checking procedure Note : For the disassembling procedure, Refer to section 12. 13.1.1. Checking the Digital Amplifier, AC Inlet and SMPS Module P.C.B. · Disassembly of Top Cabinet −...
  • Page 34 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 13.1.2. Checking the Main, Headphone, Panel, Tact Switch, DVD Module, and CD Tray Loading P.C.B. · Disassembly of Top Cabinet − − − − Follow the (Step 1) - (Step 3) of item 12.3 ·...

  • Page 35: Optical Pick-Up Self-Diagnosis And Replacement Procedure

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 14 Optical Pick-up Self-Diagnosis and Replacement Procedure 14.1. Optical Pickup Breakdown Diagnosis The optical pickup self-diagnosis function and tilt adjustment check function have been included in this unit. When repairing, use the following procedure for effective Self-diagnosis and tilt adjustment.

  • Page 36: Service Mode Table

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 14.2. Service Mode Table 1 The service modes can be activated by pressing various button combination on the player and remote control unit. Player buttons Remote control unit buttons Application...
  • Page 37 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com Error Code Error Content Additional error explanation F890 Sending message when message is Sending message to AV task being sent to AV task F891 Message couldn’t be sent to AV task Begin sending message to AV task...

  • Page 38: Service Mode Table

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 14.4. Service mode table 2 Pressing various button combinations on the player and remote control unit can activate the service modes.
  • Page 39 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com...
  • Page 40 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com...

  • Page 41: Sales Demonstration Lock Function

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 14.5. Sales demonstration lock function This function prevents discs from being lost when the unit is used for sales demonstrations by disabling the disc eject function. "LOCKED" is displayed on the unit, and ordinary operation is disabled.

  • Page 42: Self-Diagnosis Function

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 15 Self-Diagnosis Function 15.2. Memorized Error Codes 15.2.1. Activating Self-Diagnosis Function 15.1. Automatic Displayed Error and Displaying Method Codes 1. Turn on the power. 15.1.1. Automatic Display Function 2. Select DVD/CD function. With no DVD/CD inserted in the...

  • Page 43: Service Precautions

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 16 Service Precautions 16.1. Recovery after the DVD player is repaired · When FLASH ROM IC or DVD module P.C.B. is replaced, carry out the recovery processing to optimize the drive.

  • Page 44: Adjustment Procedure

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 17 Adjustment Procedure 17.1. Service Tools and Equipment Application Name Number Tilt adjustment DVD test disc DVDT-S20 TORX screw driver (T6) Available on sales route. (T6) or RFKZ0185 [SPG] Others...

  • Page 45: Optical Adjustment

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 17.4. Optical adjustment 17.4.1. Optical pickup tilt adjustment Measurement point Adjustment point Mode Disc Tangential adjustment screw T01 (inner periphery) play DVDT-S20 Tilt adjustment screw T30 (center periphery) play T43 (outer periphery) play...
  • Page 46 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com...

  • Page 47: Abbreviations

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 18 Abbreviations INITIAL/LOGO ABBREVIATIONS INITIAL/LOGO ABBREVIATIONS A0~UP ADDRESS ERROR TORQUE CONTROL ACLK AUDIO CLOCK ERROR TORQUE CONTROL AD0~UP ADDRESS BUS REFERENCE ADATA AUDIO PES PACKET DATA ENCSEL ENCODER SELECT ADDRESS LATCH ENABLE ETMCLK EXTERNAL M CLOCK (81MHz/40.5MHz)
  • Page 48 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com INITIAL/LOGO ABBREVIATIONS INITIAL/LOGO ABBREVIATIONS READ ENABLE VBLANK V BLANKING RFENV RF ENVELOPE COLLECTOR POWER SUPPLY RF PHASE DIFFERENCE OUTPUT VOLTAGE (CD-ROM) REGISTER SELECT VCDCONT VIDEO CD CONTROL (TRACKING RSEL RF POLARITY SELECT...

  • Page 49: Voltage Measurement And Waveform Chart

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 19 Voltage Measurement and Waveform Chart Note: · Indicated voltage values are the standard values for the unit measured by the DC electronic circuit tester (high-impedance) with the chassis taken as standard.
  • Page 50 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com IC8111 Ref No. MODE CD PLAY STANDBY IC8251 Ref No. MODE CD PLAY STANDBY IC8251 Ref No. MODE CD PLAY STANDBY IC8421 Ref No. MODE CD PLAY STANDBY IC8421 Ref No.
  • Page 51 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 19.1.3. DIGITAL AMPLIFIER P.C.B. DIGITAL AMPLIFIER P.C.B. IC2400 Ref No. MODE CD PLAY -27.8 27.8 27.8 -27.8 -27.1 28.1 -28.1 -27.9 -28.1 -28.1 STANDBY IC2400 Ref No. MODE CD PLAY 28.1...
  • Page 52 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 19.1.4. MAIN P.C.B. MAIN P.C.B. IC2006 Ref No. MODE CD PLAY STANDBY IC2011 Ref No. MODE CD PLAY STANDBY IC2011 Ref No. MODE CD PLAY -6.9 STANDBY Ref No. IC2011...
  • Page 53 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com Q1005 Q2000 Q2003 Q2004 Q2005 Ref No. MODE CD PLAY 11.9 12.9 12.5 STANDBY Q2028 Q2030 Ref No. Q2026 Q2031 Q2201 MODE CD PLAY -4.7 STANDBY Ref No. Q2701 Q2702...

  • Page 54: Waveform Chart

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 19.2. Waveform Chart CN2004 PIN 1 CN2004 PIN 2 CN2004 PIN 3 CN2004 PIN 21 CD PLAY CD PLAY CD PLAY CD PLAY 5.12Vp-p (10msec.div) 4.24Vp-p (10msec.div) 5.80Vp-p (10msec.div) 4.44Vp-p (1usec.div)

  • Page 55: Block Diagram

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 20 Block Diagram 20.1. DVD MODULE BLOCK OPTICAL PICKUP LD(DVD) SPINDLE MOTOR UNIT LD(CD) Q8552 Q8562 SWITCH SWITCH BIAS IC8251 OPIN+ C0GBG0000048 MOTOR DRIVE LDIN BIAS2 TRIN Q8551 Q8561 SWITCH...
  • Page 56 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com IC8601 C0EBA0000029 VOLTAGE DETECTOR IC8051 IC8651 C3ABPG000145 XRESET RFKWMH90B160 (GCP) 64 SDRAM IC RFKWMH90C160 (GCT) 16M FLASH ROM IC 2,4,5,7,8,10,11, 22-26, 9, 16, 1~8, 29-36, 13,42,44,45,47, 29-35 17, 48 18-25...
  • Page 57 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com TO MAIN BLOCK 27(26) 22(21) 20(19) Q8335 Q8321 QR8111 IC8111 C0CBCBD00018 SWITCH SWITCH SWITCH POWER SUPPLY Q8331 Q8341 Q8325 IC8421 SWITCH SWITCH SWITCH C0FBBK000050 AUDIO DAC 11~13 IC8695 IC8691 C0JBAA000346...

  • Page 58: Main Block

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 20.2. MAIN BLOCK CR_R CRIN CYOUT CB_B CBOUT CBIN CROUT CYIN IC2006 JK3000 C9ZB00000498 VIDEO VIDEO VOUT SELECTOR IC YOUT S-VIDEO COUT DVD_CLK DVD_CLK DVD_STAT DVD_STAT DVD_CMD DVD_CMD MICROPROCESSOR C2CBHG000197...
  • Page 59 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 41(38) FOUT4(3) DVD_MIXL(R) 69(70) INE1(2) DVDCNT INCA SUBW INSUBA DVDSL(R) 78(79) INLSA(R) 25(23) OUTLS(R) DVDFL(R) 75(76) INFLA(R) 24(22) OUTLSN(R) IC2015 IC2011 C0ABBB000118 63(64) OUTCN DUAL OP AMP C1BB00000845 INB1(2) ASP IC...
  • Page 60 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com IC2400 C1BA00000455 FRONT CHANNEL IC 8(5) 16(21) Q2712 Q2711 SWITCH SWITCH IC2500 C1BA00000455 8(5) SURROUND 16(21) SOUND IC JK6002 HEADPHONE Q2722 Q2721 SWITCH SWITCH JK6010 IC2600 C1BA00000455 SUBWOOFER IC Q2702...
  • Page 61 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com IC2901 Q2900 C0JBAF000654 X2900 CLOCK SWITCH GENERATOR IC IC2900 X2901 C0JBAB000011 CLOCK Q2901 GENERATOR IC SWITCH JK2000 FRONT_L(R) SURR_L(R) FL6000 FL DISPLAY FROM POWER TRANSFORMER CENTER SUBWOOFER 5,7,10,13, 6,8,9,11,12,14,15, 16,19,22,25,...
  • Page 62 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com +12V D2853 Q2810 L2803 T+9V REGULATOR D2812 Q2814 +7.5V REGULATOR D2824 Q2813 SW5V REGULATOR D2851 Q2818 DCDET SWITCH D+1.2V IC2803 C0DBEZG00021 D+5V REGULATOR IC A+5V D2831 IC2804 M+9V C0CAAHG00020 9V REGULATOR...
  • Page 63 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com JK500 FP2005 AC INLET L5001 L2805 Z5001 L2802 FL DISPLAY Q3, Q62 E2000 SIGNAL LINES : MAIN SIGNAL LINE : DVD AUDIO SIGNAL LINE : MIC SIGNAL LINE : CD-DA (AUDIO /VIDEO) SIGNAL LINE...

  • Page 64: Notes Of Schematic Diagram

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 21 Notes of Schematic Diagram (All schematic diagrams may be modified at any time with the development of new technology) Note : S901 PLAY switch S902 OPEN switch S6000 OPEN/CLOSE switch...

  • Page 65: Schematic Diagram

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 22 Schematic Diagram 22.1. OPTICAL PICKUP UNIT CIRCUIT SCHEMATIC DIAGRAM - 1 OPTICAL PICKUP UNIT CIRCUIT : +B SIGNAL LINE : CD-DA SIGNAL LINE J0JBC0000105 J0JBC0000105 HFM PCB TO ACT...

  • Page 66: Dvd Module Circuit

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 22.2. DVD MODULE CIRCUIT SCHEMATIC DIAGRAM - 2 : +B SIGNAL LINE : CD-DA SIGNAL LINE DVD MODULE CIRCUIT TRV-I-SW D+5V FODRV C8251 TRDRV 6.3V220 TL8201 VHALF C8262 C8261 R8230 2.2K...
  • Page 67 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com SCHEMATIC DIAGRAM - 3 : +B SIGNAL LINE DVD MODULE CIRCUIT D+3.3V IC8111 C0CBCBD00018 3.3 REGULATOR IC TL8111 D+5V C8111 C8112 IC8111 RX8111 (22K x 2) C8113 470P Cont QR8111...
  • Page 68 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com SCHEMATIC DIAGRAM - 4 : MAIN SIGNAL LINE : +B SIGNAL LINE : DVD VIDEO SIGNAL LINE DVD MODULE CIRCUIT FP8101 VGND Y/PY/G Y/PY/G LB8303 J0JBC0000042 VGND CB/PB/B CB/PB/B LB8304...
  • Page 69 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com SCHEMATIC DIAGRAM - 5 : +B SIGNAL LINE : DVD VIDEO SIGNAL LINE DVD MODULE CIRCUIT EXADR15 EXADR16 EXADR14 XBYTE EXADR13 EXADR12 EXDT15 DQ15/A-1 EXADR11 EXDT7 EXADR10 EXDT14 DQ14 EXADR9...
  • Page 70 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com SCHEMATIC DIAGRAM - 6 : +B SIGNAL LINE DVD MODULE CIRCUIT C8051 MDQ0 MDQ15 DQ15 C8052 VDDQ VSSQ MDQ1 MDQ14 DQ14 MDQ2 DQ13 C8057 RX8012 (82 x 4) VSSQ VDDQ...
  • Page 71 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com SCHEMATIC DIAGRAM - 7 : +B SIGNAL LINE DVD MODULE CIRCUIT RX8018 (22 x 2) RX8017 (82 x 4) MDQ18 TRCDATA1 TRCDATA0 VDD33 TRCCLK MDQ28 EXTRGO MDQ19 SDATA MDQ27 SCLOCK...
  • Page 72 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com SCHEMATIC DIAGRAM - 8 : CD-DA SIGNAL LINE : DVD VIDEO SIGNAL LINE : +B SIGNAL LINE : DVD AUDIO SIGNAL LINE DVD MODULE CIRCUIT R8041 LB8011 J0JHC0000045 D+3.3V D+1.2V...

  • Page 73: Main Circuit

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 22.3. MAIN CIRCUIT SCHEMATIC DIAGRAM - 9 : MAIN SIGNAL LINE : +B SIGNAL LINE MAIN CIRCUIT : FM/AM SIGNAL LINE : DVD VIDEO SIGNAL LINE R2803 2.2K VREF+_2 Q2030...
  • Page 74 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com SCHEMATIC DIAGRAM - 10 : DVD VIDEO SIGNAL LINE : MAIN SIGNAL LINE : +B SIGNAL LINE MAIN CIRCUIT : FM/AM SIGNAL LINE : -B SIGNAL LINE W2097 C2822 C2833 R2165 6.8K...
  • Page 75 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com SCHEMATIC DIAGRAM - 11 : +B SIGNAL LINE MAIN CIRCUIT : MAIN SIGNAL LINE : -B SIGNAL LINE C2831 50V47 W2055 R2151 100K C2259 330P R2153 C2153 R2147 R2149 16V100...
  • Page 76 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com SCHEMATIC DIAGRAM - 12 MAIN CIRCUIT : +B SIGNAL LINE R2724 R2700 2.2K SW5V Q2702 C2724 16V10 B1GBCFJN0033 R2701 SWITCH 2.7K Q2701 B1GBCFJN0033 R2703 SWITCH 4.7K UP_SW_C R2725 R2710 2.2K...
  • Page 77 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com SCHEMATIC DIAGRAM - 13 MAIN CIRCUIT : +B SIGNAL LINE VREF+_2 R2057 D1003 R2056 B0ACCK000005 W2050 R2095 W2091 R2897 4.7K R2059 STBY_LED Q2031 B1ADCF000001 LED DRIVE VREF+_3 R2022 R2021 R2023...
  • Page 78 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com SCHEMATIC DIAGRAM - 14 : +B SIGNAL LINE MAIN CIRCUIT : -B SIGNAL LINE IC2803 C0DBEZG00021 REGULATOR IC D2803 B0ACCK000005 R2833 D+1.2V R2826 C2869 R2829 R2810 A+5V IC2801 C0DAAMH00010 C2825...
  • Page 79 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com SCHEMATIC DIAGRAM - 15 : +B SIGNAL LINE MAIN CIRCUIT : -B SIGNAL LINE Q2818 B1GBCFJA0028 DCDET SWITCH R2851 W2080 Q2814 DC_DET 2SD21370PA Q2818 R2865 R2850 REGULATOR R2852 C2853 50V4.7...
  • Page 80 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com SCHEMATIC DIAGRAM - 16 : MIC SIGNAL LINE : +B SIGNAL LINE MAIN CIRCUIT : MAIN SIGNAL LINE : -B SIGNAL LINE GND1 JOG_A JOG_A VREF+_1 VREF+ HEADPHONE JOG_B JOG_B...

  • Page 81: Panel Circuit

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 22.4. PANEL CIRCUIT SCHEMATIC DIAGRAM - 17 : -B SIGNAL LINE PANEL CIRCUIT : +B SIGNAL LINE FL6000 A2BB00000153 FL DISPLAY 38 37 36 35 34 33 32 31 30 29...

  • Page 82: Smps Module Circuit And Ac Inlet Circuit

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 22.5. SMPS MODULE CIRCUIT and AC INLET CIRCUIT Note : SMPS Module should be replaced as an assembly unit in case of failure. SCHEMATIC DIAGRAM - 18 : -B SIGNAL LINE...
  • Page 83 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com SCHEMATIC DIAGRAM - 19 SMPS MODULE CIRCUIT AC INLET CIRCUIT AC IN 110V/127V L5001 220~230V/ 250V 5A (GCT) ELF18D609F 240V 250V 3.15A 250V 3.15A (GCP) 50/60HZ C5002 C5001 FC5002 FC5001 0.22...

  • Page 84: Digital Amplifier Circuit

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 22.6. DIGITAL AMPLIFIER CIRCUIT SCHEMATIC DIAGRAM - 20 : +B SIGNAL LINE DIGITAL AMPLIFIER CIRCUIT : MAIN SIGNAL LINE : -B SIGNAL LINE DC_DET DC_DET HOP_DA HOP_DA SW5V SW_5V MODE_SUR...
  • Page 85 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com SCHEMATIC DIAGRAM - 21 : +B SIGNAL LINE DIGITAL AMPLIFIER CIRCUIT : -B SIGNAL LINE : MAIN SIGNAL LINE IC2600 C1BA00000455 SUBWOOFER IC R2603 -27V_VSS C2617 C2607 220P C2602 C2611...
  • Page 86 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com SCHEMATIC DIAGRAM - 22 : +B SIGNAL LINE DIGITAL AMPLIFIER CIRCUIT : -B SIGNAL LINE : MAIN SIGNAL LINE IC2400 C1BA00000455 FRONT CHANNEL IC R2403 -27V_VSS C2417 C2407 220P C2402...

  • Page 87: Headphone Circuit, Tact Switch Circuit And Cd

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 22.7. HEADPHONE CIRCUIT, TACT SWITCH CIRCUIT and CD TRAY LOADING CIRCUIT SCHEMATIC DIAGRAM - 23 : MAIN SIGNAL LINE : +B SIGNAL LINE HEADPHONE CIRCUIT R6024 R6099 W6055 W6054 R6022 R6023 1.8K...

  • Page 88: Printed Circuit Board

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 23 Printed Circuit Board 23.1. DVD MODULE P.C.B DVD MODULE P.C.B (REP3908A...GCP) (REP3908C...GCT) C8530 LB8530 IC8251 C8572 RX8532 C8531 LB8257 IC8601 RX8531 C8261 R8262 R8264 Q8551 IC8606 CL8005 R8562 QR8571...
  • Page 89 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com DVD MODULE P.C.B (REP3908A...GCP) (REP3908C...GCT) FP8531 TO OPTICAL PICKUP UNIT R8263 C8262 R8261 C8258 C8253 C8257 Q8552 C8251 Q8562 R8554 C8554 CL8032 R8558 R8553 R8563 R8564 R8565 R8559 C8561 C8551...

  • Page 90: Main P.c.b

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 23.2. MAIN P.C.B MAIN P.C.B (REPX0490F...GCT) (REPX0490G...GCP) JK2000 H2004/W2004 TO SMPS MODULE 3 4 5 6 7 8 9 10 11 12 W2617 W2612 R2866 R2865 SURROUND H2001/ SPEAKERS W2001...
  • Page 91 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com R2095 Q2031 R2083 R2076 R2000 W2114 D1003 D2002 R2001 C2001 R2002 Q2000 D2001 C2022 R2092 R2003 C2019 C2004 W2113 R2043 W2115 W2078 L2000 IC2019 C2021 R2017 W2047 (NOT R2093 W2337...

  • Page 92: Panel P.c.b, Headphone P.c.b And Tact Switch P.c.b

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 23.3. PANEL P.C.B, HEADPHONE P.C.B and TACT SWITCH P.C.B PANEL P.C.B (REPX0490F...GCT) (REPX0490G...GCP) H6008 CN6006 /W6009 W6040 W6010 W2300 C6023 C6007 R6018 W6009 R6019 R6030 C6017 W6029 C6005 W6105 R6017...

  • Page 93: Digital Amplifier P.c.b

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 23.4. DIGITAL AMPLIFIER P.C.B DIGITAL AMPLIFIER P.C.B (REPX0491B) CN2004 L2701 C2601 L2700 L2600 C2616 IC2600 C2702 H2001/ W2001 C2600 C2615 L2601 C2704 R2810 R2806 R2803 C2801 R2800 R2802 R2805 R2801...

  • Page 94: Cd Tray Loading P.c.b And Ac Inlet P.c.b

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 23.5. CD TRAY LOADING P.C.B and AC INLET P.C.B CD TRAY LOADING P.C.B ( REP3288A ) IC904 S902 CS901 (OPEN SW) S901 (PLAY SW) AC INLET P.C.B (REPX0490F...GCT) (REPX0490G...GCP) FC5002...

  • Page 95: Wiring Connection Diagram

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 24 Wiring Connection Diagram SOLDER SIDE TACT SWITCH P.C.B H6009/W6009 SOLDER SIDE FP8531 25 ..1 26 ..2...
  • Page 96 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com CN6006 H6008 SOLDER SIDE /W6009 PANEL P.C.B Z6000 FL6000 SENSOR DIGITAL AMPLIFIER P.C.B CN2004 CD TRAY LOADING P.C.B H2001/W2001 SOLDER SIDE CS901 CN2001 SOLDER SIDE CN2002 15 ..1 16 .

  • Page 97: Illustration Of Ic's, Transistors And Diodes

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 25 Illustration of IC's, Transistors and Diodes C1BA00000455 (24p) C0AABB000125 (8p) C1BB00000845 (80p) C0CBADG00023 (3p) C9ZB00000498 (16p) C2CBHG000197 (100p) C0EBA0000029 (4p) MN2DS0009AP (256p) C0JBAB000011 (14p) C0HBB0000057 (44p) C0JBAF000654 (14p) C3ABPG000145 (54p)

  • Page 98: Terminal Function Of Ic's

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 26 Terminal Function of IC's 26.1. IC2018 (C2CBHG000197): Terminal Function Name MICROPROCESSOR IC MIC_SW MIC Insertion Detect (if MIC_EN = 1) No Connection (if MIC_EN = 0) Terminal Function No Connection...

  • Page 99: Parts Location And Replacement Parts List

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 27 Parts Location and Replacement Parts List Notes: · Important safety notice: Components identified by mark have special characteristics important for safety. Furthermore, special parts which have purposes of fire-retardant (resistors), high-quality sound (capacitors), low noise (resistors), etc are used.

  • Page 100: Dvd Loading Mechanisms

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 27.1. DVD Loading Mechanisms 27.1.1. DVD Loading Mechanism Parts Location...
  • Page 101 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 27.1.2. DVD Loading Mechanism Parts List Ref. Part No. Part Name & Description Remarks TRAVERSE DECK RHM0003-J MAGNET RDG0547 PULLEY GEAR RDG0548 RELAY GEAR RDG0549 DRIVE GEAR RDV0070 BELT REM0102...

  • Page 102: Cabinet Part List

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 27.2. Cabinet Part List 27.2.1. Cabinet Parts Location...
  • Page 103 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com...
  • Page 104 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 27.2.2. Cabinet Parts List Ref. Part No. Part Name & Description Remarks CABINET AND CHASSIS J3CCBB000004 TUNER PACK L6FAHAKH0001 FAN UNIT REEX0462 14P FFC WIRE (PANEL) REEX0463 50P FFC (MECHA) REEX0464 16P FFC (D.

  • Page 105: Electrical Part List

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 27.3. Electrical Part List Ref. Part No. Part Name & Description Remarks Q2808 B1ADCF000001 TRANSISTOR Ref. Part No. Part Name & Description Remarks Q2809 B1ACKD000005 TRANSISTOR Q2810 B1BACD000018 TRANSISTOR Printed Circuit Board...
  • Page 106 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks LB8301 J0JBC0000042 CHIP BEAD L2024 J0JBC0000015 CHIP INDUCTOR LB8302 J0JBC0000042 CHIP BEAD L2025 J0JBC0000015...
  • Page 107 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks H6008 K1YZ03000010 3P CABLE HOLDER W2078 ERJ6GEY0R00V CHIP RESISTOR H6009 K1YZ03000010 3P CABLE HOLDER...
  • Page 108 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks RESISTORS R2094 ERJ3GEYJ223V 22K 1/16W R2095 ERJ3GEYJ472V 4.7K 1/16W R2000 ERJ3GEYJ221V 220 1/16W R2097...
  • Page 109 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks R2265 ERJ3GEYJ682V 6.8K 1/16W R2700 ERJ3GEYJ222V 2.2K 1/16W R2266 ERJ3GEYJ182V 1.8K 1/16W R2701 ERJ3GEYJ272V 2.7K 1/16W...
  • Page 110 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks R2881 ERJ3GEYJ1R0V 1 1/16W R8002 ERJ2GEJ473X 47K 2W R2882 ERJ3GEYJ1R0V 1 1/16W R8003 ERJ2GEJ473X...
  • Page 111 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks RX8015 D1H88204A024 CHIP RESISTOR C2125 ECJ1VB1E103K 0.01 25V RX8016 D1H88204A024 CHIP RESISTOR C2138 ECJ1VC1H221J...
  • Page 112 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks C2414 ECJ3YB2A104K 0.1 100V C2606 ECQV1H684JL3 0.68 50V C2415 ECJ2VC1H221J 220P 50V C2607 ECJ1VB1H104K 0.1 50V...
  • Page 113 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks C2814 ECJ1VC1H101K 100P 50V C6082 ECEA1HKA010B 1 50V C2815 ECJ1VB1H103K 0.01 50V C6086 ECJ1VB1H102K...
  • Page 114 SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com Ref. Part No. Part Name & Description Remarks C8422 ECJ0EF1C104Z 0.1 16V C8423 F2G0J330A083 33P 6.3V C8424 ECJ0EF1C104Z 0.1 16V C8426 ECJ0EF1C104Z 0.1 16V C8427 ECJ0EF1C104Z 0.1 16V C8428 ECJ0EF1C104Z 0.1 16V...

  • Page 115: Packaging Materials & Accessories Parts List

    SA-HT330GCT / SA-HT330GCP All manuals and user guides at all-guides.com 27.4. Packaging Materials & Accessories Parts List Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks PACKING MATERIALS A1-1 RKK-HTR0051K R/C BATTERY COVER...

This manual is also suitable for:

Sa-ht330gcp

Table of Contents
