4.2

Dell Networking N4000 Series (N4032, N4032F,N4064, N4064P)

There are four different switch models in the Dell Networking N4000 series, each with one expansion module located
on the front of the chassis. The following modules are supported:

4 x 10GBASE-T module

4 x SFP+ module

2 x 40G QSFP
The modules are hot-swappable, so modules can be installed without rebooting the switch. The yellow outlines in
Figure 8 show the expansion slot for each switch.

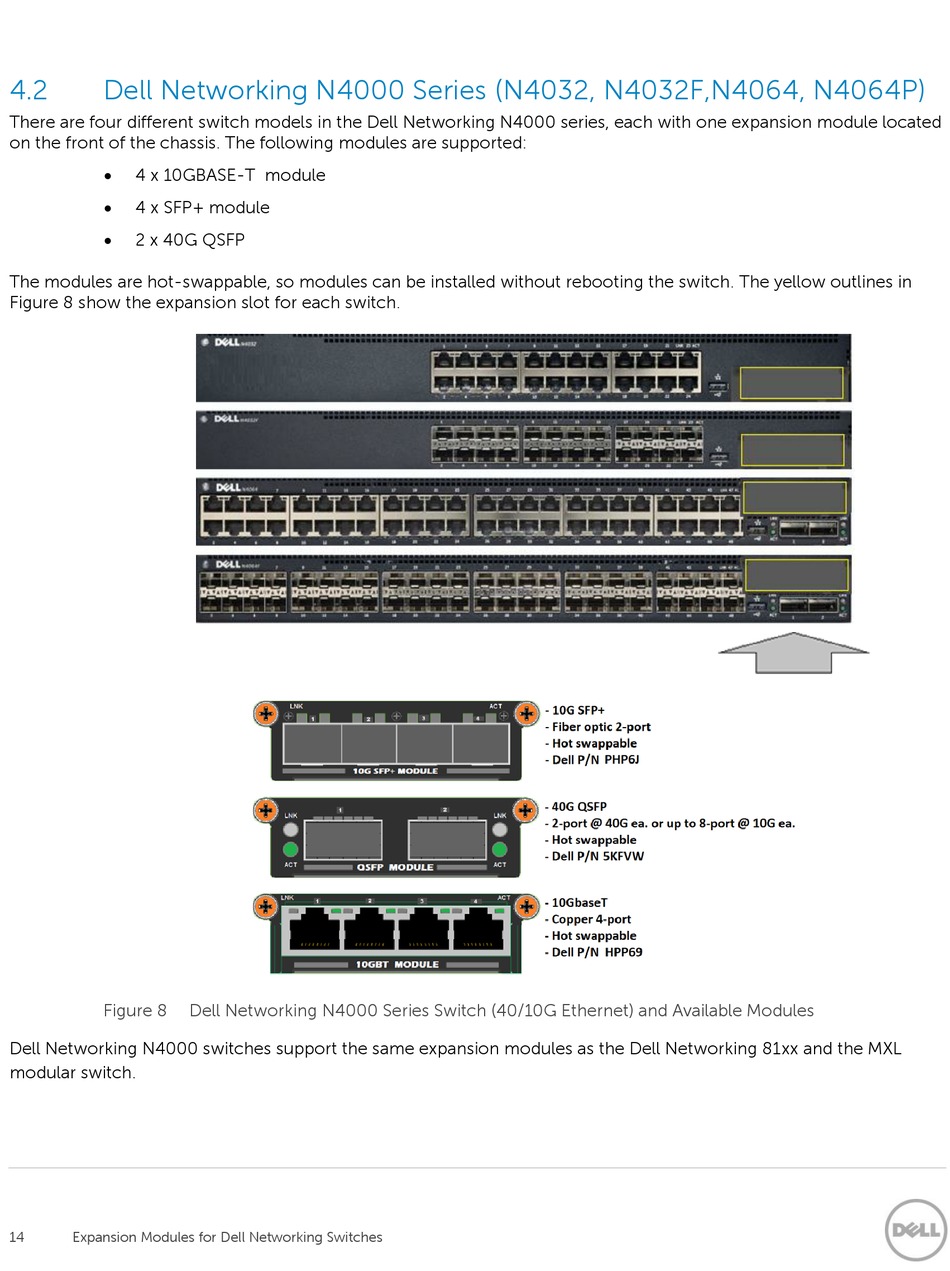

Figure 8 Dell Networking N4000 Series Switch (40/10G Ethernet) and Available Modules
Dell Networking N4000 switches support the same expansion modules as the Dell Networking 81xx and the MXL
modular switch.
