Varytec LED Derby ST Manual

Hide thumbs Also See for LED Derby ST:
Table of Contents

Advertisement

Quick Links

Manual
LED Derby ST

Advertisement

Table of Contents
loading

Related Manuals for Varytec LED Derby ST

Summary of Contents for Varytec LED Derby ST

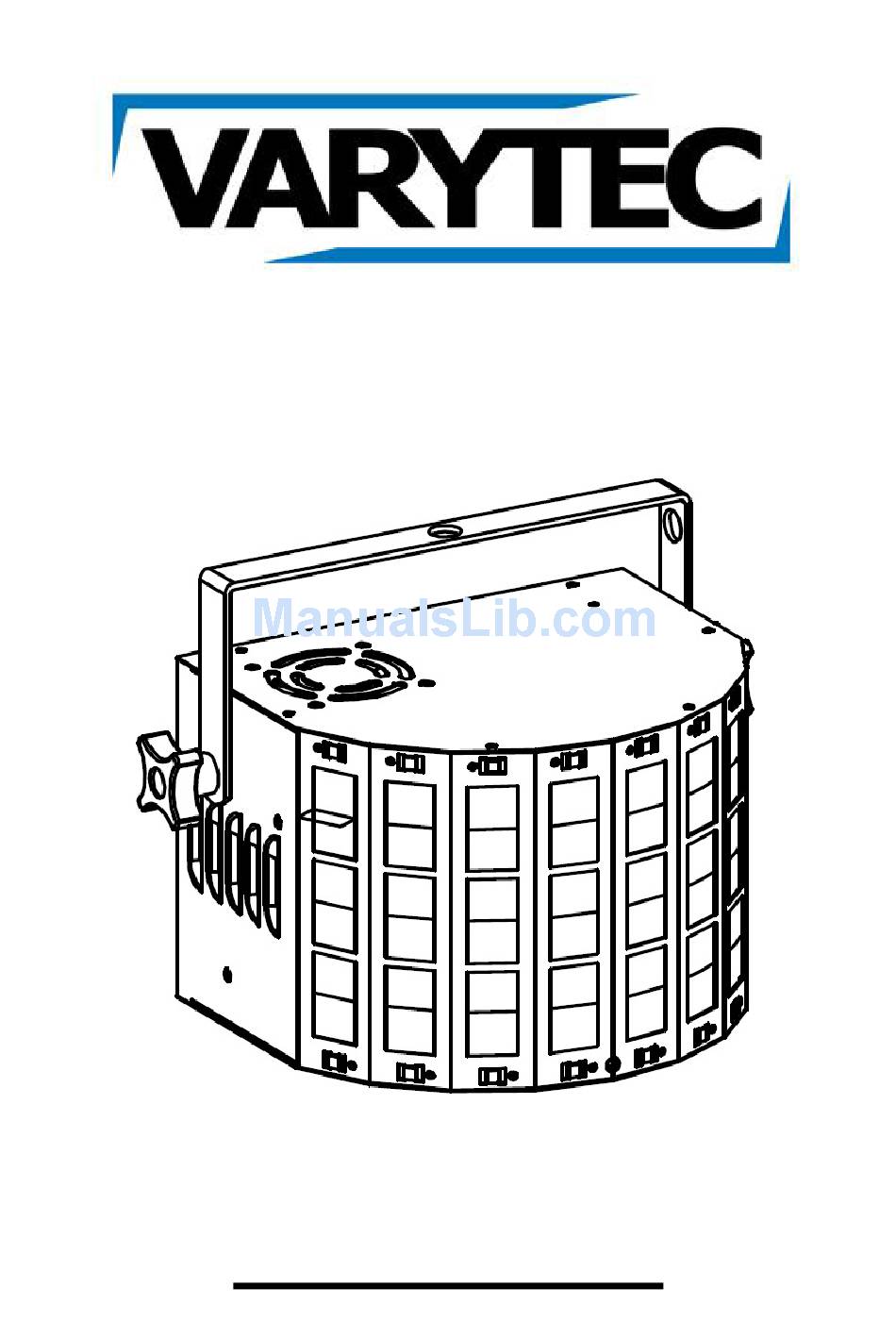

  • Page 1 Manual LED Derby ST...
  • Page 2 Table of contents Safety instructions ..........................3 1.1. FOR SAFE AND EFFICIENT OPERATION ................3 Designated use ..........................4 2.1. Overhead installation ....................... 5 Introduction ............................6 3.1. Product overview ........................6 Connections ............................. 7 4.1. Electrical connections ......................7 4.2.

  • Page 3: Safety Instructions

    1. Safety instructions  This device is suitable for indoor use (not outdoors) only.  All modifications to the device will void the warranty.  Repairs are to carry out by skilled personnel only.  Use only fuses of the same type and original parts as spare parts. ...

  • Page 4: Designated Use

    2. Designated use This device was developed for professional use on stages, in discos, theatres etc. The device is only approved for a connection up to 230V 50/60 Hz AC voltage and only for indoor use. Regular breaks during operation increase the lifetime of your device. Avoid convulsions or any form of forceful impact during the installation or the start-up of the device.

  • Page 5: Overhead Installation

    2.1. Overhead installation Danger of life! You have to observe the regulations of BGV C1 (formerly VBG 70) and EN60598-2-17 Installations are to carry out by skilled personnel only. The suspension devices have to be build and measured so they can withstand for an hour the tenfold of the payload without suffering a permanent detrimental deformation.

  • Page 6: Introduction

    3. Introduction Thank you for buying the LED Derby ST. It is a powerful device. For a successful installation and operation, please read this manual carefully. 3.1. Product overview 1. Safety eye 2. Microphone 3. Sensitivity knob for microphone 4. DMX LED This LED lights red, when the device gets a DMX signal.

  • Page 7: Connections

    4. Connections 4.1. Electrical connections If you wish to change the power supply settings, see the chapter Appendix. Connect the fixture to the mains with the enclosed power cable and plug. The earth has to be connected. Cable (EU) Cable (US) International Brown Black...

  • Page 8: Control

    5. Control Press MENU to reach the first menu and use UP/DOWN to get to submenu. To open submenu you have to press ENTER, here you can also reach other menu items with UP/DOWN buttons, confirm with ENTER. Press MENU to store your settings. 5.1.

  • Page 9: Remote

    5.2. Remote On / Off Pressing this button activates a random automatic show. Pressing this button activates a random Sound-to-Light show. Pressing this button activates an automatic program. Pressing this button activates a strobe program. Pressing this button activates a strobe. Pause Color change Setting the speed 0 = slow, 9 = fast...
  • Page 10 6. DMX chart 6.1. DMX mode 1 (1 channel) Channel Value from Value to Function No function Show Automatic program Strobe program Show in Sound-to-Light mode Automatic program in Sound-to-Light mode Strobe program in Sound-to-Light mode 6.2. DMX mode 2 (4 channel) Channel Value from Value to...

  • Page 11: Technical Data

    Strobe Pattern 8 slow– fast Strobe Pattern 9 slow– fast Strobe Pattern 10 slow– fast Strobe Pattern 11 slow– fast Strobe Pattern 12 slow– fast Strobe Pattern 13 slow– fast Strobe Pattern 14 slow– fast Strobe Pattern 15 slow– fast Strobe Pattern 16 slow–...

  • Page 12: White

    Importer: B & K Braun GmbH Industriestraße 2 D-76307 Karlsbad www.bkbraun.com info@bkbraun.com 12 / 12...
