Pro-Form PFEL54931 User Manual page 7

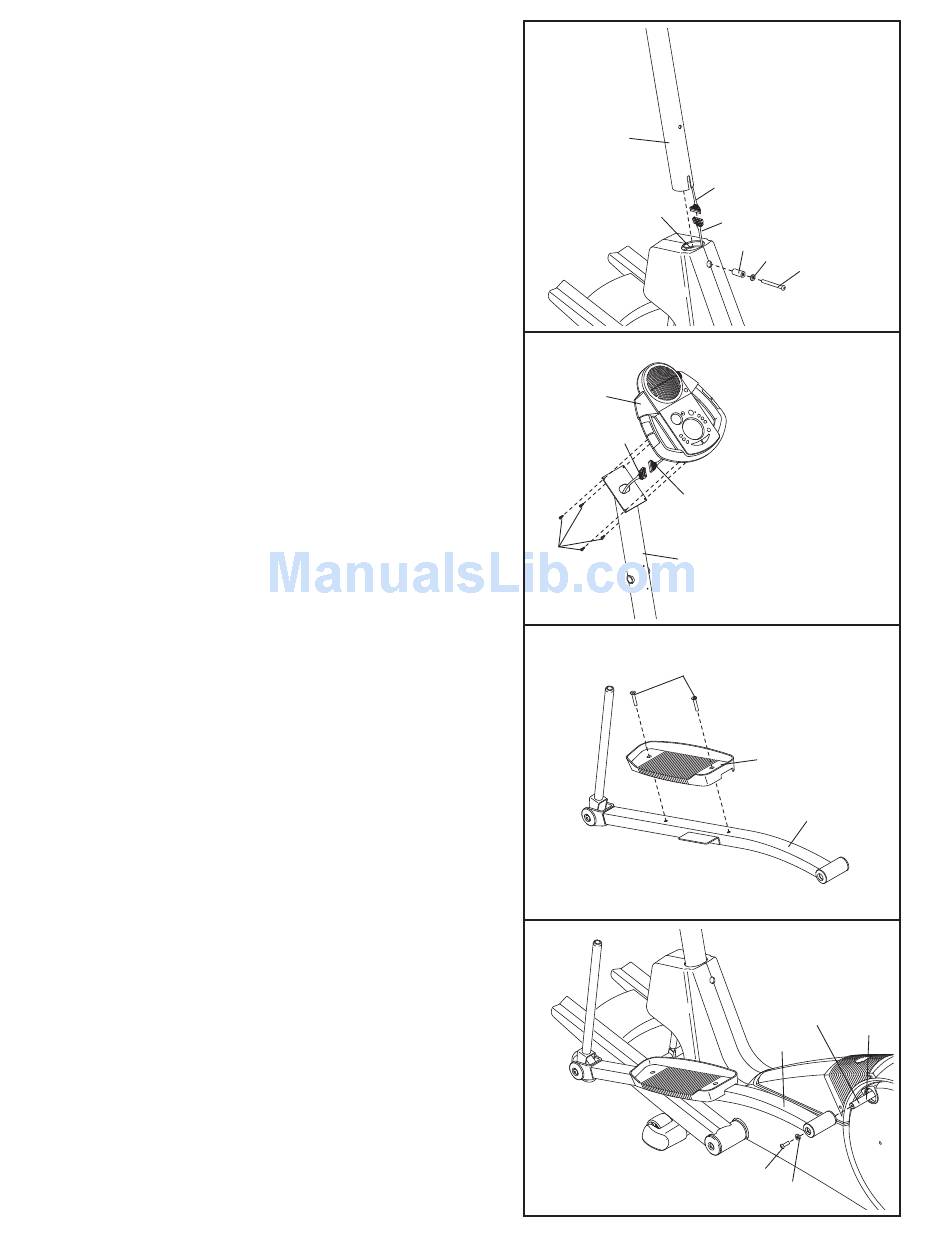

5. While another person holds the Upright (2) in the posi-
tion shown, connect the Upper Wire Harness (86) to
the Lower Wire Harness (87). Carefully pull the
upper end of the Upper Wire Harness to remove
any slack. While holding the Upper Wire Harness,
insert the Upright into the Frame (1). Do not pinch
the Wire Harnesses.
Slide an M10 Split Washer (70) and a Frame Spacer
(83) onto an M10 x 85mm Button Screw (63). Insert
the Button Screw into the Frame (1) and the Upright
(2). Make sure that the concave end of the Frame
Spacer is turned toward the Frame. Do not tighten
the Button Screw yet.
6. While another person holds the Console (5) in the
position shown, connect the wire harness on the
Console to the Upper Wire Harness (86). Insert the
excess wire harness into the Upright (2).
Attach the Console (5) to the Upright (2) with four M4
x 16mm Screws (66). Be careful to avoid pinching
the wire harnesses.
7. Identify the Left Pedal (13) and the Left Pedal Arm
(14). Attach the Left Pedal to the Left Pedal Arm with
two M6 x 45mm Flat Screws (20).
Attach the Right Pedal (not shown) to the Right Pedal
Arm (not shown) in the same way.
8. Apply a thin film of grease to the Left Crank Arm (36)
in the indicated location.
Slide the Left Pedal Arm (14) onto the Left Crank Arm
(36). Attach the Left Pedal Arm with an M8 x 19mm
Patch Screw (108) and an M8 Large Washer (113).
Attach the Right Pedal Arm (not shown) to the right
side of the elliptical crosstrainer in the same way.
5
2
6
5
86
66
7
8
7
Make sure the
wire harnesses
do not get
pinched and
damaged during
this step.
86
1
87
83
70
63
Make sure the
wire harnesses
do not get
pinched and
damaged during
this step.
Console
Wire Harness
2
20
13
14
Grease
14
108
113
36
