INSTALLING THE RECEIVER FOR THE OPTIONAL CHEST PULSE SENSOR
If you have purchased the optional chest pulse sensor (see page 23), follow the steps below to install
the receiver included with the chest pulse sensor.
1. Look under the housing (A) and locate the two
recessed screws (B). Remove the two screws, and
remove the lid (C) from the housing. Set the lid and
the screws aside.
2. Gently remove the housing (A) from the Upright (2)
and the Water Bottle Holder (31).

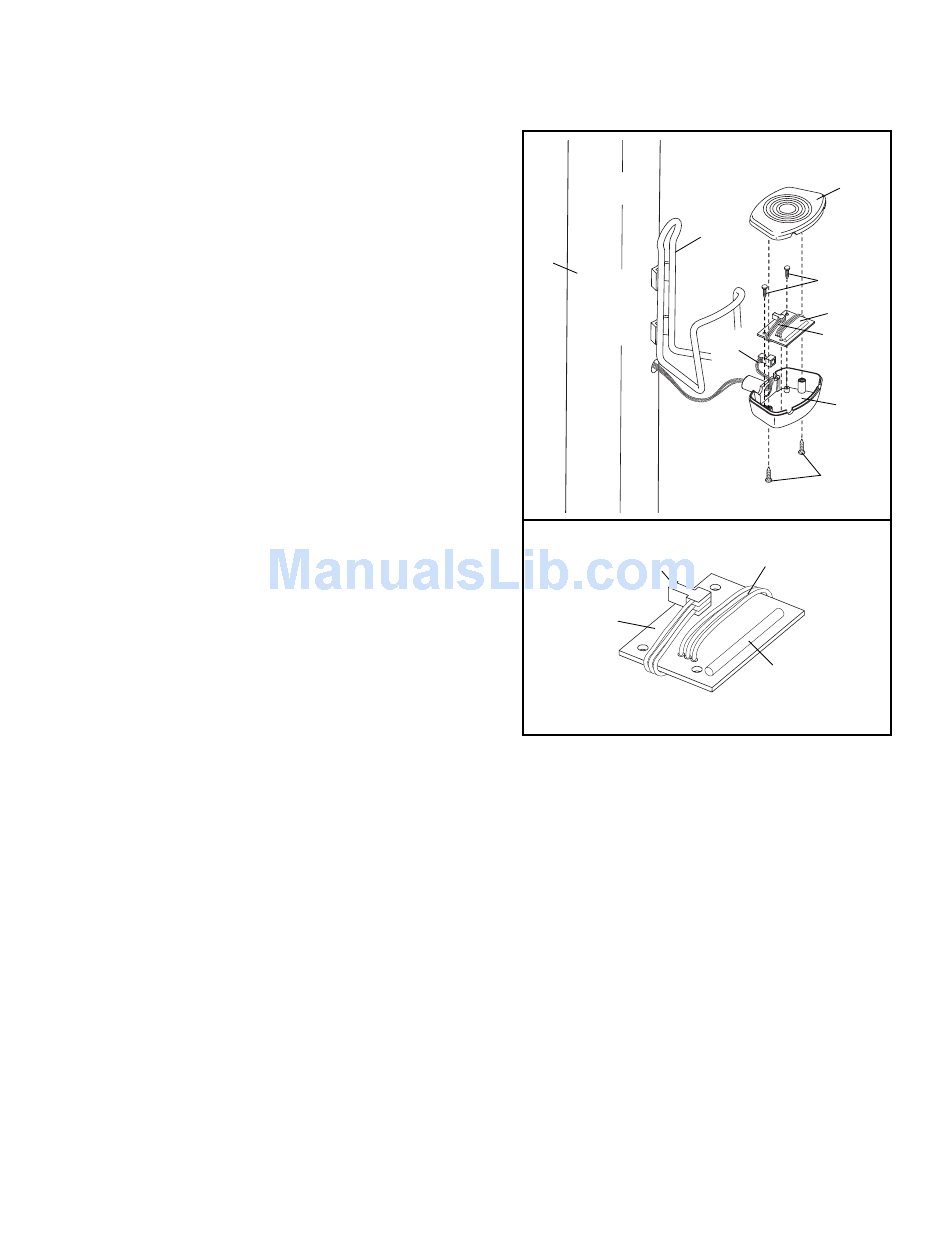

3. See the bottom drawing. Wrap the wires (D) on the
receiver (E) lengthwise around the receiver as shown.
Make sure that the wires and the connector do not
touch the small cylinder.
4. Hold the receiver (E) so the small cylinder is oriented
as shown, and carefully insert the receiver into the
housing (A). Attach the receiver to the housing with the
two screws (F) included with the chest pulse sensor.
5. Locate the indicated wires (G) inside of the housing
(A). Pull the end of the wires out of the housing and
connect it to the wires (D) on the receiver (E). Make
sure that the connectors snap together.
6. Gently feed the wires into the Upright (2) and insert the
housing (A) into the Upright. Be careful to avoid
pinching the wires.
7. Reattach the lid (C) and the housing (A) to the Water
Bottle Holder (31) with the two screws (B). Note: The
wires included with the chest pulse sensor are not
needed and may be discarded.
