Apr. 2006
Table of Contents
Specifications .....................................................................2
Location of Controls .........................................................4
Location of Controls Parts List........................................5
Exploded View ..................................................................6
Exploded View Parts List.................................................7
Disassembly Procedure ....................................................8
Parts List ...........................................................................10
Checking the Version Number......................................12
Factory Reset Instructions..............................................12
System Software Updating Instructions ......................12
Test Mode .........................................................................14
Block Diagram .................................................................22
Copyright © 2006 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form without the written
permission of ROLAND CORPORATION.
Circuit Board (TOP BOARD 1/2) .................................24
Circuit Board (TOP BOARD 2/2) .................................25
Circuit Board (CENTER BOARD 1/2) .........................26
Circuit Board (CENTER BOARD 2/2) .........................27
Circuit Diagram (TOP BOARD 1/4) ............................28
Circuit Diagram (TOP BOARD 2/4) ............................30
Circuit Diagram (TOP BOARD 3/4) ............................32
Circuit Diagram (TOP BOARD 4/4) ............................34
Circuit Diagram (CENTER BOARD 1/2) ....................36
Circuit Diagram (CENTER BOARD 2/2) ....................38
Circuit Diagram (BOTTOM BOARD) ..........................40
Messages...........................................................................40
17058420E0
SERVICE NOTES
Issued by RJA
Printed in Japan (0400) (SC-KWS)

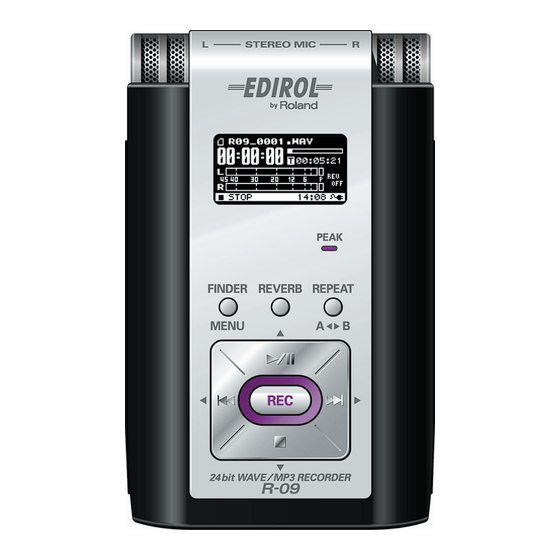

R-09
Advertisement
Table of Contents
Related Manuals for Roland R-09
Summary of Contents for Roland R-09
-
Page 1: Table Of Contents
Test Mode .................14 Circuit Diagram (BOTTOM BOARD) ......40 Block Diagram ..............22 Messages................40 Copyright © 2006 ROLAND CORPORATION All rights reserved. No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION. 17058420E0 Printed in Japan (0400) (SC-KWS) -
Page 2: Specifications
Apr. 2006 R-09 Specifications Recorder Part Input/Output ● Tracks ● Audio Inputs 2 (stereo) Internal Stereo Microphone Mic input (Stereo miniature phone type, plug-in powered mic) ● Signal Processing Line input (Stereo miniature phone type) AD/DA conversion: 24 bits, 44.1/48 kHz * The Internal/External MIC and the LINE IN can’t be used at the same time;... -
Page 3: Power Supply
Apr. 2006 R-09 Others OP-R09M: Mic Stand Adaptor for R-09 fig.OP-R09M1_80 ● Display 128 x 64 dot graphic display ● Power Supply AC Adaptor, Alkaline dry battery LR6 (AA) type x 2, or Nickel Hydrogen battery (HR15/51) x 2 ● Current Draw 360 mA ●... -
Page 4: Location Of Controls
Apr. 2006 R-09 Location of Controls fig.panel-front_85... -
Page 5: Location Of Controls Parts List
Apr. 2006 R-09 Location of Controls Parts List PART PART NAME1 DESCRIPTION1 Q’TY CODE 04230367 KEYTOP POWER 04230445 S-KEYTOP SX2H PM 04230512 SIDE PANEL L 04128501 DC JACK HEC3600-010510 04230467 MIC COVER L 04230456 MIC COVER A 04230478 MIC COVER R... -
Page 6: Exploded View
Apr. 2006 R-09 Exploded View fig.bunkai-e These are included in #19 CENTER BOARD ASSY. These are included in #19 CENTER BOARD ASSY. -
Page 7: Exploded View Parts List
Apr. 2006 R-09 Exploded View Parts List PART CODE PART NAME DESCRIPTION1 Q’TY 04230567 TOP PANEL 04230389 DISPLAY COVER 04230556 TOP CASE 04230423 C-KEYTOP SX3H 04230434 KEYTOP KEY CURSOR 04233190 RUBBER SHEET * If the feel of button operations near [ ] is poor, replace this part. -
Page 8: Disassembly Procedure
Apr. 2006 R-09 Disassembly Procedure Place so that the top panel is at the top, then lift up the top case to remove. fig.top-case-remove_85 Detaching the BOTTOM PANEL The bottom panel is secured in place with double-sided tape at the location shown by dotted lines in the figure. - Page 9 Apr. 2006 R-09 Flip up the tabs in the circled areas and remove the CENTER BOARD. fig.center-board-remove_85 For the BOTTOM BOARD as well, remove while flipping up the tabs holding the BOTTOM BOARD in place. fig.bottom-board-remove_85...
-
Page 10: Parts List
Apr. 2006 R-09 Parts List CASING 73238667 BATTERY CVR-TMNL PM ASSY 04230356 BOTTOM PANEL 04230512 SIDE PANEL L 04230523 SIDE PANEL R 04230567 TOP PANEL 04230501 BATTERY COVER SHAFT 04230389 DISPLAY COVER 04230456 MIC COVER A 04230467 MIC COVER L... - Page 11 Apr. 2006 R-09 ACCESSORIES (Standard) 03788289 USB CABLE MINI-B U4A5B-100S 1.0M 04232278 IC CARD RP-SD064BRL0 73129090 OWNER’S MANUAL JAPANESE 40232334 WARRANTY CARD MOCHIKOMI JAPAN ONLY 73233756 OWNER’S MANUAL ENGLISH 03679478 AC ADAPTOR PSB-6U (WITHOUT AC CORD) 01903334 AC CORD SET 100V 1.0M FOR PSB-1U...
-
Page 12: Checking The Version Number
Turn off the power to the R-09. While holding down the [ ] button, turn on the power. - Page 13 DMZ15_UPD.UPD (update for the Updater block only) fig.upd-updr_90 Display the SD card for the R-09 on the PC’s screen, then copy the system- update file to the root directory of the SD card. Four types of system-update files are available.
-
Page 14: Test Mode
Items Required Be very sure never to disconnect the AC adaptor while the operation is in progress. When the update finishes, a screen like the one shown below • An SD card (formatted on R-09) appears. • AC adaptor fig.complete_90 •... - Page 15 Apr. 2006 R-09 Exiting Test Mode Skipping test items While in Test mode, hold down the [FINDER/MENU] button and press To move among the test items, use the [ ] and [ ] buttons. If you want the [ ] button several times to move to “12. Factory Reset.”...
- Page 16 Apr. 2006 R-09 2. Device Test 3. Analog (External Mic) Test Entering this item automatically starts testing of each device. This checks the throughput of input from the external microphone jack to output. fig.test02-1_90 Make the connection to the external microphone input jack (MIC).
- Page 17 Apr. 2006 R-09 4. Analog (LINE) Test If an SD card is not inserted, or if the SD card is locked, a screen like the one shown below appears. fig.test05-1_90 This checks the throughput of input from the line input jack (LINE IN) to output.
- Page 18 Apr. 2006 R-09 6. Switch/LED Test 7. Display Test Entering this item displays a screen like the one shown below. Entering this item displays a screen like the one shown below. fig.test07-1_90 fig.test06-1_90 FINDER REPEAT REVERB EXT MIC TYPE Press the [ ] button to start the test.
- Page 19 Also make sure that the values at the bottom of the screen change from 1 to 10. Make sure the R-09 is seen as a USB drive on the PC‘s screen. After verifying, disconnect the USB cable. Operation automatically advances to Use the [ ] button to advance to the next item.
- Page 20 Apr. 2006 R-09 11. Noise Test When the correct connection is made, a screen like the one shown below appears. fig.test09-3_90 This performs testing for residual noise. Entering this item displays a screen like the one shown below. fig.test11-1_90 Connect the digital output connector (OPTICAL) to a device that has a digital input and check the microphone input audio.
- Page 21 Apr. 2006 R-09 Eject the SD card, and when a screen like the one shown below appears, switch off the power. fig.test13-2_90 When the power is off and the display has cleared completely, disconnect the AC adaptor.
-
Page 22: Block Diagram
Apr. 2006 R-09 Block Diagram fig.block@L PHONES & OPTICAL W1 : #04236301 W2 : #04236301 W3 : #04236501... -
Page 23: Circuit Board (Top Board 1/2)
Apr. 2006 R-09 Circuit Board (TOP BOARD 1/2) fig.board-top-1_60... -
Page 24: Circuit Board (Top Board 2/2)
Apr. 2006 R-09 Circuit Board (TOP BOARD 2/2) fig.board-top-2_60... -
Page 25: Circuit Board (Center Board 1/2)
Apr. 2006 R-09 Circuit Board (CENTER BOARD 1/2) fig.board-center-1_80... -
Page 26: Circuit Board (Center Board 2/2)
Apr. 2006 R-09 Circuit Board (CENTER BOARD 2/2) fig.board-center-2_80... -
Page 27: Circuit Diagram (Top Board 1/4)
Apr. 2006 R-09 Circuit Diagram (TOP BOARD 1/4) fig.diagram-top-1@L PREV STOP REPEAT NEXT PLAY MENU WRITEPROTECT REVERB INSERT AVDD+3.3V AVDD+3.3V AVDD+3.3V AVDD+3.3V AVDD+3.3V AVDD+3.3V AVDD+3.3V 100k 100k 100k 100k 100k 100k IC15 SW_AD2 YCOM SW_AD1 XCOM C130 0.1u 100k 100k... -
Page 28: Circuit Diagram (Top Board 2/4)
Apr. 2006 R-09 Circuit Diagram (TOP BOARD 2/4) fig.diagram-top-2@L CDRH4D28@ D+1.6PG D+1.6 D 3. 3 TPS62000DGS 10uH C113 IC10 240k(D) C111 150p 220k C114 ILIM SY8-@MZ4-RA SYNC PGND D 3. 3 C112 120k(D) 430k(D) GRM31@ 100k C115 XCORE_SPEEDUP 0.1u 100k... -
Page 29: Circuit Diagram (Top Board 3/4)
Apr. 2006 R-09 Circuit Diagram (TOP BOARD 3/4) fig.diagram-top-3@L ECJ0EB@ RPC03T@J D 3. 3 NJM2865F3-15 R110 ECJ3Y@ 0.1u 910k C139 VOUT VCOMH CTRL D 3. 3 D 3. 3 0.1u IREF A[1..20] A[1..20] RA28 D[0..15] 100k D[0..15] EXB28V@JX BLM18PG@ D1/SDIN... -
Page 30: Circuit Diagram (Top Board 4/4)
Apr. 2006 R-09 Circuit Diagram (TOP BOARD 4/4) fig.diagram-top-4@L D 3. 3 D+1.6 BLM18PG@ BLM18PG@ SY8-@MZ4-RA SY8-@MZ4-RA 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u 100p 100p 100p 0.1u 0.1u 100p 100p 100p 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u... -
Page 31: Circuit Diagram (Center Board 1/2)
Apr. 2006 R-09 Circuit Diagram (CENTER BOARD 1/2) fig.diagram-center-1@L INPUT INPUT MICGAIN DOWN JK_DETECT HOLD MIC TYPE DOWN AVDD+3.3V AVDD+3.3V AVDD+3.3V AVDD+3.3V AVDD+3.3V AVDD+3.3V AVDD+3.3V AVDD+3.3V SW_SELA_CB SW_SELB_CB AVDD+3.3V 100k 100k 100k 100k 100k 100k 100k 100k SW_AD4_CB YCOM VCC_BAT... -
Page 32: Circuit Diagram (Center Board 2/2)
Apr. 2006 R-09 Circuit Diagram (CENTER BOARD 2/2) fig.diagram-center-2@L D 3. 3 0.1u A+3.1 IC1A IC1B RPC05T@J IC1C IC1D HD74LVU04ATEL L HD74LVU04ATEL L HD74LVU04ATEL L HD74LVU04ATEL L BLM18PG@ MICBIAS 0.1u 0.1u 0.1u SSM3J108TU 0.1u RPC05T@J SSM3J108TU SY8-@MZ4-RA 24-8005-002-100-867 11.2896MHz RPC05T@J... -
Page 33: Circuit Diagram (Bottom Board)
Improper Song or cannot be recognized. The song is in a file format that Format the memory card on the R- cannot be used with the R-09. SD Card Full The memory card does not have Already Exists sufficient space available. - Page 34 The memory card may be corrupt- No Card No memory card has been insert- Insert a memory card into the R-09. HOLD is ON The hold switch is ON. This mes- sage is shown when an operation is attempted while the hold switch is turned on.
- Page 35 Apr. 2006 R-09...
- Page 36 Apr. 2006 R-09...
- Page 37 R-09 MEMO...
