Connecting the CC-3 Zone Controller

Connect one CC-3 zone controller to any ControlSpace® processor. Use GPI mode A+ in CSD.
B C
A D

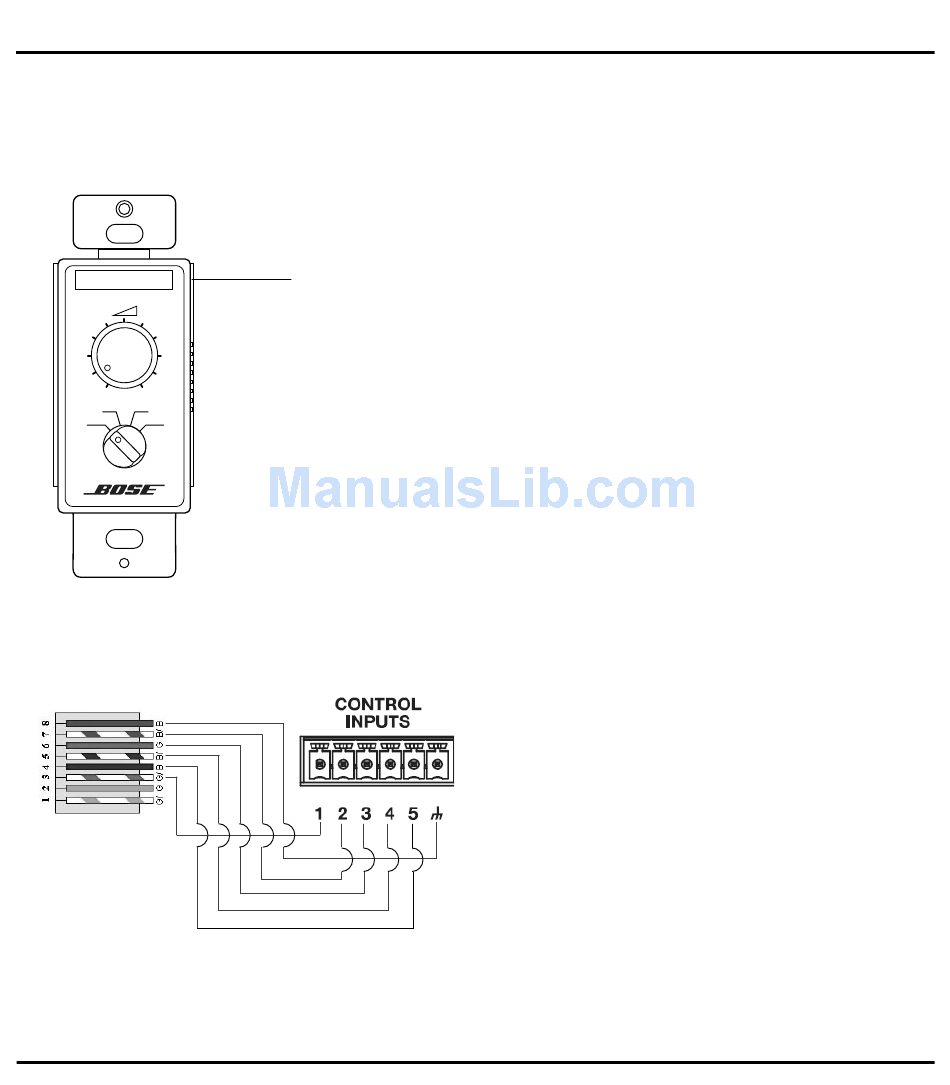

Pin-to-Remote Connection Diagrams
RJ-45
on CC-3
Any ControlSpace Processor
152 m (500 ft) max length CAT 5 shielded cable
30 m (100 ft) max length unshielded CAT 5 cable
Terminated with RJ-45 (TIA/EIA 568 pinout) on one end
and 6-pin phoenix on the other end
Any ESP
CC-3 Installation Guide
