CC-2 Installation Guide

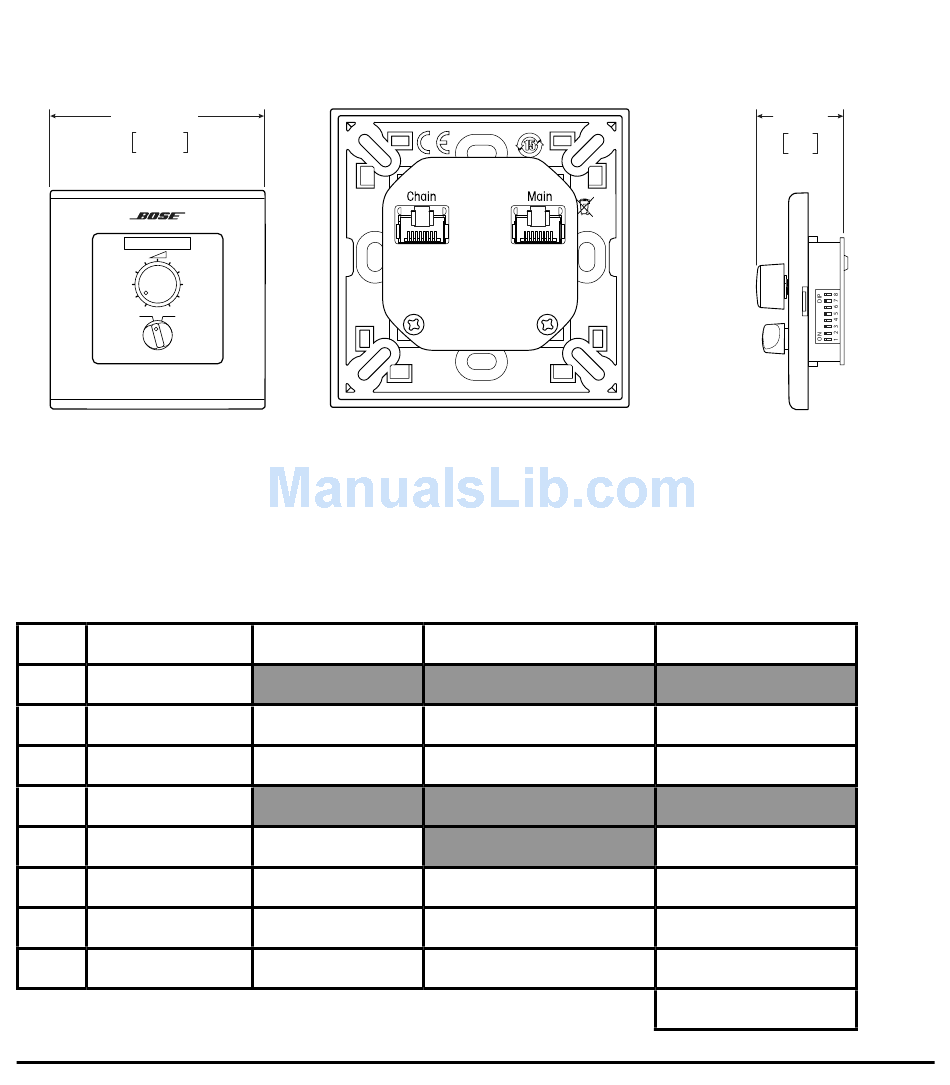

CC-2 Zone Controller - EU
86 mm sq.
3.4 in sq.
A B
Front View
Pin-to-Remote Connections
Connections from the RJ-45 (TIA/EIA 568B wiring) connector on the CC-2 zone controller to
REMOTE connector on the FreeSpace® amplifier or to CONTROL INPUTS connector on the
ControlSpace® processor. Use GPI mode A- in CSD.
Pin Color
8 Brown
7 White/Brown
6 Green
5 White/Blue
4 Blue
3 White/Green
2 Orange
1 White/Orange
20 English
Rear View
FreeSpace IZA FreeSpace DXA 2120
A/B Select #2 A/B_2
A/B Select #1 A/B_1
VOL #2
VOL #1 PWR
PWR #2 VOL_2
PWR #1 VOL_1
pro.Bose.com
34 mm
1.4 in
Side View
ControlSpace ESP
A/B Select #2
A/B Select #1
COM #2
COM #1
VOL #2
VOL #1
CSD GPI Mode: A-
