Bose PANARAY System Installation Manual

Bose PANARAY System Installation Manual

Digital controller
Hide thumbs Also See for PANARAY System:

Advertisement

INPUT METER TPM
STANDBY
L
-dB
40 24 18 12 6
0
O
R
PRESET
Stereo Bank
802 Full Range
UTILITY
®
PANARAY
System

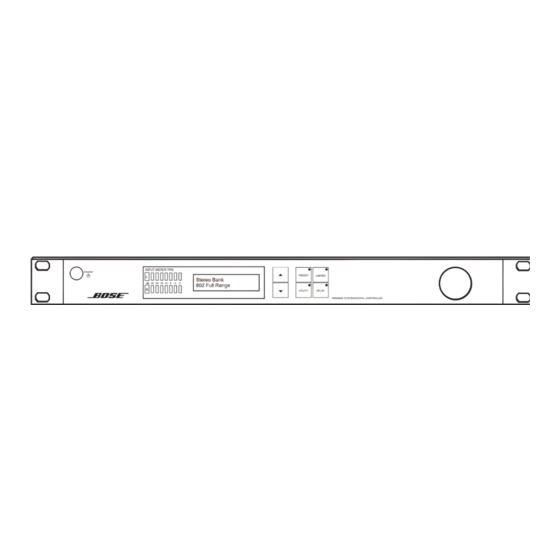

Digital Controller
Installation guide
LIMITER
DELAY
PANARAY SYSTEM DIGITAL CONTROLLER
pro.bose.com

Advertisement

Table of Contents
loading

Summary of Contents for Bose PANARAY System

  • Page 1 ® PANARAY System Digital Controller Installation guide INPUT METER TPM STANDBY PRESET LIMITER Stereo Bank 40 24 18 12 6 802 Full Range UTILITY DELAY PANARAY SYSTEM DIGITAL CONTROLLER pro.bose.com...
  • Page 3: Table Of Contents

    Bass Array Setup and Connections ....... . . 35 13.0 Bose ®...
  • Page 4: Safety Information

    Opening or removing covers may expose you to 12.Undgå at overbelaste stikkontakter, forlængerledninger eller indbyggede stik af dangerous voltages or other hazards. Please call Bose ® to be referred to an hensyn til risikoen for brand eller elektrisk stød.
  • Page 5 Weise beschädigt wurde: Beispielsweise falls das Netzkabel oder der Netzstecker beschädigt ist, Flüssigkeit oder Fremdkörper in das Gerät gelangt sind oder das Gerät jes peligrosos o a otros peligros. Por favor llame a Bose ® para que le indiquen un cen- Regen bzw.
  • Page 6 12.Per prevenire il pericolo di incendi o scosse elettriche, evitate il sovraccarico delle sions dangereuses ou de vous retrouver exposé à d’autres dangers. Appelez la prese a muro, delle prolunghe o delle prese multiple di corrente. société Bose ® afin de connaître la station technique agréée la plus proche de chez 13.Prestate attenzione che del liquido o altro materiale non penetri all’interno del...
  • Page 7 Important Safety Instructions 1. Read these instructions. Please call Bose ® to be referred to an authorized ser- 2. Keep these instructions – for future reference. vice center near you. 3. Heed all warnings – on the product and in the 15.
  • Page 8: Introduction

    The PANARAY system digital controller has two balanced XLR analog inputs and four balanced XLR analog outputs. It can be configured to run two mono Bose speaker EQ presets or a single stereo Bose speaker EQ preset (including preset crossover settings).
  • Page 9: Front Panel

    STANDBY PRESET LIMITER Stereo Bank 40 24 18 12 6 802 Full Range DELAY UTILITY PANARAY SYSTEM DIGITAL CONTROLLER STANDBY button: PRESET Button: Standby on/off Press to enter preset mode, which pro- vides access to Bose ® speaker EQ pre- Input Meters: sets.
  • Page 10: Rear Panel

    3.0 Rear Panel OUTPUTS POWER INPUTS Bose Corporation, Framingham, MA 01701-9168 CH1/MONO Made in the U.S.A. 100-240V~AC 50-60Hz 300W MAX RISK OF ELECTRICAL RISQUE DE CHOC ELECTRIQUE DO NOT OPEN NE PAS OUVRIR Balanced XLR Inputs: Two balanced XLR inputs...
  • Page 11: Signal Flow

    4.0 Signal Flow The PANARAY ® system digital controller has the ability to run a single stereo preset, a single mono preset, or to run in dual mono mode. In the following section, the controller’s signal flow is broken down to provide a better understanding of its full functionality.
  • Page 12: Ch1 And Ch2 Inputs

    4.1 Signal Flow – CH1 and CH2 Inputs 1. CH1 and CH2 Inputs Input Meter 1 CH1 High High 2 CH2 High Input 3 Mono High over Input CH1 trim 4 CH1 Low 5 CH2 Low 6 Mono Low 7 CH1 FR 8 CH2 FR 9 Mono FR 10 CH1 No EQ...
  • Page 13: Eq And Crossover

    4.2 Signal Flow – EQ and Crossover 2. EQ and Crossover Input Meter 1 CH1 High High 2 CH2 High Input 3 Mono High over Input CH1 trim 4 CH1 Low 5 CH2 Low 6 Mono Low 7 CH1 FR 8 CH2 FR 9 Mono FR 10 CH1 No EQ...
  • Page 14: X 4 Router

    4.3 Signal Flow – 2 x 4 Router 3. 2 x 4 Router Input Meter 1 CH1 High High 2 CH2 High Input 3 Mono High over Input CH1 trim 4 CH1 Low 5 CH2 Low 6 Mono Low 7 CH1 FR 8 CH2 FR 9 Mono FR 10 CH1 No EQ...
  • Page 15: Delay And Limiter

    4.4 Signal Flow – Delay and Limiter Input Meter 1 CH1 High 2 CH2 High High Input 3 Mono High over Input CH1 trim 4 CH1 Low 5 CH2 Low 6 Mono Low 7 CH1 FR 8 CH2 FR 9 Mono FR 10 CH1 No EQ 11 CH2 No EQ 12 Mono No EQ...
  • Page 16: Preset Button

    EQ preset and configuration. The examples on the following pages illustrate how the PANARAY system digital controller is configured for each type of default output. A complete list of presets (with descriptions) can be found in section 13.0.
  • Page 17: Stereo Bank

    I I I I I I l l u l l u l l u l l u Example 2: Stereo Mid-High with Stereo Bass PANARAY System Digital Controller Display Stereo 802III+MB4 INPUTS OUTPUTS Bose Corporation, Framingham, MA 01701-9168 POWER Made in the U.S.A.
  • Page 18: Stereo Mid-High With Mono Bass

    Now all of the bass content is set up to be summed to mono, but the mid-high devices will still be stereo. Note: Save all changes before loading a new Preset. Unsaved router changes will be lost if another speaker EQ Preset is loaded. To save settings see section 11.0. PANARAY System Digital Controller Display Stereo 402II+MB4 INPUTS...
  • Page 19: Mono Bank

    I I - I I - l l u l l u l l u l l u Example 2: Mono Mid-High Device with Mono Bass PANARAY System Digital Controller Display Mono 502A+502B OUTPUTS POWER INPUTS Bose Corporation, Framingham, MA 01701-9168 CH1/MONO Made in the U.S.A.
  • Page 20: Bass Array Bank

    RISQUE DE CHOC ELECTRIQUE DO NOT OPEN NE PAS OUVRIR MB4 (1) Mono from mixer MB4 (2) Example 2: 2x Endfire Bass Array PANARAY System Digital Controller Display Bass Array MB4 2XEF180Hz INPUTS OUTPUTS POWER Bose Corporation, Framingham, MA 01701-9168 CH1/MONO Made in the U.S.A.
  • Page 21 Example 2: 4x Endfire Bass Array PANARAY ® System Digital Controller Display Bass Array MB4 4XEF180Hz INPUTS OUTPUTS POWER Bose Corporation, Framingham, MA 01701-9168 CH1/MONO Made in the U.S.A. 100-240V~AC 50-60Hz 300W MAX RISK OF ELECTRICAL RISQUE DE CHOC ELECTRIQUE DO NOT OPEN...
  • Page 22: Dual Mono Operation

    If you want to send the same audio information to EQs. both of the PANARAY system digital controller’s inputs, you can achieve this in two ways: To access Dual Mono mode, press the PRESET button.
  • Page 23 (Low freq) I I I I I - Zone 1 802-III speaker Source #1 (High freq) Example 2: Dual Mono PANARAY System Digital Controller Display INPUTS OUTPUTS POWER 1: 502A+502B Bose Corporation, Framingham, MA 01701-9168 CH1/MONO Made in the U.S.A.
  • Page 24: Delay Button

    40 24 18 12 6 802 Full Range UTILITY DELAY PANARAY SYSTEM DIGITAL CONTROLLER DELAY Pressing the DELAY button provides access to four independent output delays. There is a single delay line available on each of the controller’s four out- puts.
  • Page 25: Limiter Button

    40 24 18 12 6 802 Full Range DELAY UTILITY PANARAY SYSTEM DIGITAL CONTROLLER Pressing the LIMITER button provides access to four independent output limiters that can protect the loudspeakers from damage if an operator overdrives the system. Use the Arrow UP and...
  • Page 26: Utility Button

    Stereo Bank 40 24 18 12 6 802 Full Range UTILITY DELAY PANARAY SYSTEM DIGITAL CONTROLLER UTILITY Pressing the UTILITY button provides access to Input Trim CH1 the Level, System and Routing parameters. Use Allows you to change the input level in 1dB steps the Arrow UP/Arrow DOWN buttons to navigate on CH1.
  • Page 27 8.0 UTILITY Button Delay Master: Lock Out: Selectable between PRESET and GLOBAL. Turns user lockout on and off. Note: See section 8.1 for more details. When set to PRESET, the delay values will be reset each time a new preset is selected and will Default Value: Off match the delay values stored in the original pre- set.
  • Page 28: User Lockout

    8.1 UTILITY Button – User Lockout User Lockout: To Disable User Lockout: Press and hold the UTILITY button for five The User Lockout feature is available to prevent seconds until you see the following display: others from tampering with the EQs and associat- ed parameters that have been set.
  • Page 29: Router Functionality

    Output Route 4: CH1 Program Material. Selects the type of audio information from the 11. CH2/No EQ: Bypasses Active Bose EQ for CH1 or CH2 inputs and sends it to Output CH4. CH2 Program Material. The routing information is stored Default Value: 12.
  • Page 30 Router Functionality PANARAY ® System Digital Controller Output Configuration Table Router Matrix l l u l l u l l u l l u l l u l l u l l u l l u l l u l l u l l u l l u...
  • Page 31: Optimizing Signal-To-Noise

    10.0 Optimizing Signal-to-Noise Optimizing Signal-to-Noise using so you should run the PANARAY system digital controller as close to 0dBFS as possible. ® the PANARAY System Digital Controller with a Third-Party For example: If you have a mixer with +4dBU outputs, the PANARAY controller input sensitivity Amplifier should be set to +8dBu.
  • Page 32 ' r l l a Set the PANARAY system digital controller out- 8. Select a speaker EQ preset on the PANARAY system digital controller by pressing the put range. First, press the UTILITY button.
  • Page 33: Custom Preset Mode

    11.0 Custom Preset Mode After you store a program, you will be immediate- The PANARAY ® controller’s Custom Preset feature ly transferred to the custom preset mode. The allows users to edit and store the delay, limiting and stored preset will be displayed. Note that the routing settings.
  • Page 34: Bass Array Presets

    Array Applications: 1. Press the PRESET button on the front panel MB4 2xBS280Hz – The MB4 2x Broadside Bass of the PANARAY system digital controller. Array preset provides 360 degree horizontal cov- erage with a 10 to 15dB suppression in energy 2.
  • Page 35: Bass Array Setup And Connections

    PROPERLY THE BASS ARRAY WILL NOT WORK. Note: All EQ and delay settings are already set in the PANARAY system digital controller. In order for the bass array to work, you must connect the MB4 units to the appropriate outputs on the controller and apply the proper spacing.
  • Page 36 SPACED PROPERLY THE BASS ARRAY WILL NOT WORK. Note: All EQ and delay settings are already set in the PANARAY system digital controller. In order for the bass array to work, you must connect the MB4 units to the appropriate outputs on the controller and apply the proper spacing.
  • Page 37 PROPERLY THE BASS ARRAY WILL NOT WORK. Note: All EQ and delay settings are already set in the PANARAY system digital controller. In order for the bass array to work, you must connect the MB4 units to the appropriate outputs on the controller and apply the proper spacing.
  • Page 38: Bose Speaker Eq Preset List

    13.0 Bose ® Speaker EQ Preset List The following is a list of 180 presets that are available in the PANARAY ® system digital controller. The pre- sets are separated into three separate banks: Mono, Stereo and Bass Array. Included in this list is the name of each preset as it appears on the PANARAY controller LCD as well as a description of the preset and the default settings for each of the four outputs.
  • Page 39: Mono Bank

    13.1 Bose ® Speaker EQ Preset List – Mono Bank l l u l l u l l u l l u l l u l l u l l u l l u l l u l l u...
  • Page 40 ® 13.1 Bose Speaker EQ Preset List – Mono Bank l l u l l u l l u l l u l l u l l u l l u l l u l l u l l u...
  • Page 41 Bose ® Speaker EQ Preset List – Mono Bank I I I I I I I I I I I I l l u I I I I I I I I I I I I l l u l l u...
  • Page 42 Bose ® Speaker EQ Preset List – Mono Bank I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I...
  • Page 43 Bose ® Speaker EQ Preset List – Mono Bank l l a l l u l l u l l u l l u l l u l l u l l u l l u l l u...
  • Page 44 Bose ® Speaker EQ Preset List – Mono Bank l l u l l u l l u l l u l l u l l u l l u l l u l l u l l u l l u...
  • Page 45 Bose ® Speaker EQ Preset List – Mono Bank l l u l l u l l u l l u l l u l l u l l u l l u l l u l l u l l u...
  • Page 46: Stereo Bank

    13.2 Bose ® Speaker EQ Preset List – Stereo Bank l l u l l u l l u l l u l l u l l u l l u l l u l l u l l u...
  • Page 47 Bose ® Speaker EQ Preset List – Stereo Bank l l u l l u l l u l l u l l u l l u l l u l l u l l u l l u l l u...
  • Page 48 13.2 Bose ® Speaker EQ Preset List – Stereo Bank I I I I I I I I I I I I l l u I I I I I I I I I I I I l l u...
  • Page 49 Bose ® Speaker EQ Preset List – Stereo Bank I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I l l u...
  • Page 50 Bose ® Speaker EQ Preset List – Stereo Bank ® ® ® l l a ® l l u l l u l l u l l u l l u l l u l l u l l u...
  • Page 51 Bose ® Speaker EQ Preset List – Stereo Bank l l u l l u l l u l l u l l u l l u l l u l l u l l u l l u l l u...
  • Page 52 ® Bose Speaker EQ Preset List – Stereo Bank...
  • Page 53: Bass Array Bank

    ® Bose Speaker EQ Preset List – Bass Array Bank...
  • Page 54: Technical Information

    14.0 Technical Information Sample Rate Output ranges 44.1kHz Balanced 20/14/8/2dBu Analog Inputs: D to A conversion 24 bit, 128x oversampling bitstream Connectors (2) XLR balanced D to A Delay 0.63ms @ 44.1kHz Impedance balanced 21kΩ Dynamic range 100dB typ 20Hz - 20kHz Input level Maximum: +18dBu Minimum: 0dBu...
  • Page 55: Appendix: Panaray System Digital Controller Quick-Reference Guide

    INPUT METER TPM STANDBY PRESET LIMITER Stereo Bank 40 24 18 12 6 802 Full Range UTILITY DELAY PANARAY SYSTEM DIGITAL CONTROLLER DELAY Button PRESET Button Delay 1 On/Off LIMITER Button 180 Speaker EQ Delay 2 On/Off presets sorted Delay 3 On/Off...
  • Page 56 ©2002 Bose Corporation, The Mountain Framingham, MA 01701-9168 USA www.bose.com 262350 AM Rev.00 JN20793...
