Summary of Contents for Avaya 9101

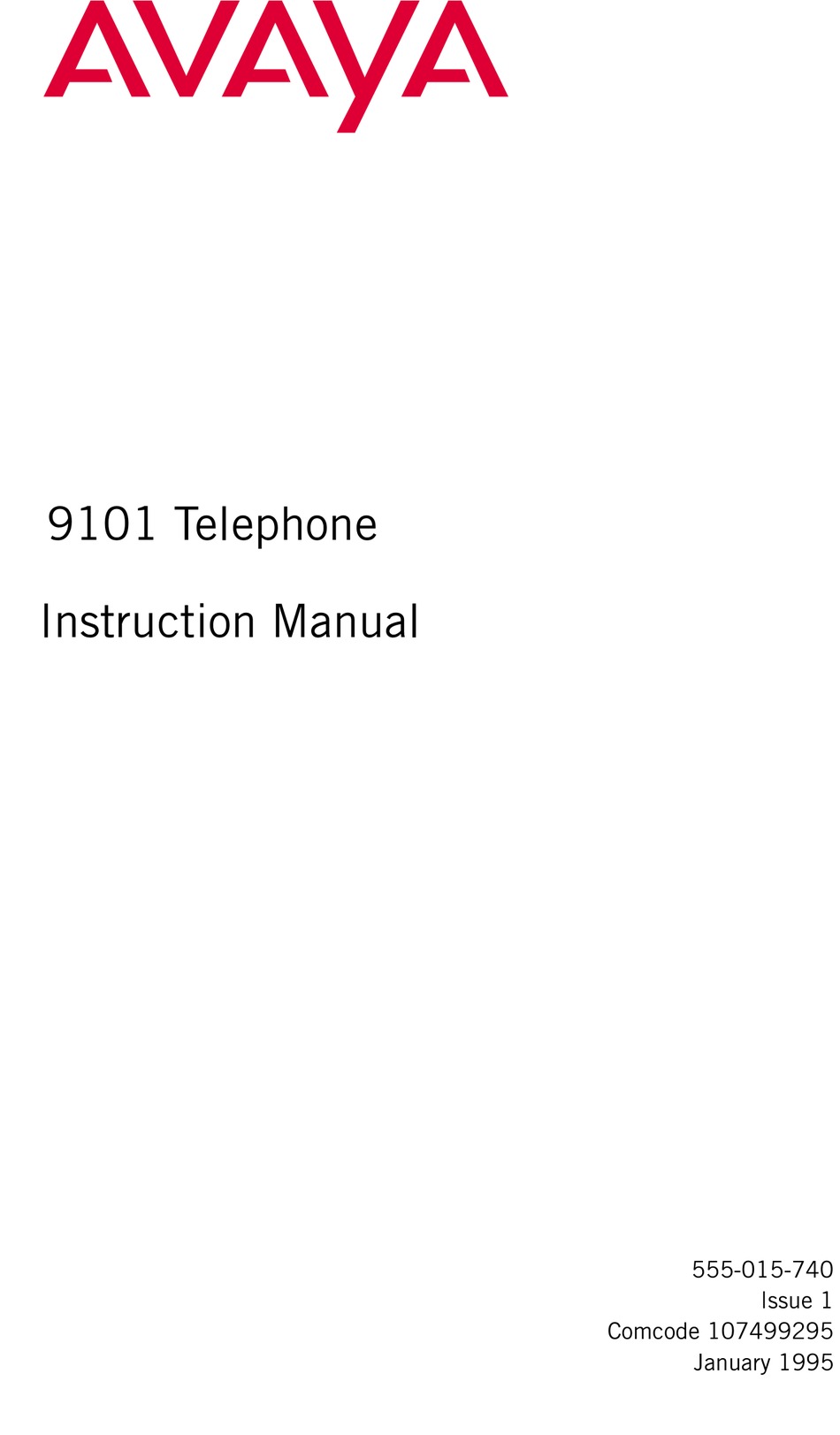

- Page 1 ,VVXH &RPFRGH -DQXDU\ ...
- Page 2 Avaya Inc. Any reference within the text to Lucent Technologies Inc. or Lucent should be interpreted as references to Avaya Inc. The exception is cross references to books published prior to April 1, 2001, which may retain their original Lucent titles.
- Page 3 Copyright© 1996 Lucent Technologies All Rights Reserved Notice While reasonable efforts were made to ensure that the information in this document was complete and accurate at the time of printing. Lucent Technologies can assume no responsibility for any errors. Changes or corrections to the information contained in this document may be incorporated into future issues.
-
Page 4: Table Of Contents
Contents Your 9101 Telephone ....... 1 Installation ........5 Contents of the 9101 Package. -
Page 5: Fcc Regulations
To the extent possible, relocate the television, radio, or other receiver with respect to the telephone equipment. If your telephone product runs on AC power, plug your product into an AC outlet that’s not on the same circuit as one used by your radio or television. - Page 6 In most, but not all areas, the sum of all the RENs should be five or less. You may want to contact your local telephone company.
- Page 7 IMPORTANT SAFETY WARNINGS Only the most careful attention has been devoted to quality standards in the manufacture of your new telephone. Safety is a major factor in the design of every set. But, safety is YOUR responsibility, too. Please read carefully the helpful tips listed below and on the next page.
-
Page 8: Save These Instructions
Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. (See General Care and Maintenance later in this manual.) Unplug the telephone from the modular wall jack. Be sure to refer servicing to qualified service personnel when these conditions exist: —... -
Page 9: Your 9101 Telephone
Your 9101 Telephone The Lucent Technologies 9101 telephone can be used at your place of business with any of the following communications systems: System 25, System 75, System 85, DEFINITY® Generic 1 or 2, MERLIN®, or Dimension® Communications Systems. The Lucent... -
Page 10: Top View
Figure 1: Lucent Technologies 9101 Telephone, Top and Bottom Views PQRS TOP VIEW RINGER PITCH BOTTOM VIEW WXYZ 9101 FLASH... - Page 11 1) LINE jack (on top side of telephone) This jack, located on the top/rear of the set, is used to connect the telephone and the modular wall jack. Use the 7-foot cord that comes with the set. 2) Ringer indicator/Message light This indicator flashes when the telephone rings with an incoming call.
- Page 12 The BOTTOM VIEW includes the following: 7) Tone/Pulse switch This switch us used to select the dialing mode, either TONE (DTMF) or PULSE (Decadic). The correct mode depends on the telephone network. 8) Ringer volume switch The settings on this switch affects the ringer volume during an incoming call.
-
Page 13: Installation
Installation Use the following instructions to install your Lucent Technologies 9101 telephone. Contents of the 9101 Package The following items come in the box with the 9101 telephone: A 7-foot line cord A 9-foot handset cord Desk/Table Installation For desk or table installation, use the 7-foot straight line cord that came with your telephone to connect the telephone to a modular jack. -
Page 14: Call-Handling
To place a call Lift the handset. Dial the desired number. Note: If your telephone line is set to the Pulse position for normal dialing, but you need to enter touch-tones for telephone answering/ messaging systems or such services as electronic banking-by-phone, press during the dialing sequence. -
Page 15: Transfer
Press the FLASH button. All parties are now connected. Transfer To send a present call to another extension or to an outside number Press the FLASH button. The present call is put on hold. Dial the number that the call is to be transferred to. Remain on the line and announce the call;... -
Page 16: General Care And Maintenance
If the substitute telephone operates satisfactorily, the problem is in the faulty telephone. Test the faulty telephone on a good line. If the problem still occurs, the fault is in the telephone. If necessary, consult your Lucent Technologies distributor for further...
