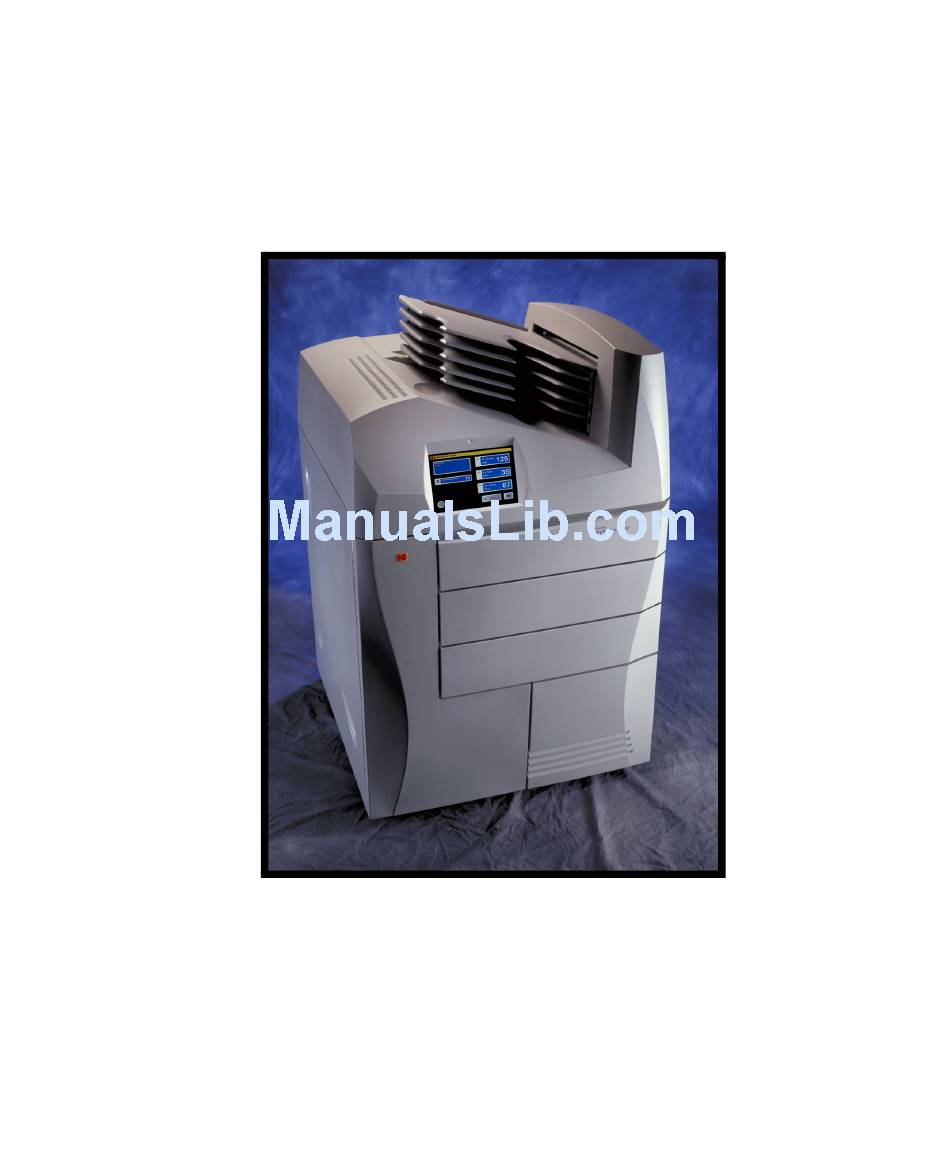

- Page 1 FCC ID: PA48E1587 User Manual Part 1 Kodak DryView 8900 Laser Imager User Guide...
- Page 2 Eastman Kodak Company 343 State Street Rochester, NY 14653 © Eastman Kodak Company, 2002 Kodak and DryView are trademarks. 5E6155 Catalog number 1275593 Rev. A...
- Page 3 • Performance or non-performance of any network utilized by the Customer. • Performance or non-performance of any third party equipment or software. • Impact of any Kodak product upon a network or third party equipment or software. June 12, 2003 5E6155...
- Page 4 Warranty and Limitation of Liability 5E6155 June 12, 2003...
-
Page 5: Table Of Contents
CE Marking............................. 1-13 User Guide Conventions .......................... 1-14 Please Note ............................. 1-14 2 Overview Kodak DryView 8900 Laser Imager........................2-1 System Components ..........................2-2 How the Laser Imager Works........................2-3 3 Operation and Maintenance System Power Up and Power Down ......................... 3-1 Power Up.............................. - Page 6 Table of Contents Job Management Screen..........................3-10 View List ............................3-11 Image Sources Screen..........................3-12 Image Source Editor.........................3-13 Operation ..............................3-13 Opening the Front Door ..........................3-13 Opening the Film Drawers........................3-13 Film Drawers and Front Door Manual Override Latches................3-14 Opening the Hood...........................3-15 Loading Film Cartridges ..........................3-16 Recycling Empty Film Cartridges.......................3-17 Requesting a Calibration Test Print......................3-18 Requesting a Density Test........................3-18...
- Page 7 Film Pickup Problems in Area 1U, 1M, or 1L ..................4-20 Clearing Film Jams from Area 2 ......................4-21 Clearing Film Jams from Area 3 ......................4-22 Clearing Film Jams from Area 4 ......................4-23 Clearing Film Jams from Area 5 ......................4-25 Clearing Film Jams from Area 6 ......................
- Page 8 5E6155 June 12, 2003...
-
Page 9: Safety And Related Information
Safety and Related Information Safety, Warnings, and Cautions Please read and understand all instructions before using this product. RISK OF ELECTRIC SHOCK This equipment is operated with hazardous voltage which can shock, burn or cause death. • Remove wall plug before servicing equipment. Never pull on cord to remove from outlet. - Page 10 CAUTION This equipment is intended to connect to other medical devices. Only a Kodak Authorized Service Provider may perform installation and service maintenance. This device is NOT to be located within the patient environment.
- Page 11 Contact your state or local government to determine if additional disposal requirements apply. CAUTION The UPS battery must be replaced by a Kodak Authorized Service Provider. The UPS battery contains lead and poses a June 12, 2003 5E6155...
- Page 12 CAUTION Lithium batteries must be replaced by a Kodak Authorized Service Provider. The DryView 8900 uses a lithium battery to power the clock and calendar circuitry. There is a danger of explosion if the battery is replaced incorrectly. The battery will be replaced only with the same or equivalent type recommended by the Motorola Inc.
-
Page 13: Safety Labels
Safety and Related Information Safety Labels Safety labels are attached to the laser imager in compliance with international standards. WARNING Do not bypass system interlocks. System will run with laser energized! Exposure to laser light may result in permanent eye damage Pinch Points and Laser Radiation Warning Labels Pinch Points. -
Page 14: Electrical
High Voltage Warning Label This label warns operators that high voltage is present under panels or enclosures where labels are attached. Only Kodak Authorized Service Providers should attempt access. 5E6155 June 12, 2003... - Page 15 Removal of the cover should only be done by service personnel authorized by Kodak Health Imaging. Please Do Not perform operations or adjustments which are not specified in the user manual.
- Page 16 Safety and Related Information Hazardous Voltage. This label warns operators that high voltage is present under panels where the label are attached. Only Kodak Authorized Service Providers should attempt access. Static Sensitive Equipment. This label identifies static-sensitive components. Connect a personal grounding strap to appropriate ground before servicing this laser imager.
- Page 17 Safety and Related Information CAUTION: ATTENTION : NEW LANGUAGE: Do not touch, Hot surface! Surface Chaude, Ne pas toucher! Do not touch, Hot surface! ADVERTENCIA: ACHTUNG: NEW LANGUAGE: No tocar, Superficia Caliente! Nicht anfassen, Heisse Oberflache! Do not touch, Hot surface! OPGEPAST: ATTENZIONE: NEW LANGUAGE:...
-
Page 18: Safety And Health Compliance
Safety and Related Information Safety and Health Compliance This equipment has been tested for and complies with the following Safety and Emissions Standards. Certificates of compliance and Declarations of Conformity have been issued as shown below. Safety United States 21 CFR 1040.10 Class I: FDA CDRH Code of Federal Regulations Title 21 Food and Drugs, Volume 8, Chapter I Subchapter J Part 1040: Performance Standards for Light-Emitting Products, Section 10 - Laser Products. -
Page 19: Emc
Safety and Related Information EN60601-1-1: Medical electrical equipment - Part 1: General requirements for safety - Section 1: Collateral standard: Safety requirements for medical electrical systems. EN60825-1: Safety of laser products - Part 1: Equipment classification, requirements and user's guide. Rest of World IEC 60950: Safety of information technology equipment. - Page 20 Safety and Related Information This Class A digital apparatus meets all requirements of the Canadian Interference – Causing Equipment Regulations. Europe EN55011 (CISPR 11) Class A Group 1: Limits and Methods of Radio Interference Characteristics of ISM Equipment. European Telecommunication Standard (ETS) EN 300 330 : Electromagnetic Compatibility and Radio Spectrum Matters (ERM);...
-
Page 21: Eu Directives
Member States Relating to Electromagnetic Compatibility. CE Marking Documents concerning the conformance of this product to Council Directive 93/42/EEC of 14 June 1993 concerning Medical Devices can be obtained from the Eastman Kodak Health Imaging Systems European Representative at: Kodak GmbH Quality Services... -
Page 22: User Guide Conventions
Eastman Kodak Company reserves the right to change this information without notice and makes no warranty, express or implied, with respect to this information. Kodak shall not be liable for any loss or damage, including consequential or special damages, resulting from the... - Page 23 Safety and Related Information negligence or other fault. June 12, 2003 5E6155 1-15...
- Page 24 Safety and Related Information 1-16 5E6155 June 12, 2003...
-
Page 25: Film Sizes
Overview Kodak DryView 8900 Laser Imager The Kodak DryView 8900 Laser Imager is a continuous-tone laser imager with an internal photothermographic film processor. Heat, rather than photo chemicals, is used to develop the film. The laser imager receives the digital image data through a DICOM medical imaging protocol.
