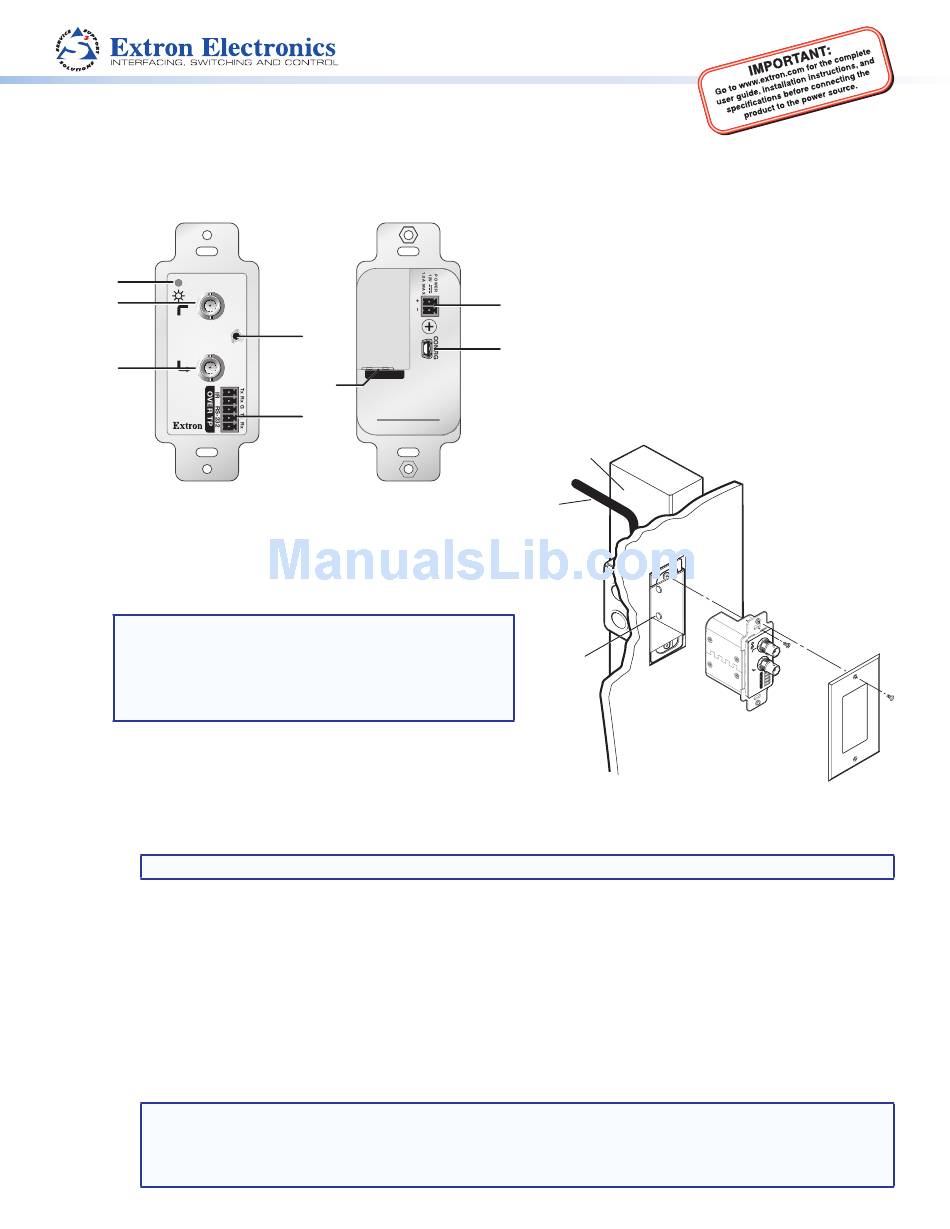

DTP T 3G-SDI D Series • Setup Guide
This setup guide provides instructions for an experienced installer to set up and operate the Extron DTP T 3G-SDI D series of
SDI extenders. The DTP T 3G-SDI 230 D and DTP T 3G-SDI 330 D products can transmit video, control, and audio (if applicable)
signals up to 230 feet (70 meters) and 330 feet (100 meters), respectively.
H
3G/SDI IN
A
L
O
O
P
AUDIO IN
T
H
R
U
B

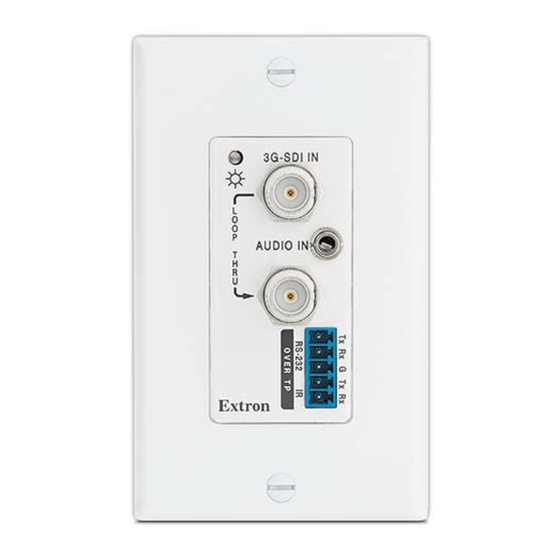

DTP T 3G-SDI 230/330 D
Front Panel
Installation
Step 1 — Prepare the Mounting Surface
NOTE:
Use a UL-listed junction box with a depth of at least
3.0 inches (7.6 cm). Alternatively, the included mud ring
(MR 100) can be used.
For more information, see the full product user guide at
www.extron.com. The installation must comply with the
National Electrical Code and all applicable local codes.
Place the junction box against the installation surface and
a.
mark the opening guidelines.
Cut out the material from the marked area.
b.
Secure the junction box with 10-penny nails or #8 or #10 screws, leaving the front edge flush with the surface.
c.
Run all required cables (see steps 4, 5, and 6) and secure them with cable clamps.
d.
TIP: To ensure a proper fit the unit in the junction box, do not install boots on TP cables and RJ-45 connectors.
Step 2 — Disconnect Power
Disconnect all equipment from power sources.
Step 3 — Connect Rear Panel Inputs to the Transmitter
A
SDI input connector — Connect a coaxial cable to the output port of the SDI or HD-SDI video source.
B
SDI Loop Thru connector — Connect a display to this BNC loop-through connector for local monitoring.
C
Audio input connector — Connect an unbalanced stereo audio source to this 3.5 mm mini stereo jack.
NOTES:
•
The DTP T 3G-SDI D series of products do not embed this audio onto the SDI signal. Audio is transported
separately over the DTP connection.
•
AES/EBU digital audio is passed through with the supported SDI format.
C
OUT
F
D
DTP T 3G-SDI 330 D
DTP T 3G-SDI 230/330 D
Rear Panel
A
SDI Input connector
B
SDI Loop Thru connector
C
Audio Input connector
G
D
RS-232 and IR Over TP connector
E
USB Config port
E
F
TP Out connector
G
Power input connector
H
Power LED
Wall Stud
Signal
Output
Cable
Screws
or Nails
(page 2)
(page 2)
(page 2)
(page 2)
(page 3)
IN
D I
- S
3 G
L
IN
O
D IO
O
A U
P
T
H
R
U
E
Extron
DTP T 3G-SDI 330 D
Decorator-Style Faceplate
