ALL VEHICLES
4

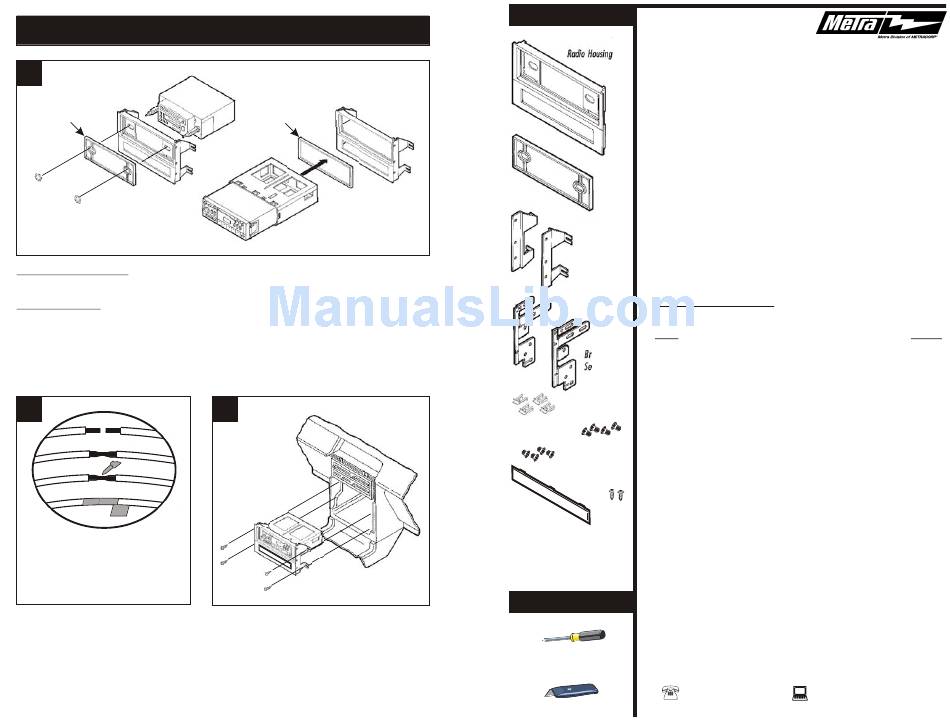

Fig. A
*OPTIONAL
2-SHAFT HEAD UNITS: Attach the Spacer* to the Radio Housing. Slide the aftermarket
head unit into the kit and secure with shaft nuts. (see Fig. A)
DIN HEAD UNITS: Cut and remove the shaft supports from the Spacer* and Radio Housing.
Slide the DIN cage into the kit and secure by bending the metal locking tabs down. Slide the
aftermarket head unit into the cage until secure. (see Fig. B)
(If an equalizer will be included, slide the unit into the back of the Radio Housing and secure.
If an equalizer will NOT be included, snap the Equalizer Dummy Plate into the opening).
5
A
B
C
D
A) Strip wire ends back ½"
B) Twist ends together
C) Solder
D) Tape
Locate the factory wiring harness in the
dash. Metra recommends using the
proper mating adaptor and making
connections as shown. (Isolate and
individually tape off the ends of any
unused wires to prevent electrical short
circuit).
7
*OPTIONAL
Fig. B
6
Re-connect the battery terminal and test the unit
for proper operation.
Mount the radio/kit
assembly to the sub-dash with those screws
previously removed in step #1.
rev. 271202
KIT COMPONENTS
Radio Housing
99-3400
AW-407GO
DW-3400
INSTALLATION
Spacer
INSTRUCTIONS
Bracket
Set #1
APPLICATIONS
CAR
CHEVROLET
Bracket
Spectrum 1985-89.........................................................................1
Set #2
GEO
Prizm 1989-92..............................................................................2
Spectrum 1989..............................................................................1
(4) Speed Clips
Storm 1990-93 (NOT keeping the factory pocket)...........................3
Storm 1990-93 (keeping the factory pocket).................................. 4
(6) #6 Phillips Screws
HONDA
(4) #8 Phillips Screws
Passport 1994-95.......................................................................... 5
ISUZU
(2) Phillips
Amigo 1991-94............................................................................. 5
Screws
I-Mark 1985-91............................................................................ 6
Equalizer
Impulse 1990-93 (NOT keeping the factory pocket)........................ 3
Dummy Plate
Impulse 1990-93 (keeping the factory pocket)............................... 4
Pickup 1988-95.............................................................................5
Rodeo 1992-95............................................................................. 5
Stylus 1990-91 (NOT keeping the factory pocket)...........................3
Stylus 1990-91 (keeping the factory pocket).................................. 4
Trooper 1988-91........................................................................... 5
TOOLS REQUIRED
Phillips screwdriver
1-800-221-0932
Cutting tool
© COPYRIGHT 2001 METRA ELECTRONICS CORPORATION
PAGE
www.metraonline.com
