Metra Electronics 99-3106 Installation Instructions Manual

Car radio kit

Advertisement

Quick Links

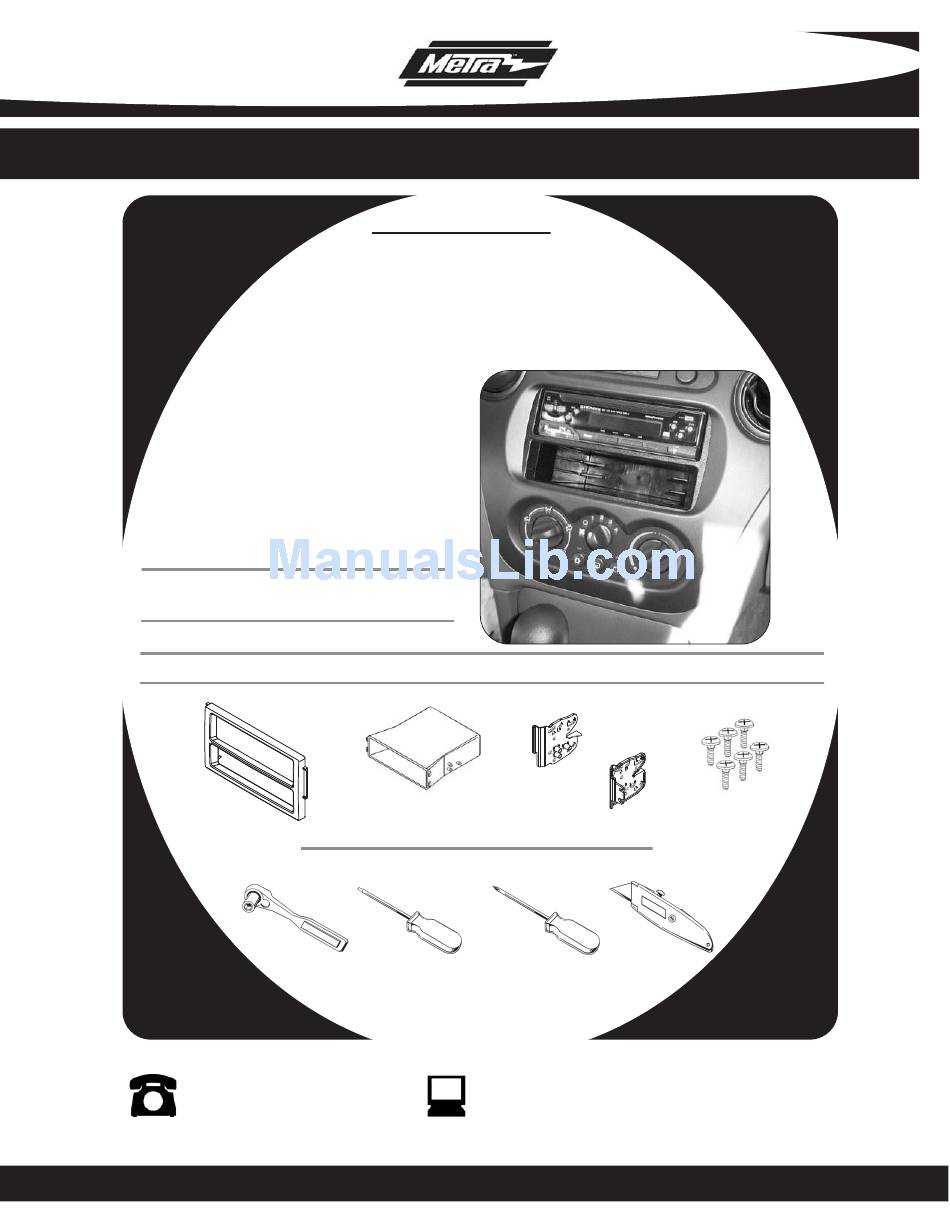

INSTALLATION INSTRUCTIONS FOR PART 99-3106
2000-02 SL / 2002-05 Vue
99-3106
KIT FEATURES
• Double DIN Head Unit Provisions with Pocket
• ISO DIN Head Unit Provisions with Pocket
KIT COMPONENTS
A) Radio Housing • B) Pocket • C) Radio Housing Brackets • D) (6) Phillips Screws
