Figure 9-12
*) Supply of feedback circuit from T3 for applications without cross-circuit detection
Q2: Motor contactor
Note
Protective circuit required to suppress surge voltages!
SIMOCODE pro - Fail-Safe Digital Modules
Manual, 11/2017, NEB631679702000/RS-AA/002

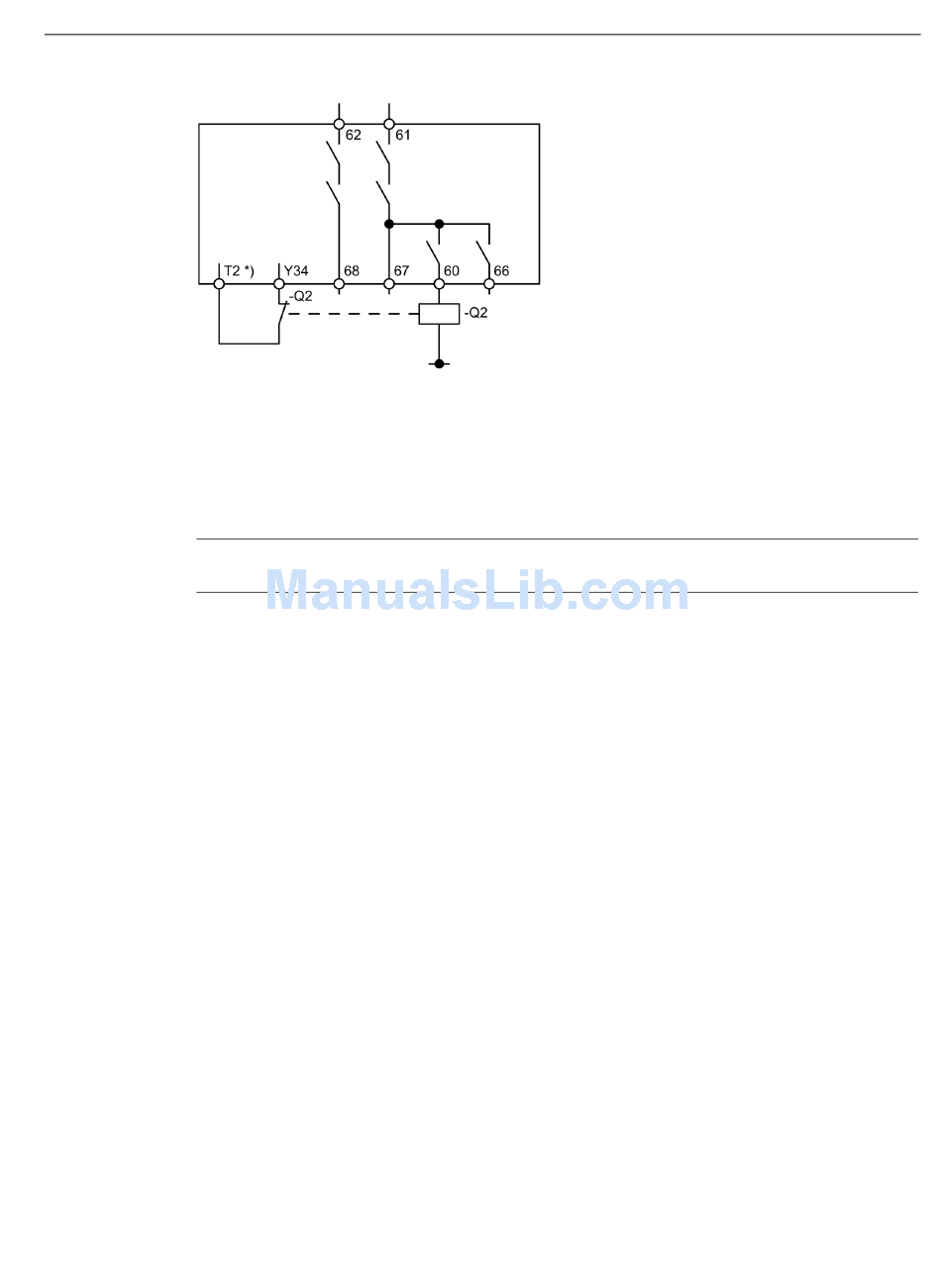

Circuit diagram of an actuator circuit with feedback circuit, control function = direct
starter, without incoming supply contactor, maximum safety integrity level
SIL 1 / performance level PL c
Typical circuit diagrams
9.3 DM-F LOCAL, actuator circuits
73
