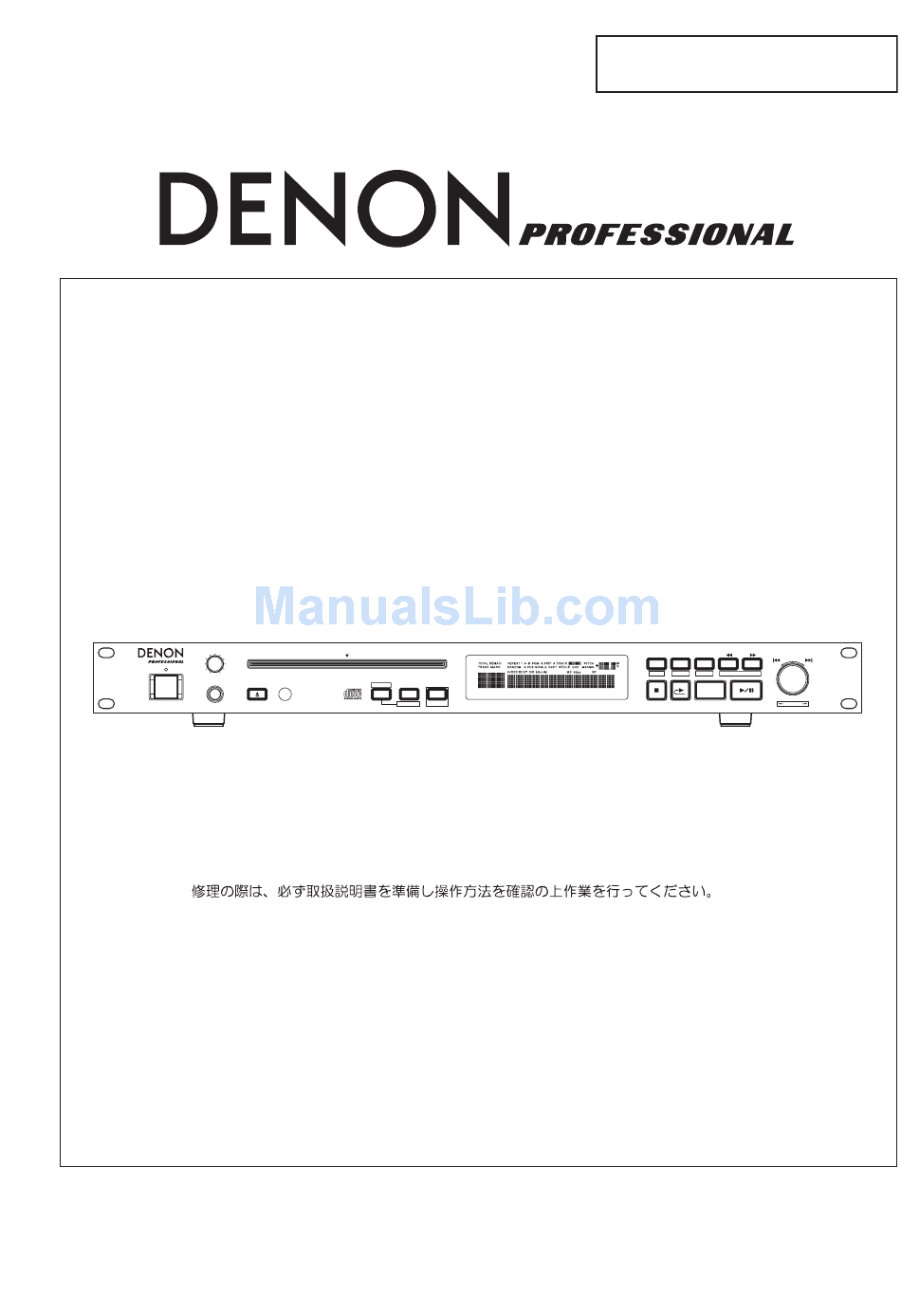

SERVICE MANUAL
MODEL
NETWORKED CD PLAYER
NETWORK CD PLAYER
DN-C640
0
10
LEVEL
EJECT
POWER ON/OFF
PHONES
Please use this service manual with referring to the user guide ( D.F.U. ) without fail.
KAYABACHO TOWER 14F, 1-21-2 SHINKAWA, CHUO-KU, TOKYO 104-0033 JAPAN
DN-C640
NETWORK
MENU/STORE
UTILITY
SHIFT
D
M Holdings Inc.
&
PROFESSIONAL BUSINESS COMPANY
Telephone : 03 (6731) 5588
For U.S.A., Canada, Europe &
Japan model
DISPLAY
A-B
PITCH
LOCK
END MON
TEXT
- INDEX/DIR +
CUE
CANCEL
SKIP BACK
PLAY/PAUSE
Part no. 00M43BS855010
PUSH
ENTER
PITCH
First Issue 2007.2

Advertisement

Table of Contents
loading

Related Manuals for Denon DN-C640

Summary of Contents for Denon DN-C640

  • Page 1 For U.S.A., Canada, Europe & Japan model SERVICE MANUAL DN-C640 MODEL NETWORKED CD PLAYER NETWORK CD PLAYER DN-C640 DISPLAY PITCH LOCK END MON TEXT - INDEX/DIR + PUSH LEVEL ENTER EJECT NETWORK MENU/STORE POWER ON/OFF UTILITY SHIFT CANCEL SKIP BACK...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SECTION PAGE 1. TECHNICAL SPECIFICATIONS ..................... 1 2. SERVICE MODE ..........................2 3. WIRING DIAGRAM ........................6 4. BLOCK DIAGRAM .......................... 7 5. SCHEMATIC DIAGRAM ......................... 9 6. PARTS LOCATION ........................25 7. EXPLODED VIEW AND PARTS LIST ..................37 8.

  • Page 3: Technical Specifications

    1. TECHNICAL SPECIFICATIONS ■ GENERAL Disc type : Standard compact discs (12 cm and 8 cm) CD-R, CD-RW, DVD-R, DVD-RW, DVD+R, DVD+RW ■ AUDIO SECTION Audio channel : 2 channel stereo Frequency response : 10 to 20,000Hz ±1.0 dB Dynamic range : 98 dB Signal-to-noise Ratio : 104 dB (1kHz, 0 dB playback, A fi...

  • Page 4: Service Mode

    2. SERVICE モード 2. SERVICE MODE 2.1 マイコンファームウェアのバージョン確認 2.1 Confi rming Microcomputer Firmware Version （フロントパネルを使って） [ Using the front panel ] 1. STOP モードでかつ、 SHIFT モードのときに、 MENU/ 1. While in stop and shift mode, press the MENU/STORE/ STORE/UTILITY ボタンを押します。 UTILITY button. 2.
  • Page 5 2.2 マイコンファームウェアの Update 2.2 Microcomputer Firmware Update Version Up ファイルが記録されたディスクを使用して、 マイ Use the disc that holds the Version Up fi le to rewrite the コンのファームを書き換えます。 microcomputer fi rmware. 1. Version Up フ ァ イ ル (DNC640up.bin) が 記 録 さ れ た 1.
  • Page 6 2.3 Confi rming DVD-ROM drive Firmware Version 2.3 DVD-ROMドライブのファームウェアのバージョン確認 （フロントパネルを使って） [ Using the front panel ] 1. STOP モードでかつ、 SHIFT モードのときに、 MENU/ 1. While in stop and shift mode, press the MENU/STORE/ STORE/UTILITY ボタンを押します。 UTILITY button. 2. Drive version がディスプレイに表示されるまでジョグ 2.
  • Page 7 2.4 DVD-ROM ドライブのファームウェアの Update 2.4 DVD-ROM Drive Firmware Update Version Up フ ァ イ ル が 記 録 さ れ た デ ィ ス ク （CD-ROM Use the disc (CD-ROM MODE1, ISO9660 LEVEL1) that MODE1, ISO9660 LEVEL1） を使用して、 DVD-ROM ドライ holds the Version Up fi...

  • Page 8: Wiring Diagram

    3. WIRING DIAGRAM...

  • Page 9: Block Diagram

    4. BLOCK DIAGRAM [ANALOG OUT] Q512 Q510 Q510 Q515 J508 Q512 R571 MUTE Q511 Q511 XLR OUT [DIGITAL OUT] Q513 R572 Q516 MUTE J509 Q513 Q503 J505 Q012 Q504 AES/EBU DRIVER Q031 Q032 J507 CODEC SRC/DIR/DIT Q505, Q506 CS4271 RCA OUT MUTE CS8420 Q012...

  • Page 10: Schematic Diagram

    5. SCHEMATIC DIAGRAM C023 R060 2200p 5.1k +3.3VD C033 470p A-GND P101 00MWI43BS1010 +14V C125 C126 C127 C034 0.1u 0.1u 0.1u 0.1u +14V Q029 Q030 Q028 Q012 R270 C128 C129 NJM2068M Q031 R046 R064 TPF148 TPF16 0.1u CS4271 4.3k 2.2k TPF14 A-GND C036...
  • Page 11 P101 00MWI43BS1010 DA[0-11] Q020 AD[2] EDS2516ADTA-75 Q018 (16MX16bit_SDRAM) EP9312-CBZ-E1 AD[3] DA[0] R133 AD[0] AD[0] R182 DA[0] R099 U10 DA0 DA[1] R100 Y9 DA1 R134 AD[1] AD[1] 24 A1 R183 DA[1] AD[4] DA[2] R101 V9 DA2 R135 AD[2] AD[2] R184 DA[2] DQ2 7 DA[3] R102...
  • Page 12 +3.3VD TPF19 TPF21 P101 00MWI43BS1010 TPF18 TPF20 +3.3VC R084 R085 R086 J003 4P PH CON.BASE(TAPE) +3.3VC KEY_ROW[0-3] ENCODER_B ENCORDER_B KEY_COL[0-6] R479 L001 BLM18BD601SN1D ENCODER_A ENCORDER_A R480 L002 BLM18BD601SN1D JOG_SW JOG_SW R481 L003 BLM18BD601SN1D R229 RR07 Q018 D-GND 4.7k EP9312-CBZ-E1 R482 L004 BLM18BD601SN1D TO W007...
  • Page 13 +3.3VD TP28 TP30 ID_INTRQ ID_INTRQ TP27 TP29 TP31 P101 00MWI43BS1010 R434 R435 +3.3VD Q026 TPF166 TPF167 SN74LV125APW C153 ATA_RST- ATA_RST- TPF165 R490 TPF161 0.1u Q026 RR01 Q026 R494 ID_DREQ RR02 ID_DREQ OPEN J008 SN74LV125APW OPEN TP57 OPEN R453 IMSA-9632S-45Y913 VER.UP_EN R491 D-GND ID_DASP...
  • Page 14 P101 00MWI43BS1010 +3.3VD +3.3VD Q040 Q041 Q005 Q005 +3.3VD SN74LV125APW C155 C156 0.1u 0.1u RR09 J010 TP47 TP32 D-GND D-GND D-GND L013 9610SC D-GND OPEN Q005 S-STB SN74LV125APW Q034 Q040 NJU3716AM-TE1 SN7438NS(R) DA[0] 13 DATA R484 14 CLK PLAY_TALLY OPEN P2 20 STB# P3 21...
  • Page 15 L504 P201 00MWG43BS2012 I/O A UNIT +3VU R989 C525 R521 L-5K7-H5 R524 TPF535 0.1u SPDIF OUT J504 YKC21-3554N TPF536 D500 OPEN R509 TPF564 R987 R519 C524 1000p TPF565 R501 C512 購買登録待ち Q500 C513 D502 D_GND 4.7u/35 J505 UPD4721GS-GJG 0.01u DAN202K 20 C4+ C508 C509...
  • Page 16 +3VU Q703 R727 TPF752 NJM2387DL2 0 1/10W VADJ 4 R729 CNT 2 D719 OPEN C721 R728 0.1u R730 TPF753 R732 C720 100k 10u/50 R731 R797 C724 L704 Q704 680u/35V TPF754 56uH BD9781HFP TO W005 RJH-35V681MI6#-S1 CDRH127/LD 1 VIN ∼J001 D_GND C725 R736 R733...
  • Page 17 P207 00MWG43BS2072 P204 00MWG43BS2042 P205 00MWG43BS2052 TO W007 +3.3VD JOG UNIT PANEL UNIT IR UNIT ∼J003(MAIN UNIT) S970 TO W015 EC11B15242AE J970 ∼J011(MAIN UNIT) +3.3VU +3.3VD +3.3VU 4P CON.BASE(L) TPF970 J850 ENCORDER_B IMSA-9610S-21A TPF850 R970 TPF971 ENCORDER_A TPF972 TPF851 D_GND D_GND +3.3VU +3.3VD...

  • Page 18: Parts Location

    6. PARTS LOCATION P101 A C002 G4 C135 E8 D021 C9 Q404 D2 R162 E4 R252 A3 R383 E5 C004 E3 C136 E8 D024 A3 Q406 G5 R163 E4 R253 A3 R385 D5 C006 E2 C140 D8 FG-1 A1 R007 F3 R164 E4 R254 A3 R386 D5...
  • Page 19 P101 B C001 G3 C114 C4 L016 G5 R086 B8 R181 G4 R331 E7 R449 E7 C003 F3 C115 D4 Q001 G4 R087 G5 R214 F4 R332 E7 R450 G3 C005 F2 C116 D4 Q002 E3 R089 D4 R217 C5 R333 F7 R453 G2 C008 F2...
  • Page 20 P201 A BD04 A4 C572 C10 D509 D5 R510 B5 R584 C10 BD05 A3 C573 B8 J500 E2 R511 B2 R585 C8 C500 D1 C574 B9 J501 B2 R512 B3 R586 C9 C501 D1 C575 C9 J502 B5 R513 B3 R587 C8 C502 D1 C576 C10...
  • Page 21 P203 A BD02 E9 C743 C11 L705 B9 R721 F8 R768 E11 BD03 C9 C744 D10 L706 B11 R722 D8 R769 E11 BD06 G6 C745 D10 L707 D9 R723 D9 R770 E11 C700 B3 C746 D11 L708 D10 R724 B7 R771 E11 C701 E3 C747 B8...
  • Page 22 P202 A P202 B C650 A3 D659 B5 R660 B4 C651 A3 D660 B5 R661 B4 C652 A3 D661 B5 R662 B3 C653 A3 D662 B5 R663 B3 C654 B3 J650 A5 R664 B4 C655 B3 J651 C4 R665 A3 C658 C1 J652 C2 R666 B3...
  • Page 23 P205 A P207 A C902 A3 R903 A5 C903 A2 R904 A5 J970 A1 C904 A2 R905 A6 R970 A1 C905 A4 R906 A5 R971 A1 C907 A4 R907 A8 S970 A2 D900 A6 R908 A7 D901 A5 R909 A3 D902 A8 R910 A3 D903 A7...

  • Page 24: Exploded View And Parts List

    7. EXPLODED VIEW AND PARTS LIST...
  • Page 25 POS. VERS. PART NO. PART NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (D&M) 004B 00M238H355020 00M238H355020 LENS LENS FOR POWER SW 008B 00M43BS355012 00M43BS355012 LENS IR LENS 010B 00M43BS105023 00M43BS105023 CHASSIS FRONT INNER MOLD 012B 00M43BS303010 00M43BS303010 MASK MASK FOR CD 014B 00M43BS160030 00M43BS160030 BRACKET FRONT BRACKET...

  • Page 26: Microprocessor And Ic Data

    8. MICROPROCESSOR AND IC DATA 8.1 Microprocessor Q018 : EP9312 - CBZ-E1 DN-C640 PORT Connection Function I/O DET Ext CSN[7] CSN7 – – No Use DA[28] DA28 – – – Memory Data Bus 28 ROM/RAM AD[18] AD18 – – –...
  • Page 27 Q018 : EP9312 - CBZ-E1 DN-C640 PORT Connection Function I/O DET Ext DA[25] DA25 − − − Memory Data Bus 25 ROM/RAM DD[11] DD11 − − − IDE Data Bus 11 SDCLKEN SDCLKEN − − − − SDRAM SDCLKEN SDRAM...
  • Page 28 Q018 : EP9312 - CBZ-E1 DN-C640 PORT Connection Function I/O DET Ext G20 EGPIO[11] USB_DACK − − USB_DACK ISP1582 DQMN[3] DQM3- − − − − SDRAM DQM3 SDRAM CASN CAS- − − − − SDRAM CAS SDRAM RASN RAS- −...
  • Page 29 Q018 : EP9312 - CBZ-E1 DN-C640 PORT Connection Function I/O DET Ext PRSTN CPU_RST- RESET Input RESET IC AD[7] − − − − Memory Address Bus 7 ROM/RAM DA[14] DA14 − − − Memory Data Bus 14 ROM/RAM AD[6] −...
  • Page 30 Q018 : EP9312 - CBZ-E1 DN-C640 PORT Connection Function I/O DET Ext BLANK BLANK − − − No Use P[13] P[13] − − − No Use SPCLK SPCLK − − − 8420_OMCK 8420 V_CSYNC V_CSYNC − − − No Use...
  • Page 31 Q018 : EP9312 - CBZ-E1 DN-C640 PORT Connection Function I/O DET Ext DA[7] − − − Memory Data Bus 7 ROM/RAM DA[5] − − − Memory Data Bus 5 ROM/RAM AD[11] AD11 − − − − Memory Address Bus 11...
  • Page 32 Q018 : EP9312 - CBZ-E1...
  • Page 33 Q018 : EP9312 - CBZ-E1 UART2 w/ IrDA UART1 w/ HDLC System Ctrl - PLLs (2) UART3 w/ HDLC 18-bit Raster LCD Touch Screen ADC MaverickCrunch SDRAM Coprocessor 8x8 Key Scan ARM920T SRAM/ FLASH/ROM I-Cache D-Cache S (IIS) 12 Channel DMA 16KB 16KB Engine...
  • Page 34 8.2 IC DATA Q001, Q002, Q003, Q004, Q006, Q011, Q405, Q703 : NJM2387DL2 PIN FUNCTION 2.ON/OFF CONTROL 5.GND 1 2 3 4 5 NJM2387DL2 EQUIVALENT CIRCUIT Bandgap Reference ON/OFF Control control Over Voltage Thermal Over Current Protection Protection Protection NJM2387DL2 Q005, Q026, Q028, Q030, Q300, Q501, Q712 : SN74LV125APW FUNCTION TABLE (TOP VIEW)
  • Page 35 Q009 : S-24C04BFJ (TOP VIEW) Function Number Name ∗ ∗ ∗ ∗ 1 No Connection ∗ ∗ ∗ ∗ 1 No Connection ∗ ∗ ∗ ∗ 1 No Connection Ground Serial data input/output Serial clock input Write Protection pin Figure 2 Connected to Vcc: Protection valid Connected to GND: Protection invalid S-24C01BFJ...
  • Page 36 Q010, Q029 : SN74LV04APW (TOP VIEW) FUNCTION TABLE (each inverter) INPUT OUTPUT LOGIC DIAGRAM, EACH INVERTER (POSITIVE LOGIC) Q012, Q504, Q509, Q510, Q511, Q517, Q519 : NJM2068M (TOP VIEW)
  • Page 37 Q015 : SN74LV08APW (TOP VIEW) FUNCTION TABLE (each gate) INPUTS OUTPUT OUTPUT LOGIC DIAGRAM, EACH GATE (POSITIVE LOGIC) Q017, Q502 : TC74HCU04AF Truth Table...
  • Page 38 Q020, Q021 : EDS2516ADTA-75 54-pin Plastic TSOP (II) A0 to A12 Address input BA0, BA1 Bank select address DQ15 Data-input/output VDDQ VSSQ DQ0 to DQ15 DQ14 Chip select DQ13 /RAS Row address strobe VSSQ VDDQ /CAS Column address strobe DQ12 Write enable DQ11 Input/output mask...
  • Page 39 Q022 : JS28F128P30T85 56-Lead TSOP Pinout (64/128/256-Mbit) WAIT A 16 A 17 DQ15 DQ14 DQ13 DQ12 ADV# Intel StrataFlash Æ Embedded Memory (P 30) RST# 56-Lead TSOP Pinout DQ11 14 mm x 20 mm DQ10 Top View VCCQ OE # Notes: A1 is the least significant address bit.
  • Page 40 Q022 : JS28F128P30T85 Symbol Type Name and Function ADDRESS INPUTS: Device address inputs. 64-Mbit: A[22:1]; 128-Mbit: A[23:1]; 256-Mbit: A[24:1]; A[MAX:1] Input 512-Mbit: A[25:1]. DATA INPUT/OUTPUTS: Inputs data and commands during write cycles; outputs data during Input/ DQ[15:0] memory, Status Register, Protection Register, and Read Configuration Register reads. Data balls Output float when the CE# or OE# are deasserted.
  • Page 41 Q024 : BD45302G-TR Pin No. Pin Name Q025, Q036 : SN74LV00APW (TOP VIEW) FUNCTION TABLE (each gate) INPUTS OUTPUT OUTPUT LOGIC DIAGRAM, EACH GATE (POSITIVE LOGIC)
  • Page 42 Q031 : CS4271-CZZR 3.3 V to 5 V 2.5 V to 5 V Hardware or Left and Internal Voltage Internal External C/SPI Right Mute Reference Oscillator Mute Control Control Data Controls Register / Hardware Configuration Reset Selectable Left Volume Switched Capacitor ∆Σ...
  • Page 43 Q031 : CS4271-CZZR Pin Name Pin Description Crystal Connections (Input/Output) - I/O pins for an external crystal which may be used to generate MCLK. See “Crystal Applications (XTI/XTO)” on page 24 or “Crystal Applications (XTI/XTO)” on page 27. Master Clock (Input/Output) -Clock source for the delta-sigma modulators. See “Crystal Applications MCLK (XTI/XTO)”...
  • Page 44 Q032 : CS8420-CSZR VA+ AGND FILT RMCK VD+ DGND RERR ILRCK OLRCK Serial Sample Serial ISCLK OSCLK Audio Rate Audio Input Converter Output SDIN SDOUT Clock & AES3 C & U bit AES3 Receiver Driver Data S/PDIF Data S/PDIF Recovery Decoder Buffer Encoder...
  • Page 45 Q034, Q035 : NJU3716AM-TE1 DATA DATA Controller Circuit TERMINAL DESCRIPTION SYMBOL FUNCTION Parallel Conversion Data Output Terminals Parallel Conversion Data Output Terminals Serial Data Output Terminal DATA Serial Data Input Terminal Clock Signal Input Terminal Strobe Signal Input Terminal Clear Signal Input Terminal Parallel Conversion Data Output Terminal Parallel Conversion Data Output Terminals Power Supply Terminal (2.4 to 5.5V)
  • Page 46 Q037, Q038 : SN74LV138APW (TOP VIEW) FUNCTION TABLE ENABLE INPUTS SELECT INPUTS OUTPUTS LOGIC DIAGRAM (POSITIVE LOGIC) Select Inputs Data Outputs Enable Inputs Pin numbers shown are for the D, DB, DGV, J, NS, PW, RGY, and W packages.
  • Page 47 Q039 : SN74LV541APW (TOP VIEW) LOGIC DIAGRAM (POSITIVE LOGIC) To Seven Other Channels FUNCTION TABLE (each buffer/driver) INPUTS OUTPUT OUTPUT Q040, Q041 : SN7438NSR (TOP VIEW) LOGIC DIAGRAM FUNCTION TABLE (each gate)

  • Page 48: Block Diagram

    Q042 : 78Q2120C09A-64GCT BLOCK DIAGRAM 4 B / 5 B E n c o d e r , 1 0 0 M N R Z / N R Z I , Scrambler, MTL3 Encoder Parallel/Serial Pulse Shaper TXOP & Filter Drivers T X C l o c k T X O N...
  • Page 49 Q042 : 78Q2120C09A-64GCT PIN DESCRIPTION LEGEND TYPE DESCRIPTION TYPE DESCRIPTION Analog Pin Digital Input Digital Output Digital Bi-directional Pin Supply Tri-stateable digital output MII (MEDIA INDEPENDENT INTERFACE) 64-PIN 80-PIN TYPE DESCRIPTION TX_CLK TRANSMIT CLOCK: TX_CLK is a continuous clock w hich provides a timing reference for the TX_EN, TX_ER and TXD[3:0] signals from the MAC.
  • Page 50 Q042 : 78Q2120C09A-64GCT (continued) 64-PIN 80-PIN TYPE DESCRIPTION MANAGEMENT DATA CLOCK: clock used transferring data via the MDIO pin. MDIO MANAGEMENT DATA INPUT/OUTPUT: MDIO is a bi-directional port used to access management registers within the 78Q2120. This pin requires an external pull-up resistor as specified in IEEE-802.3. PHY ADDRESS PHYAD[4:0] 12-16...
  • Page 51 Q042 : 78Q2120C09A-64GCT CONTROL AND STATUS (continued) 64-PIN 80-PIN TYPE DESCRIPTION ANEGA AUTO-NEGOTIATION ABILITY: Strapped to logic high to allow auto- negotiation function. When strapped to logic low, auto-negotiation logic is disabled and manual technology selection is done through TECH[2:0]. This pin is reflected as ANEGA bit (MR1.3). TECHNOLOGY ABILITY/SELECT: TECH[2:0] sets the technology ability of the TECH[2:0] 44-46...
  • Page 52 Q042 : 78Q2120C09A-64GCT OSCILLATOR/CLOCK NAME 64-PIN 80-PIN TYPE DESCRIPTION CKIN CLOCK INPUT: Connects to a 25 MHz clock source. This pin should be held low when XTLP and XTLN are being used as the 25 MHz clock source. XTLP, 59, 58 75,74 CRYSTAL PINS: Should be connected to a 25 MHz crystal.
  • Page 53 Q402, Q403 : SN74LV273APW FUNCTION TABLE (TOP VIEW) (each flip-flop) INPUTS OUTPUT OUTPUT ↑ ↑ LOGIC DIAGRAM (POSITIVE LOGIC) Q404 : SN74LV244APW (TOP VIEW) FUNCTION TABLE (each buffer) INPUTS OUTPUT OUTPUT LOGIC DIAGRAM (POSITIVE LOGIC)
  • Page 54 Q500 : µPD4721GS-GJG-E1 PD4721GS-GJG +10V +3.3V -10V STBY Note 4 300Ω INT1 OUT1 300Ω INT2 OUT2 OUT1 5.5kΩ OUT2 5.5kΩ Q503 : HD26L31FP Enable G Enable G (TOP VIEW) 16 V Enable G Enable G...
  • Page 55 Q512, Q513 : NJM5532M (TOP VIEW)
  • Page 56 Q518 : TC9459BFG-EL L-OUT R-OUT L-IN R-IN L-ch R-ch L-LD1 R-LD1 L-LD2 R-LD2 L-A-GND R-A-GND DATA L-OUT 3 R-OUT NC 4 91STEP L-IN 5 R-IN Same as L-ch Circuit L-LD1 6 R-LD1 L-LD2 7 R-LD2 L-A-GND 8 R-A-GND NC 9 L-ch 7 to 91 R-ch 7 to 91 decoder...
  • Page 57 Q518 : TC9459BFG-EL PIN DESCRIPTION...
  • Page 58 Q700 : MIP3E50MY 1 : Control 2 : Source 3 : Drain TO-220-A1 Package At startup Startup constant current Drain Control Light load detection Internal power supply For intermittent oscillation control Timer intermittent operation circuit Overheat Error amplifier protection Circuit Restart trigger Gate driver...
  • Page 59 Q701 : TL431CZ-AP...
  • Page 60 Q704 : BD9781HFP ON/OFF EN/SYNC L : OFF H : ON SOFT Vref SYNC START ERROR AMP COMPARATR LATCH DRIVER RESET CURRENT LIMT Pin No. Pin Name EN/SYNC...
  • Page 61 Q709 : µPD78F9222 NOTE P121/X1 P20/ANI0 P122/X2 P21/ANI1 P123 P22/ANI2 P23/ANI3 P130 RESET/P34 P31/T1010/TO00/INTP2 P30/TI000/INTP3 P44/RxD6 P43/TxD6INTP1 P41/INTP3 P42/TOH1 ANI0 to ANI3: Analog input RESET: Reset Analog reference voltage RxD6: Receive data INTP0 to INTP3: External interrupt input TI000, TI010: Timer input P20 to P23: Port 2...
  • Page 62 Q709 : µPD78F9222 (1) Port functions Pin Name Function After Reset Alternate- Function Pin P20 to P23 Port 2. Input ANI0 to ANI3 4-bit I/O port. Can be set to input or output mode in 1-bit units. An on-chip pull-up resistor can be connected by setting software. Port 3 Can be set to input or output mode in 1- Input...
  • Page 63 Q709 : µPD78F9222 (2) Non-port functions Pin Name Function After Reset Alternate- Function Pin INTP0 Input External interrupt input for which the valid edge (rising edge, Input P30/TI000 falling edge, or both rising and falling edges) can be specified INTP1 P43/TxD6 INTP2 P31/TI010/TO00...
  • Page 64 Q715 : BA9741FS-E2 Q801 : NJM4556AM (TOP VIEW)

  • Page 65: Electrical Parts List

    9. ELECTRICAL PARTS LIST PARTS INFORMATION ABBREVIATION AND MARKS ANT. : ANTENNA BATT. : BATTERY CAP. : CAPACITOR CER. : CERAMIC CONN. : CONNECTING DIG. : DIGITAL : HEADPHONE MIC. : MICROPHONE µ-PRO : MICROPROCESSOR REC. : RECORDING RES. : RESISTOR : SPEAKER : SWITCH TRANSF.
  • Page 66 POS. VERS. PART NO. PART NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (D&M) P100 MAIN PWB KIT (00MWI43BS1000) P101 MAIN PWB (00MWI43BS1010) P101 C001 00D2570512903 CER. CAP. CK73F1E104ZT +1608 P101 C002 00D2544464906 00D2544464906 ELECT. CAP. CE67C0J101MT +REF P101 C003 00D2570512903 CER.
  • Page 67 POS. VERS. PART NO. PART NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (D&M) P101 C066 00D2570512903 CER. CAP. CK73F1E104ZT +1608 P101 C067 00D2570512903 CER. CAP. CK73F1E104ZT +1608 P101 C068 00D2570512903 CER. CAP. CK73F1E104ZT +1608 P101 C069 00D2570512903 CER. CAP. CK73F1E104ZT +1608 P101...
  • Page 68 POS. VERS. PART NO. PART NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (D&M) P101 C142 00D2570513902 CER. CAP. CK73F1A105ZT +1608 P101 C143 00D2570512903 CER. CAP. CK73F1E104ZT +1608 P101 C144 00D2570513902 CER. CAP. CK73F1A105ZT +1608 P101 C145 00D2570512903 CER. CAP. CK73F1E104ZT +1608 P101...
  • Page 69 POS. VERS. PART NO. PART NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (D&M) P101 C425 00D2570501901 CER. CAP. CK73B1H103KT (1608) +1608 P101 C426 00D2570512903 CER. CAP. CK73F1E104ZT +1608 P101 C427 00D2570505907 CER. CAP. CC73CH1H560JT +1608 P101 C428 00D2570505907 CER. CAP. CC73CH1H560JT +1608 P101...
  • Page 70 POS. VERS. PART NO. PART NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (D&M) P101 Q018 U-PRO EP-9312-CBZ-E1 P101 Q020 00MHC10144010 00MHC10144010 IC EDS2516ADTA-75-E P101 Q021 00MHC10144010 00MHC10144010 IC EDS2516ADTA-75-E P101 Q022 00MHJ43BSX01F 00MHJ43BSX01F U-PRO JS28F128P30T85(DNC640) P101 Q024 00MHC10234210 00MHC10234210 IC BD45302G RESET 3.0V P101 Q025...
  • Page 71 POS. VERS. PART NO. PART NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (D&M) P101 R033 00D2472005987 CHIP RES. RM73B--221JT +1608 P101 R034 00D2472012925 CHIP RES. RM73B--104JT +1608 P101 R035 00D2472005987 CHIP RES. RM73B--221JT +1608 P101 R036 00D2472012925 CHIP RES. RM73B--104JT +1608 P101...
  • Page 72 POS. VERS. PART NO. PART NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (D&M) P101 R106 00D2472018903 CHIP RES. RM73B--0R0KT +1608 P101 R107 00D2472018903 CHIP RES. RM73B--0R0KT +1608 P101 R108 00D2472018903 CHIP RES. RM73B--0R0KT +1608 P101 R109 00D2472018903 CHIP RES. RM73B--0R0KT +1608 P101...
  • Page 73 POS. VERS. PART NO. PART NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (D&M) P101 R172 00D2472009983 CHIP RES. RM73B--103JT +1608 P101 R173 00D2472009983 CHIP RES. RM73B--103JT +1608 P101 R176 00D2472011942 CHIP RES. RM73B--473JT +1608 P101 R177 00D2472011942 CHIP RES. RM73B--473JT +1608 P101...
  • Page 74 POS. VERS. PART NO. PART NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (D&M) P101 R246 00D2472011942 CHIP RES. RM73B--473JT +1608 P101 R247 00D2472011942 CHIP RES. RM73B--473JT +1608 P101 R248 00D2472009983 CHIP RES. RM73B--103JT +1608 P101 R252 00D2472009909 CHIP RES. RM73B--472JT (1608) +1608 P101...
  • Page 75 POS. VERS. PART NO. PART NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (D&M) P101 R326 00D2472009909 CHIP RES. RM73B--472JT (1608) +1608 P101 R327 00D2472009912 CHIP RES. RM73B--512JT +1608 P101 R328 00D2472008968 CHIP RES. RM73B--332JT +1608 P101 R329 00D2472008968 CHIP RES. RM73B--332JT +1608 P101...
  • Page 76 POS. VERS. PART NO. PART NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (D&M) P101 R393 00D2472018903 CHIP RES. RM73B--0R0KT +1608 P101 R394 00D2472018903 CHIP RES. RM73B--0R0KT +1608 P101 R395 00D2472018903 CHIP RES. RM73B--0R0KT +1608 P101 R396 00D2472018903 CHIP RES. RM73B--0R0KT +1608 P101...
  • Page 77 POS. VERS. PART NO. PART NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (D&M) P101 R489 00D2472003989 CHIP RES. RM73B--330JT +1608 P101 R490 00D2472018903 CHIP RES. RM73B--0R0KT +1608 P101 R491 00D2472018903 CHIP RES. RM73B--0R0KT +1608 P101 R492 00D2472018903 CHIP RES. RM73B--0R0KT +1608 P101...
  • Page 78 POS. VERS. PART NO. PART NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (D&M) P201 C526 00D2570516954 CER. CAP. CK73B1E104KT +1608 P201 C528 00D2570501901 CER. CAP. CK73B1H103KT (1608) +1608 P201 C529 00D2570509929 CER. CAP. CK73B1H102KT +1608 P201 C530 00D2570509929 CER. CAP. CK73B1H102KT +1608 P201...
  • Page 79 POS. VERS. PART NO. PART NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (D&M) P201 C592 00D2570509929 CER. CAP. CK73B1H102KT +1608 P201 C593 00D2570501901 CER. CAP. CK73B1H103KT (1608) +1608 P201 C594 00D2570501901 CER. CAP. CK73B1H103KT (1608) +1608 P201 C597 00D2544538900 ELECT.
  • Page 80 POS. VERS. PART NO. PART NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (D&M) P201 L518 00MFC90020110 00MFC90020110 FERRITE CORE BLM11B601S CHIP FERRITE P201 L519 00MFN31010030 00MFN31010030 FERRITE CORE BLM11B102S 1608 EMIFILTER P201 L520 00MFN31010030 00MFN31010030 FERRITE CORE BLM11B102S 1608 EMIFILTER P201 L521 00MFN31010030...
  • Page 81 POS. VERS. PART NO. PART NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (D&M) P201 R532 00D2472009983 CHIP RES. RM73B--103JT +1608 P201 R533 00D2472018903 CHIP RES. RM73B--0R0KT +1608 P201 R534 00D2472018903 CHIP RES. RM73B--0R0KT +1608 P201 R535 00D2472009909 CHIP RES. RM73B--472JT (1608) +1608 P201...
  • Page 82 POS. VERS. PART NO. PART NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (D&M) P201 R601 00D2472007969 CHIP RES. RM73B--122JT +1608 P201 R602 00D2472007969 CHIP RES. RM73B--122JT +1608 P201 R603 00D2472007969 CHIP RES. RM73B--122JT +1608 P201 R604 00D2472007969 CHIP RES. RM73B--122JT +1608 P201...
  • Page 83 POS. VERS. PART NO. PART NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (D&M) P202 D660 00D2760559909 00D2760559909 CHIP DIODE DAP202KT146 P202 D661 00D2760559909 00D2760559909 CHIP DIODE DAP202KT146 P202 D662 00D2760559909 00D2760559909 CHIP DIODE DAP202KT146 P202 J651 00D2050618110 00D2050618110 TERMINAL 25P DSUB SKT P202 J652...
  • Page 84 POS. VERS. PART NO. PART NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (D&M) P203 C733 00D2570521907 CER. CAP. CK73B1A105KT +1608 P203 C734 00D2570510963 CER. CAP. CK73B1H822KT +1608 P203 C735 00D2570507976 CER. CAP. CC73CH1H331JT +1608 P203 C736 00D2544303960 00D2544303960 ELECT. CAP. CE04W1E330MT(SRE) P203 C737...
  • Page 85 POS. VERS. PART NO. PART NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (D&M) P203 Q716 00MHX117971A0 00MHX117971A0 TRS. 2SA1797 P203 Q717 00MHX117971A0 00MHX117971A0 TRS. 2SA1797 P203 Q718 00MHX346721A0 00MHX346721A0 TRS. 2SC4672 Q P203 Q719 E3, E2 00D2680077901 00D2680077901 ICP-N50T P203 Q720 00D2690082902...
  • Page 86 POS. VERS. PART NO. PART NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (D&M) P203 R768 00D2472003947 CHIP RES. RM73B--220JT +1608 P203 R769 00D2472003947 CHIP RES. RM73B--220JT +1608 P203 R770 00D2472003947 CHIP RES. RM73B--220JT +1608 P203 R771 00D2472003947 CHIP RES. RM73B--220JT +1608 P203...
  • Page 87 POS. VERS. PART NO. PART NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (D&M) P204 C867 00D2570521907 CER. CAP. CK73B1A105KT +1608 P204 D850 00D3939631903 00D3939631903 L.E.D. TLGU1002A(T02) P204 D851 00D3939631903 00D3939631903 L.E.D. TLGU1002A(T02) P204 D852 00D3939631903 00D3939631903 L.E.D. TLGU1002A(T02) P204 D853 00D3939631903 00D3939631903...
  • Page 88 POS. VERS. PART NO. PART NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (D&M) P205 R911 00D2472018903 CHIP RES. RM73B--0R0KT +1608 P205 R912 00D2472009983 CHIP RES. RM73B--103JT +1608 P205 S900 00MSP01013320 00MSP01013320 PUSH SW TACT SWITCH SKHMPW P205 S901 00MSP01013320 00MSP01013320 PUSH SW TACT SWITCH SKHMPW P205...
  • Page 89 POS. VERS. PART NO. PART NO. PART NAME DESCRIPTION NAME COLOR (FOR EUR) (D&M) P207 JOG PWB (00MWG43BS2072) P207 R970 00D2472018903 CHIP RES. RM73B--0R0KT +1608 P207 R971 00D2472018903 CHIP RES. RM73B--0R0KT +1608 P207 S970 00MSR01030150 00MSR01030150 ROTARY SW EC11B15242AE P208 STB LED PWB (00MWG43BS2082) P208 D980 00MHI10127210...
  • Page 90 Printed on 100% Recycled Paper Printed in Japan ecmf-d...
