TP-Link TL-WPS510U User Manual

Pocket-sized wireless
Hide thumbs Also See for TL-WPS510U:
Table of Contents

Advertisement

Quick Links

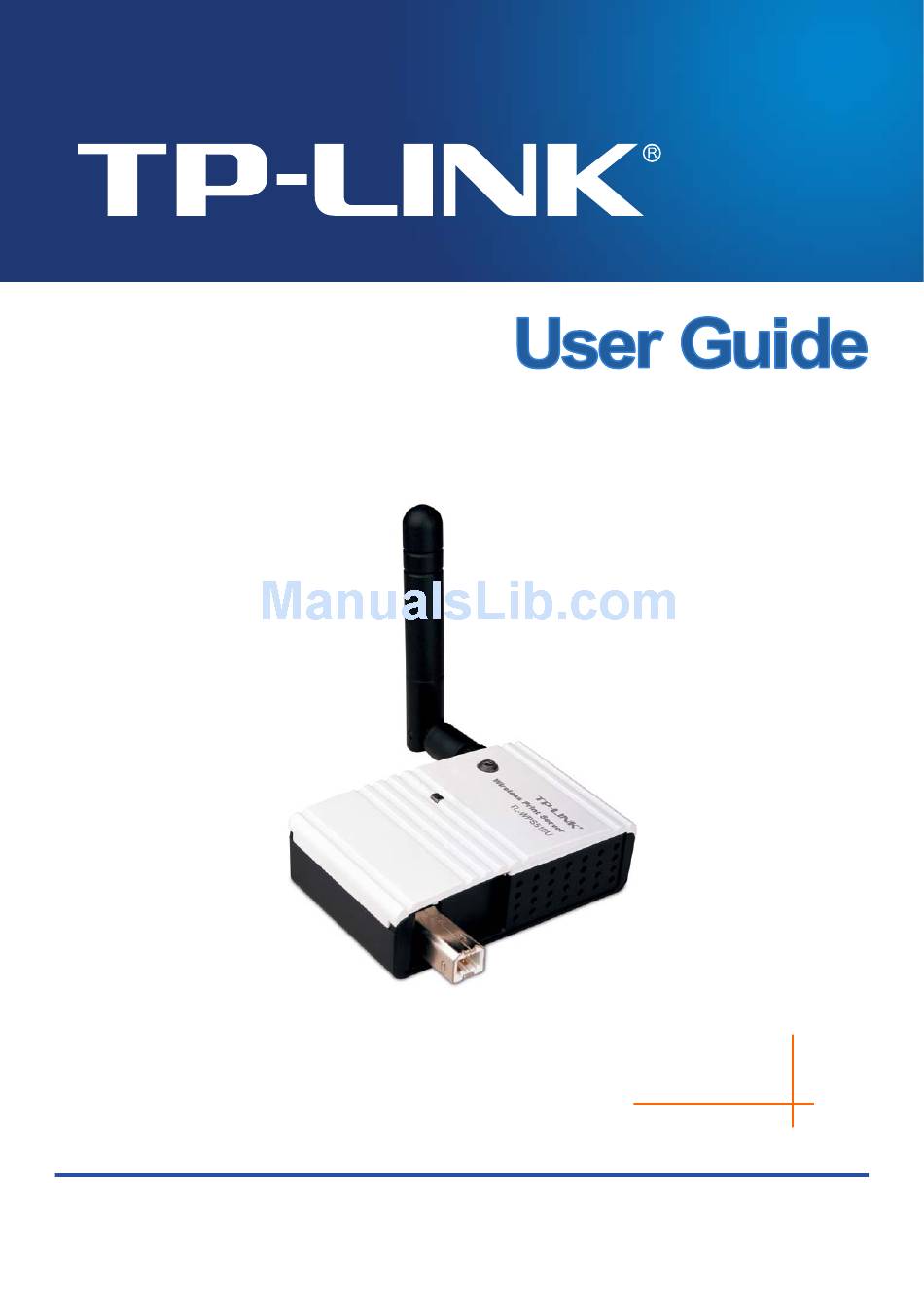

TL-WPS510U
Pocket-sized Wireless Print Server
Rev: 2.0.0
1910010376

Advertisement

Table of Contents
loading

Related Manuals for TP-Link TL-WPS510U

Summary of Contents for TP-Link TL-WPS510U

  • Page 1 TL-WPS510U Pocket-sized Wireless Print Server Rev: 2.0.0 1910010376...
  • Page 2 Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD.

  • Page 3: Fcc Statement

    FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 4 FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations.

  • Page 5: Table Of Contents

    CONTENTS Chapter 1. Introduction..................1 Product Overview ...................... 1 Components and Features ..................1 LED Indicator......................1 Factory Defaults ......................1 Chapter 2. Hardware Installation .................3 Preparation ........................ 3 Typologies ......................... 3 2.2.1 Ad-Hoc ..........................3 2.2.2 Infrastructure........................3 Connection ........................ 4 Chapter 3. How to Configure the Print Server ............5 On Ad-Hoc Mode.......................
  • Page 6 Restart ........................71 Appendix A: How to Resset the Print Server ............72 Appendix B: Troubleshooting ................73 Appendix C: Frequently Asked Questions ............75 Appendix D: Additional Installation Instructions..........77...

  • Page 7: Chapter 1. Introduction

    TL-WPS510U Pocket-sized Wireless Print Server Chapter 1. Introduction 1.1 Product Overview The external print servers enhance capability by letting you place your printers at convenient locations directly on the Ethernet network, and by increasing network printer performance and management. Please note that the print server does not support printing with host-based printers, e.g.
  • Page 8 TL-WPS510U Pocket-sized Wireless Print Server IP Address: 192.168.0.10 Subnet Mask: 255.255.255.0 DHCP Client: off...

  • Page 9: Chapter 2. Hardware Installation

    The host which wants to print a document will communicate directly with the TL-WPS510U. Figure 2-1 Ad-Hoc Mode 2.2.2 Infrastructure In this mode, the wireless router is the center of the wireless network. Every host, TL-WPS510U included will communicate with the wireless router. The hosts communicate with TL-WPS510U through the wireless router.

  • Page 10: Connection

    TL-WPS510U Pocket-sized Wireless Print Server Figure 2-2 Infrastructure Mode 2.3 Connection Follow the instructions below to install the print server. Power off the printer. Connect the print server to your printer with the supplied USB cable. Power on the printer.

  • Page 11: Chapter 3. How To Configure The Print Server

    TL-WPS510U Pocket-sized Wireless Print Server Chapter 3. How to Configure the Print Server 3.1 On Ad-Hoc Mode To connect to the print server, the configuration for Windows XP, Windows Vista and Windows 7 are similar. Here we take Windows XP for example.
  • Page 12 TL-WPS510U Pocket-sized Wireless Print Server Figure 3-3 Select Internet Protocol (TCP/IP), and then double click it or click Properties. Figure 3-4 Select “Use the following IP address” and input a static IP address 192.168.0.X (1<X<10 or 10<X<255, for 192.168.0.10 is the default IP address of the print server), Subnet mask 255.255.255.0.
  • Page 13 TL-WPS510U Pocket-sized Wireless Print Server Figure 3-5 Right click the icon at the right bottom on your desktop and then select View Available Wireless Networks. (Here we use Windows Zero Configuration as an example. You can also use vendor utility of wireless adapter. ) Figure 3-6 Find the SSID WLAN-PS of wireless print server.
  • Page 14 TL-WPS510U Pocket-sized Wireless Print Server Figure 3-7 Once the connection is successful, you will see the following screen shown in Figure 3-8. Figure 3-8 Open a web-browser and type in the IP address of the print server (the default is 192.168.0.10)
  • Page 15 Figure 3-10 11. Then the print server web management page will appear. Suppose the local network is 192.168.1.0/255.255.255.0, therefore the IP of TL-WPS510U is required to set to 192.168.1.X (1<X<255). Here we recommend 192.168.1.10. Click “Setup” > “TCP/IP”, change the TCP/IP settings of the print server to 192.168.1.10/255.255.255.0 as shown in Figure 3-11.
  • Page 16 TL-WPS510U Pocket-sized Wireless Print Server Figure 3-11 Figure 3-12 12. Reenter the “Internet Protocol (TCP/IP) Properties” page. Change the wireless adapter’s IP to 192.168.1.101/255.255.255.0. Click OK.
  • Page 17 14. Log into the TL-WPS510U and configure the wireless parameters according to your wireless network. In this example, the SSID is WLAN-Ad-Hoc, and the security type is WEP-64bit with the password set to 12345. After the configuration, the TL-WPS510U also needs to save and reboot.
  • Page 18 TL-WPS510U Pocket-sized Wireless Print Server Figure 3-15...
  • Page 19 WLAN-Ad-Hoc and the password is 12345. Figure 3-17 16. Try to ping the TL-WPS510U (Press WIN key + R, input cmd to launch the command line interface, input ping 192.168.1.10). If the result shows as Figure 3-18, it means that your...
  • Page 20 TL-WPS510U Pocket-sized Wireless Print Server Figure 3-18 Figure 3-19 17. Add a Standard TCP/IP port for the printer. If you’ve already installed the printer on your computer, please refer to 3.3.1 If You Have Installed A Printer Before to add a Standard TCP/IP port.

  • Page 21: On Infrastructure Mode

    TL-WPS510U Pocket-sized Wireless Print Server If you never install a printer on your computer, please refer to 3.3.2 If You Never Install A Printer Before to add a Standard TCP/IP port. 3.2 On Infrastructure Mode 3.2.1 Using PSWizard in Windows XP/ Windows Vista/ Windows 7 To connect to the print server using PSWizard, the configuration for Windows XP, Windows Vista and Windows 7 are similar.
  • Page 22 TL-WPS510U Pocket-sized Wireless Print Server Right click Wireless Network Connection, and select Properties. Figure 3-22 Select Internet Protocol (TCP/IP), and then double click it or click Properties. Figure 3-23 Select “Use the following IP address” and input a static IP address 192.168.0.X (1<X<10 or 10<X<255, for 192.168.0.10 is the default IP address of the print server), Subnet mask...
  • Page 23 TL-WPS510U Pocket-sized Wireless Print Server Note: The IP address must be within the same subnet as your wireless print server. For example, if the IP address of your printer server has been changed to 192.168.1.10, then the IP address should be configured as 192.168.1.X (1<X<10 or 10<X<255).
  • Page 24 Once the connection is successful, you will see the following screen shown in Figure 3-27. Figure 3-27 Insert the setup CD into your CD-drive. The autorun program will be started as shown in Figure 3-28. Select the model (TL-WPS510U) of your print sever.
  • Page 25 TL-WPS510U Pocket-sized Wireless Print Server Figure 3-28 10. Choose Setup Wizard. Figure 3-29 11. Then you will enter to the “Welcome” page as shown in Figure 3-30. Click Next.
  • Page 26 TL-WPS510U Pocket-sized Wireless Print Server Figure 3-30 12. From the “Select A Print Server” screen as shown in Figure 3-31, select the print server that you want to configure and click Next. Figure 3-31...
  • Page 27 TL-WPS510U Pocket-sized Wireless Print Server 13. On the Change Settings screen as shown in Figure 3-32, select Yes or No. Select “Yes” if you want to change the settings. The default password is 0000. Click Next and then appears “Basic Wireless Settings” screen as shown in Figure 3-33. Proceed with Step 7.
  • Page 28 TL-WPS510U Pocket-sized Wireless Print Server Figure 3-33 15. “Wireless Security” screen will appear as shown in Figure 3-34. Enter the Security parameters of your wireless network, and then click Next. Figure 3-34...
  • Page 29 TL-WPS510U Pocket-sized Wireless Print Server 16. On “TCP/IP Settings” page shown in Figure 3-35, check the “Specify an IP address” radio button, and then fill in the following parameters. IP Address: Specify an IP address for your print server. The IP address must be within the same subnet as your wireless router or access point.
  • Page 30 TL-WPS510U Pocket-sized Wireless Print Server Figure 3-36 Figure 3-37...
  • Page 31 TL-WPS510U Pocket-sized Wireless Print Server Figure 3-38 18. Reenter the “Internet Protocol (TCP/IP) Properties” page as shown in Figure 3-39. Specify an IP address as 192.168.1.X (1<X10, 10<X<255). Here we take 192.168.1.101 for example. Click OK. Figure 3-39...
  • Page 32 TL-WPS510U Pocket-sized Wireless Print Server 19. Right click the icon at the right bottom on your desktop and then select View Available Wireless Networks. (Here we use Windows Zero Configuration as an example. You can also use vendor utility of wireless adapter. ) Figure 3-40 20.
  • Page 33 Pocket-sized Wireless Print Server Figure 3-42 22. Try to ping the TL-WPS510U (Press WIN key + R, input cmd to launch the command line interface, input ping 192.168.1.10). If the result shows as Figure 3-43, it means that your adapter can communicate with the print server again.
  • Page 34 TL-WPS510U Pocket-sized Wireless Print Server If you never use a printer on your computer before but also want to share printing, you need to follow the steps below to install the printer driver. 24. Click the Add New Printer button in Figure 3-44, and then Figure 3-46 appears.
  • Page 35 TL-WPS510U Pocket-sized Wireless Print Server 25. Click Add New Printer to launch Windows Add Printer Wizard. Click Next. Figure 3-46 26. Make sure the Automatically detect and install my Plug and Play printer check box is NOT checked. Then click Next.
  • Page 36 TL-WPS510U Pocket-sized Wireless Print Server Figure 3-48 28. Select Manufacturer and Printer from the lists of printer’s driver. Then click Next. Figure 3-49 29. If you already have the printer’s driver installed, you will be asked whether to keep it or to replace it.
  • Page 37 TL-WPS510U Pocket-sized Wireless Print Server Figure 3-50 30. Then, choose whether you want to share the printer with other network users, print a test page (please select No.), etc. Select the appropriate radio-button and click Next. Figure 3-51 31. Click Finish.
  • Page 38 TL-WPS510U Pocket-sized Wireless Print Server 32. From Windows system, go to Start > Printers and Faxes and highlight your newly installed printer. Right-click it, and then select Properties. Figure 3-52 33. Select Ports and verify that the print server’s port appears.
  • Page 39 TL-WPS510U Pocket-sized Wireless Print Server Figure 3-53 34. Go to General; click Print Test Page to verify the configuration. Figure 3-54 Note: If you wish to install more print servers, repeat the above steps.
  • Page 40 TL-WPS510U Pocket-sized Wireless Print Server 35. The following screen will appear. Confirm the information of the printer and then click Next. Figure 3-55 36. Click Finish to complete the printer installation. Figure 3-56...

  • Page 41: Using Web Management Page In Windows Xp/ Windows Vista/ Windows 7

    TL-WPS510U Pocket-sized Wireless Print Server 3.2.2 Using Web Management Page in Windows XP/ Windows Vista/ Windows 7 To connect to the print server using the web management page, the configuration for Windows XP, Windows Vista and Windows 7 are similar. Here take Windows XP for example.
  • Page 42 TL-WPS510U Pocket-sized Wireless Print Server Figure 3-59 Click “Setup” and then choose “TCP/IP”. Check “Use the following TCP/IP Settings” radio button and then fill in the following parameters. IP Address: Specify an IP address for your print server. The IP address must be within the same subnet as your wireless router or access point.
  • Page 43 TL-WPS510U Pocket-sized Wireless Print Server Figure 3-60 Click Save & Restart and then wait the print server to save the changes and restart. Figure 3-61...
  • Page 44 TL-WPS510U Pocket-sized Wireless Print Server Enter the “Internet Protocol (TCP/IP) Properties” page as shown in Figure 3-62. Fill in the following parameters. IP Address: Specify an IP address for your adapter. The IP address must be within the same subnet as your wireless router or access point. For example, if the LAN IP address of your wireless router or access point is 192.168.1.1, the IP address should be set to...
  • Page 45 TL-WPS510U Pocket-sized Wireless Print Server Figure 3-63...

  • Page 46: Using Web Management Page On Mac Os

    TL-WPS510U Pocket-sized Wireless Print Server Click Save & Restart button and then wait the print server to restart. Figure 3-64 Add a Standard TCP/IP port for the printer. If you’ve already installed the printer on your computer, please refer to 3.3.1 If You Have...
  • Page 47 Figure 3-66 Follow the steps to set the airport’s IP address. Figure 3-67 Connect your MACbook to the TL-WPS510U. The print server will work on Ad-Hoc mode, with the SSID WLAN-PS in factory default. So please select the wireless network WLAN-PS...
  • Page 48 TL-WPS510U Pocket-sized Wireless Print Server to connect. If you need to reset the TL-WPS510U but don’t know how to do, please refer to Appendix A: How to Reset the Print Server. Figure 3-68 Open the Safari and log into the TL-WPS510U. Change its IP Address, Subnet Mask and Default Router to 192.168.1.10, 255.255.255.0 and 192.168.1.1.
  • Page 49 TL-WPS510U Pocket-sized Wireless Print Server Figure 3-69 Figure 3-70 On the MACbook, change the airport’s IP Address, Subnet Mask and Router to 192.168.1.101, 255.255.255.0 and 192.168.1.1.
  • Page 50 Pocket-sized Wireless Print Server Figure 3-71 Connect to the network WLAN-PS again. Figure 3-72 Log into the TL-WPS510U and click Setup > Wireless. Configure the wireless parameters according to your wireless network as shown in Figure 3-73. In this example, the SSID is...
  • Page 51 TL-WPS510U Pocket-sized Wireless Print Server TP-LINK_Print Server, and the security type is WEP-64bit Hex Open, with the password set to 0123456789. By entering the SSID, you can also select it from the network list as shown in Figure 3-74, and then the SSID will be automatically filled in the corresponding field. After the configuration, click Save &...
  • Page 52 Figure 3-75 Figure 3-76 10. Try that you can access the TL-WPS510U and can see it in the wireless router’s host list. This means the TL-WPS510U is working on Infrastructure mode and can communicate with the wireless router and your MAC OS.
  • Page 53 TL-WPS510U Pocket-sized Wireless Print Server Figure 3-77 11. Click the Apple icon > System Performances > Print & Fax to add a Standard TCP/IP port for the printer. Figure 3-78 12. Click Printing and then...
  • Page 54 TL-WPS510U Pocket-sized Wireless Print Server Figure 3-79 13. Select “IP Printer”, and then configure the following parameters. Select “LPD” for Protocol, enter 192.168.1.10 for Address and lp1 for Queue. Select your printer model from the list. Here takes EPSON Style Photo 720 for example. And then click Add.
  • Page 55 TL-WPS510U Pocket-sized Wireless Print Server Figure 3-80 14. Till now you've installed the print server successfully and can print through the TL-WPS510U.

  • Page 56: Printer Installation

    TL-WPS510U Pocket-sized Wireless Print Server Figure 3-81 3.3 Printer Installation Other computers in the same local network that need to share the printing should add the Standard TCP/IP port on their system. There’re two conditions. Please choose one according to your system.
  • Page 57 TL-WPS510U Pocket-sized Wireless Print Server Figure 3-82 Find your installed printer icon, right-click on it, and select Properties. Figure 3-83 Click Ports > Add Port > Standard TCP/IP Port > New Port > Next.
  • Page 58 TL-WPS510U Pocket-sized Wireless Print Server Figure 3-84 Input the exact IP address of print server. Here takes 192.168.0.10 for example. Click Next. Figure 3-85 Select Custom, and click Settings.
  • Page 59 TL-WPS510U Pocket-sized Wireless Print Server Figure 3-86 Choose LPR, and input the queue name as lp1. Click OK. Figure 3-87 Click Next and then Finish, to complete the wizard.
  • Page 60 TL-WPS510U Pocket-sized Wireless Print Server Figure 3-88 Figure 3-89 Click Close and Apply.

  • Page 61: If You Never Install A Printer Before

    TL-WPS510U Pocket-sized Wireless Print Server Figure 3-90 Figure 3-91 Now, the printer port has been created. 3.3.2 If You Never Install A Printer Before Click Star > Control Panel, and select Devices and Printers.
  • Page 62 TL-WPS510U Pocket-sized Wireless Print Server Figure 3-92 Click Add a printer. Figure 3-93 Select Add a local printer. Figure 3-94 Select “Create a new port”, and the type of port is “Standard TCP/IP Port”.
  • Page 63 TL-WPS510U Pocket-sized Wireless Print Server Figure 3-95 Input the IP address of the print server and click Next. The windows will detect the TCP/IP Port. Please wait for the next page. Figure 3-96...
  • Page 64 TL-WPS510U Pocket-sized Wireless Print Server Figure 3-97 On the following page, select Custom and click Settings. And then on the next page, please select LPR as the Protocol and the Queue Name is lp1. Figure 3-98 The windows will ask you to install the driver of the printer. You can select one in the list or...
  • Page 65 TL-WPS510U Pocket-sized Wireless Print Server Figure 3-99 Figure 3-100...
  • Page 66 TL-WPS510U Pocket-sized Wireless Print Server Figure 3-101 After that, the new printer is in the list. And you can enjoy the sharing. Figure 3-102...

  • Page 67: Chapter 4. More Configuration For The Print Server

    TL-WPS510U Pocket-sized Wireless Print Server Chapter 4. More Configuration for the Print Server The Print Server contains an embedded web server that can be accessed through a supported web browser on a WLAN, for example, IE6, Firefox or above is recommended. The embedded web server provides access to configuration and management pages for the print server and the connected peripheral device.

  • Page 68: Status

    TL-WPS510U Pocket-sized Wireless Print Server Figure 4-3 4.2 Status The Status page shows the current information about the print server as shown in Figure 4-3. By clicking the corresponding tab, you can view the following information, including System, Printer, Wireless, and TCP/IP.

  • Page 69: System

    TL-WPS510U Pocket-sized Wireless Print Server 4.2.1 System: Figure 4-4 Print Server Name: This option allows you to view device name of the print server. To correct the print server’s device name. System Up Time: This option allows you to view uptime of the print server. When you start the print server, it will compute the print server from start time to power off time.

  • Page 70: Printer

    TL-WPS510U Pocket-sized Wireless Print Server 4.2.2 Printer: Figure 4-5 Manufacturer: This option allows you to view manufacturer of the printer. When the printer connected with the print server, it will be show in the manufacture box. Model Number: This option allows you to view model of the printer. When the printer connected with the print server, it will be show in the model box.

  • Page 71: Wireless

    TL-WPS510U Pocket-sized Wireless Print Server 4.2.3 Wireless: The Wireless Status page shows the current information of the print server. Figure 4-6 TCP/IP: Figure 4-7...

  • Page 72: Setup

    TL-WPS510U Pocket-sized Wireless Print Server Use DHCP/BOOTP: This option allows you to view DHCP/ BOOTP status. If there is a DHCP/BOOTP server on your network, this option allows the print server to obtain IP-related settings automatically from your DHCP server.

  • Page 73: Wireless Setup

    TL-WPS510U Pocket-sized Wireless Print Server E-mail Alert: This option allows you to receive alert of the device. SMTP Server IP Address: Enter the IP Address of the SMTP Server. Administrator E-mail Address: Enter the e-mail address used to receive alert.
  • Page 74 TL-WPS510U Pocket-sized Wireless Print Server Figure 4-9 Basic Settings:...

  • Page 75: Tcp/Ip Setup

    TL-WPS510U Pocket-sized Wireless Print Server Network Type: To change the WLAN type to Ad-Hoc (default) or Infrastructure. SSID: To change the SSID to connect an existing wireless network.(default: WLAN-PS) Channel: Indicates the channel setting for this print server. Transmission Rate: Select the basic transfer rates based on the speed of wireless network.

  • Page 76: Misc

    TL-WPS510U Pocket-sized Wireless Print Server IP Address: This option allows you to input IP address from the print server. The IP address must meet the IP addressing requirements of the network segment. Note: On the TCP/IP Setup screen, specify a fixed IP address is highly recommended.

  • Page 77: Restart

    TL-WPS510U Pocket-sized Wireless Print Server Figure 4-12 4.5 Restart Click OK to reboot the print server. Figure 4-13...

  • Page 78: Appendix A: How To Resset The Print Server

    Pocket-sized Wireless Print Server Appendix A: How to Resset the Print Server If you lose the connection with the TL-WPS510U by doing wrong configuration, you need to reset it to factory and reconfigure it again. Here are the steps for the resetting Unplug the power adapter of the TL-WPS510U;...

  • Page 79: Appendix B: Troubleshooting

    TL-WPS510U Pocket-sized Wireless Print Server Appendix B: Troubleshooting General Troubleshooting Overview The most common problems, which cause the print server to perform improperly, are covered in this chapter. If a problem still exists after reading this chapter, please contact your dealer for technical support.
  • Page 80 TL-WPS510U Pocket-sized Wireless Print Server Type "arp -s <print server's IP> <print server's Node ID>" to specify a new ARP entry. B. The print server's IP address is duplicated or is as same as another computer's IP address on the network.

  • Page 81: Appendix C: Frequently Asked Questions

    TL-WPS510U Pocket-sized Wireless Print Server Appendix C: Frequently Asked Questions Question A: Print jobs are sent to the print queue successfully, but fail to be sent to the printer. Possible explanations: The Print server Name/Print Queue configuration is incorrect. The Print server name specified and stored in the print server memory doesn’t match the same one.
  • Page 82 TL-WPS510U Pocket-sized Wireless Print Server Check the wireless network connection, especially from the workstation running the PSAdmin to the print server unit. Upgrade the print server again by PSAdmin or WEB browser. Question D The setup Wizard can’t find print server.

  • Page 83: Appendix D: Additional Installation Instructions

    TL-WPS510U Pocket-sized Wireless Print Server Appendix D: Additional Installation Instructions Panasonic KX-P6100/6300/6500 If you are using a Panasonic KX-P6100/6300/6500 laser printer with the print server through the Network Print Port under Windows 95/98, please redirect the printer named “Panasonic KX-P6100 PCL” or “Panasonic KX-P6300 PCL”, or “Panasonic KX-P6500 PCL” to the print server through the Network Print Port.
