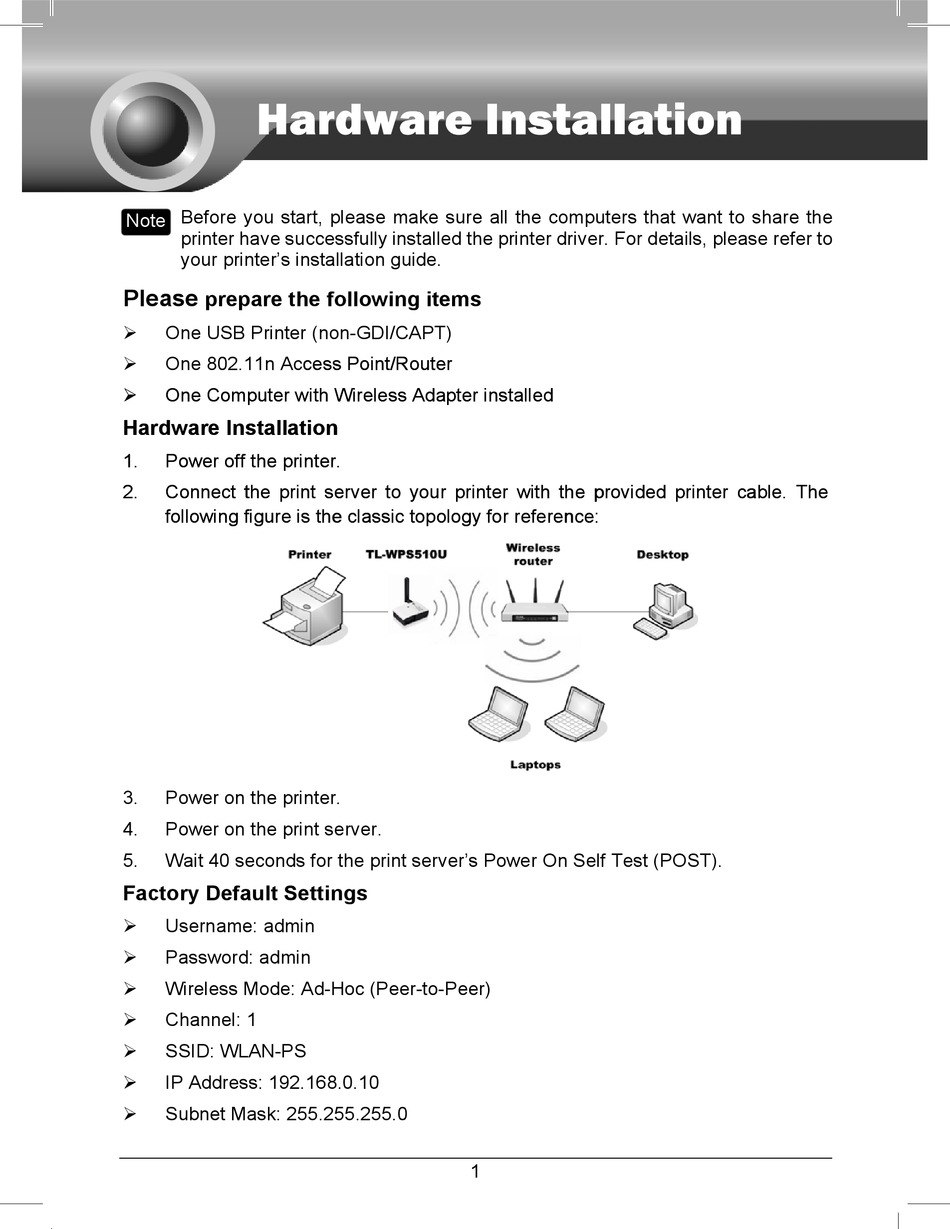

TP-Link TL-WPS510U Hardware Installation

TP-Link TL-WPS510U Hardware Installation

Hide thumbs Also See for TL-WPS510U:

Advertisement

Quick Links

Download this manual See also: User Manual
Before you start, please make sure all the computers that want to share the
Note
printer have successfully installed the printer driver. For details, please refer to
your printer's installation guide.
Please
prepare the following items
One USB Printer (non-GDI/CAPT)
One 802.11n Access Point/Router
One Computer with Wireless Adapter installed
One Computer with Wireless Adapter installed
Hardware Installation
Hardware Installation
1.
1.
Power off the printer.
Power off the printer.
2.
2.
Connect the print server to your printer with the provided printer cable. The
Connect the print server to your printer with the provided printer cable. The
following figure is the classic topology for reference:
following figure is the classic topology for reference:
3.
Power on the printer.
4.
Power on the print server.
5.
Wait 40 seconds for the print server's Power On Self Test (POST).

Factory Default Settings

Username: admin
Password: admin
Wireless Mode: Ad-Hoc (Peer-to-Peer)
Channel: 1
SSID: WLAN-PS
IP Address: 192.168.0.10
Subnet Mask: 255.255.255.0
cess Point/Router
1

Advertisement

loading

Related Manuals for TP-Link TL-WPS510U

Summary of Contents for TP-Link TL-WPS510U

  • Page 1: Factory Default Settings

    Before you start, please make sure all the computers that want to share the Note printer have successfully installed the printer driver. For details, please refer to your printer’s installation guide. Please prepare the following items One USB Printer (non-GDI/CAPT) ...
  • Page 2 The configurations are similar in Windows 7/8/Vista/XP. Here we take Note Windows 7 for example. For MAC OS, please refer to the User Guide, which you can download from http://www.tp-link.com/en/Support/download. Establishing a Print Server Network Please make sure your computer has installed a Wireless Adapter and you Note router’s DHCP feature is enabled...
  • Page 3 Make sure you have installed the printer driver, and click Continue Select your wireless router to connect to the print server Click Next If your wireless router is secured, the Input Key window will prompt. Enter and confirm the network key Click Connect...
  • Page 4 Select your print server Click Next If you can’t find the print server in the list, please check whether its Powe r Note LED is on (red). If the Power LED is on and the print server still doesn’t appear, please reset it. For the reset method, please refer to the Troubleshooting of this Guide.
  • Page 5 Select the printer you have connected to your print server Click Next Click Finish Now, the computer can use the printer via the print server. Joining the Print Server Network If another computer wants to join the print server network to share the printer, please follow the steps bellow.
  • Page 6 CD drive, the Setup Wizard will automatically pop up on your computer’s screen. Select TL-WPS510U If you don’t have a CD-ROM, you can log onto our website Note http://www.tp-link.com/en/Support/download to download the setup wizard PrintServer_Setup_Wizard. Click Setup Wizard Click Next...
  • Page 7 Select your print server Click Next Select No, I don’t want to change settings. (O) Click Next Select your printer Click Next...
  • Page 8 Click Next Click Finish Now, the computer has successfully joined the print server network, and it can use the printer via the print server as well.

  • Page 9: Troubleshooting

    1. Unplug the power adapter of TL-WPS510U; 2. Press and hold the Reset button on TL-WPS510U; 3. Plug in the power adapter of TL-WPS510U and continue pressing the Reset button for about 10 seconds. 4. Release the Reset button and wait for the WLAN LED (green) to flash.

  • Page 10: Technical Support

    Service time: Monday to Friday, 09:00 to Tel: NZ 0800 87 5465 (Toll Free) 18:00 *Except French Bank holidays AU 1300 87 5465 (Depending on 1300 policy.) E-mail: support.au@tp-link.com (Australia) Switzerland support.nz@tp-link.com (New Zealand) Tel: +41 (0) 848 800 998 (German Service)
