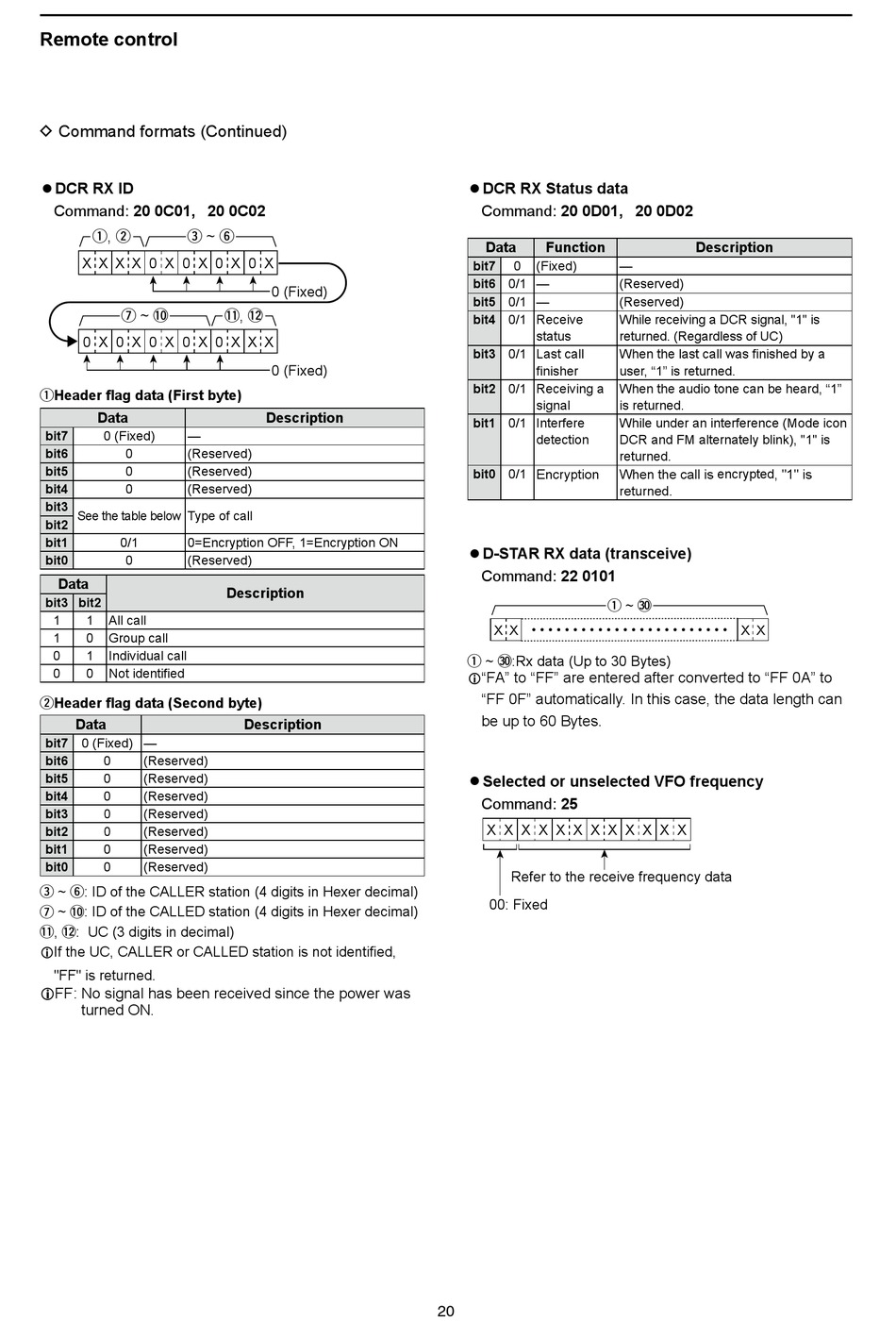

Remote control
D Command formats (Continued)
DCR RX ID
Command: 20 0C01, 20 0C02
e ~ y
q, w
X X
X X
0 X 0 X
u ~ !0
0 X
0 X
0 X 0 X
qHeader flag data (First byte)
Data
bit7
0 (Fixed)
—
bit6
0
(Reserved)
bit5
0
(Reserved)
bit4
0
(Reserved)
bit3
See the table below Type of call
bit2
bit1
0/1
0=Encryption OFF, 1=Encryption ON
bit0
0
(Reserved)
Data
bit3 bit2
1
1
All call
1
0
Group call
0
1
Individual call
0
0
Not identified
wHeader flag data (Second byte)
Data
bit7 0 (Fixed) —
bit6
0
(Reserved)
bit5
0
(Reserved)
bit4
0
(Reserved)
bit3
0
(Reserved)
bit2
0
(Reserved)
bit1
0
(Reserved)
bit0
0
(Reserved)
e ~ y: ID of the CALLER station (4 digits in Hexer decimal)
u ~ !0 : ID of the CALLED station (4 digits in Hexer decimal)
!1 , !2 : UC (3 digits in decimal)
L If the UC, CALLER or CALLED station is not identified,
"FF" is returned.
LFF: No signal has been received since the power was
turned ON.
0 X
0 X
0 (Fixed)
!1 , !2
0 X
X X
0 (Fixed)
Description
Description
Description
DCR RX Status data
Command: 20 0D01, 20 0D02
Data
Function
bit7
0
(Fixed)
bit6 0/1 —
bit5 0/1 —
bit4 0/1 Receive
status
bit3 0/1 Last call
finisher
bit2 0/1 Receiving a
signal
bit1 0/1 Interfere
detection
bit0 0/1 Encryption
D-STAR RX data (transceive)
Command: 22 0101
• • • • • • • • • • • • • • • • • • • • • • • • X X
X X
q ~ #0 : Rx data (Up to 30 Bytes)
"FA" to "FF" are entered after converted to "FF 0A" to
L
"FF 0F" automatically. In this case, the data length can
be up to 60 Bytes.
Selected or unselected VFO frequency
Command: 25
X X X X X X X X X X X X
Refer to the receive frequency data
00: Fixed
20
Description
—
(Reserved)
(Reserved)
While receiving a DCR signal, "1" is
returned. (Regardless of UC)
When the last call was finished by a
user, "1" is returned.
When the audio tone can be heard, "1"
is returned.
While under an interference (Mode icon
DCR and FM alternately blink), "1" is
returned.
When the call is encrypted , "1" is
returned.
q ~ #0
