THE PERFECT FIT
IQ Rear Suspension Adjustments
Torsion Spring Preload

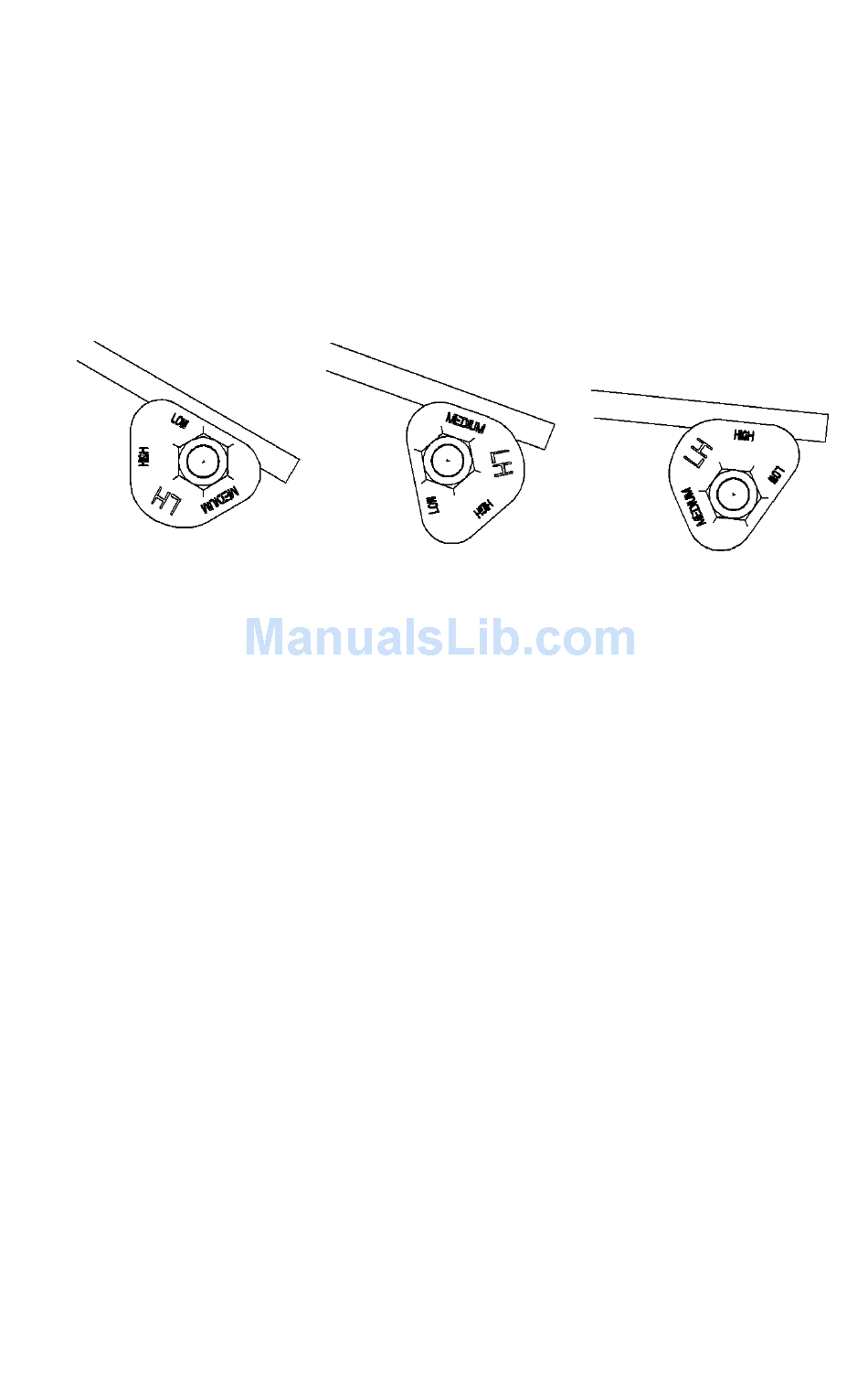

To adjust rear torsion spring preload, rotate the three-position cam using
the engine spark plug tool. Adjustment is easiest when the cam is
rotated from low to medium, and then to high. Rotating directly from
low to high will require significantly more effort.
Different rate torsion springs are available if a firmer ride is desired. See
your dealer for more information.
Soft
Medium
Firm
Suspension Coupling
On all Polaris snowmobile rear suspensions, there are two torque arms
that control the movement of the rail beam. Prior to the advent of sus-
pension coupling, these torque arms could move independently of each
other. Rear suspension coupling links the movement of the front and
rear torque arms to each other. There are two types of rear suspension
coupling.
59
