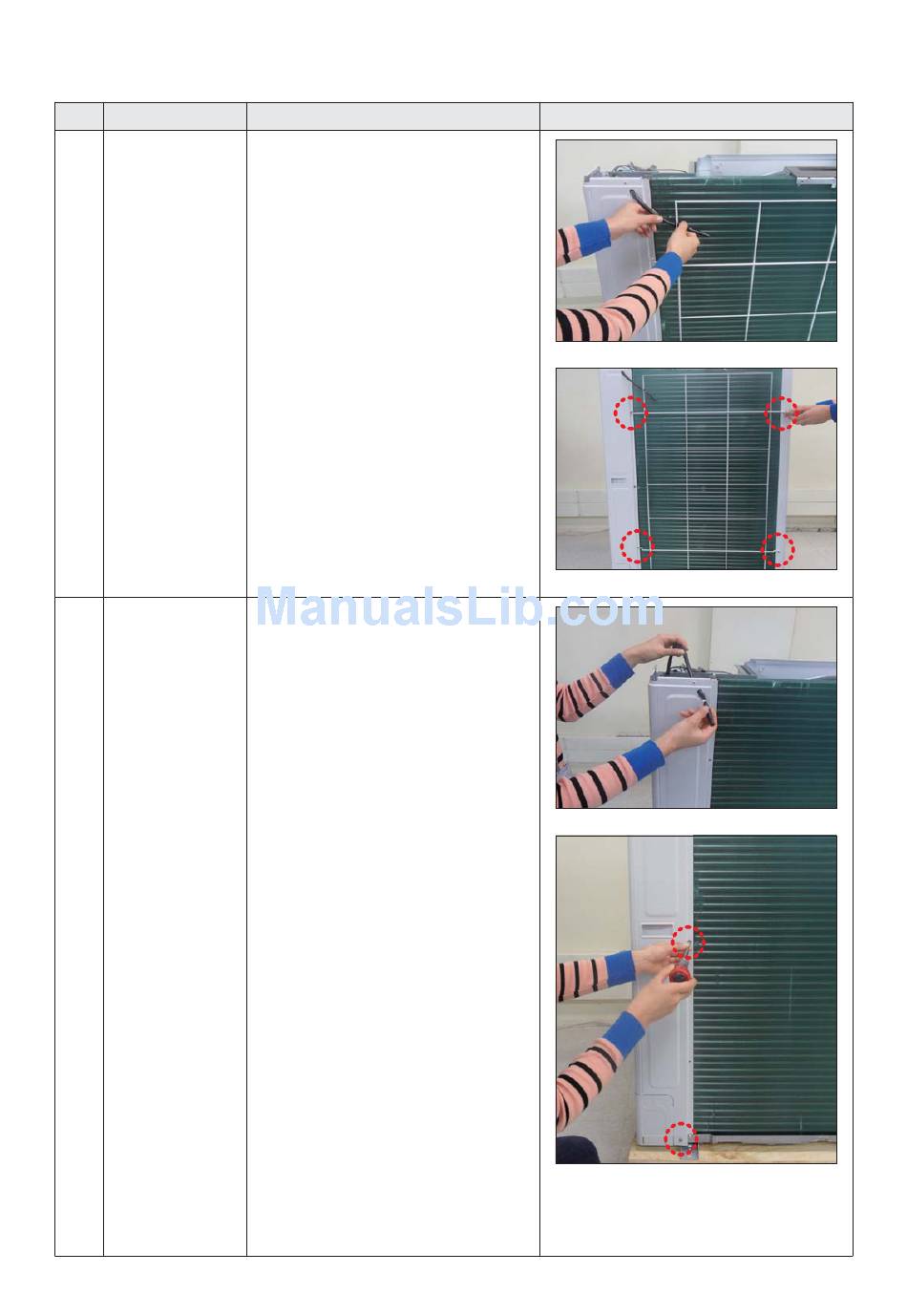

No. Parts
4 Outdoor Unit Guard
5 Cabinet Rear RH
Procedure
1) Pull out the sensor from the Outdoor Unit
Guard and separate it.
2) Remove the 4 screws which is fixed to
Outdoor Unit Guard and separate it. (Use +
Screw Driver)
1) Pull out the sensor from the Cabinet Rear RH
and separate it.
2) Remove the 4 screws which is fixed to each
side of Cabinet Rear RH and separate it.(Use +
Screw Driver)
3-21
Disassembly and Reassembly
Remark
