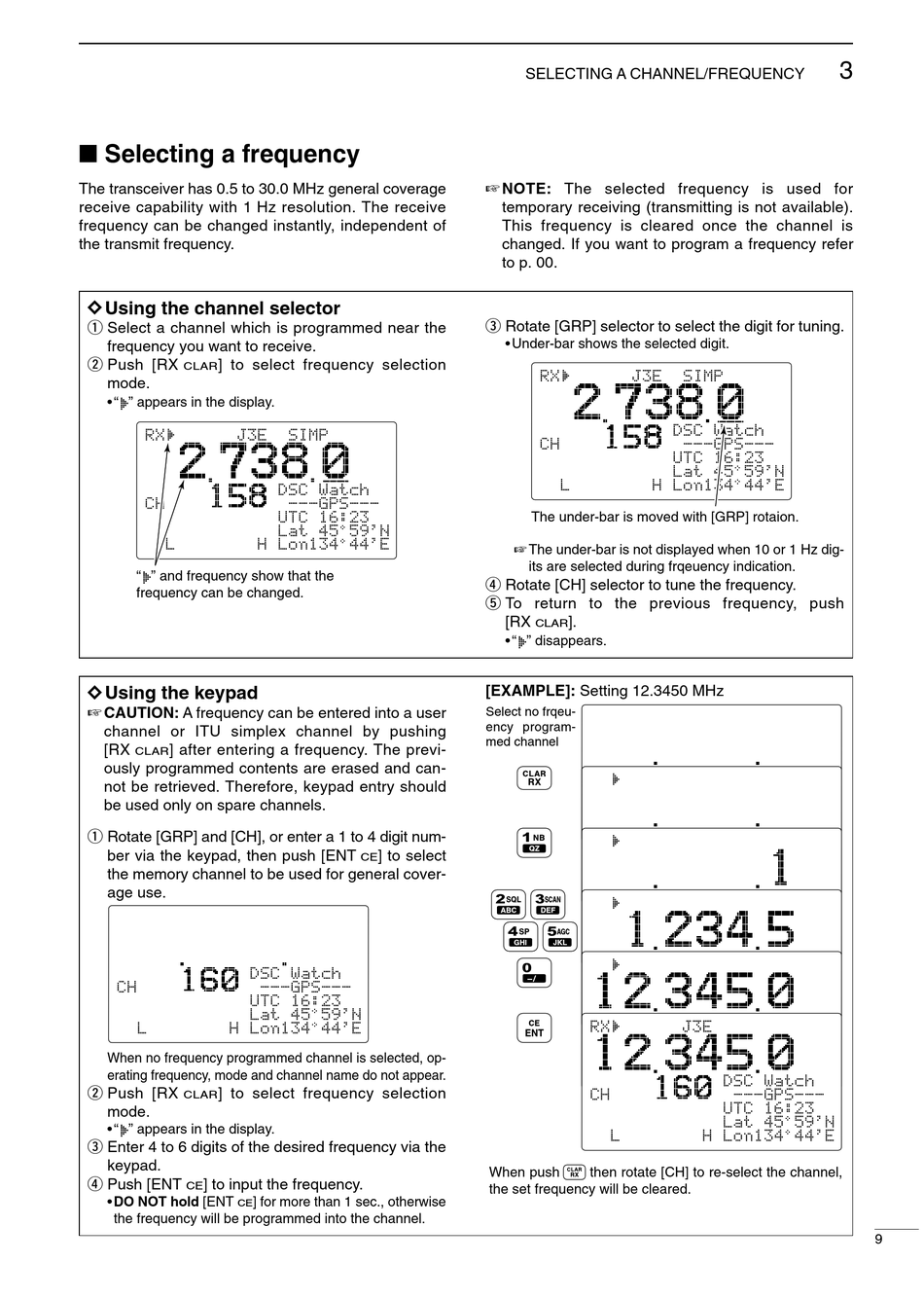

I Selecting a frequency

The transceiver has 0.5 to 30.0 MHz general coverage
receive capability with 1 Hz resolution. The receive
frequency can be changed instantly, independent of
the transmit frequency.
D D Using the channel selector
q Select a channel which is programmed near the
frequency you want to receive.
w Push [RX
] to select frequency selection
CLAR
mode.
• "å" appears in the display.
R X å J 3 E
C H
L
"å" and frequency show that the
frequency can be changed.
D D Using the keypad
CAUTION: A frequency can be entered into a user
channel or ITU simplex channel by pushing
[RX ] after entering a frequency. The previ-
CLAR
ously programmed contents are erased and can-
not be retrieved. Therefore, keypad entry should
be used only on spare channels.
q Rotate [GRP] and [CH], or enter a 1 to 4 digit num-
ber via the keypad, then push [ENT
the memory channel to be used for general cover-
age use.
D S C W a t c h
C H
U T C 1 6 : 2 3
L a t 4 5 5 9 ' N
L H L o n 1 3 4 4 4 ' E
When no frequency programmed channel is selected, op-
erating frequency, mode and channel name do not appear.
w Push [RX
] to select frequency selection
CLAR
mode.
• "å" appears in the display.
e Enter 4 to 6 digits of the desired frequency via the
keypad.
r Push [ENT
] to input the frequency.
CE
• DO NOT hold [ENT
CE
the frequency will be programmed into the channel.
S I M P
D S C W a t c h
- - - G P S - - -
U T C 1 6 : 2 3
L a t 4 5 5 9 ' N
H L o n 1 3 4 4 4 ' E
] to select
CE
- - - G P S - - -
] for more than 1 sec., otherwise
SELECTING A CHANNEL/FREQUENCY
NOTE: The selected frequency is used for
temporary receiving (transmitting is not available).
This frequency is cleared once the channel is
changed. If you want to program a frequency refer
to p. 00.
e Rotate [GRP] selector to select the digit for tuning.
• Under-bar shows the selected digit.
R X å J 3 E
C H
L H
The under-bar is moved with [GRP] rotaion.
The under-bar is not displayed when 10 or 1 Hz dig-
its are selected during frqeuency indication.
r Rotate [CH] selector to tune the frequency.
t To return to the previous frequency, push
[RX ].
CLAR
• "å" disappears.
[EXAMPLE]: Setting 12.3450 MHz
Select no frqeu-
ency program-
med channel
å
å
å
å
R X å
C H
L
When push then rotate [CH] to re-select the channel,
the set frequency will be cleared.
3
S I M P
D S C W a t c h
- - - G P S - - -
U T C 1 6 : 2 3
L a t 4 5 5 9 ' N
L o n 1 3 4 4 4 ' E
J 3 E
D S C W a t c h
- - - G P S - - -
U T C 1 6 : 2 3
L a t 4 5 5 9 ' N
H L o n 1 3 4 4 4 ' E
