Amana AVPTC 24B14A Series Manual

Product Features
• Internal factory-installed thermal expansion
valves for cooling and heat pump applications
• Variable-speed ECM blower motor
• ComfortNet™ Communicating System compatible
• Auto configuration of the airflow
and tonnage in communicating mode
• Provides constant CFM over a wide range of static
pressure conditions independent of duct system
• CFM indicator
• Fault recall of six most recent faults
• Provides adjustable low CFM for
efficient fan-only operation
• Improved humidity and comfort control
• Built-in compatibility with multi-stage heat pump
and cooling applications
• All-aluminum evaporator coil
• 3 kW - 25 kW electric heater kits
• AHRI certified; ETL listed
SS-AAVPTC
Amana® is a trademark of Maytag Corporation or its related companies and used under license to Goodman Company, L.P., Houston, Texas.
• Rigid SmartFrame™ cabinet
• Cabinet air leakage less than 2.0% at 1.0 inch
H₂O when tested in accordance with ASHRAE
standard 193
• Cabinet air leakage less than 1.4% at 0.5 inch
H₂O when tested in accordance with ASHRAE
standard 193
• Horizontal or vertical configuration capabilities
• 21" depth for easier attic access
• DecaBDE-free thermoplastic drain
pan with secondary drain connections
• Screw-less sides and back helps to reduce
condensation when installed in humid locations
• Foil-faced insulation covers the internal
casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Glue-less cabinet insulation retention
• Tool-less filter access
* Complete warranty details available from your local dealer or at www.amana-hac.com. To receive the 10-Year Parts
Limited Warranty, online registration must be completed within 60 days of installation. Online registration is not
required in California or Québec.
www.amana-hac.com

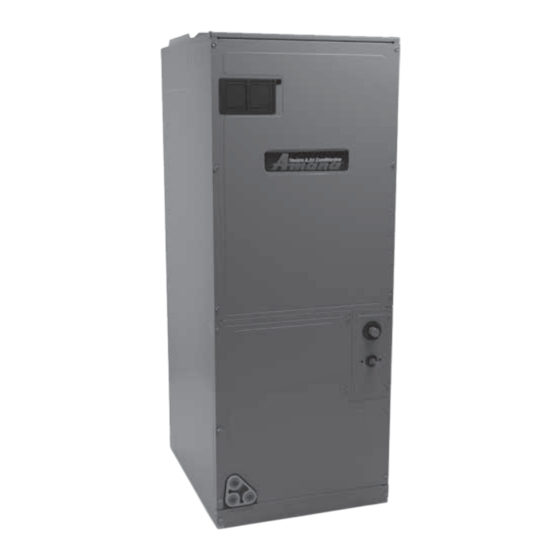

Multi-Position, Variable-Speed,
ECM-Based Air Handler
with Internal TXV
ComfortNet™ Compatible
Contents
Air Handler Nomenclature .................... 2
Heater Kit Nomenclature ...................... 2
Product Specifications ........................... 3
Dimensions ............................................ 4
Airflow Data ........................................... 5
Heat Kit Data ........................................ 10
Wiring Diagram .................................... 13
Accessories .......................................... 15
AVPTC
1½ to 5 Tons
5/16
Supersedes 7/15
