Summary of Contents for Datavideo DAC-91
- Page 1 SDI AUDIO EMBEDDER DAC-91 Instruction Manual w w w . d a t a v i d e o . c o m...
-
Page 2: Table Of Contents
SERVICE & SUPPORT ..................16 Disclaimer of Product and Services The information offered in this instruction manual is intended as a guide only. At all times, Datavideo Technologies will try to give correct, complete and suitable information. However, Datavideo Technologies cannot exclude that some information in this manual, from time to time, may not be correct or may be incomplete. -
Page 3: Fcc Compliance Statement
This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company. - Page 4 Never push objects of any kind into this unit through the cabinet ventilation slots, as they may touch dangerous voltage points or short out parts that could result in risk of fire or electric shock. Never spill liquid of any kind onto or into this unit. Except as specifically explained elsewhere in this manual, do not attempt to service this product yourself.
-
Page 5: Warranty
• Your statutory rights are not affected. Three Year Warranty All Datavideo products purchased after July 1st, 2017 are qualified for a • free two years extension to the standard warranty, providing the product is registered with Datavideo within 30 days of purchase. -
Page 6: Disposal
Waste Electrical and Electronic Equipment. For more detailed information about the recycling of this product, please contact your local Datavideo office. is the symbol as shown on the left of CE Marking this page. The letters "CE" are the abbreviation of French phrase "Conformité... -
Page 7: Introduction

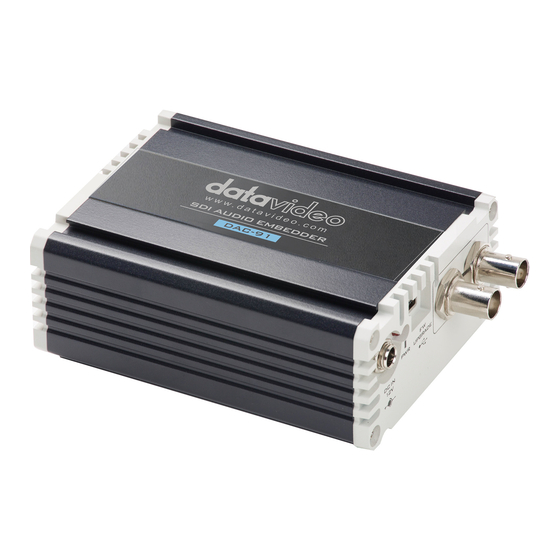

Introduction DAC-91 is an SDI Audio Embedder that allows the user to embed 2 channels of mixed analog audio signals into the SDI video signal. It features 3G/HD/SD-SDI to support up to 1080p/60 video format, and automatically detects and switches between different formats. In addition, mini XLR and RCA audio connectors are provided as inputs for analog audio with left mini XLR and RCA mixed to CH1 and right mini XLR and RCA mixed to CH2. -
Page 8: Connections & Controls
Connections & Controls Front Panel DC In Socket Connects the supplied 12V PSU to this socket. The connection can be secured by screwing the outer fastening ring of the DC In plug to the socket. Power Indicator Indicates the power status SDI OUT Video and Audio output from SDI Firmware Upgrade... -
Page 9: Rear Panel
Rear Panel SDI IN SDI input for video and audio Mini-XLR Balanced XLR audio input channel x 2 Unbalanced RCA audio input channel x 2 Audio Level Indicator LED color and the corresponding audio level Green Yellow -45~-40 -39~-35 -34~-29 -28~-24 -23~-18 -17~-13 -12~-8 -7~0 (Unit : dBFS) 4 PIN DIP Switch Audio level adjustment... -
Page 10: Firmware Update
Disconnect DC 12V Power Supply from DAC-91 Set DIP SW2-4 to 110 (1: down; 0: up) Connect the DAC-91 mini-USB port to the PC via a USB cable Reconnect DC 12V Power Supply to DAC-91 The PC will detect the USB device once the DC 12V Power is connected. - Page 11 Make sure the device is safely removed Set DIP SW 2-4 to a combination other than 110 or 111, for example 000 (1: down; 0: up) To complete the update, remove the USB cable connection and disconnect the DC 12V Power Supply...
-
Page 12: Firmware 2 Update Procedure (Client)
Disconnect DC 12V Power Supply from DAC-91 Set DIP SW2-4 to 111 (1: down; 0: up) Connect the DAC-91 mini-USB port to the PC via a USB cable Reconnect DC 12V Power Supply to DAC-91 The PC will detect the USB device once the DC 12V Power is connected. - Page 13 Set DIP SW 2-4 to a combination other than 110 or 111, for example 000 (1: down; 0: up) To complete the update, remove the USB cable connection and disconnect the DC 12V Power Supply...
-
Page 14: Frequently-Asked Questions
Frequently-Asked Questions This section describes problems that you may encounter while using DAC-91. If you have questions, please refer to related sections and follow all the suggested solutions. If problem still exists, please contact your distributor or the service center. -
Page 15: Specifications
Specifications Interface SDI Video Input 3G/HD/SD SDI x 1 SDI Video Output 3G/HD/SD SDI x 2 Mini XLR (balanced) x 2, RCA (unbalanced) x 2 Analog Audio Input * Mini XLR1 & RCA1 mixed to CH1 * Mini XLR2 & RCA2 mixed to CH2 Power LED x 1 Indicator Audio LED : 2 rows... -
Page 16: Dimensions
Dimensions All measurements in mm Unboxed Unit Weight: Kg Boxed Unit Weight: Kg... -
Page 17: Service & Support
It is our goal to make your products ownership a satisfying experience. Our supporting staff is available to assist you in setting up and operating your system. Please refer to our web site www.datavideo.com for answers to DATAVIDEO WORLDWIDE OFFICES common questions, support requests or contact your local office below.
