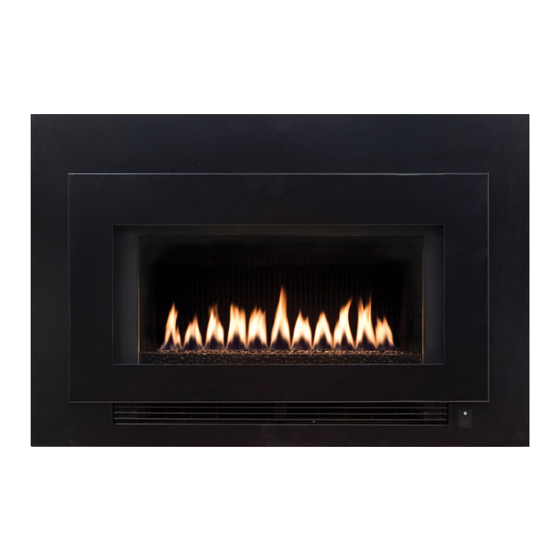

    Installation guide Symmetry Models: RDV3611ETRN / RDV3611ETRL...
  • Page 2 Appliance, including flue, is installed after framing and before cladding. Rinnai strongly recommend the appliance is fully tested BEFORE any material is applied. Appliance must be installed with a Rinnai approved flue system. This appliance shall be installed in accordance with: Manufacturer’s installation instructions...
  • Page 3: Table Of Contents

    Specification ...............4 Gas supply ..............5 Electrical supply ............5 Framing dimensions ...........6 Clearances from combustibles ........7 TV installation .............9 Installation overview ..........10 Mounting bracket installation ........11 Installing the Symmetry and fixing to the frame ..12 Flue restrictor installation ..........13 Log set installation .............14 Test pressures .............16 Flame pattern .............17 Cladding ..............18...
  • Page 4: Specification

    Maximum flue height is 5.4 m. gas fireplace with a glass front and Appliance must be installed with a convection fan (top discharge). Rinnai flue system. Smaller rooms will heat up quickly, Operated with a remote control and due to the efficiency of the (7-day programmable timer).
  • Page 5: Gas Supply

    If the supply cord is damaged, it must be replaced by a licensed tradesperson. This must be a genuine replacement part available from Rinnai, part number 6765B. * Consult a qualified electrician if direct wiring is required as it must comply with AS/NZS 5601.1 and AS/NZS 3000 and other relevant local regulations.
  • Page 6: Framing Dimensions

    Framing dimensions Enclosure dimensions W-width 1100-1125 mm* H-height 850 mm min. D-depth 540 mm min. S - side clearance * If installing a Symmetry heat transfer kit allow for an additional 250 mm side clearance per kit. For example if one kit is being installed the width would need to be 1350-1375 mm.
  • Page 7: Clearances From Combustibles

    Clearances from combustibles The clearances listed below, measured from the edge of the inner glass, are minimum clearances unless otherwise stated. While the heater is operating The appliance must not be installed where curtains or other combustible materials could come into contact with the heater. The 1000 mm clearance above is the clearance to a ceiling.
  • Page 8 The below diagram is to assist people who are determining the clearance area around the Symmetry without having the unit on site. Symmetry 3611 1700 mm Minimum to ceiling Minimum above fire 400 mm 900 mm 400 mm Clearance Glass width Clearance 8 | RDV3611 installation guide: 11156-E 05-16...
  • Page 9: Tv Installation

    TV installation with the TV manufacturer—some have warranty conditions that state a TV is not to be installed above a fireplace. Rinnai does not accept any responsibility for damage to a TV resulting from the use of this information. 400 mm...
  • Page 10: Installation Overview

    Must be installed by a certified gas fitter in accordance with all applicable local rules and regulations The Rinnai Symmetry RDV3611 LPG appliance is factory supplied, with rated input of 30MJ/hr for installation for Horizontal Vent Terminations only. To ensure that optimum Flame Effect and Maximum Energy Efficiency is obtained when the unit is being installed with a Vertical Vent Termination the appliance must be up rated to 33MJ/hr by installing this Kit.
  • Page 11: Mounting Bracket Installation

    Mounting bracket installation Install the four mounting brackets supplied onto the unit. The position of the thickness will depend on the cladding thickness and the type of installation (framed or frameless). The Symmetry can be installed with granite and metal frames, and also as a frameless installation. The frameless installation can have brick, rock veneer, or tiles—these will sit tight up against the framing plate of the fire.
  • Page 12: Installing The Symmetry And Fixing To The Frame

    Installing the Symmetry and fixing to the frame The Symmetry comes pre-assembled with the burner already in position. For all installations the unit MUST BE positioned on a level surface 1. Position the unit inside the cavity. 2. Bend and secure the two metal standoffs supplied with the unit into position on top of the unit.
  • Page 13: Flue Restrictor Installation

    Flue restrictor installation The flue restrictor works by limiting the amount of air required for combustion. The higher the flue, the more the air is circulated. This can affect the performance of the fire. Different flue configurations require different positioning of the flue restrictor—refer to p.
  • Page 14: Log Set Installation

    Log set installation The log set is packaged separately and consists of five log pieces and three moulded rocks. Use extreme care when handling the log pieces, they are made from fragile material and will damage easily. Use these instructions in conjunction with the log location guide, which is attached to the engine.
  • Page 15 3. Fit the front middle left log (whale tail in the front) into the back flat section of the burner, and swing over so that it slots on top of the front base left log. 4. Place the y-shaped log securely in the back recess of the burner (there is a cutout in the log and in the back of the burner)—it will...
  • Page 16: Test Pressures

    Test pressures If installing an LPG unit with a vertical flue termination, the appliance must be uprated to 33 MJ/h using the uprating kit and instructions supplied with the unit. To check and set the burner pressures 1. Turn on the gas and power supply to the unit. 2.
  • Page 17: Flame Pattern

    It is the responsibility of the installer to check that under normal conditions of the appliance, all flue gases are exhausted to the outside atmosphere and that there is no spillage of combustion gases into the room. If the appliance cannot be made to perform correctly please contact Rinnai. Normal flame pattern Abnormal flame pattern...
  • Page 18: Cladding

    Cladding When installing the cladding ensure it is installed up to the flange and not over it. Any overhang will affect performance of the appliance and cause an unsafe situation. Cladding MUST NOT extend lower than the cladding support bracket. WARNING Enclosure framework...
  • Page 19: Fitting The Frames And Dress Guard

    Fitting the frames and dress guard Before fitting the frames and dress guard (optional accessory), ensure the glass front is secured in place. It is critical when fitting the glass front that you WARNING double check that it is not scratched or damaged in any way, and that you have checked the gasket.
  • Page 20: Wiring Diagram

    Wiring diagram (11652-A) AC 230V -240V 50 Hz (BROWN) (BROWN) (BLACK) (BLACK) (RED) (RED) (BROWN) (BROWN) (WHITE) (BLUE) (RED) (YELLOW) CABLE CAT 5 20 | RDV3611 installation guide: 11156-E 05-16...
  • Page 21 Symmetry flueing...
  • Page 22: General Flueing Guidelines

    The Symmetry RDV3611 must be installed with an approved flue system, approved components are shown in this guide. Flue clearance to combustibles The Rinnai Symmetry RDV3611 flue is made up of an inner flue with a protective outer flue 70 mm air space (heat shield).
  • Page 23 Supporting the flue is usually completed during the framing stage with flue supports or straps within the cavity. Wall straps have been included in the Rinnai Vertical Flue Kits. Elbow straps are also available as a separate Self-supporting flue using a wall strap component to prevent excess weight on the flue elbow.
  • Page 24: Flueing Options

    Flueing options vertical termination Max. Max. 5.4m 5.4 m Restrictor Restrictor position # 2 position # 2 4.2 m 4.2 m Restrictor Restrictor position # 3 position # 3 3.0 m 3.0 m Restrictor Restrictor position # 4 position # 4 1.8 m 1.8 m restrictor...
  • Page 25: Horizontal Termination

    Flueing options horizontal termination For example: Max. 1.2 m Vertical flue: 5.0 m (6.03-5.0) � 0.52 Max. Max horiz. flue: 2.0 m 5.4 m Restrictor position # 3 Restrictor position # 3 4.2 m Restrictor position # 4 2.4 m No restrictor For example: Vertical flue:...
  • Page 26: Symmetry Rdv3611 Flue Kits

    Symmetry RDV3611 flue kits Symmetry RDV3611 flue kits have been based on the flue configurations shown. If you have a combined vertical and horizontal flue configuration you can order separate components to suit. RDV3611 Flue Kit Horizontal (short, R3660) RDV3611 Flue Kit Vertical 1.
  • Page 27: Symmetry Rdv3611 Horizontal Flue Kits

    Symmetry RDV3611 horizontal flue kits The following diagram explains the components, dimensions (mm), and appropriate flue kits available for differing horizontal flue installations. Refer to the table below to calculate what flue pipe length and/or kit you may need. RDV3611 Short Horiz. Flue Kit A (R3660) RDV3611 Long Horiz.
  • Page 28: Symmetry Rdv3611 Flue Components

    Symmetry RDV3611 flue components RDV3611 flue pipes Flue extension Roof cowl 150 mm: R3630 75-175 mm: R3638 Code: R3651 230 mm: R3631 75-360 mm: R3639 300 mm: R3632 Aluminium flue terminal required 450 mm: R3633 Used for extended straight lengths for all vertical flue installations.
  • Page 29 Horizontal flashing kit Wall strap Elbow strap Code: R3647 Code: R3644 Code: R3646 Adjustable strap used in interior/ Flue support for elbow and Flashing components used to join exterior installations to add lateral offsets. the internal flue to the outside support to the flue.
  • Page 30: Horizontal Termination Example

    Horizontal termination example flue components required 1. Flue pipe 900 mm (R3635) 2. Wall strap (R3647) 3. 90 º bend (R3643) 4. Flue pipe* 5. Horiz. flashing kit (R3646) 6. Horiz. wall terminal (R3650) * Size of flue pipe will depend on the installation.
  • Page 31: Vertical Termination Example

    Vertical termination example flue components required 1. Flue pipe 150 mm (R3630) 2. Flue pipe 1200 mm (R3636) 3. Wall strap (R3647) 4. Roof cowl (R3651) Symmetry RDV3611 540 mm min. RDV3611 installation guide: 11156-E 05-16 | 31...
  • Page 32 Experience our innovation Rinnai.co.nz 0800 746 624 http://www.youtube.com/rinnainz http://www.facebook.com/rinnainz Symmetry RDV3611 installation guide: 11156-E 05-16...
