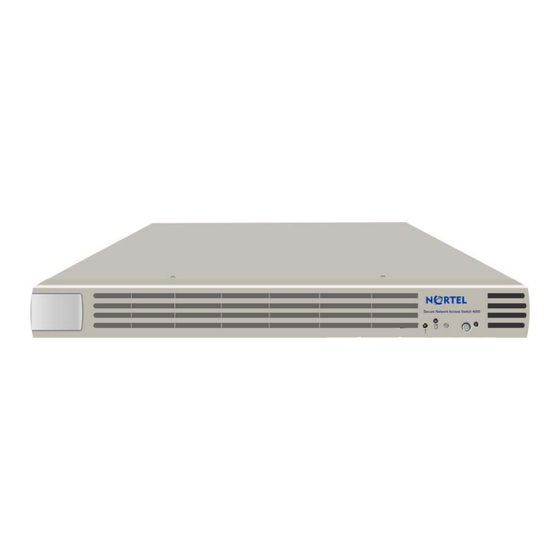

Nortel 4050 Installation Manual

Nortel 4050 Installation Manual

Secure network access switch
Hide thumbs Also See for 4050:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Nortel Secure Network Access
Switch 4050 Installation Guide
*320846-A*
Part No. 320846-A
December 2005
4655 Great America Parkway
Santa Clara, CA 95054

Advertisement

Table of Contents
loading

Related Manuals for Nortel 4050

Summary of Contents for Nortel 4050

  • Page 1 Part No. 320846-A December 2005 4655 Great America Parkway Santa Clara, CA 95054 Nortel Secure Network Access Switch 4050 Installation Guide *320846-A*...

  • Page 2: Restricted Rights Legend

    In the interest of improving internal design, operational function, and/or reliability, Nortel Networks reserves the right to make changes to the products described in this document without notice. Nortel Networks does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.

  • Page 3: International Regulatory Statements Of Conformity

    CE marking statement (Europe only) EN 55 022 statements This is to certify that the Nortel Secure Network Access Switch 4050 is shielded against the generation of radio interference in accordance with the application of Council Directive 89/336/EEC. Conformity is declared by the application of EN 55 022 Class A (CISPR 22).

  • Page 4: National Safety Statements Of Compliance

    EN 60 950 statement This is to certify that the Nortel Secure Network Access Switch 4050 is in compliance with the requirements of EN 60 950 in accordance with the Low Voltage Directive. Additional national differences for all European Union countries have been evaluated for compliance.
  • Page 5 NOM statement Nortel Secure Network Access Switch 4050 (Mexico only) The following information is provided on the devices described in this document in compliance with the safety requirements of the Norma Oficial Méxicana (NOM): Exporter: Nortel Networks 600 Technology Park Drive...
  • Page 6 320846-A...

  • Page 7: Table Of Contents

    Troubleshooting installation ..........31 Nortel Secure Network Access Switch 4050 Installation Guide...
  • Page 8 Contents Appendix A Specifications..........33 Hardware and power supply specifications .

  • Page 9: Preface

    Adequate space at the front and rear of the switch for access to cables If you are installing a single Nortel Secure Network Access Switch 4050 on a table or shelf, ensure that the surface can support at least 15 to 20 pounds (7 to 9 kilograms).

  • Page 10: Text Conventions

    Preface Text conventions This guide uses the following text conventions: angle brackets < > Indicate that you choose the text to enter based on the description inside the brackets. Do not type the brackets when entering the command. Example: If the command syntax is , you enter ping <ip_address>...

  • Page 11: Hard-Copy Technical Manuals

    Hard-copy technical manuals To access Nortel technical documentation online, open your browser and go to the Nortel Web site at www.nortel.com/support. You can download and print technical manuals and release notes directly from the Nortel web site. Use Adobe* Reader* to open the manuals and release notes, search for the sections you need, and print them on most standard printers.

  • Page 12: How To Get Help

    Preface How to get help If you purchased a service contract for your Nortel product from a distributor or authorized reseller, contact the technical support staff for that distributor or reseller for assistance. If you purchased a Nortel service program, use the www.nortel.com/support...
  • Page 13 Setup menu ..........30 Nortel Secure Network Access Switch 4050 Installation Guide...
  • Page 14 Figures 320846-A...
  • Page 15 Certification marks ......... . 36 Nortel Secure Network Access Switch 4050 Installation Guide...
  • Page 16 Tables 320846-A...

  • Page 17: Overview

    This chapter covers the following topics: Topic Page Installation package contents Switch physical features Installation package contents Table 1 lists the contents of the Nortel Secure Network Access Switch 4050 installation package. Table 1 Package contents Item Purpose North American power cord To meet North American power specifications.

  • Page 18: Switch Physical Features

    Chapter 1 Overview Switch physical features The Nortel Secure Network Access Switch 4050 front panel has buttons and indicators for normal operation. The front panel bezel is removable for access to the CD drive. The switch rear panel has port and power supply access.

  • Page 19: Figure 2 Bezel Removal

    Remove the bezel from the faceplate. Figure 2 Bezel removal Figure 3 shows the front panel without the bezel. Figure 3 Front panel view without bezel CD Drive Face plate LEDs and buttons USB Connectors Nortel Secure Network Access Switch 4050 Installation Guide...

  • Page 20: Figure 4 Bezel Attachment

    Chapter 1 Overview Attaching the front panel bezel Attach the bezel for normal operation. To attach the bezel, follow these steps: Align the bezel on the faceplate slightly to the right of the front panel. With the release flap open, engage the bezel onto the track and slide it to the left until it locks into place (Figure Close the release flap.

  • Page 21: Rear Panel

    Chapter 1 Overview Rear panel Figure 5 shows the Nortel Secure Network Access Switch 4050 rear panel view. Table 3 describes rear panel features. Figure 5 Rear panel view Console Port Power supply fan AC Power socket Port 1 Power switch...

  • Page 22: Table 4 Ports 1 And 2 Led Status Indicators

    Chapter 1 Overview Table 4 explains LED status indicators for ports 1 and 2. Table 5 explains LED status indicators for ports 3 and 4. Table 4 Ports 1 and 2 LED status indicators Port speed Left LED Right LED Status 10 Mb/s Green flashing Port operates at 10 Mb/s.
  • Page 23 Right LED Status All speeds Flashing Port is sending or receiving network data. Flash frequency varies with the amount of network traffic. All speeds Off One or more above conditions is not met. Nortel Secure Network Access Switch 4050 Installation Guide...
  • Page 24 Chapter 1 Overview 320846-A...

  • Page 25: Installation Process

    Ventilation safety The ambient temperature of an operating Nortel Secure Network Access Switch 4050 must not exceed 35ºC. When installing the device in a closed or multi-unit rack assembly, please consider that the operating ambient temperature of the equipment can be higher than the ambient temperature of the room. Take appropriate steps to ensure that the device does not overheat.

  • Page 26: Electrical Safety

    • Power cords at plugs, convenience receptacles, and points of exit from the Nortel Secure Network Access Switch 4050 are carefully positioned. Mechanical safety Caution: When mounting this device in a rack, do not stack units directly on top of one another in the rack.

  • Page 27: Installing The Switch In A Rack

    Chapter 2 Installation Process Installing the switch in a rack Install the Nortel Secure Network Access Switch 4050 in a rack using the four supplied rack mount screws. For rack installation, mounting brackets are shipped attached to the front of the unit.

  • Page 28: Supplying Power To The Switch

    OFF. Setting up terminal access to the switch The Nortel Secure Network Access Switch 4050 has a console port for system diagnostics and configuration. This section explains how to connect a terminal to the console port in order to establish a first console connection.

  • Page 29: Terminal Requirements

    Chapter 2 Installation Process Terminal requirements To establish a connection with a Nortel Secure Network Access Switch 4050, the following requirements are necessary: • An ASCII terminal or a computer running ASCII terminal emulation software with the parameters shown in...

  • Page 30: Establishing A Console Connection

    To establish a console connection, follow these steps: Using the supplied console cable, connect the terminal to the console port. Power on the terminal and the Nortel Secure Network Access Switch 4050. To initiate the system connection process, press ENTER on the terminal.

  • Page 31: Troubleshooting Installation

    The system powers on but shows no display text for initiating a session with the switch. No power If the Nortel Secure Network Access Switch 4050 system does not power on with LED activation and fan operation as described, perform the following checks: •...
  • Page 32 Chapter 2 Installation Process 320846-A...

  • Page 33: Appendix A Specifications

    Rack mountable rack-mount hardware to allow mounting in 19 inch standard rack Bezel plastic front bezel with Nortel name/logo and Nortel SNAS 4050 model name and number Processor Intel Pentium-4, 2.8 Gigahertz (GHz), 533 Megahertz (MHz) Front Side Bus (FSB) Memory •...

  • Page 34: Table 9 Power Supply Specifications

    Appendix A Specifications Table 8 Hardware specifications (continued) Characteristic Measurement LAN ports (2) 10/100/1000Base-TX (copper) ports on the motherboard Expansion slots (2) full-height 64-bit 133/100/66MHz PCI-X slots PCI Card (1) Intel Dual Port Copper 10/100/1000 Base-TX GB-E IDE PCI card PWLA8492MT Console port (1) console port, DCE (DB9-F), RS-232C, 9600 Baud, 8-N-1...

  • Page 35: Console Port Setup Parameters

    1000Base-T RJ-45 Cat.5 UTP Regulatory specifications Table 12 lists safety specifications. Table 13 lists emissions specifications. Table 14 lists certification marks. Table 12 Safety specifications Compliance Country UL60950 CSA22.2 No 60950 Canada Nortel Secure Network Access Switch 4050 Installation Guide...

  • Page 36: Table 13 Emissions Specifications
