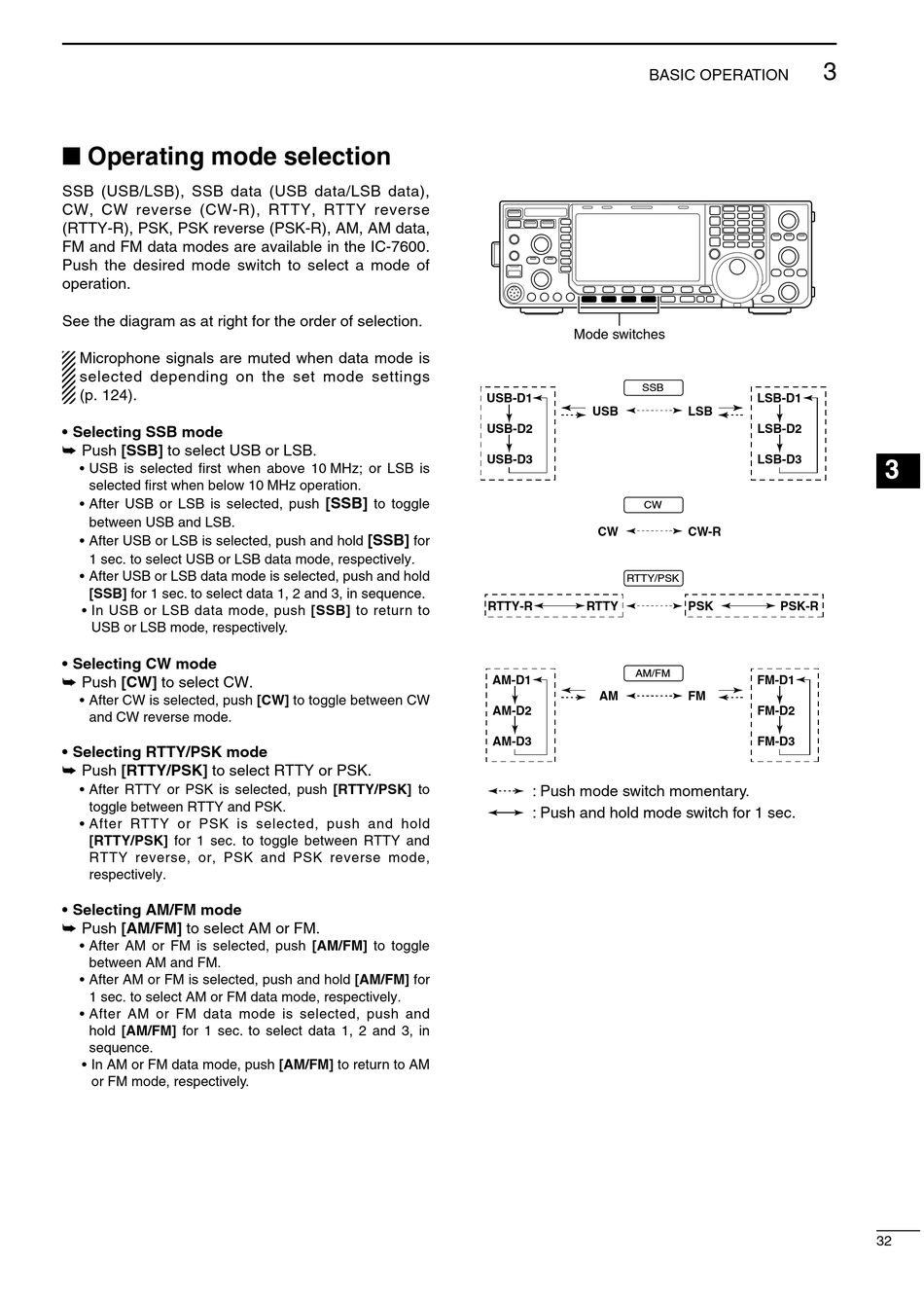

Operating mode selection

SSB (USB/LSB), SSB data (USB data/LSB data),
CW, CW reverse (CW-R), RTTY, RTTY reverse
(RTTY-R), PSK, PSK reverse (PSK-R), AM, AM data,
FM and FM data modes are available in the IC-7600.
Push the desired mode switch to select a mode of
operation.
See the diagram as at right for the order of selection.
Microphone signals are muted when data mode is
selected depending on the set mode settings
(p. 124).
• Selecting SSB mode
Push [SSB] to select USB or LSB.
• USB is selected first when above 10 MHz; or LSB is
selected first when below 10 MHz operation.
• After USB or LSB is selected, push
between USB and LSB.
• After USB or LSB is selected, push and hold
1 sec. to select USB or LSB data mode, respectively.
• After USB or LSB data mode is selected, push and hold
[SSB] for 1 sec. to select data 1, 2 and 3, in sequence.
• In USB or LSB data mode, push [SSB] to return to
USB or LSB mode, respectively.
• Selecting CW mode
Push [CW] to select CW.
• After CW is selected, push [CW] to toggle between CW
and CW reverse mode.
• Selecting RTTY/PSK mode
Push [RTTY/PSK] to select RTTY or PSK.
• After RTTY or PSK is selected, push [RTTY/PSK] to
toggle between RTTY and PSK.
• After RTTY or PSK is selected, push and hold
[RTTY/PSK] for 1 sec. to toggle between RTTY and
RTTY reverse, or, PSK and PSK reverse mode,
respectively.
• Selecting AM/FM mode
Push [AM/FM] to select AM or FM.
• After AM or FM is selected, push [AM/FM] to toggle
between AM and FM.
• After AM or FM is selected, push and hold [AM/FM] for
1 sec. to select AM or FM data mode, respectively.
• After AM or FM data mode is selected, push and
hold [AM/FM] for 1 sec. to select data 1, 2 and 3, in
sequence.
• In AM or FM data mode, push [AM/FM] to return to AM
or FM mode, respectively.
USB-D1
USB-D2
USB-D3
[SSB]
to toggle
[SSB]
for
RTTY-R
AM-D1
AM-D2
AM-D3
BASIC OPERATION
Mode switches
SSB
USB LSB
CW
CW CW-R
RTTY/PSK
RTTY PSK
AM/FM
AM FM
: Push mode switch momentary.
: Push and hold mode switch for 1 sec.
