WARNING:
Parts marked with this symbol
Use ONLY replacement parts recommended by the manufacture.
RAD
PUT
CAUTION:
Before returning the unit to the customer, make sure you make either (1) a
leakage current check or (2) a line to chassis resistance check. If the leakage
current exceeds 0.5 milliamps, or if the resistance from chassis to either side
of the power card is less than 460kohms, the unit is defective.
WARNING
DO NOT return the unit to the customer until the problem is located and
corrected.
have critical characteristics.
+ B LINE

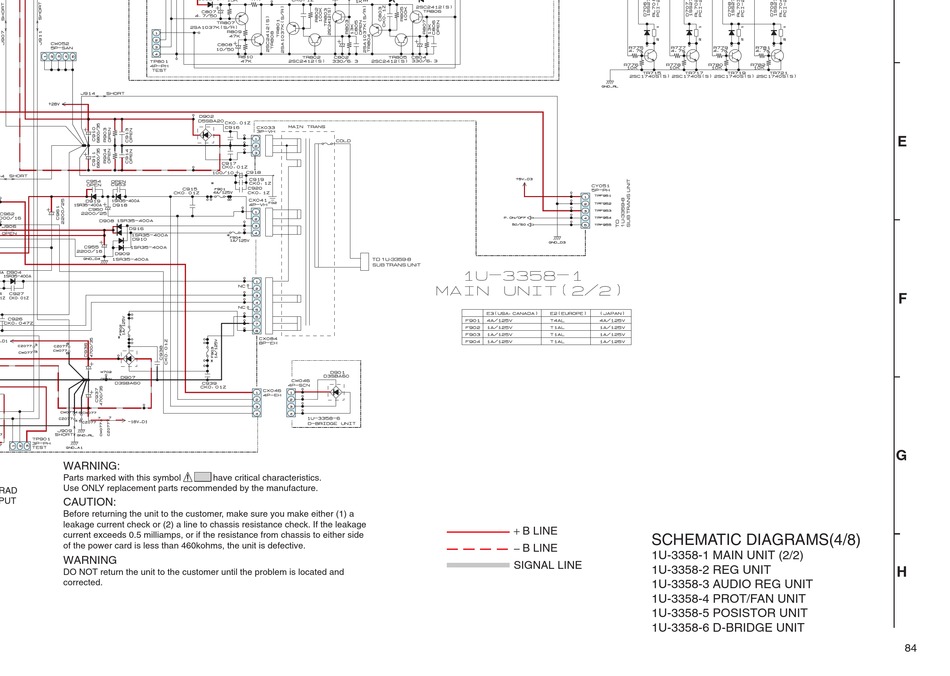

SCHEMATIC DIAGRAMS(4/8)
- B LINE
1U-3358-1 MAIN UNIT (2/2)
SIGNAL LINE
1U-3358-2 REG UNIT
1U-3358-3 AUDIO REG UNIT
1U-3358-4 PROT/FAN UNIT
1U-3358-5 POSISTOR UNIT
1U-3358-6 D-BRIDGE UNIT
