Denon AVR-S650H Manual

Before You Begin

Required for Setup

Speaker cables

HDMI cable

Subwoofer cable

Speakers

Optional

LAN cable

Wi-Fi router

When connecting this unit to a device that is compatible with the Deep Color, 4K, ARC and eARC functions, use a "High Speed HDMI cable with Ethernet" that displays the HDMI logo.
These drawings are for illustrative purposes only and may not represent the actual product(s).

What's In the Box

Quick Start Guide

Safety Instructions

Notes on radio

Warranty (for North America model only)

Cable labels

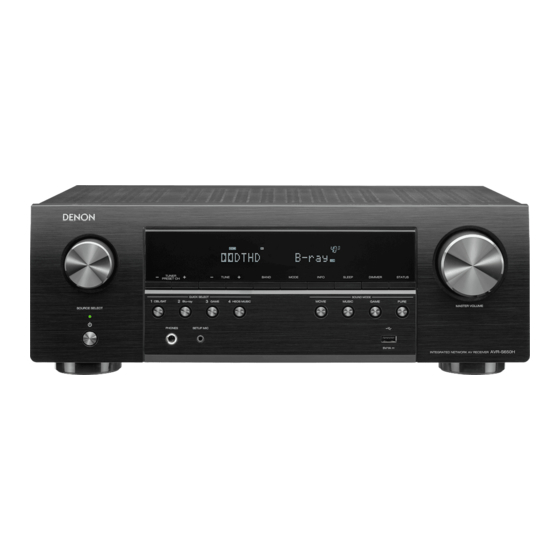

Receiver

FM indoor antenna

AM loop antenna

Sound calibration microphone

Sound calibration microphone stand

Remote control unit (RC-1226)

R03/AAA batteries

The included sound calibration microphone stand is convenient for use when performing Speaker Calibration. Using your own tripod or the supplied Sound calibration microphone stand enables settings to be automatically configured to the optimum listening environment, providing exceptionally high performance.

Setup

There are four steps to the setup process.

Installing batteries in the remote control unit
Connecting the receiver
Following the On-Screen Setup Assistant
Downloading the Mobile Apps

Installing batteries in the remote control unit

Installing batteries in the remote control unit Step 1

Connecting the receiver

Place the receiver near your TV and connect the power cord

Connecting the receiver

Connect the receiver to your home network

Wired LAN
Connect an Ethernet cable (not included) between your receiver and your network router.

Wireless LAN
Rotate the two antennas located on the back of the receiver upwards for maximum performance.

Connect the receiver to your TV with an HDMI cable

ARC (Audio Return Channel) and eARC (Enhanced Audio Return Channel) support:
If your TV supports ARC, your TV can send audio back to the AV receiver when you are using your TV's built-in video sources (TV tuner, Smart TV streaming services, etc.) ARC requires that you enable HDMI CEC on your TV. Please refer to your TV's Owner's Manual for instructions on how to setup HDMI CEC. In addition, if your TV supports eARC, it can also send back high bitrate audio formats such as Dolby TrueHD and DTS-HD Master Audio. Please refer to your TV's Owner's Manual for additional information about enabling the eARC function.

Turn on the TV

Select the appropriate HDMI input on your TV

Turn on the receiver

Press to turn on the receiver.

Turn on the receiver

Verify the connection

Verify that you can see this screen on your TV.

If this screen is not displayed, please go back and retry the steps again in the recommended sequence.

Following the On-Screen Setup Assistant

Now TV is connected to the receiver.
The Setup Assistant will walk you through connecting and confi guring your speakers and components to your Denon receiver. Please use the remote control and follow the on-screen instructions.
Following the On-Screen Setup Assistant Step 1

Downloading the Mobile Apps

Download both the "HEOS" App and the "Denon 2016 AVR Remote" App for the full home entertainment experience. The HEOS App is required to access online music through your AVR.

HEOS HEOS
The HEOS App allows you to explore, browse, and play music from many online streaming services or from your own music library.

Denon 2016 AVR Remote
Control your new AVR with the latest Denon 2016 AVR Remote App. Volume control, sound mode selection and advanced settings are always only a tap away.

App Store Google Play Amazon Appstore

Owner's Manual

For more information, visit www.denon.com

Please do not return this unit to the store. If you need help...

Check our AVR setup tips online
Usa.denon.com/SetupTips
Ca. Denon.com/SetupTips

Call for Assistance 1-855-MY.DENON (USA) 1-855-693-3666
1-800-668-0652 (Canada)
Monday – Friday 10:00AM to 10:00PM E.S.T
Saturday 12:00PM to 8:00PM E.S.T
