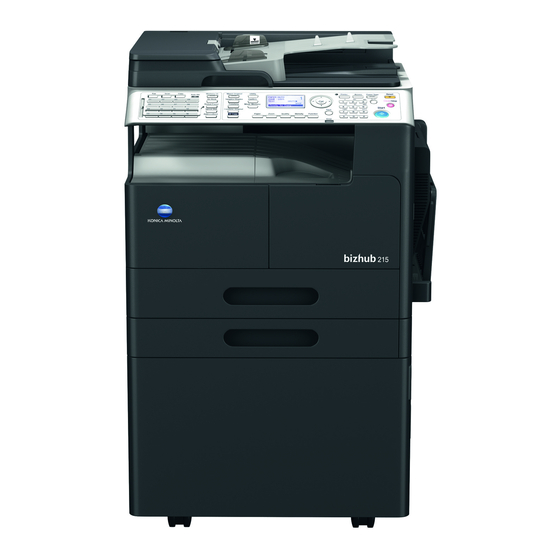

Konica Minolta BIZHUB 215 Installation Manual

Hide thumbs Also See for BIZHUB 215:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

See also: User Manual , Manual
I. Outline of installation procedures
PF-507
When installing the machine and associated options as a system, follow the order shown on the upper.
Caution:
• For the detailed installation procedures for each option, follow the instructions given in the corresponding
installation manual and perform the procedures correctly. (Optional devices must be installed after com-
pleting the main body installation.)
• Once the Power Switch is turned ON, do not turn OFF it until the installation work has been completed.
• Lifting the machine in an awkward position or transporting it in a poorly balanced position could result in
personal injury. When transporting the machine, assign an adequate number of persons to the job and
ensure that each person can take a good position of not being excessively loaded.
<Machine mass> OC-512 and MB-505 included as standard: Approx. 29 kg (63-15/16 lb)
1BS0830301
INSTALLATION MANUAL
DK-706*
DK-707*
Machine
MC-504*
DF-625
OC-512*
Electronic system options
MB-505*
AD-509
OC-512 or MB-505 included as standard: Approx. 27.5 kg (60-5/8 lb)
OC-512 and MB-505 not included as standard: Approx. 26 kg (57-5/16 lb)
*OC-512: Original Cover
MB-505: Multi Bypass Tray
/
Applied Machines:
DK-708*
✱ Electronic system options
FK-510
*: Varies depending on each model/
applicable marketing area
A3PEIXC001DA
E-1
/
MK-733
IC-209
NC-504
A3PE-9620-00

Advertisement

Table of Contents
loading

Related Manuals for Konica Minolta BIZHUB 215

Summary of Contents for Konica Minolta BIZHUB 215

  • Page 1 INSTALLATION MANUAL Applied Machines: I. Outline of installation procedures PF-507 DK-706* DK-707* DK-708* Machine MC-504* ✱ Electronic system options DF-625 OC-512* MK-733 Electronic system options FK-510 IC-209 NC-504 MB-505* *: Varies depending on each model/ AD-509 applicable marketing area When installing the machine and associated options as a system, follow the order shown on the upper. Caution: •...

  • Page 2: Accessory Parts

    II. Installation space (unit: mm (inch)) IV. Accessory parts bizhub 215 + DF-625 + PF-507 + DK-708 Name Q’ty 1. Quick guide * 1109 (43-11/16) 570 (22-7/16) 429 (16-7/8) 2. Installation manual (this manual) (14-1/8) 3. User’s guide CD * 4.

  • Page 3: Unpacking The Machine

    V. Unpacking the machine VI. Removing protective tape, packaging materials and imaging unit 1. Unpack the packaging box, and remove cushion- ing materials and plastic bags from the box. 1. Remove protective tape and packaging materials. 2. While keeping the machine level, take out the machine from the box.
  • Page 4 2. Remove the protective sheet from the operation 5. Unscrew the screws shown in the illustration to panel. remove the imaging unit. (Two screws) Note: • Do not touch or scratch the photoconductor. • Cover the imaging unit, which has been removed, with a protective cloth or similar material.
  • Page 5 10. Slide out the drawer and remove the developer 2. Unscrew the screws that secure the drum unit, and cushioning material. and then take out the drum unit by slightly open- ing the lower part (the shadowed area) of the drum unit.
  • Page 6 4. Ready a packet of the developer and cut off one 7. Install the front of the drum unit first, and then the corner of the aluminum packet with scissors. rear part. Then, secure the screws. (Five screws) 5. While turning the gear in the direction of the Note: arrow, pour the developer evenly into the devel- •...

  • Page 7: Installing The Toner Bottle

    IX. ATDC adjustment 10. Plug the connector, and then attach the cover. (One screw) Note: Be sure to make this adjustment before setting the toner bottle in the machine. 1. Turn on the power switch. 2. Display the Service Mode screen. (For details of how to display the Service Mode screen, see the service manual.) 3.

  • Page 8: Attaching The Panel Sheet

    XII. Attaching the panel sheet 4. Aligning the tip of the bottle tab with the mark, insert the toner bottle all the way in. Attach the panel sheet to the operation panel. 5. Check that the toner bottle is all the way in, and Note: then turn the toner bottle in the direction of the •...
