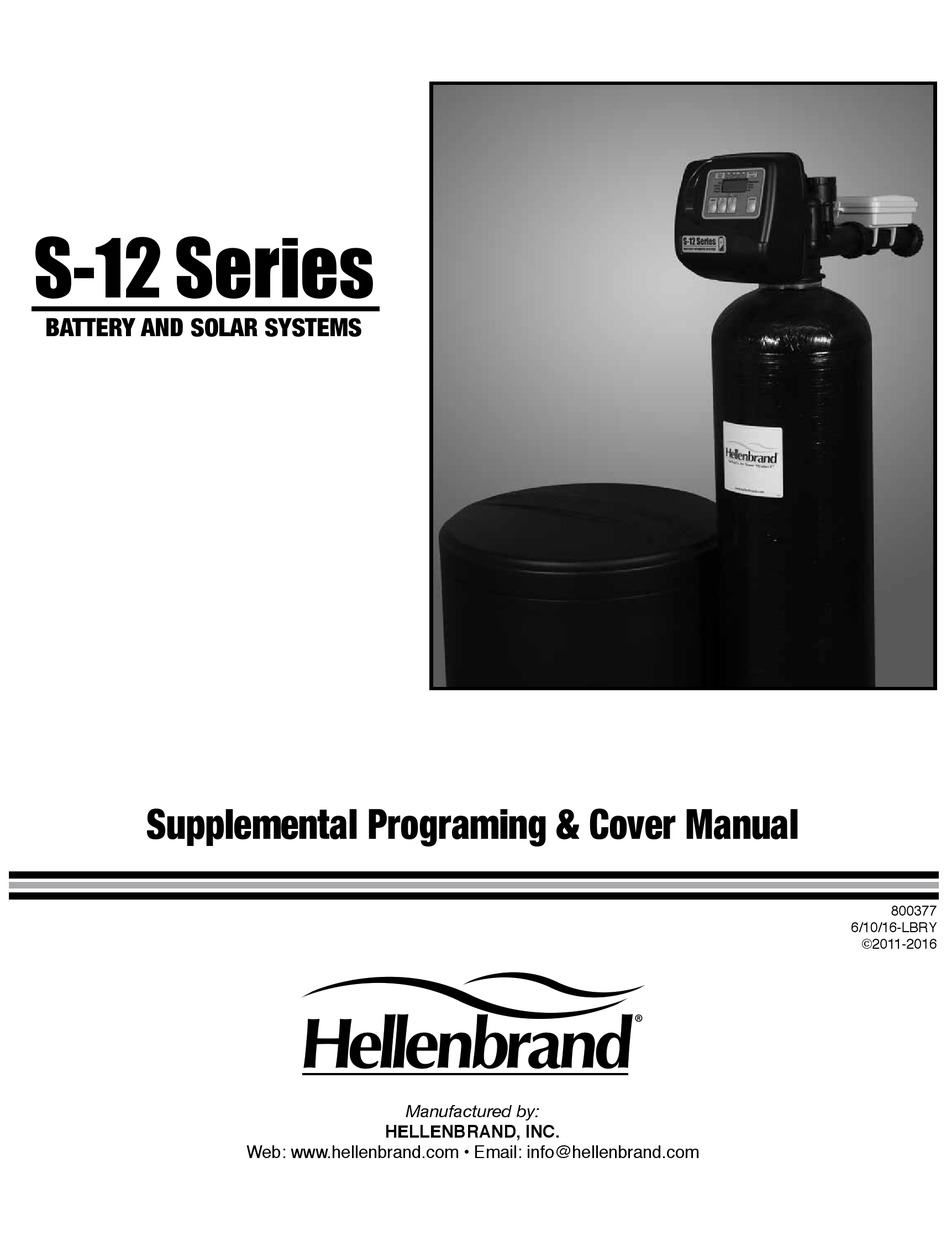

- Page 1 S-12 Series BATTERY AND SOLAR SYSTEMS BATTERY SERIES SYSTEM Supplemental Programing & Cover Manual 800377 6/10/16-LBRY ©2011-2016 Manufactured by: HELLENBRAND, INC. Web: www.hellenbrand.com • Email: info@hellenbrand.com...
-
Page 2: Table Of Contents
Page 2 SD Manual Table of Contents Specifications ..............................3 Front Cover and Drive Assembly ........................4 Wiring Diagram ..............................5 Regeneration and Error Screens, Button Operations and Functions ..............6 User Displays ..............................7 Configuration Settings ............................ 8-9 Setting Regeneration Cycle Times ........................10 Installer Display Settings .......................... -
Page 3: Specifications
Page 3 SD Manual S12 Specifications S12 Specifications FACTORY REGENRATION SETTINGS (BOLD) Model # S-12-024 S-12-032 S-12-048 S-12-064 S-12-DMT-032 Backwash #1 Minutes Brine/Rinse Minutes Backwash #2 Minutes Fast Rinse Minutes Total Regeneration Gallons including Brine Refill Minutes (LBS of salt) Low Salt 3 (4.5#) -
Page 4: Front Cover And Drive Assembly
Page 4 SD Manual SD Front Cover and Drive Assembly Drawing No. Order No. Description Quantity V3175SP-01 WS1SP FRONT COVER ASSEMBLY 102096 WS1 MOTOR 101262 WS1 DRIVE BRACKET & SPRING CLIP 111412 WS1THRU2 SD REPL 101746 WS1 DRIVE GEAR 12X36 101459 WS1 DRIVE GEAR COVER 111413... -
Page 5: Wiring Diagram
Page 5 SD Manual SD Wiring Diagram... - Page 6 Page 6 SD Manual SP Front Cover and Drive Assembly Drawing No. Order No. Description Quantity V3175SP-01 WS1SP FRONT COVER ASSEMBLY V3107-01 WS1 MOTOR V3814-01 WS1 DRIVE BRACKET SOLAR & SPRING CLIP V3836SP-01BOARD WS1THRU2L/2 SPPCB AC/DC REPL V3110 WS1 DRIVE GEAR 12X36 V3109 WS1 DRIVE GEAR COVER V3835-02...
- Page 7 Page 7 SD Manual Regeneration, Low Battery Voltage and Error Screens Regen Screen Displays the time remaining in the current cycle. Pressing REGEN advances to the next cycle. Low Battery Voltage Screen Display is shown when the voltage level of the battery pack is below a minimum level. The valve does not have enough power to regenerate when this display is shown.
-
Page 8: User Displays
Page 8 SD Manual User Displays General Operation When the system is operating, one of five displays may be shown. The display will be turned off to conserve energy during normal operation. Pushing any button will activate the display for approximately 20 seconds. While the display is active, control status displays can be viewed, programming levels can be set as desired or regeneration can be requested. -
Page 9: Configuration Settings
Page 9 SD Manual Configuration Settings Step 1CS – Press and simultaneously for 5 seconds and release. If screen in Step 2CS does not appear, Step 1CS the lock on the valve is activated. To unlock press , NEXT, REGEN, in sequence, then press and buttons simultaneously for 5 seconds and release. - Page 10 Page 10 SD Manual Step 6CS – Allows selection of one of the following Step 6CS Step 4CS Step 4CS using or : • the Control Valve to have a no hard water bypass: or • the Control Valve to have a Separate Source during the regeneration cycle.
-
Page 11: Setting Regeneration Cycle Times
Step 2CS Page 11 SD Manual Setting Regeneration Cycle Times Step 3CS Step 1CT - Press NEXT and simultaneously for 5 seconds and release. If screen in Step 2CT Step 1CT does not appear, the lock on the valve is activated. To unlock press , NEXT, REGEN, in sequence, then press NEXT and ... -
Page 12: Installer Display Settings
Page 12 SD Manual Installer Display Settings One of three sets of displays will be shown depending on what was selected in Configuration Settings Step 4CS. Volume (Gallons) selected in Configuration Settings Step 4CS Step 1I - To enter Installer Display press the NEXT and buttons simultaneously for Step 1I 5 seconds and release. - Page 13 Page 13 SD Manual 7 Day or 7/ Volume (Gallons) selected in Configuration Settings Step 4CS Step 1I Step 1I - To enter Installer Display press the NEXT and buttons simultaneously for 5 seconds and release. Step 2I - Step 2I Use ...
-
Page 14: Diagnostics
Page 14 SD Manual Diagnostics Step 1D - Press simultaneously for 5 seconds and release. Step 1D Then press simultaneously for 2 seconds and release. If screen in Step 2D does not appear the lock on the valve is activated. - Page 15 Page 15 SD Manual Solar Panel Testing Output Step 7D - Display shows the latest Step 7D measured voltage of the battery pack. Pressing and holding and simultaneously for approximately 5 seconds will initiate a test of voltage. (Normally this test is automatically conducted at 12:00 am daily.) Press NEXT to go to Step 8D.
