Summary of Contents for Hellenbrand ProMate-6

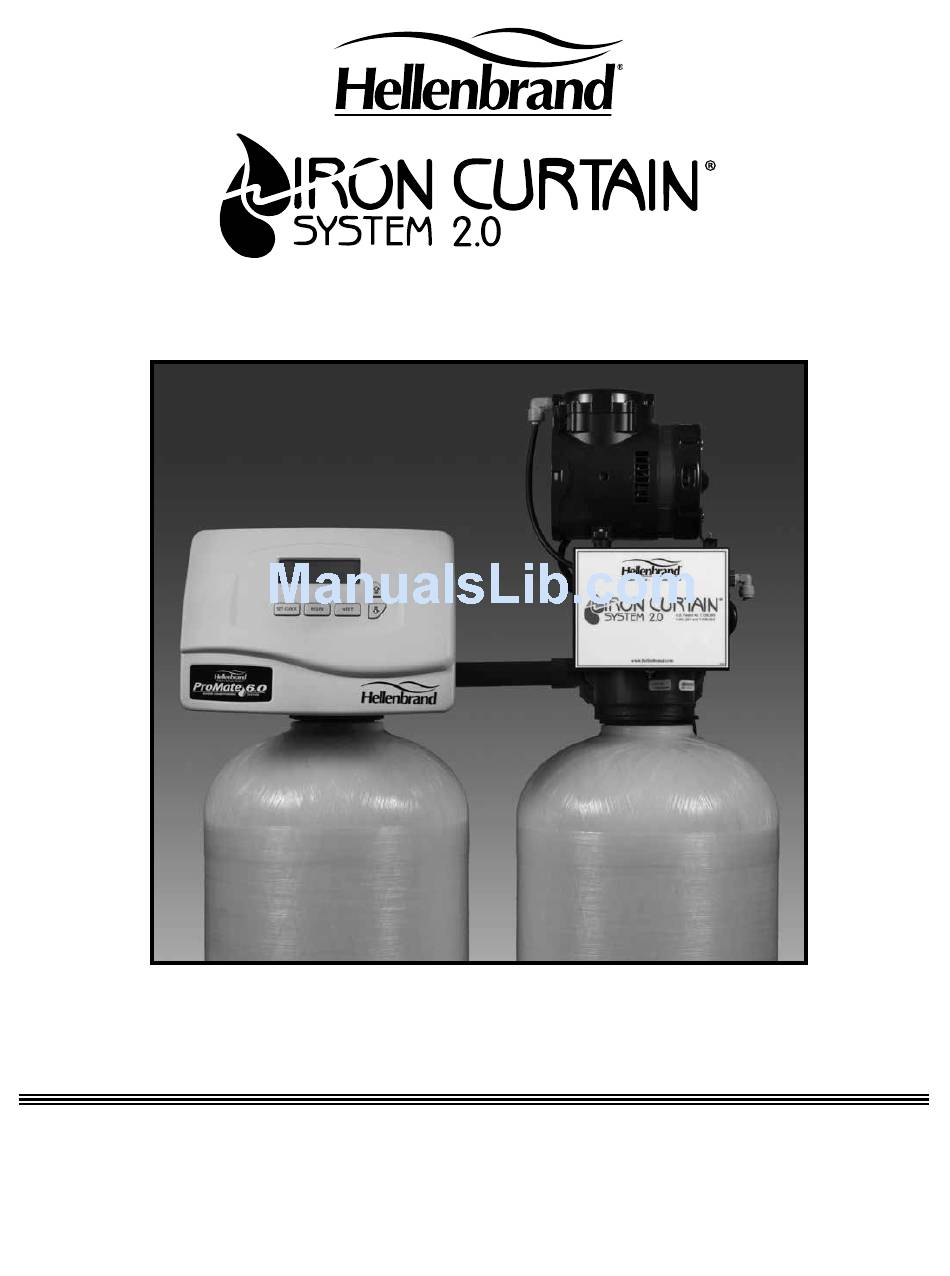

- Page 1 ProMate-6 / Iron Curtain 2.0 Demand Aeration Manual ® U.S. Patent No. 7,156,995 B2, 7,491,321 & 7,638,063 Consumer’s Manual 800771 4/25/16-LBRY ©2016 Manufactured by: HELLENBRAND, INC. www.hellenbrand.com • info@hellenbrand.com...
-
Page 2: Table Of Contents
Congratulations on your purchase of one of the finest water treatment systems available today – the Iron ® Curtain System. This patented, non-chemical filter system, will remove iron, manganese and/or hydrogen sulfide from your water supply when properly applied. This owner’s manual is designed to assist owners and installers with the operation, maintenance, and installation of your new iron removal system. -
Page 3: General Specifications
Gallon Range .........................20 - 50,000 DIMENSIONS Drain Line ..........................3/4” or 1” NPT Ozone Check Valve ........................3/8” Poly Tube Electrical Current Draw and Voltage ..................2.0A/120V Operating outside of the optimum pressure range may affect system function. Contact your Hellenbrand support team for information. -
Page 4: Iron Curtain ® 2.0 Principle Of Operation, Operation Of Aeration System
IRON CURTAIN ® Iron Filtration System The advantages of a multi-media bed are: Aeration/precipitation/multi-media filtration for: 1. Longer runs between backwash times. 1. Iron Reduction/Removal 2. Caking of the bed and breakthrough turbidity are virtually 2. Manganese Reduction/Removal eliminated. 3. Hydrogen Sulfide Reduction/Removal 3. -
Page 5: Operating Conditions
NOT designed to be installed outdoors with direct exposure below 0.5 ppm or the presence of other organics may hinder to the elements. Hellenbrand recommends filter systems to the operation of this system.* be installed indoors or under a protective shelter protected Chlorine —... -
Page 6: Backwash Frequency, Air Recharge Frequency
Air Recharge Frequency Aeration Control Center Your new IC-2.0 Aeration Control is factory pre-set to cycle Recommended duration of pump run time is 10 minutes, and is the air compressor every 500 gallons or approximately once factory set to that duration. (Settings Based on Average Pres- every 24 hours and during filter regeneration. -
Page 7: Iron Curtain ® 2.0 Assembly
(See Separated Items Below) Item Part Description Qty. 1 ...110269 ....Hellenbrand Pump ......1 2 ...101631 ....IC Pump Feet ........3 3 ...102137 ....IC Pump Feet Nut ......3 4 ...110470 ....Elbow, IC Pump 1/4” NPT x 1/4” Tubing ..........1 6 ...102666 .... -
Page 8: Iron Curtain ® System Diagram
Iron Curtain System – IC-10 / IC-12 ® ITEM QTY. PART REQ'D. DESCRIPTION 1.....1.....101065 ........IC-10 Rebed Mix ......101069 ........IC-10A Rebed Mix ......101068 ........IC-10+ Rebed Mix ......101070 ........IC-12 Rebed Mix ......101072 ........IC-12A Rebed Mix ......101071 ........IC-12+ Rebed Mix 2.....1.....107585 ........ -
Page 9: Bypass Valve Operation
ProMate Filter Valve Option ® Air Pump 3/8” Bleed-Off Drain Line Filter Drain Line Solenoid Vent (1/4” line to atmospheric drain) Filter Tank Bypass Aeration Tank Bypass Aeration Tank Inlet Filter Tank Outlet 1” Check Valve (Installed Vertically) Aeration Tank Outlet Filter Tank Inlet BYPASS VALVE OPERATION... -
Page 10: Troubleshooting
G. Raw water bleeding through filter Internal control valve leak Contact your local Hellenbrand Dealer for onsite service Pressure has exceeded rating on 1a. Contact your local Hellenbrand 2. Water leaking from vent port A. Seals failed internally system Refer to complaint #10 adapter Dealer for onsite service B. -
Page 11: Bleed Off Tube
3/8" instructions - page 5.) position. bleed off tube on aeration tank. 1b. Contact your local Hellenbrand Dealer for onsite service A. Corrosive water condition in cop- 11. Blue green staining Low pH condition of the raw water... -
Page 12: Iron Curtain ® 2.0 Limited Warranty
® ® Hellenbrand, Inc., warrants to the original consumer purchaser that the system and the parts listed below will be free from defects in material and/or workmanship from the date of the original installation for the following time periods: For a Period of FIVE YEARS: The filter control valve electrical parts including the motor and board, control valve body, excluding internal parts.
