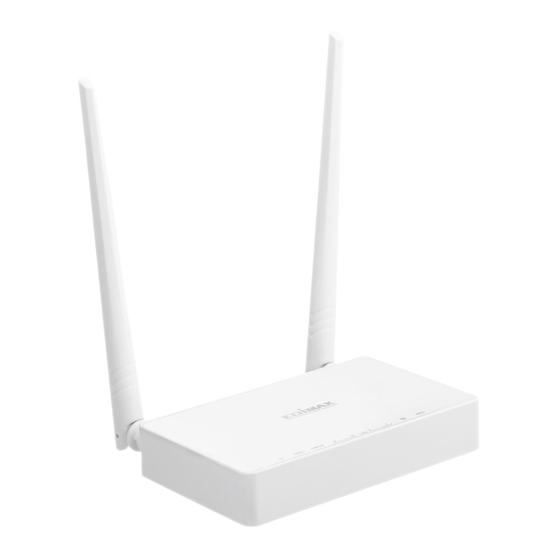

- Page 1 AR-7287WnA Quick Installation Guide 04-2017 / v1.0...
-
Page 2: Product Introduction
Package Contents Before you start using this product, please check if there is anything missing in the package and contact your dealer to claim the missing item(s): ADSL2+ router (AR-7287WnA) 12V power adapter 1 meter RJ-45 Ethernet cable ... - Page 3 Color Status Description Power Green ADSL2+ router is on. ADSL2+ router is off. ADSL Green ADSL line is synchronized and ready to use. Flashing ADSL line not synchronized. Internet Green Internet connected in router mode Flashing Internet not connected in router mode Device in bridged mode.
- Page 4 Item Description Power On/Off Switches the router on or off. Button Power Power port for included 12V power adapter. Wireless / WPS *Hold for less than 5 seconds to enable wireless signal. Button *Hold for more than 5 seconds to activate WPS function. LAN 1–4 RJ-45 Ethernet ports 1–4.
-
Page 5: Getting Started
GETTING STARTED A. Hardware Installation Connect the ADSL line. Connect the line port of the router of the device to the modem interface of a splitter using a telephone cable. Connect a telephone to the Phone interface of the splitter using a telephone cable. Connect the Line interface of the splitter to your existing, incoming line. - Page 6 can continue setup. However if the light is flashing, there is no broadband line detected. Please call your Internet Service Provider (ISP) and inform them about the flashing ADSL light to resolve the issue. Firewall settings. Please turn off all personal firewalls before you continue the setup – firewalls can block communication between your PC and router.
- Page 7 Select the “Local Area Connection” icon and right-click it to open the sub-menu, then select “Properties”. Select “Internet Protocol (TCP/IP)” and then click “Properties” Ensure that “Obtain an IP address automatically” and “Obtain DNS...
-
Page 8: Internet Connection
server address automatically” are selected and then press “OK”. B. Internet Connection 1. Enter the router’s default IP address: “192.168.2.1” into your PC’s web browser and press “Enter”. 2. The login screen below will appear. Enter the default username “admin” and default password “1234”... - Page 9 3. You will arrive at the system status page as shown below. 4. In the navigation bar across the top of the screen, click “Wizard” and then “Wizard”. The Wizard page of the web-based interface allows fast configuration of the Internet connection and other parameters. Please refer to the user manual for detailed information on these parameters.
- Page 10 5. Follow the on screen instructions until the wizard is complete.
- Page 11 WLAN Wi-FI 802.11b/g/n; 2, 4 GHz A simplified DoC shall be provided as follows: Article 10(9) Hereby, Edimax Technology Co., Ltd. declares that the radio equipment type N300 Wireless ADSL2/2+ Modem router is in compliance with Directive 2014/53/EU The full text of the EU declaration of conformity is available at the following internet address: http://www.edimax.com/edimax/global/...
- Page 12 Safety This equipment is designed with the utmost care for the safety of those who install and use it. However, special attention must be paid to the dangers of electric shock and static electricity when working with electrical equipment. All guidelines of this and of the computer manufacture must therefore be allowed at all times to ensure the safe use of the equipment.
-
Page 13: Eu Declaration Of Conformity
EU Declaration of Conformity English: This equipment is in compliance with the essential requirements and other relevant provisions of Directive 2006/95/EC, 2011/65/EC. Français: Cet équipement est conforme aux exigences essentielles et autres dispositions de la directive 2006/95/CE, 2011/65/CE. Čeština: Toto zařízení je v souladu se základními požadavky a ostatními příslušnými ustanoveními směrnic 2006/95/ES, 2011/65/ES. -
Page 14: Declaration Of Conformity
Declaration of Conformity We, Edimax Technology Co., LTD., declare under our sole responsibility, that the equipment described below complies with the requirements of the European Council directive (2014/53/EU). Equipment : N300 Wireless ADSL2/2+ Modem router Model No. : AR-7287WnA The following European standards for essential requirements have been followed: Spectrum : ETSI EN 300 328 : V2.1.1(2016-11)
