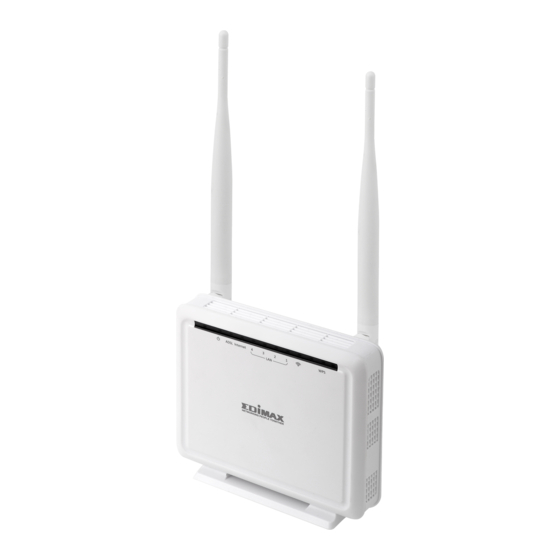

Edimax AR-7286WnA Quick Installation Manual
  1. Manuals
  2. Brands
  3. Edimax Manuals
  4. Network Router
  5. AR-7286WnA
  6. Quick installation manual
Edimax AR-7286WnA Quick Installation Manual

Edimax AR-7286WnA Quick Installation Manual

Adsl2+ router
Hide thumbs Also See for AR-7286WnA:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
AR-7286WnA / AR-7286WnB
Quick Installation Guide
6-2013 / v1.0

Advertisement

Table of Contents
loading

Related Manuals for Edimax AR-7286WnA

Summary of Contents for Edimax AR-7286WnA

  • Page 1 AR-7286WnA / AR-7286WnB Quick Installation Guide 6-2013 / v1.0...
  • Page 2 COPYRIGHT Copyright  Edimax Technology Co., Ltd. all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission from Edimax Technology Co., Ltd.
  • Page 3 Č š a : Českého průvodce rychlou instalací naleznete na přiloženém CD s š ovladači : Finden Sie bitte das deutsche S.A.L. beiliegend in der Treiber CD ñ l : Incluido en el CD el G.R.I. en Español. ñ : Veuillez trouver l’français G.I.R ci-joint dans le CD ç...

  • Page 4: Product Introduction

    Before you start using this product, please check if there is anything missing in the package and contact your dealer to claim the missing item(s):  ADSL2+ router (AR-7286WnA or AR-7286WnB)  12V power adapter  1 meter RJ-45 Ethernet cable ...
  • Page 5 Color Status Description Power Green ADSL2+ router is on. ADSL2+ router Is off. ADSL broadband initial self-test failed or upgrading firmware. ADSL Green ADSL line is synchronized and ready to use. Slow Flashing ADSL synchronization failed ( please refer to Note i.
  • Page 6 If the Internet LED is red, please check your ADSL LED first. If the ADSL LED is off, refer to Note 1. If the green ADSL LED is ON, please check your Internet configuration. You may need to check with your ISP that your Internet is configured correctly.

  • Page 7: Getting Started

    GETTING STARTED A. Hardware Installation Connect the ADSL line. Connect the line port of the router of the device to the modem interface of a splitter using a telephone cable. Connect a telephone to the Phone interface of the splitter using a telephone cable. Connect the Line interface of the splitter to your existing, incoming line.
  • Page 8 Check the ADSL LED status. Please check the ADSL LED on the front panel. This light indicates the status of your ADSL broadband through your telephone line. If the light is on, you can continue setup. However if the light is flashing, there is no broadband line detected.
  • Page 9 Locate the “Network Connections” icon and double-click to open network connection settings. Select the “Local Area Connection” icon and right-click it to open the sub-menu, then select “Properties”. Select “Internet Protocol (TCP/IP)” and then click “Properties”...

  • Page 10: Internet Connection

    Ensure that “Obtain an IP address automatically” and “Obtain DNS server address automatically” are selected and then press “OK”. B. Internet Connection You can configure the router by running the setup wizard on the CD-ROM included in the package contents. The wizard enables you to configure your Internet connection, upgrade the firmware and change the router’s password.
  • Page 11 Alternatively, if you lose the CD-ROM or prefer a web based setup, you can login to the ADSL router using Internet Explorer, and configure the router from there using the web-based interface. Please follow the instructions below: 1. Enter the router’s default IP address: “192.168.2.1” into your PC’s web browser and press “Enter”.
  • Page 12 3. You will arrive at the system status page as shown below. 4. In the navigation bar across the top of the screen, click “Quick Start” and then “RUN WIZARD”. The Wizard page of the web-based interface allows fast configuration of the Internet connection and other parameters. Please refer to the user manual for detailed information on these parameters.
  • Page 13 5. Follow the on screen instructions until the wizard is complete.

  • Page 14: Eu Declaration Of Conformity

    EU Declaration of Conformity English: This equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC, 2009/125/EC. French: Cet équipement est conforme aux exigences essentielles et autres dispositions de la directive 1999/5/CE, 2009/125/CE Czechian: Toto zařízení je v souladu se základními požadavky a ostatními příslušnými ustanoveními směrnic 1999/5/ES, 2009/125/ES.

  • Page 15: Declaration Of Conformity

    Declaration of Conformity We, Edimax Technology Co., LTD., declare under our sole responsibility, that the equipment described below complies with the requirements of the European Council directive (1995/5/EC, 2006/95/EC，EC/1275/2008). Equipment : N300 Wireless ADSL Modem Router Model No. : AR-7286WnA & AR-7286WnB The following European standards for essential requirements have been followed: Spectrum : ETSI EN 300 328 : V1.7.1(2006-10)

This manual is also suitable for:

Ar-7286wnb
