Part No. 060453-10 Rev. A
January 2017
OmniSwitch AOS Release 8
Transceivers Guide
8.3.1.R02
enterprise.alcatel-lucent.com

Advertisement

Table of Contents
loading

Related Manuals for Alcatel-Lucent OmniSwitch 10K

Summary of Contents for Alcatel-Lucent OmniSwitch 10K

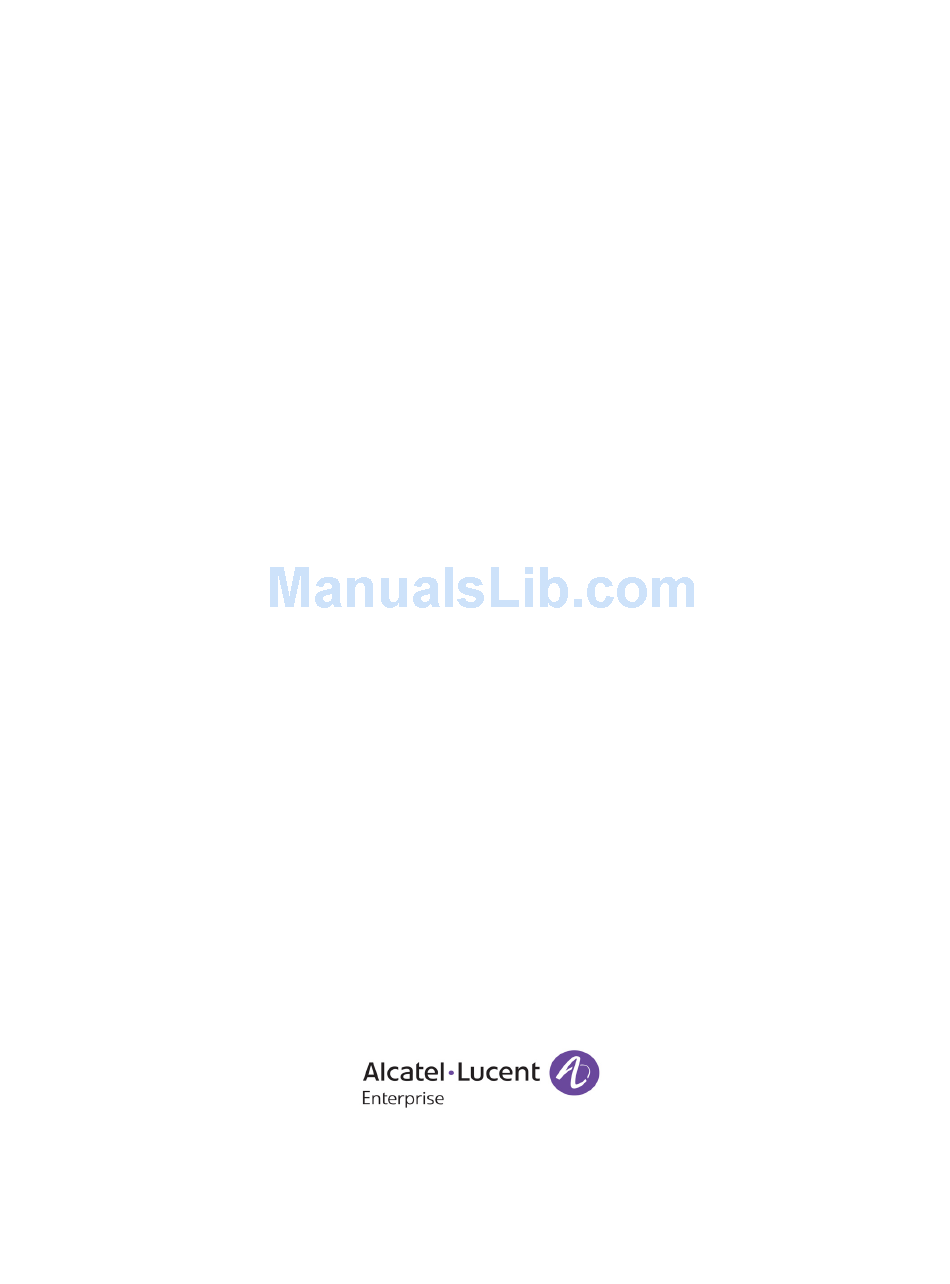

  • Page 1 Part No. 060453-10 Rev. A January 2017 OmniSwitch AOS Release 8 Transceivers Guide 8.3.1.R02 enterprise.alcatel-lucent.com...
  • Page 2 Alcatel-Lucent and the Alcatel-Lucent Enterprise logo are trademarks of Alcatel-Lucent. To view other trademarks used by affiliated companies of ALE Holding, visit: enter- prise.alcatel-lucent.com/trademarks. All other trademarks are the property of their respective owners. The information presented is subject to change without notice.

  • Page 3: Table Of Contents

    Industrial Transceivers ....................1-28 Chapter 2 Transceiver Compatibility Matrix ................. 1-33 In This Chapter ......................1-33 OmniSwitch 10K Compatibility ...................1-34 OmniSwitch 6900 Compatibility ..................1-36 OmniSwitch 6860 Compatibility ..................1-38 OmniSwitch 6865 Compatibility ..................1-40 OmniSwitch 9900 Compatibility ..................1-41 OmniSwitch AOS Release 8 Transceivers Guide...
  • Page 4 Contents OmniSwitch AOS Release 8 Transceivers Guide January 2017...

  • Page 5: About This Guide

    This OmniSwitch AOS Release 8 Transceivers Guide provides specifications and compatibility informa- tion for the supported OmniSwitch transceivers for all OmniSwitch AOS Release 8 products. Supported Platforms This information in this guide applies to the following products: OmniSwitch 10K • OmniSwitch 6900 •...

  • Page 6: Who Should Read This Manual

    About This Guide Who Should Read this Manual? Who Should Read this Manual? The audience for this user guide is network administrators and IT support personnel who need to provide network connectivity using SFP, SFP+, and QSFP+ transceivers. When Should I Read this Manual? Read this guide as soon as you are ready to integrate your OmniSwitch into your network and you are ready to provide connectivity using the supported transceivers.

  • Page 7: Documentation Roadmap

    Once you have your switch up and running, you will want to begin investigating basic aspects of its hardware and software. Information about switch hardware is provided in the OmniSwitch 10K Hardware Guide. This guide provide specifications, illustrations, and descriptions of all hardware components, such as chassis, power supplies, Chassis Management Modules (CMMs), Network Interface (NI) modules, and cooling fans.
  • Page 8 About This Guide Documentation Roadmap Anytime The OmniSwitch AOS Release 8 CLI Reference Guide contains comprehensive information on all CLI commands supported by the switch. This guide includes syntax, default, usage, example, related CLI command, and CLI-to-MIB variable mapping information for all CLI commands supported by the switch. This guide can be consulted anytime during the configuration process to find detailed and specific information on each CLI command.

  • Page 9: Related Documentation

    Related Documentation Related Documentation The following are the titles and descriptions of all the OmniSwitch user manuals: OmniSwitch 10K/9900/6900/6860/6865 Hardware Users Guides • Describes the hardware and software procedures for getting an OmniSwitch up and running as well as complete technical specifications and procedures for all OmniSwitch chassis, power supplies, fans, and Network Interface (NI) modules.

  • Page 10: Technical Support

    With 24-hour access to Alcatel-Lucent Enterprise Service and Support web page, you’ll be able to view and update any case (open or closed) that you have reported to Alcatel-Lucent Enterprise technical support, open a new case or access helpful release notes, technical bulletins, and manuals.

  • Page 11: Small Form-Factor Pluggables (Sfp/Sfp+/Qsfp+)

    1 Small Form-Factor Pluggables (SFP/SFP+/QSFP+) OmniSwitch Series switches use both copper-based and fiber-based optical Small Form Factor Pluggable transceivers. These transceivers are fully hot-swappable and are available for both short-reach and long- reach applications. Copper-based and fiber-based optical transceivers can be mixed on the same module. In This Chapter This chapter describes the technical specifications for all the OmniSwitch supported transceivers.

  • Page 12: Sfp Msa Specification

    SFP MSA Specification Small Form-Factor Pluggables (SFP/SFP+/QSFP+) SFP MSA Specification The Small Form-Factor Pluggable (SFP) MSA (Multi Source Agreement) is a specification for a common interface for optical modular transceivers. The SFP connector consists of a 20-pin receptacle and an SFP housing cage.

  • Page 13: Transceiver Installation And Removal

    Small Form-Factor Pluggables (SFP/SFP+/QSFP+) Transceiver Installation and Removal Transceiver Installation and Removal Follow the instructions below for the appropriate transceiver type. ESD Caution: Before handling the module, you must discharge all static electricity on your person to avoid Electrostatic Discharge (ESD) damage. If using a wrist strap, ensure that the wrist strap touches your skin.
  • Page 14 Transceiver Installation and Removal Small Form-Factor Pluggables (SFP/SFP+/QSFP+) To install, align the transceiver with the transceiver slot on the NI module, as shown. Be sure that the bail wire delatch is in the up, or closed position. Slide the transceiver straight into the slot until the module clicks firmly into place.
  • Page 15 Small Form-Factor Pluggables (SFP/SFP+/QSFP+) Transceiver Installation and Removal To install, align the transceiver with the Network Interface (NI) Module transceiver slot on the NI module, as shown. Carefully slide the transceiver back until it clicks into place; this is an indication that the connectors are firmly QSFP+ Transceiver seated.

  • Page 16: 40-Gigabit Fiber Optic Cables

    40-Gigabit Fiber Optic Cables Small Form-Factor Pluggables (SFP/SFP+/QSFP+) 40-Gigabit Fiber Optic Cables QSFP to QSFP 40G Fiber Optic Cable To directly connect two Omniswitches with a 40G transceiver, an MPO trunk cable can be used. The cable can have 8 or 12 fibers, however, the 40G standard only uses 8 fibers. The cable should be a Type-B cross- over cable.

  • Page 17: Gigabit Ethernet Transceivers

    -17 dBm Transmission Distance ~300 m on 62.5/125µm ~550 m on 50/125µm Operating Temperature -20 ºC to 85ºC Digital Diagnostic Monitoring Supported (Alcatel-Lucent branded transceivers only) SFP-GIG-LX Gigabit SFP Optical Transceiver. Connector types Standards supported 802.3z, SFP MSA Connections supported...
  • Page 18 Gigabit Ethernet Transceivers Small Form-Factor Pluggables (SFP/SFP+/QSFP+) SFP-GIG-LH40 Gigabit SFP Optical Transceiver. Connector Type Standards Supported 802.3z, SFP MSA Connections Supported 1000Base-LH40r Fiber Type Wavelength 1310 nm Optical Power Output 0 to +5 dBm Receiver Sensitivity -22 dBm Transmission Distance ~40 km Operating Temperature -10 ºC to 70 ºC...
  • Page 19 Small Form-Factor Pluggables (SFP/SFP+/QSFP+) Gigabit Ethernet Transceivers SFP-GIG-CWD Coarse Wavelength Division Multiplexing (CWDM) is an optical transceiver supporting single-mode fiber over various wavelengths. CWDMs are hot-pluggable and are available for long-reach applications. Connector Type Standards Supported 802.3z, SFP MSA Connections Supported 1000Base-LX Fiber Type Wavelength...
  • Page 20 Gigabit Ethernet Transceivers Small Form-Factor Pluggables (SFP/SFP+/QSFP+) SFP-GIG-BX-D Bi-Directional SFP Optical Transceiver. Connector Type Standards Supported 802.3ah, SFP MSA Connections Supported 1000Base-BX10 Fiber Type Wavelength Transmit: 1490 nm Receive: 1310 nm Average Power Output -9 to -3 dBm Receiver Sensitivity -19.5 dBm Transmission Distance ~10 km...
  • Page 21 Small Form-Factor Pluggables (SFP/SFP+/QSFP+) Gigabit Ethernet Transceivers SFP-GIG-BX-D20 Bi-Directional SFP Optical Transceiver. Connector Type Standards Supported 802.3ah, SFP MSA Connections Supported 1000Base-BX20 Fiber Type Wavelength Transmit: 1490 nm Receive: 1310 nm Average Power Output -8 to -3 dBm Receiver Sensitivity -23 dBm Transmission Distance ~20 km...
  • Page 22 Gigabit Ethernet Transceivers Small Form-Factor Pluggables (SFP/SFP+/QSFP+) SFP-GIG-BX-D40 Bi-Directional SFP Optical Transceiver. Connector Type Standards Supported 802.3ah, SFP MSA Connections Supported 1000Base-BX40 Fiber Type Wavelength Transmit: 1490 nm Receive: 1310 nm Average Power Output -2 to +3 dBm Receiver Sensitivity -23 dBm Transmission Distance ~40 km...

  • Page 23: Dual Speed Ethernet Transceivers

    Small Form-Factor Pluggables (SFP/SFP+/QSFP+) Dual Speed Ethernet Transceivers Dual Speed Ethernet Transceivers SFP-DUAL-MM Dual speed Optical Transceiver. Connector Type Standards Supported 802.3z, 802.3ah, SFP MSA Connections Supported 100Base-FX, 1000Base-LX Fiber Type Wavelength 1310 nm Average Power Output 100Base-FX: -20 to -14 dBm 1000Base-LX: -11.5 to -3 dBm Receiver Sensitivity 100Base-FX: -28 dBm...
  • Page 24 Dual Speed Ethernet Transceivers Small Form-Factor Pluggables (SFP/SFP+/QSFP+) SFP-DUAL-BX-D Dual speed Optical Transceiver. Connector Type Standards Supported 802.3z, 802.3ah, SFP MSA Connections Supported 1000BASE-BX10-D Fiber Type Wavelength Transmit: 1550 nm Receive: 1310 nm Average Power Output -9 to -3 dBm Receiver Sensitivity -18.7 dBm Transmission Distance...

  • Page 25: Fx Ethernet Transceivers

    Small Form-Factor Pluggables (SFP/SFP+/QSFP+) 100 FX Ethernet Transceivers 100 FX Ethernet Transceivers SFP-100-BX20LT Bi-Directional SFP Optical Transceiver. Connector Type Standards Supported 802.3ah, SFP MSA, ITU-T G.983 Connections Supported 100Base-BX Fiber Type Wavelength Transmit: 1550 nm Receive: 1310 nm Average Power Output -14 to -8 dBm Receiver Sensitivity -32 dBm...
  • Page 26 100 FX Ethernet Transceivers Small Form-Factor Pluggables (SFP/SFP+/QSFP+) SFP-100-BXLC-D Bi-Directional SFP Optical Transceiver. Connector Type Standards Supported 802.3ah, SFP MSA, ITU-T G.983 Connections Supported 100Base-BX Fiber Type Wavelength Transmit: 1550 nm Receive: 1310 nm Average Power Output -14 to -8 dBm Receiver Sensitivity -32 dBm Transmission Distance...
  • Page 27 Small Form-Factor Pluggables (SFP/SFP+/QSFP+) SFP-100-LC-MM SFP Optical Transceiver. Connector Type Standards Supported 802.3u, SFP MSA Connections supported 100Base-FX Fiber Type Wavelength 1310 nm Optical Power Output -19 to -14 dBm on 62.5/125µm -22 to 14 dBm on 50/125µm Transmission Distance ~2 km on 62.5/125µm ~2 km on 50/125µm Operating Temperature...
  • Page 28 Small Form-Factor Pluggables (SFP/SFP+/QSFP+) SFP-100-LC-SM40 SFP Optical Transceiver. Connector Type Standards Supported 802.3u, SFP MSA Connections Supported 100Base-FX Fiber Type Wavelength 1310 nm Optical Power Output -15 to -8 dBm Receiver Sensitivity -34 dBm Transmission Distances ~40 km Operating Temperature 0 ºC to 70 ºC Digital Diagnostic Monitoring Not Supported...

  • Page 29: 10-Gigabit Sfp+ Transceivers

    Small Form-Factor Pluggables (SFP/SFP+/QSFP+) 10-Gigabit SFP+ Transceivers 10-Gigabit SFP+ Transceivers SFP-10G-SR 10-Gigabit SFP+ Optical Transceiver. Connector Type Standards Supported 802.3 Clause 52 Connections supported 10GBase-SR Fiber Type Wavelength 850 nm Optical Power Output -7.3 to -3.0 dBm Receiver Sensitivity -11.1 dBm Transmission Distance ~ 300 m Operating Temperature...
  • Page 30 10-Gigabit SFP+ Transceivers Small Form-Factor Pluggables (SFP/SFP+/QSFP+) SFP-10G-ER 10-Gigabit SFP+ Optical Transceiver. Connector Type Standards Supported 802.3ae Connections supported 10GBase-E Fiber Type Wavelength 1550 nm Optical Power Output -4.7 to 4.0 dBm Receiver Sensitivity -14.1 dBm Transmission Distance ~ 40 km Operating Temperature -5 ºC to 70 ºC Maximum Power Consumption...
  • Page 31 Small Form-Factor Pluggables (SFP/SFP+/QSFP+) 10-Gigabit SFP+ Transceivers SFP-10G-ZR 10-Gigabit SFP+ Optical Transceiver. Wavelength 1550 nm Optical Power Output 0 to +5 dBm Receiver Sensitivity -20 dBm Transmission Distance ~ 80 km Operating Temperature -5 ºC to 70 ºC Maximum Power Consumption 1.2 W Digital Diagnostic Monitoring Supported...
  • Page 32 10-Gigabit SFP+ Transceivers Small Form-Factor Pluggables (SFP/SFP+/QSFP+) SFP-10G-24DWD80 10-Gigabit SFP+ Optical Transceiver. Standards Supported 802.3ae Connections supported 10GBase-ZR Fiber Type Wavelength 1558.17 nm Optical Power Output 0 to 5dBm Receiver Sensitivity -23 dBm Transmission Distance ~ 80 km Operating Temperature -5ºC to 70ºC Maximum Power Consumption 1.2 Watt...
  • Page 33 Small Form-Factor Pluggables (SFP/SFP+/QSFP+) 10-Gigabit SFP+ Transceivers SFP-10G-GIG-LR 10-Gigabit SFP+ Optical Transceiver. Fiber Type Wavelength 1310 nm Optical Power Output -8.2 to +5 dBm @ 10G -11 to -3 dBm @ 1G Receiver Sensitivity -12.6 dBm @ 10G -19 dBm @ 1G Transmission Distance ~10 km Operating Temperature...

  • Page 34: 40-Gigabit Qsfp+ Transceivers

    40-Gigabit QSFP+ Transceivers Small Form-Factor Pluggables (SFP/SFP+/QSFP+) 40-Gigabit QSFP+ Transceivers CAUTION - CLASS 1M LASER RADIATION WHEN OPEN. DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS. QSFP-40G-SR Four channel 40-Gigabit QSFP+ Optical Transceiver. Connector Type Standards Supported 802.3ba, QSFP+ MSA Connections supported 40GBase-SR4 Fiber Type Wavelength...
  • Page 35 Small Form-Factor Pluggables (SFP/SFP+/QSFP+) 40-Gigabit QSFP+ Transceivers QSFP-40G-LR Four channel 40-Gigabit QSFP+ Optical Transceiver. Connector Type Standards Supported 802.3ba, QSFP+ MSA Connections supported 40GBase-LR4 Fiber Type Wavelength 1310 nm Optical Power Output -7.0 to +2.3 dBm Receiver Sensitivity -11.5 dBm Transmission Distance 10 km Operating Temperature...
  • Page 36 40-Gigabit QSFP+ Transceivers Small Form-Factor Pluggables (SFP/SFP+/QSFP+) QSFP-4X10G-SR Four channel 40-Gigabit QSFP+ Optical Transceiver. Connects a single 40G QSFP+ port to four 10G SFP+ ports Fiber Type Wavelength 850 nm Optical Power Output -7.5 to +0.5 dBm Receiver Sensitivity -7.5 dBm (SRS) Transmission Distance OM3 - ~ 300 m OM4 - ~400 m...
  • Page 37 Small Form-Factor Pluggables (SFP/SFP+/QSFP+) 40-Gigabit QSFP+ Transceivers OS6860-CBL-100 Connector Type Direct Attached Copper Standards Supported 802.3ba, QSFP+ MSA Cable Length Wire Gauge 26AWG Bend Radius 1.69 in. Digital Diagnostics Monitoring Not Supported OS6860-CBL-300 Description 20-Gigabit QSFP+ direct attached copper transceiver. Connector Type Direct Attached Copper Standards Supported...

  • Page 38: Fibre Channel Transceivers

    Fibre Channel Transceivers Small Form-Factor Pluggables (SFP/SFP+/QSFP+) Fibre Channel Transceivers SFP-FC-SR Triple-speed SFP+ Fibre Channel optical transceiver. Connector Type Standards Supported FC-PI-4 Connections supported Auto-sensing 2G, 4G, 8G Fiber Type Wavelength 850 nm Average Optical Power Output -8.2 dBm Transmission Distance OM3: ~150m @ 8Gbps, 310m @ 4Gbps, 500m @ 2Gbps OM1: ~21m @ 8Gbps, 70m @ 4Gbps, 150m @ 2Gbps Operating Temperature...

  • Page 39: Industrial Transceivers

    Receiver Sensitivity -14.5 dBm  Transmission Distance 10 km Operating Temperature -40 ºC to 85 ºC / 0 ºC to 70 ºC Digital Diagnostic Monitoring Supported (Alcatel-Lucent branded transceivers only) OmniSwitch AOS Release 8 Transceivers Guide January 2017 page 1-29...
  • Page 40 Industrial Transceivers Small Form-Factor Pluggables (SFP/SFP+/QSFP+) iSFP-GIG-LH40 Gigabit SFP Optical Transceiver. Connector Type Standards Supported 802.3z, SFP MSA Connections Supported 1000Base-LH40 Fiber Type Wavelength 1310 nm Optical Power Output -2 to +3 dBm Receiver Sensitivity -23 dBm Transmission Distance ~40 km Operating Temperature -40 ºC to 85 ºC Digital Diagnostic Monitoring...
  • Page 41 Small Form-Factor Pluggables (SFP/SFP+/QSFP+) Industrial Transceivers iSFP-GIG-T Gigabit SFP Copper Transceiver. Connector Type RJ-45 Standards Supported 802.3z, SFP MSA Connections supported 10/100/1000Base-T Cable Type CAT5, CAT5e, CAT6  Transmission Distance 100 m Digital Diagnostic Monitoring Not Supported iSFP-GIG-BX-D Bi-Directional SFP Optical Transceiver. Connector Type Standards Supported 802.3ah, SFP MSA...
  • Page 42 Industrial Transceivers Small Form-Factor Pluggables (SFP/SFP+/QSFP+) iSFP-GIG-BX-U Bi-Directional SFP Optical Transceiver. Receiver Sensitivity -19.5 dBm Transmission Distance ~10 km Operating Temperature 0 ºC to 70 ºC Digital Diagnostic Monitoring Supported Notes Designed for use with iSFP-GIG-BX-D iSFP-10G-SR 10-Gigabit SFP+ Optical Transceiver. Connector Type Standards Supported 802.3 Clause 52...
  • Page 43 Small Form-Factor Pluggables (SFP/SFP+/QSFP+) Industrial Transceivers iSFP-10G-ER 10-Gigabit SFP+ Optical Transceiver. Connector Type Standards Supported 802.3ae Connections supported 10GBase-E Fiber Type Wavelength 1550 nm Optical Power Output -4.7 to 4.0 dBm Receiver Sensitivity -14.1 dBm Transmission Distance ~ 40 km Operating Temperature -5 ºC to 70 ºC Maximum Power Consumption...

  • Page 44: Transceiver Compatibility Matrix

    The following sections document the transceiver configurations and minimum release required for support on the OmniSwitch. Compatibility specifications in this chapter include: OmniSwitch 10K . See “OmniSwitch 10K Compatibility” on page 2-35 • OmniSwitch 6900 . See “OmniSwitch 6900 Compatibility” on page 2-37 •...

  • Page 45: Omniswitch 10K Compatibility

    Transceiver Compatibility Matrix OmniSwitch 10K Compatibility OmniSwitch 10K Compatibility The following table shows the available transceivers and minimum release required for support: Transceiver OS10K- OS10K-XNI OS10K-QNI GNI-U48 U32/U16 U4/U8 SFP-GIG-SX 7.1.1 7.1.1 Not Supported SFP-GIG-LX 7.1.1 7.1.1 Not Supported SFP-GIG-LH40 7.1.1...
  • Page 46 OmniSwitch 10K Compatibility Transceiver Compatibility Matrix Transceiver OS10K- OS10K-XNI OS10K-QNI GNI-U48 U32/U16 U4/U8 SFP-10G-T Not Supported Not Supported Not Supported SFP-10G-C Not Supported 7.1.1 Not Supported SFP-10G-24DWD80 Not Supported 7.3.1 Not Supported SFP-10G-GIG-SR Not Supported 7.3.1 Not Supported SFP-10G-GIG-LR Not Supported...

  • Page 47: Omniswitch 6900 Compatibility

    Transceiver Compatibility Matrix OmniSwitch 6900 Compatibility OmniSwitch 6900 Compatibility The following table shows the available transceivers and minimum release required for support: Transceiver OS6900- OS6900-Q32 OS6900-X72 XNI-U4/U12 HNI-U6 QNI-U3 XNI-U12E X20/X40 SFP-GIG-SX 7.2.1 7.3.4.R02 7.2.1 7.2.1.R02 7.3.3 SFP-GIG-LX 7.2.1 7.3.4.R02 7.2.1 7.2.1.R02 7.3.3...
  • Page 48 OmniSwitch 6900 Compatibility Transceiver Compatibility Matrix Transceiver OS6900- OS6900-Q32 OS6900-X72 XNI-U4/U12 HNI-U6 QNI-U3 XNI-U12E X20/X40 SFP-10G-T SFP-10G-C 7.2.1 7.3.4.R02 7.2.1 7.2.1 7.3.3 SFP-10G- 7.3.1 7.3.4.R02 7.3.1 7.3.1 7.3.3 24DWD80 SFP-10G-GIG-SR 7.3.1 7.3.4.R02 7.3.1 7.3.1 7.3.3 SFP-10G-GIG-LR Not Supported SFP-FC-SR 7.3.3 QSFP-40G-SR 7.3.4 7.3.4.R02...

  • Page 49: Omniswitch 6860 Compatibility

    Transceiver Compatibility Matrix OmniSwitch 6860 Compatibility OmniSwitch 6860 Compatibility The following table shows the available transceivers and minimum release required for support: Transceiver OS6860/6860E OS6860E-U28 (Excluding U28) SFP-GIG-SX 8.1.1 8.1.1 SFP-GIG-LX 8.1.1 8.1.1 SFP-GIG-LH40 8.1.1 8.1.1 SFP-GIG-LH70 8.1.1 8.1.1 SFP-GIG-CWD 8.1.1 8.1.1 SFP-GIG-T...
  • Page 50 OmniSwitch 6860 Compatibility Transceiver Compatibility Matrix Transceiver OS6860/6860E OS6860E-U28 (Excluding U28) SFP-10G-GIG-SR 8.1.1 8.1.1 SFP-10G-GIG-LR 8.2.1 8.2.1 SFP-FC-SR QSFP-40G-SR 8.1.1 8.1.1 QSFP-40G-SR-BD QSFP-40G-LR QSFP-40G-C QSFP-4X10G-SR QSFP-4X10G-C QSFP-40G-AOC20M 8.2.1 8.2.1 OS6860-CBL-100 8.1.1 8.1.1 OS6860-CBL-300 8.1.1 8.1.1 OS6860-CBL-40 8.1.1 8.1.1 1. OS6860E-U28 user ports (1 - 28) support 10/100/1000. All 6860 uplink ports support 1Gbps only with this transceiver.

  • Page 51: Omniswitch 6865 Compatibility

    Transceiver Compatibility Matrix OmniSwitch 6865 Compatibility OmniSwitch 6865 Compatibility The following table shows the available transceivers and minimum release required for support: Transceiver OS6865-P16X iSFP-GIG-SX 8.3.1 iSFP-GIG-LX 8.3.1 iSFP-GIG-LH40 8.3.1 iSFP-GIG-LH70 8.3.1 iSFP-GIG-T 8.3.1 iSFP-GIG-BX-D 8.3.1 iSFP-GIG-BX-U 8.3.1 iSFP-10G-SR 8.3.1 iSFP-10G-LR 8.3.1 iSFP-10G-ER...

  • Page 52: Omniswitch 9900 Compatibility

    OmniSwitch 9900 Compatibility Transceiver Compatibility Matrix OmniSwitch 9900 Compatibility The following table shows the available transceivers and minimum release required for support: Transceiver OS99-CMM OS99-XNI-U48 SFP-GIG-SX Not Supported 8.3.1 SFP-GIG-LX Not Supported 8.3.1 SFP-GIG-LH40 Not Supported 8.3.1 SFP-GIG-LH70 Not Supported 8.3.1 SFP-GIG-CWD Not Supported...

  • Page 53: Omniswitch Aos Release 8 Transceivers Guide January 2017

    Transceiver Compatibility Matrix OmniSwitch 9900 Compatibility Transceiver OS99-CMM OS99-XNI-U48 SFP-10G-GIG-LR Not Supported 8.3.1 SFP-FC-SR Not Supported Not Supported QSFP-40G-SR 8.3.1.R02 Not Supported QSFP-40G-SR-BD 8.3.1.R02 Not Supported QSFP-40G-LR 8.3.1.R02 Not Supported QSFP-40G-C 8.3.1.R02 Not Supported QSFP-4X10G-SR 8.3.1.R02 Not Supported QSFP-4X10G-C 8.3.1.R02 Not Supported QSFP-40G-AOC20M 8.3.1.R02...
