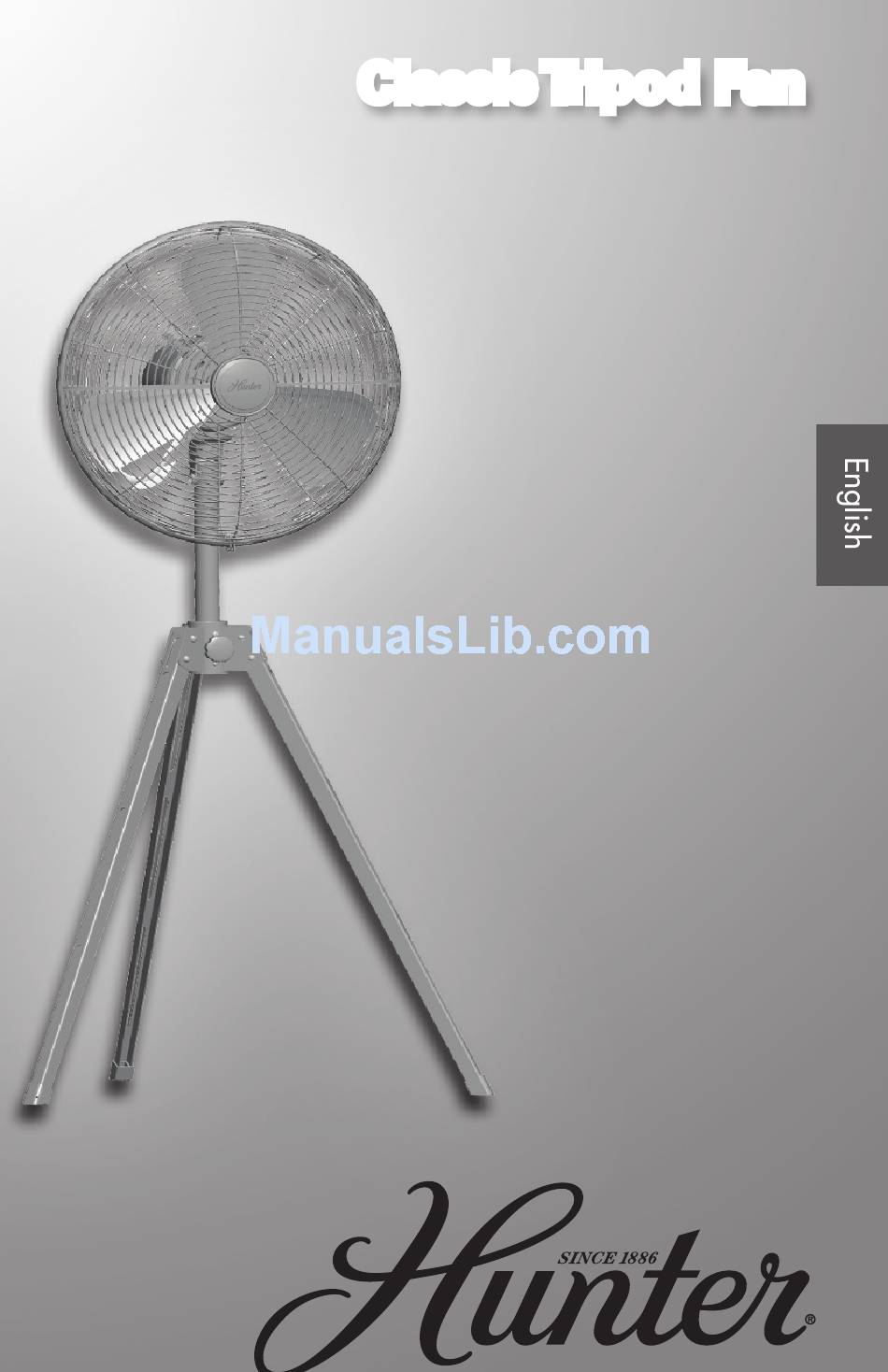

- Page 1 Classic Tripod Fan Classic Tripod Fan Classic Tripod Fan Owner’s Manual Model 90437 90440 61903-01 R20141230...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ............. 3 Safety and Warnings ..........3 Grounding ............... 5 Fused Plug ............... 6 Unpacking ............... 7 Tripod Assembly ............7 Attaching Motor To Pole ........... 7 Grill Assembly ............8 Operation.............. 10 Off / Speed Selection Oscillation Height Adjustment Maintenance ............ -
Page 3: Introduction
INTRODUCTION Thank you for choosing the Hunter Oscillating Stand Fan. This manual gives you complete instructions for assembling and using your fan. Here are some of the features you will enjoy with your fan: An attractive design that enhances any decor... - Page 4 8. Close supervision is necessary when any appliance is used near children. 9. NEVER insert fingers, pencils or any other objects through the grill when the fan is running. 10. DO NOT operate any appliance with a damaged cord or plug, after the appliance malfunctions or has been dropped or damaged in any manner.
-
Page 5: Grounding
GROUNDING Grounded Plug This appliance is for household use only and may be plugged into any 120-volt AC electrical outlet (ordinary household current). DO NOT use any other type of outlet. WARNING Grounding Pin Grounded Outlet This unit is suitable for grounded receptacle use only. Box Cover Figure 1 The power cord has a grounded plug as shown in... -
Page 6: Fused Plug
FUSED PLUG This plug is a safety feature. It contains a safety device (fuse) that should not be removed. Discard product if the attachment plug is damaged. To reduce the risk of re, electric shock and personal injury, DO NOT remove, replace, repair or tamper with the originally supplied plug. -
Page 7: Unpacking
UNPACKING As you unpack the fan, save the carton and packing materials in case you want to move or ship the unit in the future. Carefully remove all items from the box. NOTE: It is best to have someone hold the box while you lift the fan and the protective packaging out of the carton. -
Page 8: Grill Assembly
GRILL ASSEMBLY Note: The grill ring may be attached to the rear grills for shipping purposes. If so, remove the grill ring by loosening the grill ring screw. 1. Remove the four rear grill mounting screws from the motor housing. Figure 9. Grill Mounting 2. - Page 9 Place the front grill against the rear grill so that the Hunter logo faces right side up and push together until the tabs on the grills hold them together. Figure 14. 8. Expand the grill ring by loosening the screw that Front Grill secures it.
-
Page 10: Operation
OPERATION Off / Speed Selection High Turn the fan “ON” or “OFF” by moving the power/speed Medium lever. The power should always be OFF before unplugging the fan. To select the speed, move the power/ Off speed lever from OFF to the desired speed setting: O (off), I (low), II (medium), III (high). -
Page 11: Maintenance
MAINTENANCE This fan is permanently lubricated and will not require additional lubrication (oil) for the life of the fan. This fan requires little maintenance and contains no user serviceable parts. DO NOT try to yourself. Contact quali ed service personnel if servicing is needed. -
Page 12: Troubleshooting
These electronic control items are included in the one year limited warranty below. If any part of your Hunter Portable Fan other than the motor fails at any time within one year after the date of 61903-01 R20141230... - Page 13 OR OTHER FAN PART, IS EXPRESSLY LIMITED TO THE PERIOD OF THE EXPRESS WARRANTY SET FORTH ABOVE FOR SUCH MOTORS AND OTHER PARTS. This warranty is voided if your Hunter Fan is not purchased and used in the USA. This warranty excludes and does not cover defects,...
- Page 14 The purchaser must present sales receipt or other document that establishes proof of purchase. IN NO EVENT SHALL HUNTER HOME COMFORT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR...
