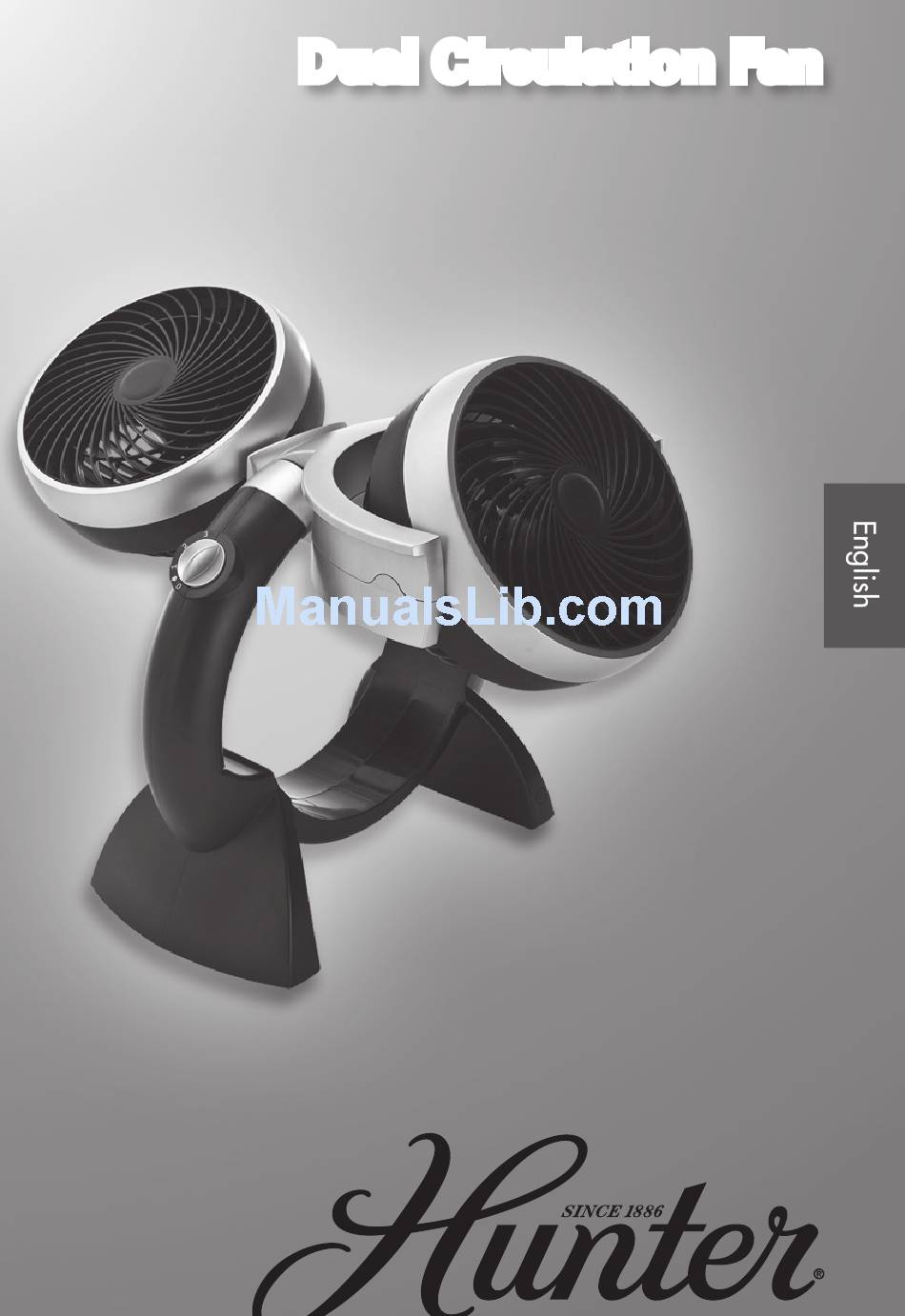

- Page 1 Dual Circulation Fan Dual Circulation Fan Dual Circulation Fan Owner’s Guide Model 90436 90441 90442 Form# 44096-01 20130220 ©2013 Hunter Fan Co.
-
Page 2: Table Of Contents
Parts Identification ................ 3 Specifications ................3 Safety Precautions ................ 4 Fused Plug ................... 5 Operating Instructions ..............6 Care and Maintenance ..............7 Technical Support ................. 7 Warranty ..................8 Products ..................9 44096-01 20130220 ©2013 Hunter Fan Co. -
Page 3: Parts Identification
PARTS IDENTIFICATION Handle Speed Control Knob (Lower Fan) Speed Control Knob (Upper Fan) SPECIFICATIONS INPUT VOLTAGE 120v / 60Hz POWER RATING FAN BLADE SIZE 7.6in. (upper/lower) 44096-01 20130220 ©2013 Hunter Fan Co. -
Page 4: Safety Precautions
Contact a qualified electrician to replace worn outlet. 16. The plastic feet on this product may interact with wood and cause damage to furniture. Do Not place on fine wood furniture. 44096-01 20130220 ©2013 Hunter Fan Co. -
Page 5: Fused Plug
Note: If the fuse is not seated properly, the unit will not function. Figure 3. 5. Slide the Door back over the fuse box in the plug. 6. Plug the fan back in and resume use. 44096-01 20130220 ©2013 Hunter Fan Co. -
Page 6: Operating Instructions
FAN ORIENTATION Wind orientation can be adjusted manually as follows (please refer to Figure 5): • A: adjust to 180° angle. • B: adjust to 90° angle. • C: adjust to 90° angle. Figure 5. 44096-01 20130220 ©2013 Hunter Fan Co. -
Page 7: Care And Maintenance
• If the fan will not be in use for an extended period of time, you may leave the fan assembled. Cover to protect from dust. Store in a cool, dry place. TECHNICAL SUPPORT If you have any additional questions or problems with your Hunter Portable Fan, please call: USA: 1-888-830-1326... -
Page 8: Warranty
The Hunter Fan Company makes the following limited warranty to the user or consumer purchaser of this Hunter Portable fan: If your Hunter Portable Fan motor fails at any time within one year after the date of sale to you due to a defect in material or workmanship, labor to repair the defect will be provided free of charge at our nearest service center or our Service Department in Memphis, Tennessee. -
Page 9: Products
THE WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE. PRODUCTS To learn more about Hunter Fan Company products, please see our Web page at: www.hunterfan.com Fan Company 7130 Goodlett Farms Pkwy., Suite 400...
