Chapter 1
Introduction
• 21 AWG galvanized steel enclosure suitable for DIN or panel mounting provide secure mechanical reliability
Simple Plug and Play Operation
• Simple, externally-accessible configuration
• Transmit and receive data LED indicators for quick and easy troubleshooting
• Fully integrated power supply connects directly to power source permanently for reliable maintenance-free
operation
Universal Power Supply Options
• 24VDC, 48VDC or HI (88-300VDC / 85 - 264VAC) options for worldwide operability
• Integrated high-reliability power supply eliminates the need for external power transformer
• Screw down terminal blocks ensure reliable maintenance-free connections
• All power supplies CSA/UL 60950 approved for 85 °C (185 °F) operation
Section 1.2

Description

The RUGGEDCOM RMC20 features various ports, controls and indicator LEDs on the display panel for connecting,
configuring and troubleshooting the device. The display panel can be located on the rear, front or top of the
device, depending on the mounting configuration.
2

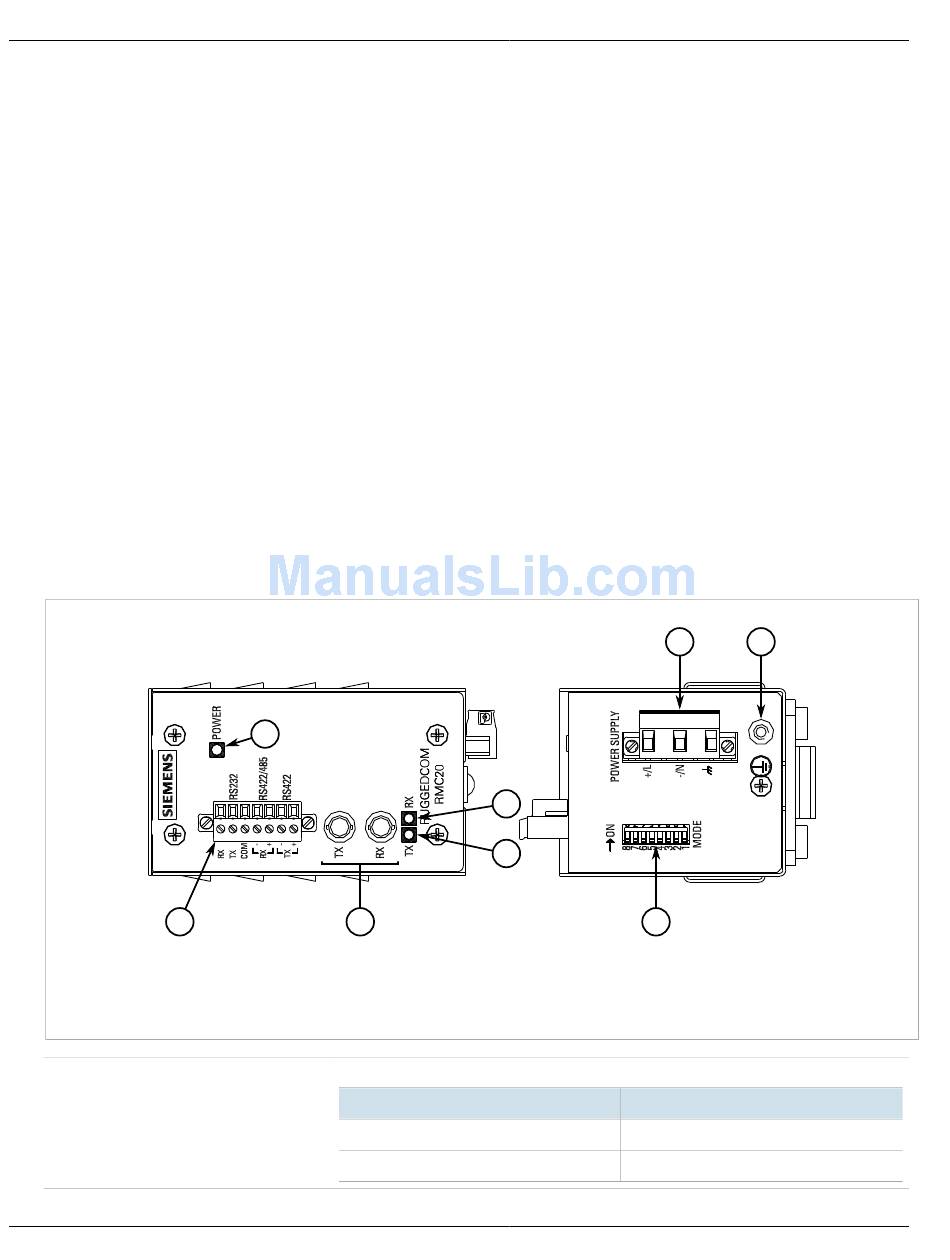

Figure 1: RUGGEDCOM RMC20
1. POWER LED 2. Serial Terminal 3. Fiber Optic Ethernet Ports 4. TX LED 5. RX LED 6. MODE Switch 7. Power Terminal Block
8. Chassis Ground Terminal
POWER LED
2
1
3
Illuminates when power is being supplied to the device.
State
Green
Off
7
4
5
6
Description
Power is on
Power is off
RUGGEDCOM RMC20
Installation Guide
8
Description
